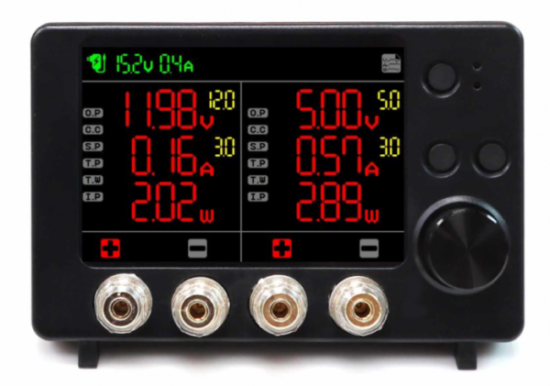

The easy way to make a Green platform. The ODROID SmartPower 3 is an easily deployable power supply that collects voltage, current and power of the system load to enable you to optimize energy consumption. LCD shows voltage, current and watts simultaneously while you can also see the graphical energy transient on your PC via USB interface.

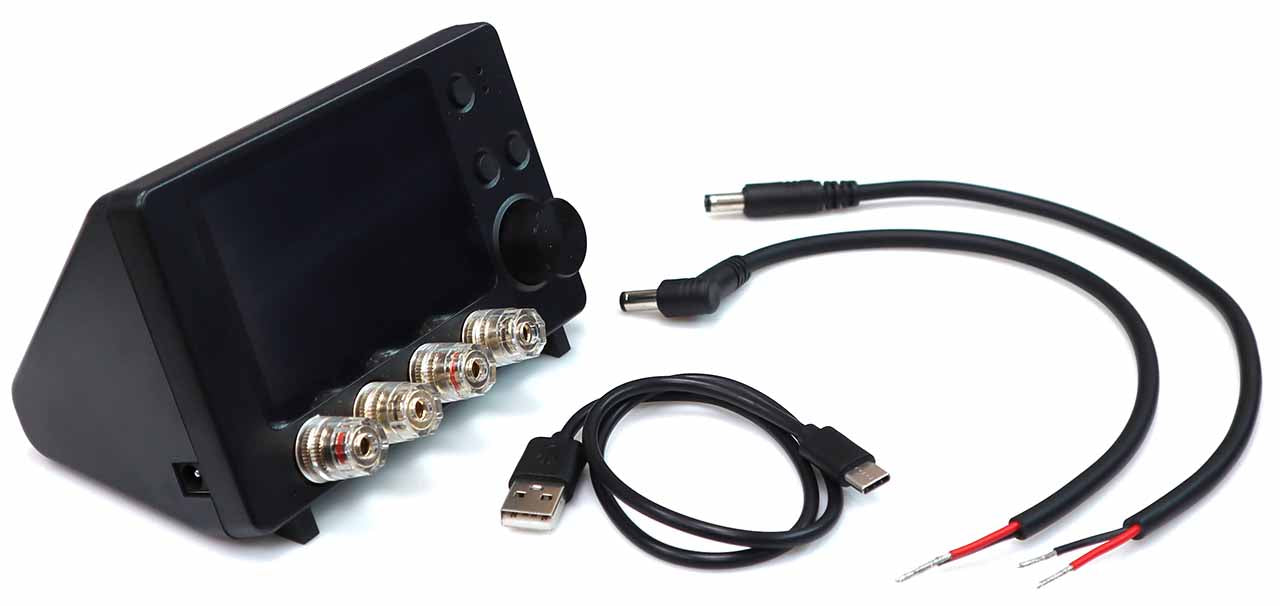

INCLUDES

ODROID Smart Power3
USB-C data cable
DC plug cable(5.5mm/2.1mm) x 2(L type/S type) for ODROID-XU4/ODROID-N2/ODROID-C4

REQUIRES

Power supply unit
15V/4A Power supply (EU, US) or 19V/7A Power supply

SPECIFICATIONS

Output Channels	Two output channels (Max 50W + 50W)
Output Voltage	DC 3.0 V ~ Input voltage -1 V
Output Current	DC 3A (Max) per channel
Measurement	Voltage, Current, Watt : Maximum sampling rate : 200Hz (5msec interval)
Tolerant	3% typical
MCU	ESP32-WROOM-32E

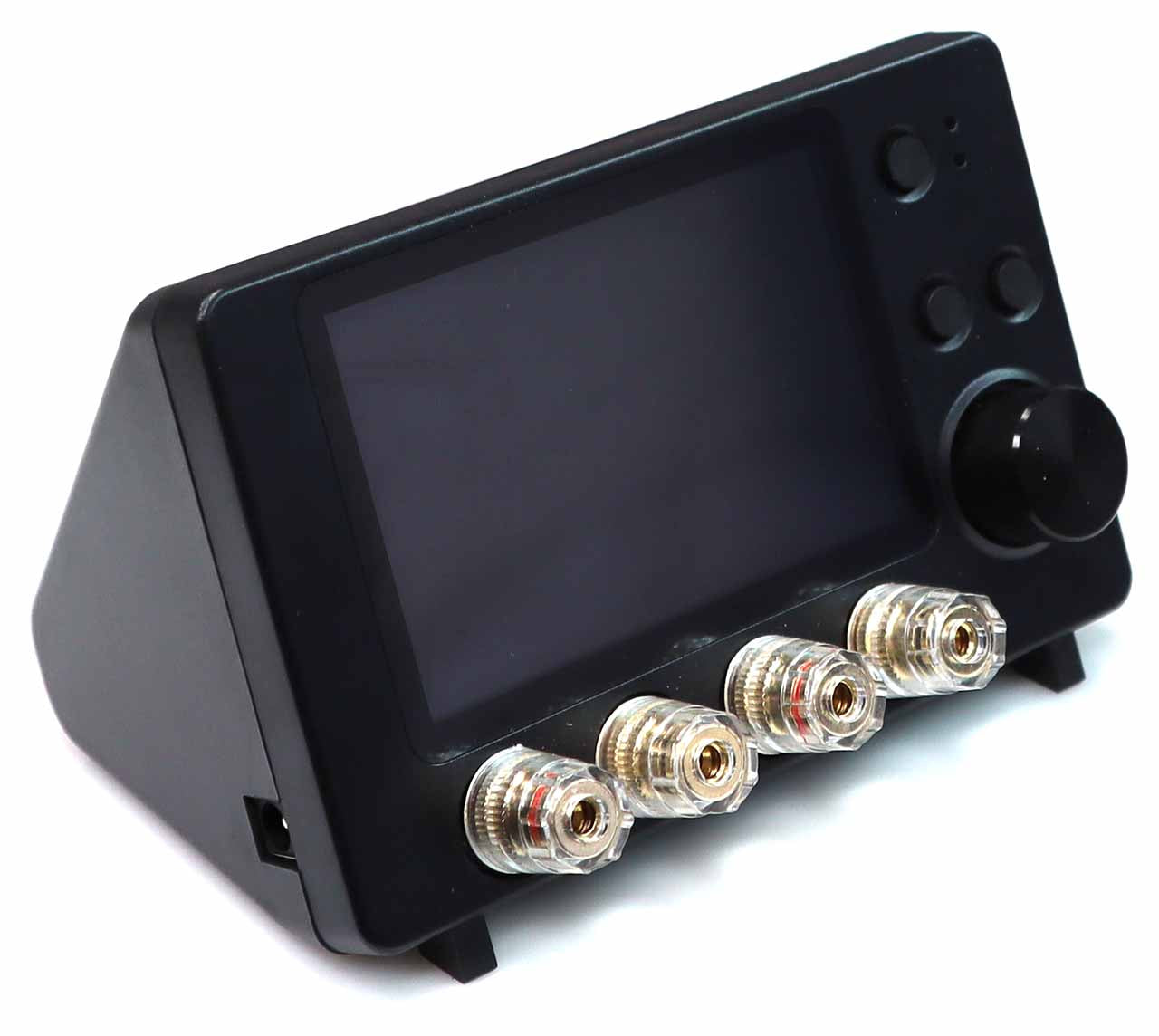

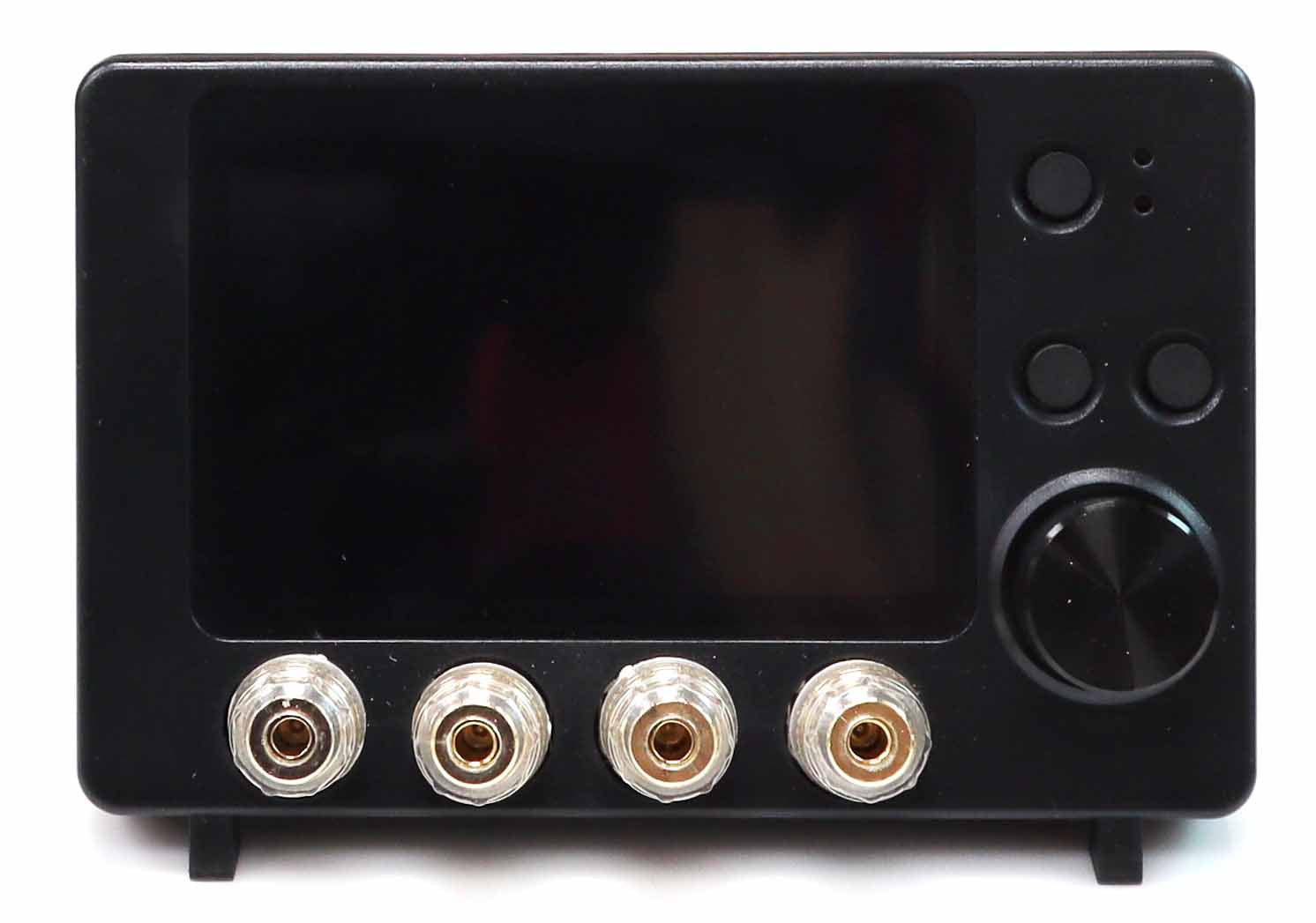

LCD	480×320 3.5“ TFT LCD IPS grade wide viewing angle	A
LED	RED(Power), BLUE(Alive)	C, D
Button	ON/OFF/Menu/Cancel, Output Channel On/Off	B, E, F
Encoder Button	Select/Setup	G
Encoder Dial	Adjust Voltage and Ampere	G
USB-C port	Data communication with PC (5ms ~ 1s sampling rate), F/W Upgrade	H
Output Terminal	4mm diameter banana jack x 2	J, I

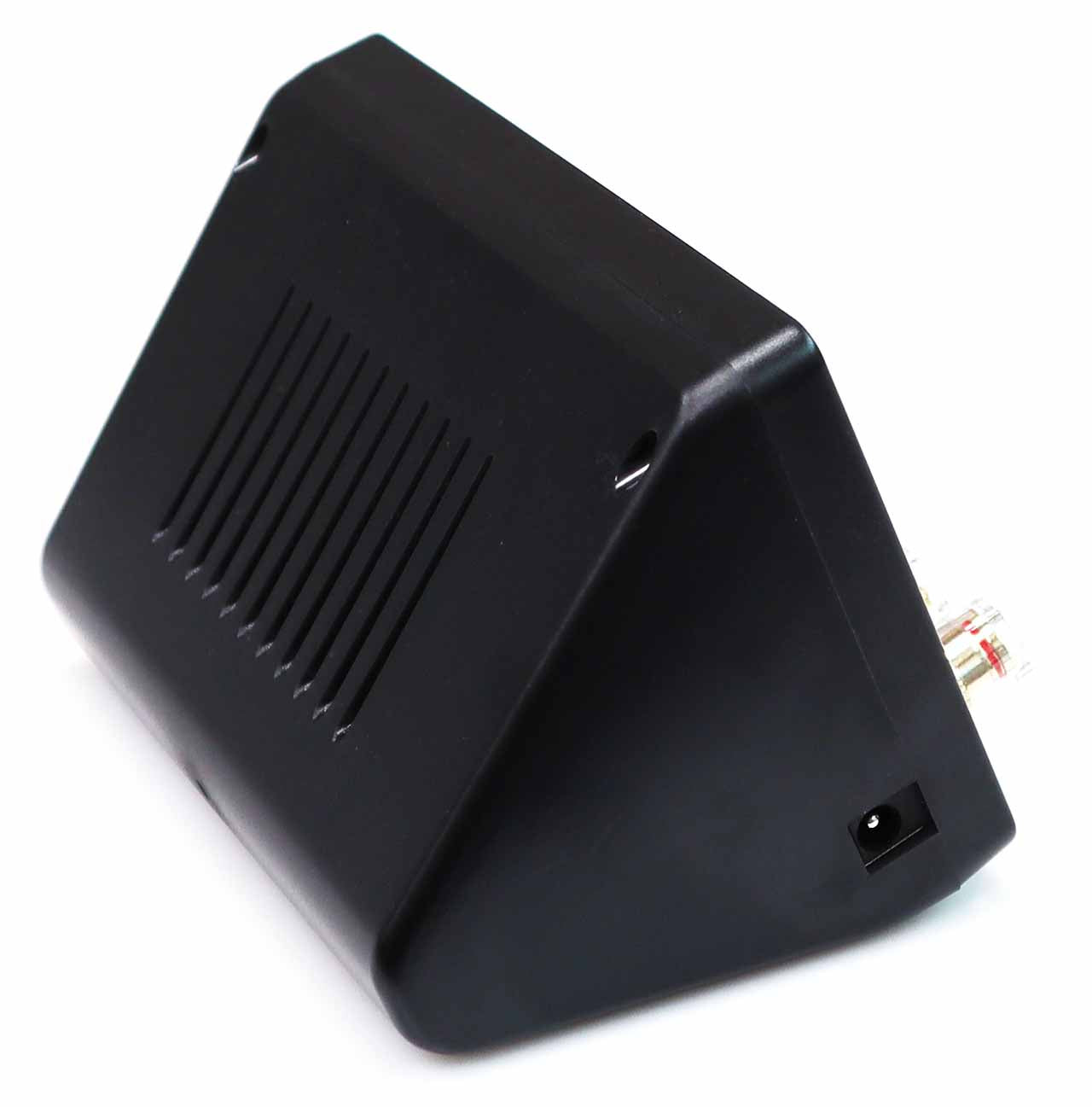

Input Voltage	DC 9V ~ 21V	K
