SONOFF NSPanel Pro Gen2

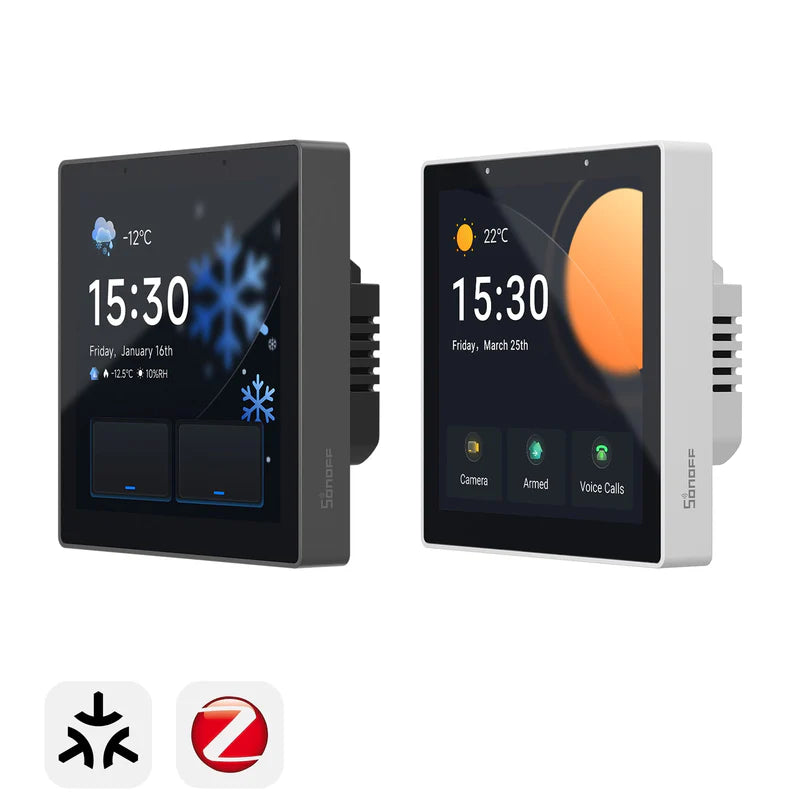

SONOFF NSPanel Pro Gen2 — Dual Channel Relay Smart Home Control Panel (86 Type)

The SONOFF NSPanel Pro Gen2 is a versatile all-in-one smart home control panel that combines a dual-channel relay switch, Zigbee 3.0 gateway, Matter Bridge, and a full Android-based touchscreen dashboard in a single 86-type wall unit. Available in White and Dim Gray, it can replace a traditional 2-gang wall switch while serving as a central control hub for your smart home. With strong Home Assistant support (including the official app via F-Droid — no root required), dual-band Wi-Fi, and Matter bridging, it is one of the most capable wall panels currently available.

KEY FEATURES

• Built-in Dual Channel Relay: Directly controls two lighting circuits (up to 5A per channel / 10A total resistive load) — replaces a traditional 2-gang switch with no extra modules needed

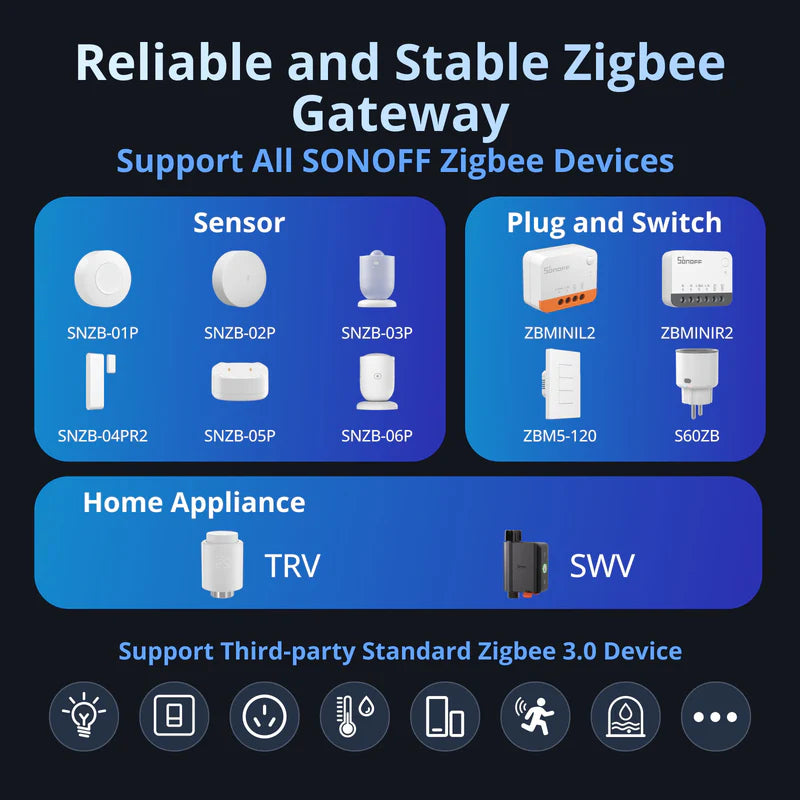

• Zigbee 3.0 Gateway: Silicon Labs EFR32MG24 chip — add and control Zigbee devices locally; can also operate in Zigbee Router mode

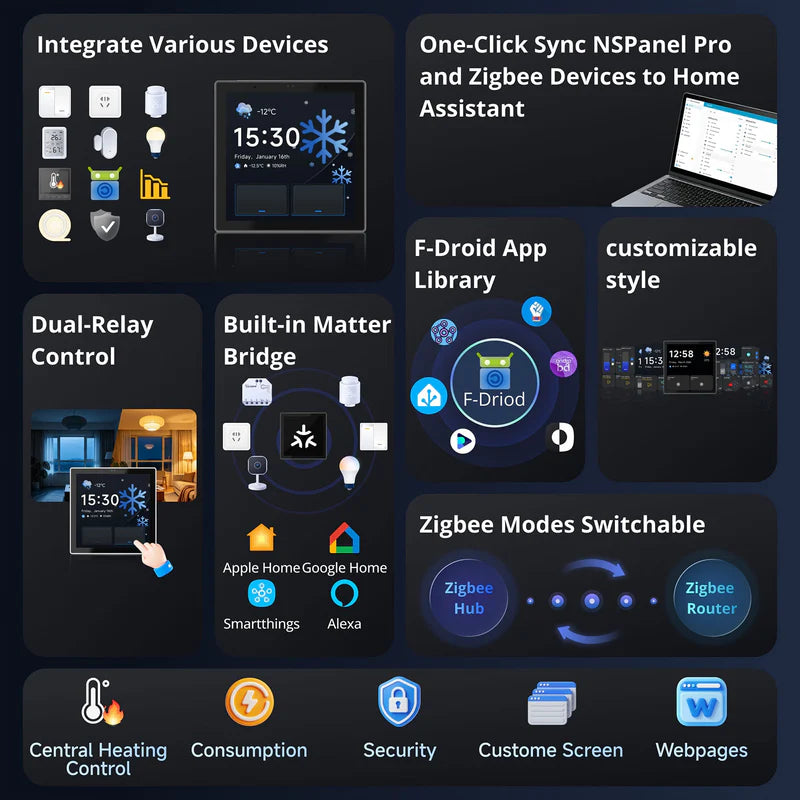

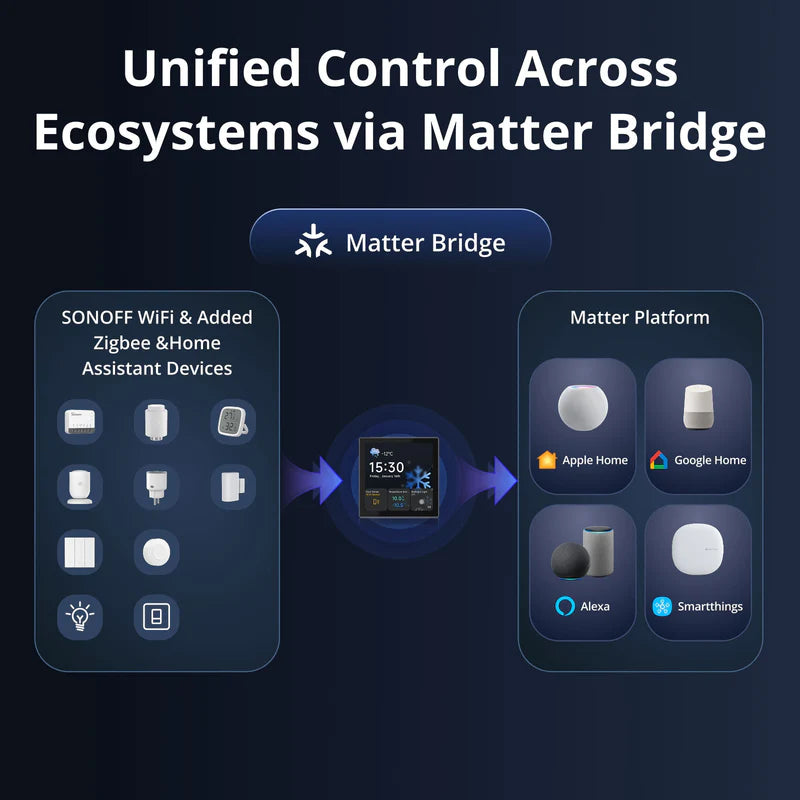

• Matter Bridge: Exposes Zigbee, eWeLink Wi-Fi, and Home Assistant devices to Apple Home, Google Home, Alexa, and other Matter platforms

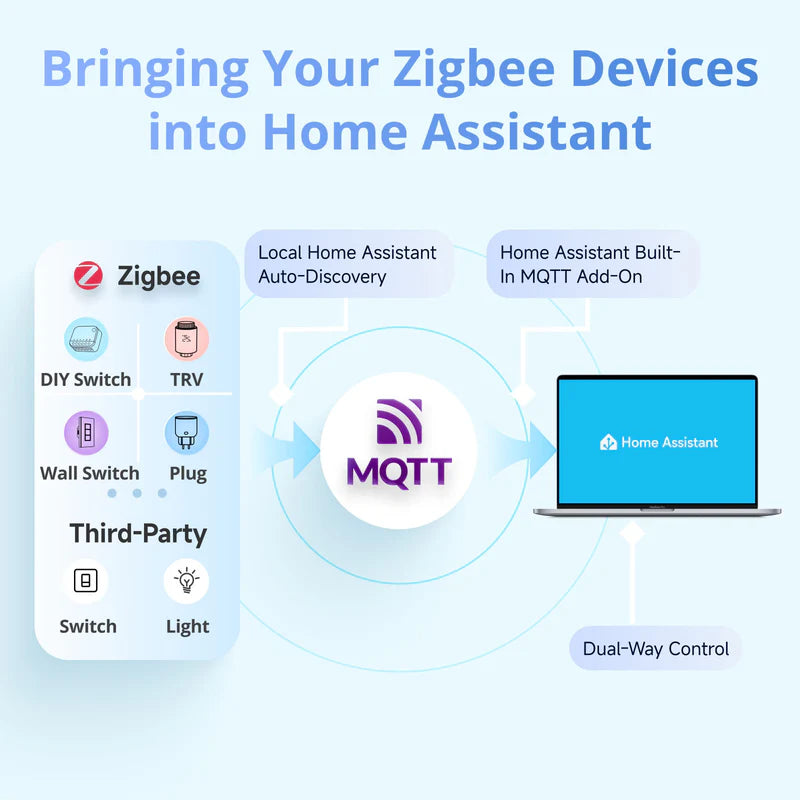

• Home Assistant Ready: Install the official Home Assistant app via F-Droid (no rooting required) and use the panel as a dedicated wall-mounted dashboard
• 3.95" Capacitive Touchscreen: 480×480 resolution with multi-touch support
• Dual-band Wi-Fi (2.4 GHz + 5 GHz) + Bluetooth
• Proximity Sensor: Screen wakes when you approach
• Ambient Light Sensor: Automatic brightness adjustment
• 1.5W Speaker + Dual Microphones: Support for notifications and intercom-style features
• Smart Thermostat, camera viewing (including RTSP), scenes, and security modes

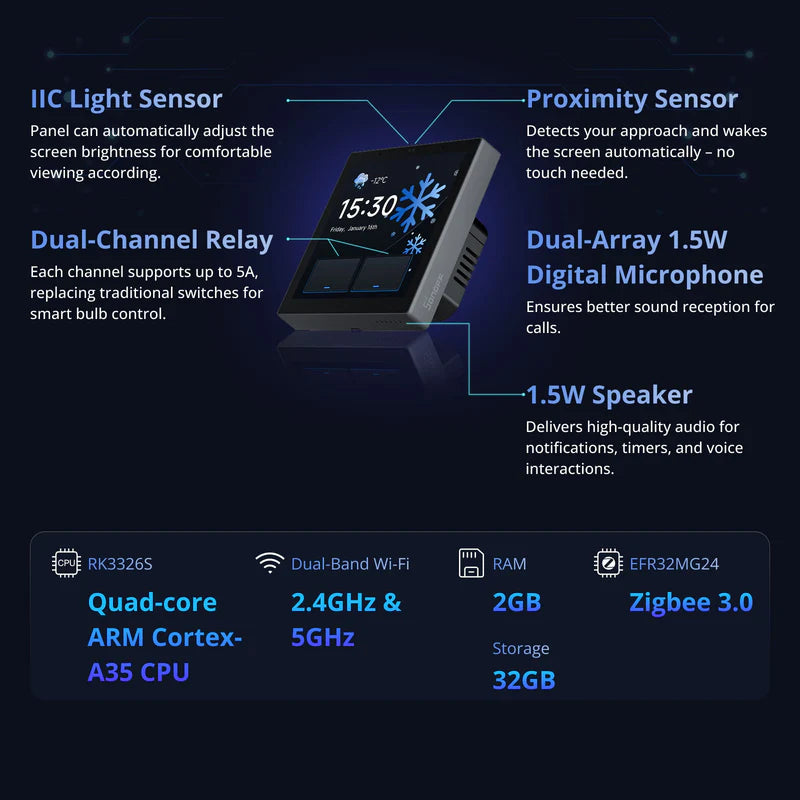

SPECIFICATIONS

Processor & Memory:

• SoC: Rockchip RK3326-S
• CPU: Quad-core ARM Cortex-A35
• GPU: Mali-G31-2EE
• RAM: 2 GB
• Storage: 32 GB eMMC

Display:

• 3.95-inch capacitive multi-touch TFT
• Resolution: 480 × 480

Relays:

• Dual-channel relay
• Max load: 5A per channel / 10A total (resistive)
• Rated: 100–240V AC 50/60 Hz

Wireless Connectivity:

• Wi-Fi: Dual-band 2.4 GHz + 5 GHz (IEEE 802.11 a/b/g/n/ac/ax)
• Zigbee 3.0 (Silicon Labs EFR32MG24)
• Bluetooth LE
• Matter Bridge support

Audio & Sensors:

• 1.5W speaker
• Dual digital microphones
• Proximity sensor
• Ambient light sensor

Power & Dimensions:

• Input: 100–240V AC 50/60 Hz

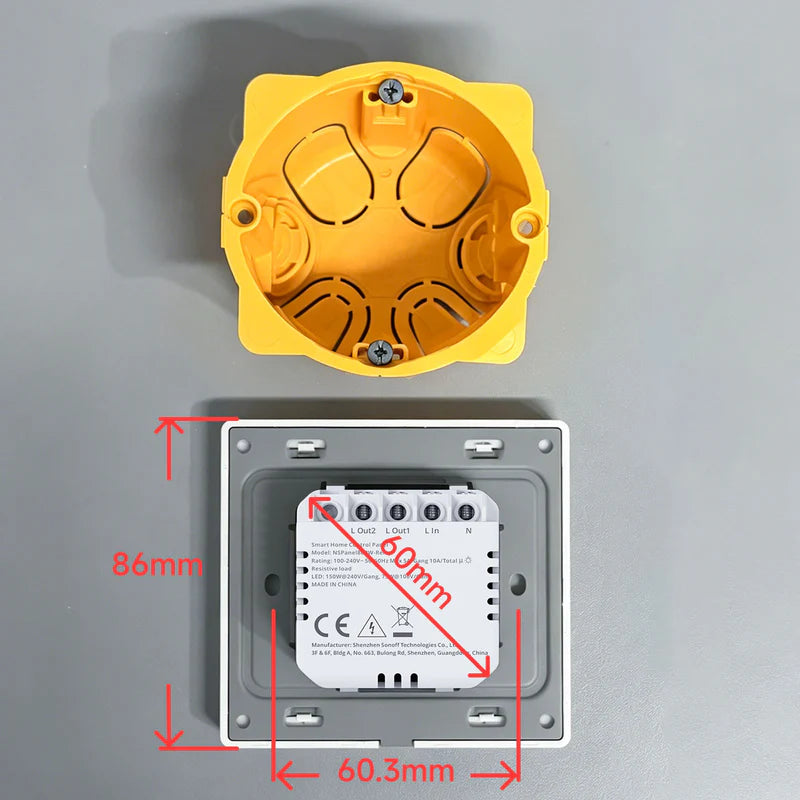

• Dimensions: 86 × 86 × approx. 39.5 mm (standard 86-type)
• Fits standard European/Asian 86-type wall boxes

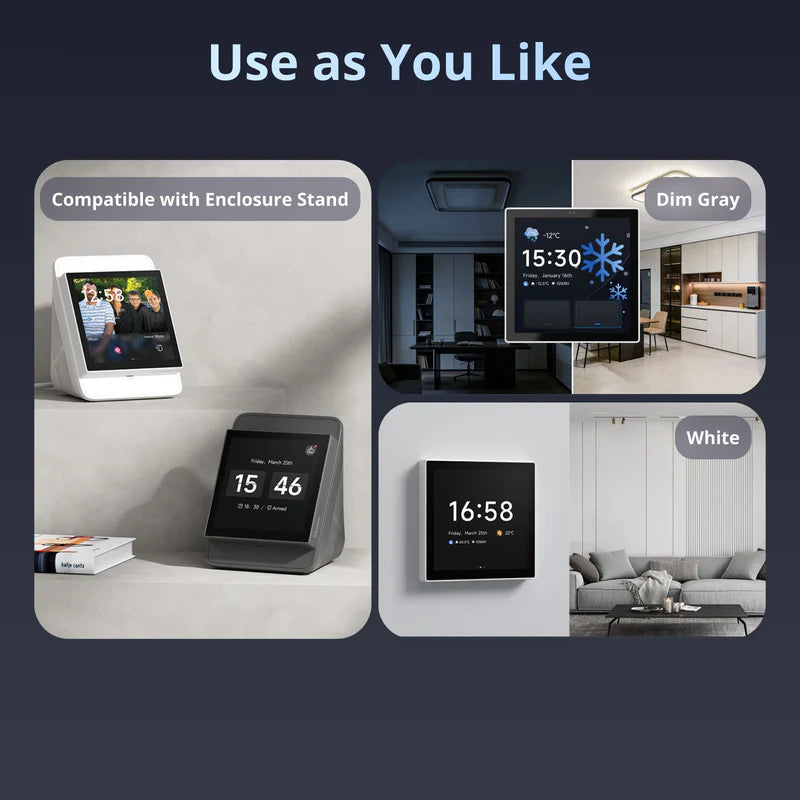

Colors Available:

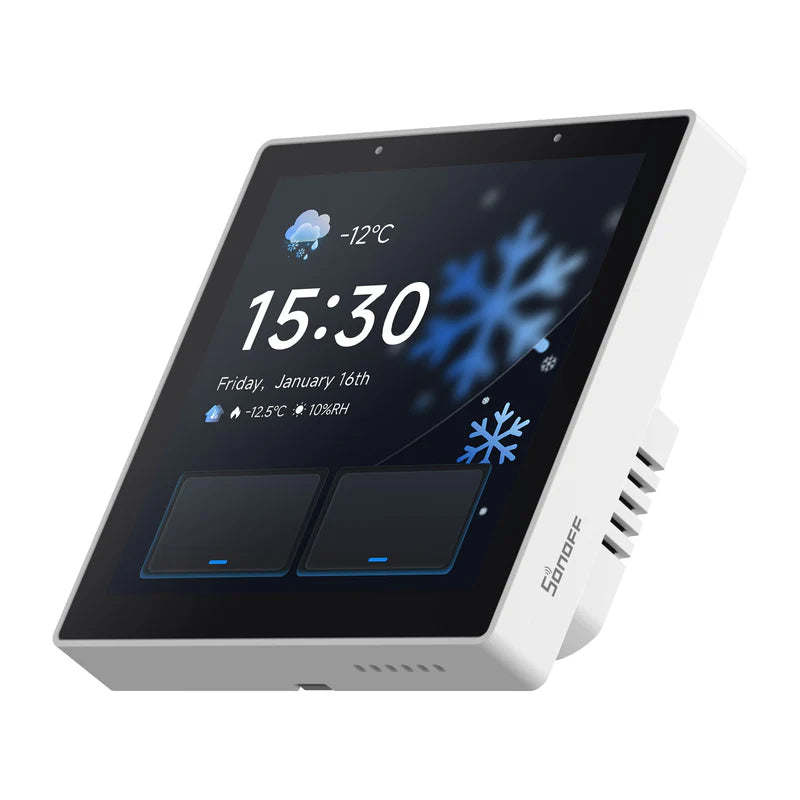

• White

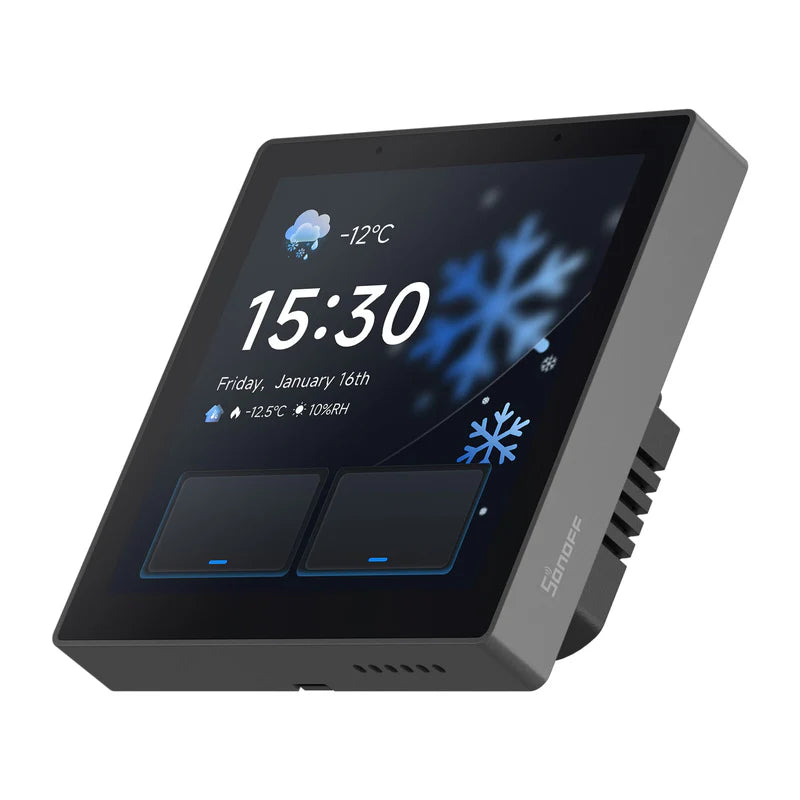

• Dim Gray

Compatibility:

• eWeLink app (primary control & setup)
• Home Assistant (app via F-Droid + device synchronization)
• Apple Home, Google Home, Amazon Alexa (via Matter Bridge)
• Zigbee 3.0 devices (SONOFF and third-party)

NOTES

• Designed for standard 86-type wall boxes (common in Europe and Asia) — not compatible with North American wall boxes (adapter or stand is needed for US use)

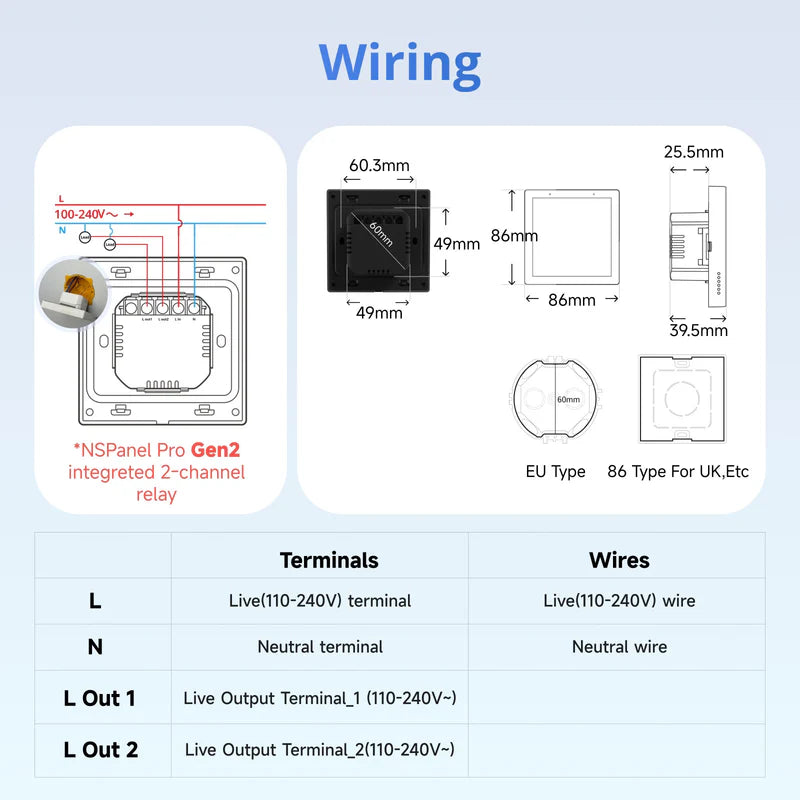

• Installation requires connecting Live, Neutral, and the two load wires (L Out1 / L Out2)
• Recommended for lighting circuits; not intended for high-power loads such as heaters or air conditioners
• Can run third-party apps via the built-in F-Droid store
• Firmware updates are delivered via OTA
• Both White and Dim Gray color options are available
