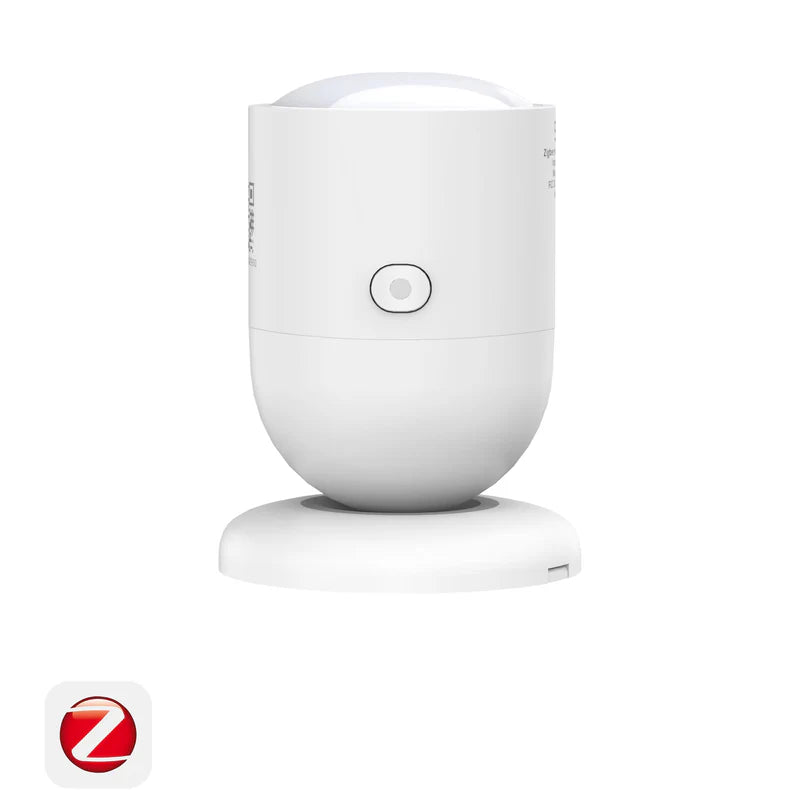

SONOFF SenseGuard Presence Core 24GHz Zigbee Human Presence Sensor (SNZB-06P24)

The SONOFF SenseGuard Presence Core (SNZB-06P24) is a high-precision 24GHz mmWave radar human presence sensor designed for reliable static and micro-movement detection. Unlike traditional PIR motion sensors, it can detect a person sitting still, working, or reading by sensing subtle body movements such as breathing. With 7 independently configurable detection zones, self-learning interference filtering, and a built-in ambient light sensor, it is an excellent choice for smart lighting automation, energy saving, and Home Assistant setups.

KEY FEATURES

• 24GHz mmWave Radar: Accurately detects human presence including micro-movements (breathing, slight limb movement)

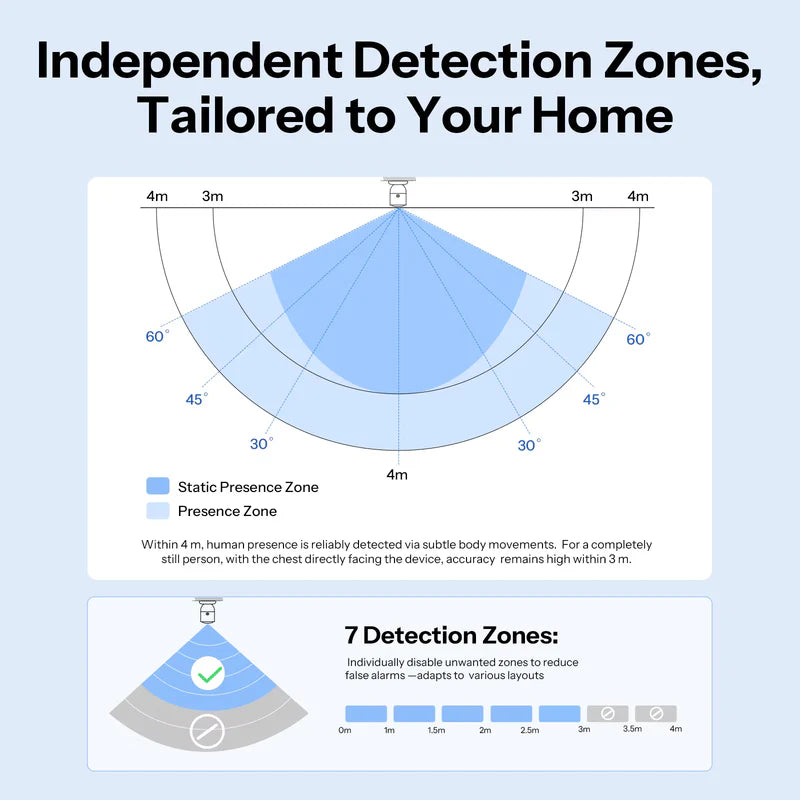

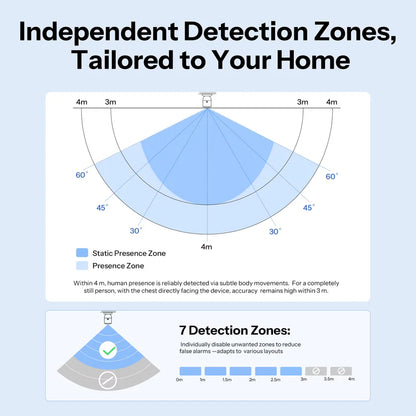

• 7 Configurable Detection Zones: Detection area up to 4 meters divided into 7 independent zones that can be enabled or disabled individually
• Self-Learning Anti-Interference: Automatically filters out interference from fans, appliances, pipes, and other moving objects

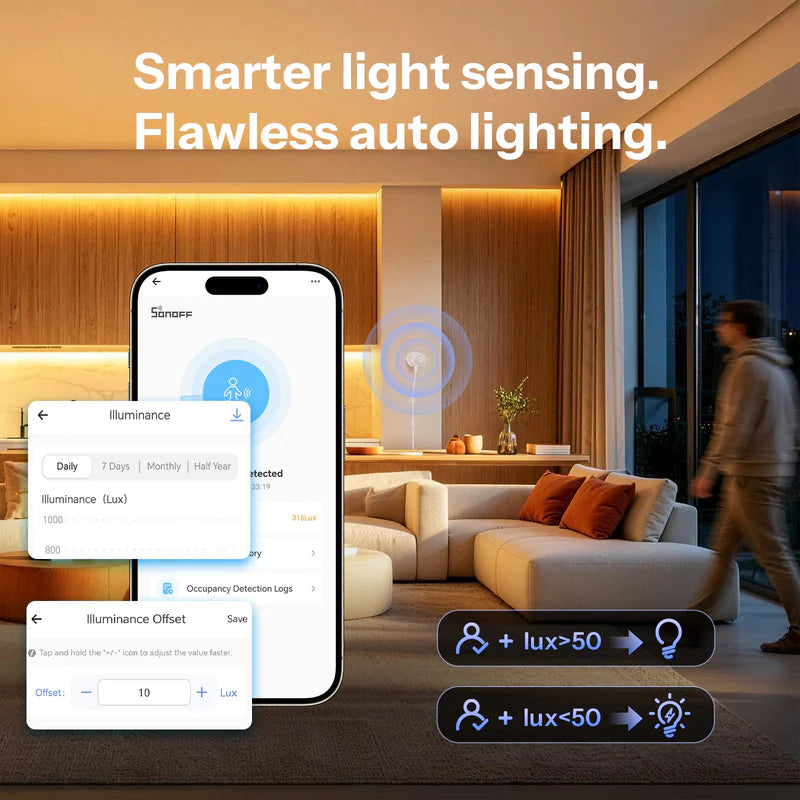

• Ambient Light Sensor: Reports lux values for intelligent lighting control (only turn lights on when needed)
• Flexible Mounting: Strong magnetic base allows desktop placement, wall mounting, ceiling installation, or adjustable angles (360° rotatable head)
• Zigbee 3.0: Reliable local communication with low power consumption
• Home Assistant Compatible: Works with ZHA and Zigbee2MQTT

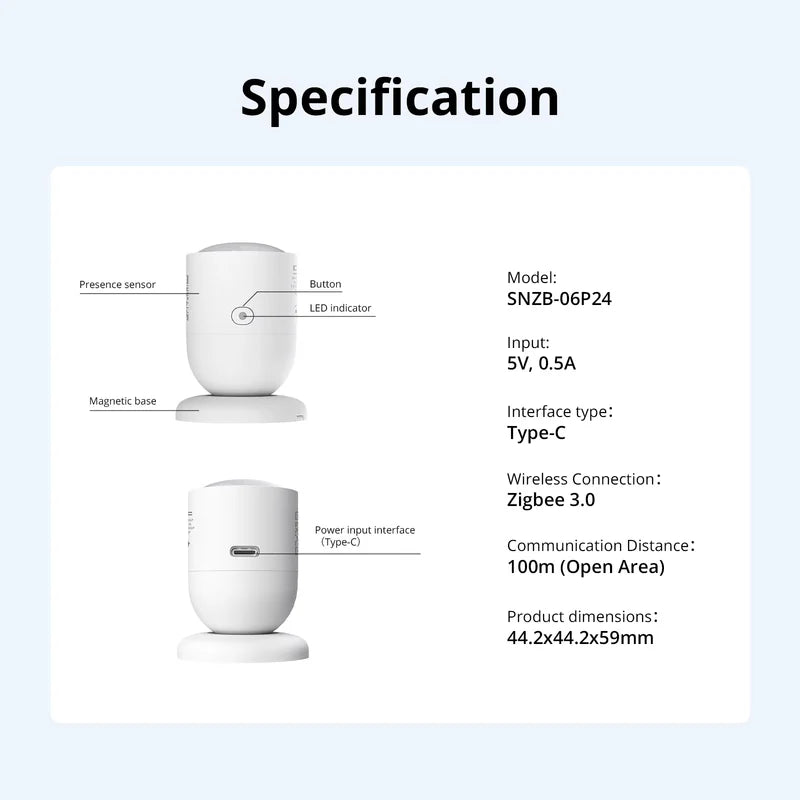

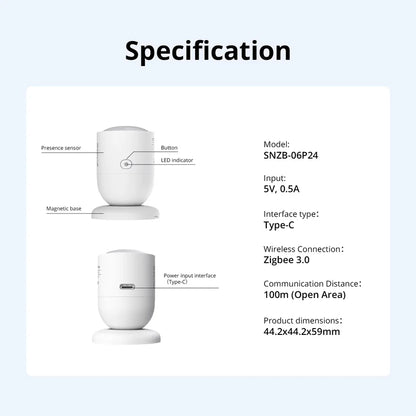

SPECIFICATIONS

Sensor:

• Technology: 24GHz mmWave radar
• Detection Range: Up to 4 meters
• Detection Angle: Approximately 110–120°
• Detection Zones: 7 independent zones (0.5 m increments)
• Ambient Light Sensing: Yes (lux value with calibration offset)

Connectivity:

• Protocol: Zigbee 3.0
• MCU: TLSR8656
• Requires a Zigbee gateway / coordinator

Power:

• Input: 5V ⎓ 0.5A
• Interface: USB Type-C

Physical:

• Dimensions: 44.2 × 44.2 × 59 mm
• Weight: Approx. 34.5 g
• Material: PC + ABS
• Color: White
• Operating Temperature: -10°C to 60°C

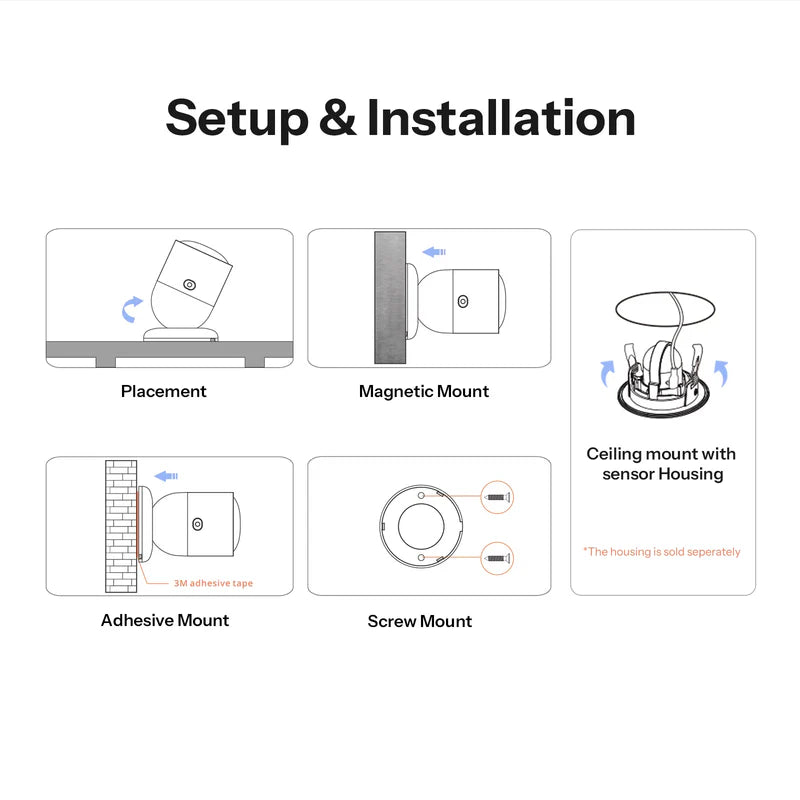

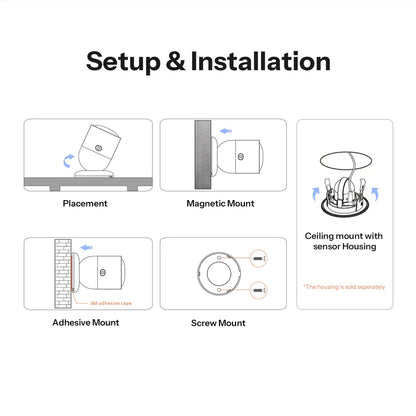

Mounting:

• Strong magnetic base included
• Supports desktop, wall, ceiling, or embedded installation
• Adjustable head for optimal angle

Compatibility:

• eWeLink app
• Home Assistant (ZHA & Zigbee2MQTT)
• SONOFF Zigbee hubs (ZBBridge-P, ZBBridge-U, NSPanel Pro, iHost, Dongle series)
• Matter Bridge support (via compatible SONOFF hubs)
• Alexa, SmartThings (presence status)

NOTES

• Requires a Zigbee 3.0 gateway or coordinator (not included)
• Best detection performance within 3 meters when facing the sensor
• May have difficulty reliably detecting a completely motionless sleeping person at longer distances
• Perform the spatial learning / calibration process after installation for best interference rejection
• Cannot fully filter pet movement — position the sensor carefully if pets are present
• Powered via USB-C (5V adapter required)
