SONOFF SenseGuard DW Gen2 Zigbee Door/Window Sensor | SNZB-04PR2
SONOFF SenseGuard DW Gen2 Zigbee Door/Window Sensor | SNZB-04PR2
Thank you for supporting a US-based small business!
Out of Stock! If you see a Pre-order badge and/or an Add to Cart/Preorder Now button, you can place a pre-order now!
Couldn't load pickup availability
🎄 Sending this as a gift?
Add gift wrapping to this order for $6.95. Pricing is left out of the package.
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
The SONOFF SenseGuard DW Gen2 (SNZB-04PR2) is a slim Zigbee door and window contact sensor with tamper detection, versatile magnet mounting, and up to three years of battery life on two standard AAA batteries. When a door or window opens—or if the sensor is removed—it can send app notifications and trigger automations such as sirens, camera recording, lights, or climate control. A Zigbee gateway is required.
KEY FEATURES
- Tamper detection sends instant app alerts and can trigger Smart Scenes (for example a gateway siren) if the sensor is forced off or damaged
- Use open/close or tamper status in automations for security and comfort—camera recording, sound and light alarms, lighting, or turning off climate control if a door or window stays open
- Slim, discreet design; 45.1 g including batteries, so it takes up minimal space on a door or window
- Horizontal or vertical magnet mounting, with a detachable magnet for tight, uneven, or unconventional frames
- Detection gap up to 30 mm when the magnet is installed horizontally, or 15 mm when installed vertically
- Powered by two standard AAA (LR03) batteries for easy replacement and up to 3 years of operation
- Zigbee 3.0; works with eWeLink, Matter Bridge via compatible SONOFF hubs, and Home Assistant (Zigbee2MQTT / ZHA)
SPECIFICATIONS
| Product name | SenseGuard DW Gen2 |
| Product series | SenseGuard Series |
| Model | SNZB-04PR2 |
| Product type | Zigbee door/window sensor |
| MCU | TLSR8656F512ET32 |
| Wireless | Zigbee 3.0 (IEEE 802.15.4) |
| Power | 3 V; 2 × LR03 AAA batteries (included) |
| Battery life | Up to 3 years |
| Detection gap | Up to 30 mm (horizontal mount) / 15 mm (vertical mount) |
| Color | White |
| Dimensions | Transmitter 90 × 26 × 13.5 mm; magnet 31 × 14 × 6.5 mm |
| Net weight | 45.1 g (including batteries) |
| Casing | PC |
| Environment | Indoor; −10 °C to 60 °C; 5–95% RH, non-condensing |

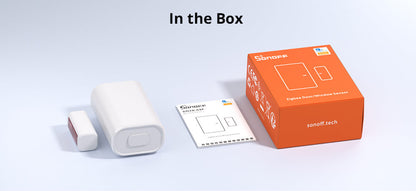

What's Included
- (1) SNZB-04PR2 transmitter
- (1) Magnet
- (2) AAA / LR03 batteries (installed; remove the insulation tab to power on)
- 3M adhesive
- User manual
NOTES
- A compatible Zigbee gateway/hub is required.
- Recommended SONOFF gateways include ZBBridge-P, ZBBridge-U, NSPanel Pro, and iHost. Other compatible models include ZBDongle-P, ZBDongle-E, Dongle-M, Dongle-PMG24, and Dongle-LMG21.
- Align the marks on the transmitter and magnet as closely as possible. When a door or window is closed, keep the gap under 30 mm for horizontal magnet mounting, or under 15 mm for vertical mounting.
- Indoor use only. The user manual specifies mounting at heights of 2 m or less.
- Home Assistant via ZHA currently requires a script. See SONOFF’s instructions at help.sonoff.tech/docs/SNZB-04PR2.
- Official product page: sonoff.tech. User manual: SNZB-04PR2 User Manual (PDF).
- SONOFF lists a 2-year hassle-free warranty for this product.
