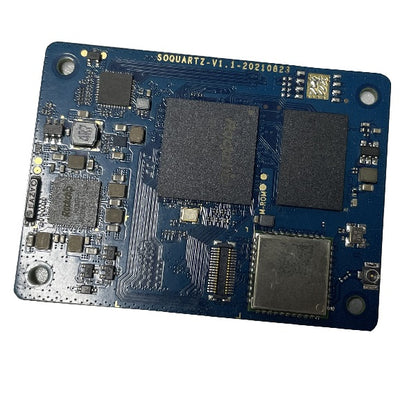

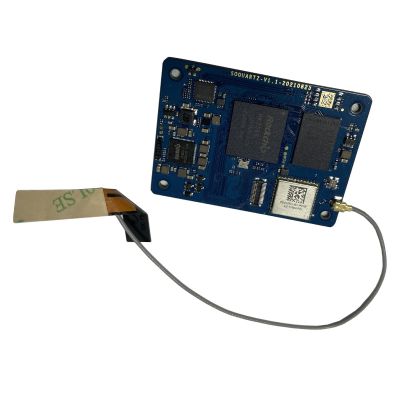

SOQuartz Compute Module W

SOQuartz Compute Module W

$44.95 USD
$44.95 USD
Sale Sold out
Shipping calculated at checkout.
RAM

Out of Stock!

Description ▼

The SOQuartz is a RK3566 based compute module and parts of Quartz64 series.

SPECIFICATIONS

*Rotate phone to see table correctly

Processor Based on Rockchip RK3566
CPU Architecture
  • Quad-core ARM Cortex-A55@1.8GHz
  • AArch32 for full backwards compatibility with ARMv7
  • ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing computation
  • Includes VFP hardware to support single and double-precision operations
  • ARMv8 Cryptography Extensions
  • Integrated 32KB L1 instruction cache and 32KB L1 data cache per core
  • 512KB unified system L3 cache
GPU (Graphics Processing Unit) Capabilities
  • Mali-G52 2EE Bifrost GPU@800MHz
  • 4x Multi-Sampling Anti-Aliasing (MSAA) with minimal performance drop
  • 128KB L2 Cache configurations
  • Supports OpenGL ES 1.1, 2.0, and 3.2
  • Supports Vulkan 1.0 and 1.1
  • Supports OpenCL 2.0 Full Profile
  • Supports 1600 Mpix/s fill rate when at 800MHz clock frequency
  • Supports 38.4 GLOP/s when at 800MHz clock frequency
Neural Process Unit NPU Capability
  • Neural network acceleration engine with processing performance of up to 0.8 TOPS
  • Supports integer 8 and integer 16 convolution operations
  • Supports the following deep learning frameworks: TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet
System Memory
  • RAM Memory Variants: 2GB, 4GB, 8GB LPDDR4.
  • Storage Memory: optional 128Mb SPI Flash and optional eMMC module from 16GB up to 128GB
Network
  • 10/100/1000Mbps Ethernet
  • WiFi 802.11 b/g/n/ac with Bluetooth 5.0
Storage
  • microSD - bootable, support SDHC and SDXC, storage up to 2TB
  • USB - 2 USB2.0 Host port
Expansion Ports
  • MiPi-CSI - 1x 2 lanes, 1x 4 lanes
  • MiPi-DSI - 1x 2 lanes, 1x 4 lanes
  • 2x20 pins "Pi2" GPIO Header
  • PCIe 1x open ended slot
