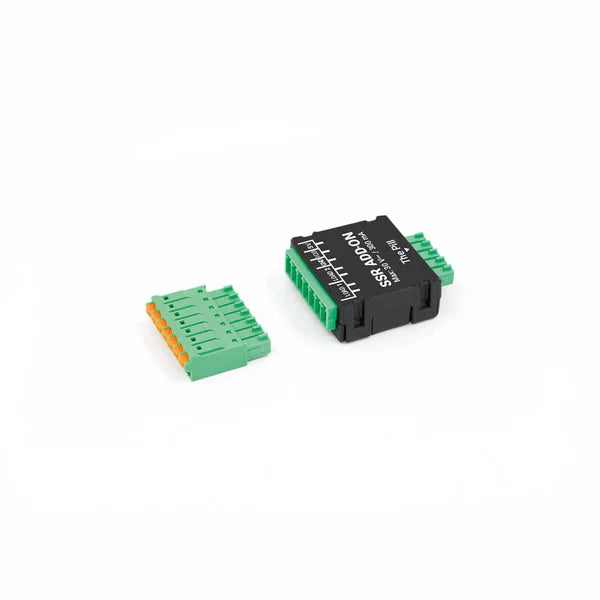

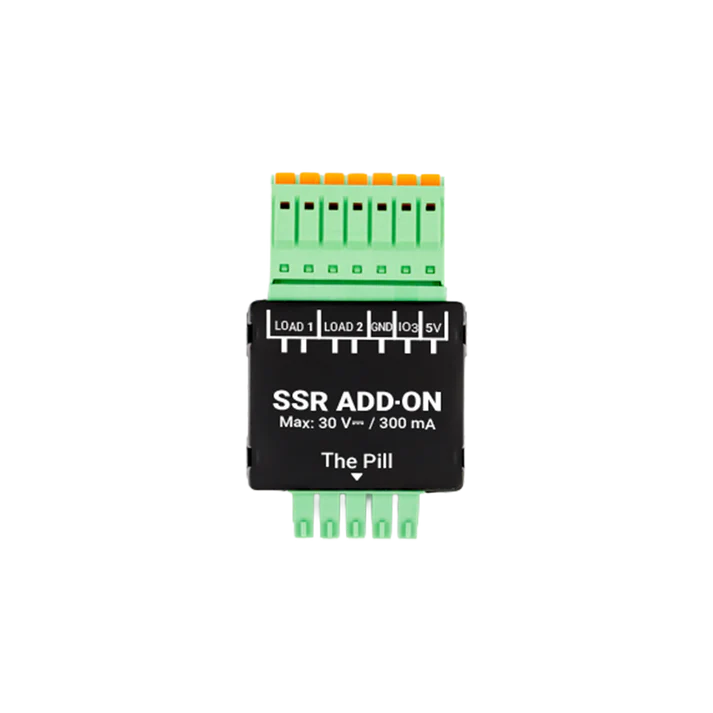

SSR Add-on (Accessory for The Pill by Shelly)
SSR Add-on (Accessory for The Pill by Shelly)
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
KEY FEATURES
- Works with The Pill by Shelly via 5-Terminal Add-on
- Dual-channel DC load control up to 30 V/300 mA per channel
- Galvanically isolated solid-state relays for reliable switching
- 1 configurable I/O (3.3 V logic-level)
|
Physical |
|
|
Size (HxWxD): |
36 mm x 31mm x 11.5mm |
|
Weight: |
12 g |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power consumption: |
< 0.6 W |
|
Max. switching voltage: |
30 V⎓ |
|
Max. switching current: |
300 mA |
