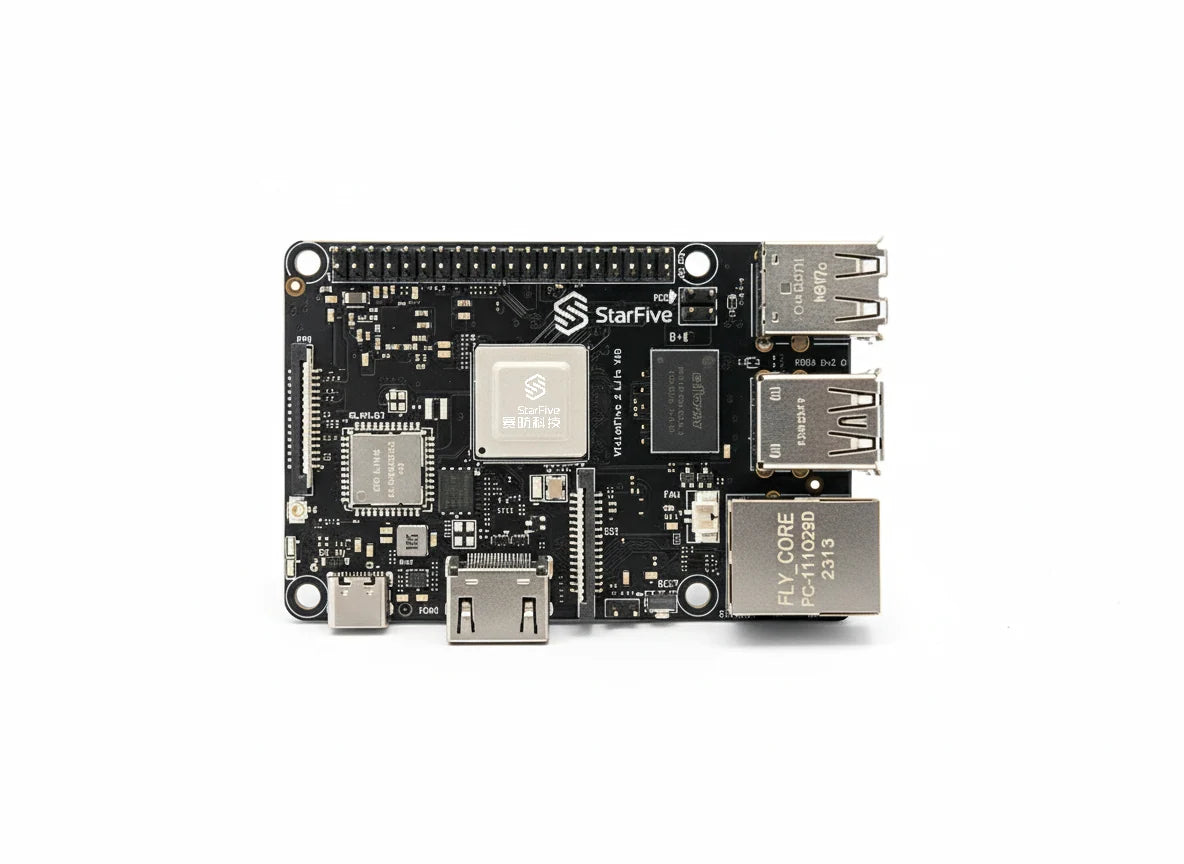

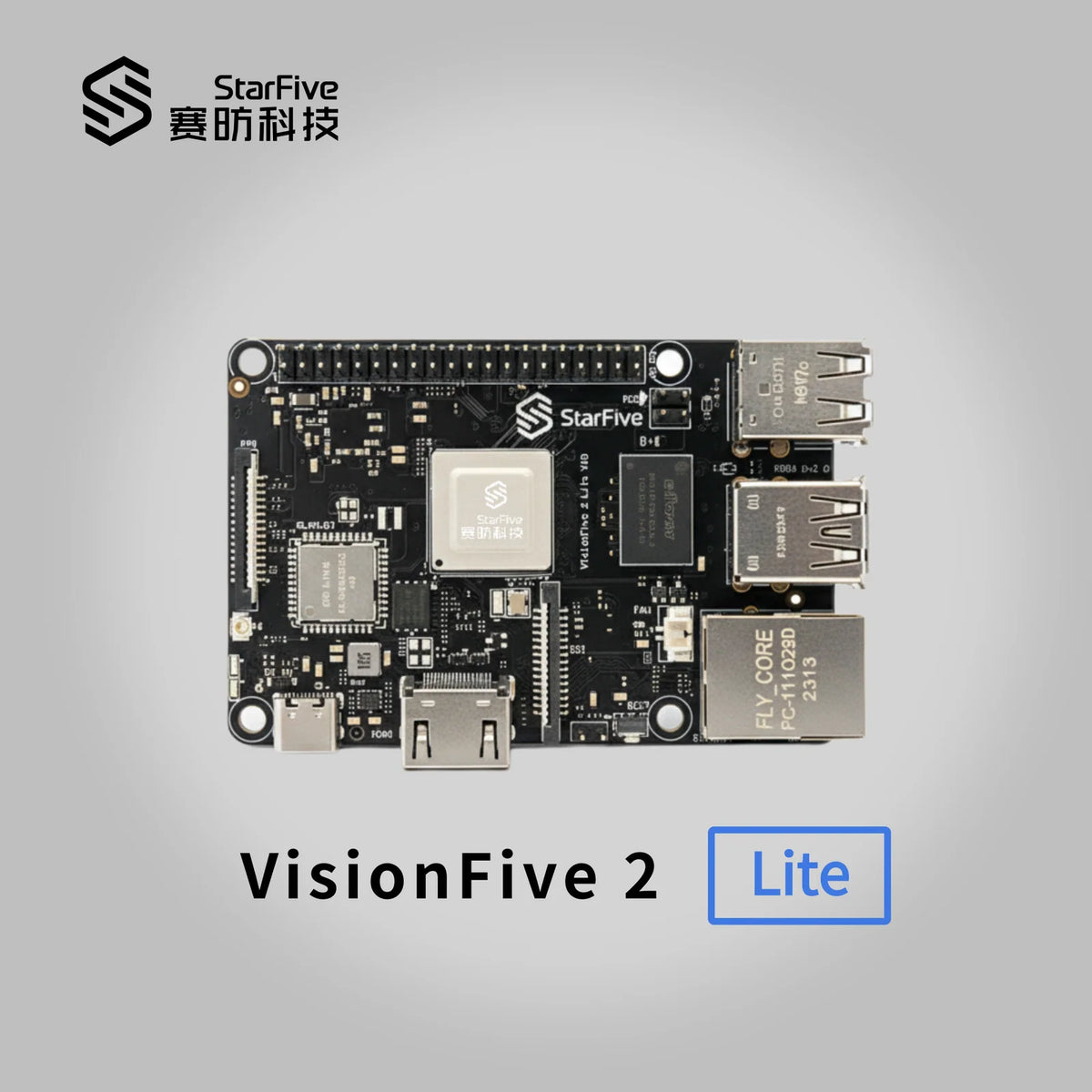

StarFive VisionFive 2 Lite
StarFive VisionFive 2 Lite
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
The StarFive VisionFive 2 Lite is a smaller quad-core RISC-V board with a built-in GPU, onboard Wi-Fi 6, and Bluetooth 5.4. Choose 4 GB or 8 GB LPDDR4 on this product page. Neither includes an eMMC module.
KEY FEATURES
- StarFive JH7110S: four U74 RISC-V cores (RV64GC), up to 1.25 GHz, plus an S7 monitor core and 2 MB L2 cache
- IMG BXE-4-32 GPU: OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2
- 4 GB or 8 GB LPDDR4, selected on this page
- Wi-Fi 6 and Bluetooth 5.4 onboard
- HDMI 2.0 up to 4K30 or 2K60, plus a 2-lane MIPI DSI (up to 1080p30). Both can be used together
- H.264/H.265 decode up to 4K60, encode up to 1080p30
- 1× USB 3.0, 3× USB 2.0, Gigabit Ethernet, 40-pin GPIO, microSD, and an M.2 2242 NVMe slot
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | StarFive VisionFive 2 Lite |
| CPU | JH7110S, 4× U74 RV64GC, up to 1.25 GHz, 2 MB L2, S7 monitor core |
| GPU | IMG BXE-4-32 MC1 |
| Memory | 4 GB or 8 GB LPDDR4 |
| Storage | microSD slot SPI flash for bootloader M.2 2242 NVMe slot eMMC not included |
| Wireless | Wi-Fi 6, Bluetooth 5.4 |
| Video | HDMI 2.0, up to 4K30 or 2K60 2-lane MIPI DSI, up to 1080p30 HDMI and DSI can run together |
| Camera | 2-lane MIPI CSI |
| USB | 1× USB 3.0 3× USB 2.0 USB-C for power |
| Network | 1× Gigabit Ethernet |
| Other | 40-pin GPIO 2-pin fan header Recovery button |
| Power | 5 V USB-C, more than 3 A (supply not included) 5 V can also be fed on the GPIO header |
| Size | 85 × 56 mm |
| OS | Ubuntu, Debian, OpenHarmony |
What's Included:
- 1 × VisionFive 2 Lite (4 GB or 8 GB, as selected)
NOTES
- Select 4 GB or 8 GB on this product page. Both include Wi-Fi 6 and Bluetooth 5.4
- microSD card, eMMC, and power supply are not included
- This is the Lite board, not the full-size VisionFive 2. It has one Ethernet port, one USB 3.0 port, and a 1.25 GHz JH7110S
