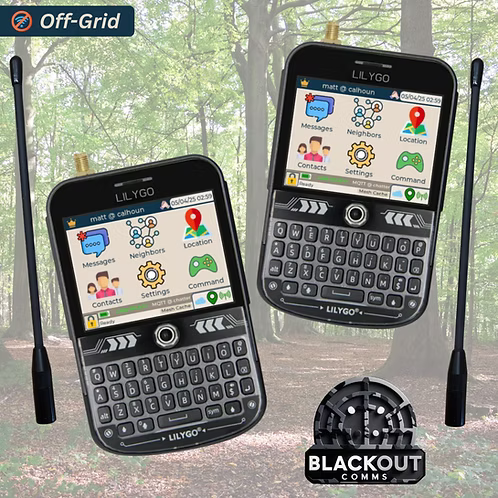

LILYGO T-Deck Plus Communicator Set with Blackout Comms (Set of 2)

Main Description

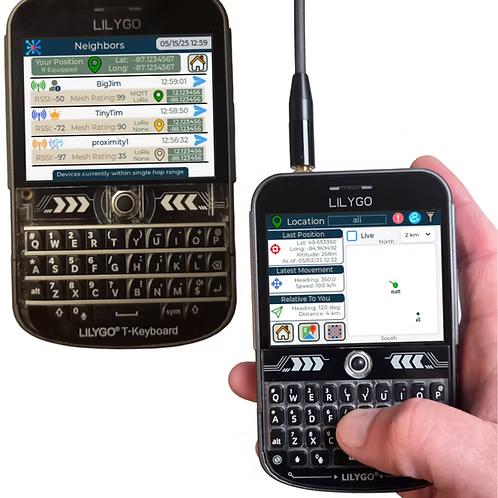

The LILYGO T-Deck Plus is a compact, handheld LoRa device upgraded from the standard T-Deck with an integrated GPS module and a built-in 2000mAh battery. It features a full physical QWERTY keyboard, trackball navigation, touchscreen display, microphone, and speaker, making it an ideal portable communicator for off-grid mesh networks.

This set includes two devices pre-flashed and licensed with Blackout Comms firmware, providing a complete standalone user interface for secure, encrypted text messaging, location sharing, and node configuration directly on the device.

Users can re-flash the devices with Meshtastic firmware if preferred, and the Blackout Comms license will remain valid, allowing seamless switching back. Included SD cards store encrypted config and data, preserving information when switching firmwares.

Key Features

• 2.8-inch IPS capacitive touchscreen display (320x240 resolution, full viewing angle)
• Physical QWERTY keyboard for easy text input
• Trackball for precise navigation
• Built-in speaker and microphone with sound and screen flash alerts
• Integrated GPS module for secure location sharing
• SX1262 LoRa transceiver (+22dBm transmit power)
• Well-tuned external antenna with SMA connector for antenna upgrades
• Built-in 2000mAh rechargeable battery (typically 18-24 hours usage per charge)
• TF (microSD) card slot with SD card included
• ESP32-S3 dual-core processor with Wi-Fi and Bluetooth LE (Wi-Fi capable for optional MQTT configuration)

Specifications

• MCU: ESP32-S3FN16R8 dual-core LX7 microprocessor
• Flash: 16MB
• PSRAM: 8MB
• Wireless: 2.4GHz Wi-Fi, Bluetooth 5 LE, LoRa (frequency options: 433/868/915MHz) with encrypted RF signals
• Development Support: Arduino, PlatformIO, MicroPython
• Battery Monitoring: Via IO04 pin
• Charging: USB-C port

What's Included

• 2 x LILYGO T-Deck Plus devices with Blackout Comms
• 2 x External LoRa antennas
• 2 x SD cards

Blackout Comms System

Blackout Comms is an advanced off-grid mesh communication platform that enables secure, encrypted text messaging and GPS location sharing over LoRa radio frequencies without requiring internet, cellular service, or centralized infrastructure.

Devices automatically form a decentralized mesh network, relaying messages between nodes to extend range. Direct communication is near-instant when in range; out-of-range messages are stored and forwarded via the mesh when possible, with secure caching for up to 24 hours.

Range varies significantly based on terrain, antenna, power settings, and frequency band but can reach several kilometers in open areas with proper configuration. The system uses advanced mesh algorithms, encryption, and digital signatures for security.

How It Works

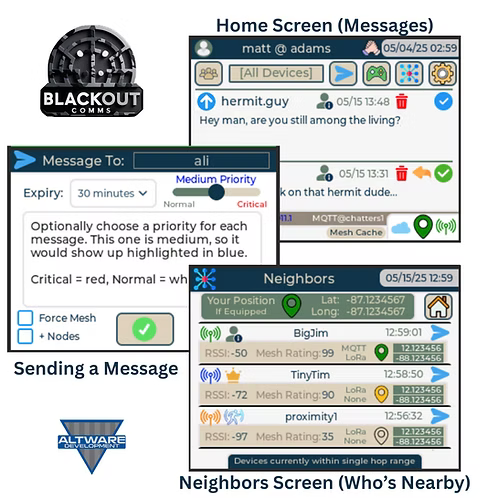

The devices arrive pre-configured as your private mesh cluster. Simply turn them on to start communicating. Use the built-in screen, keyboard, and trackball to send/receive messages, share locations, and configure settings. No app or additional setup is required, though pairing with a mobile app via Bluetooth is optional for advanced features.

Expand your cluster by adding compatible devices, links, or pagers. Suitable for users with basic programming or technical knowledge (engineers, makers, outdoor enthusiasts).
