T1000-E Meshtastic™ Radio
T1000-E Meshtastic™ Radio
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
🎄 Sending this as a gift?
Add gift wrapping to this order for $6.95. Pricing is left out of the package.
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

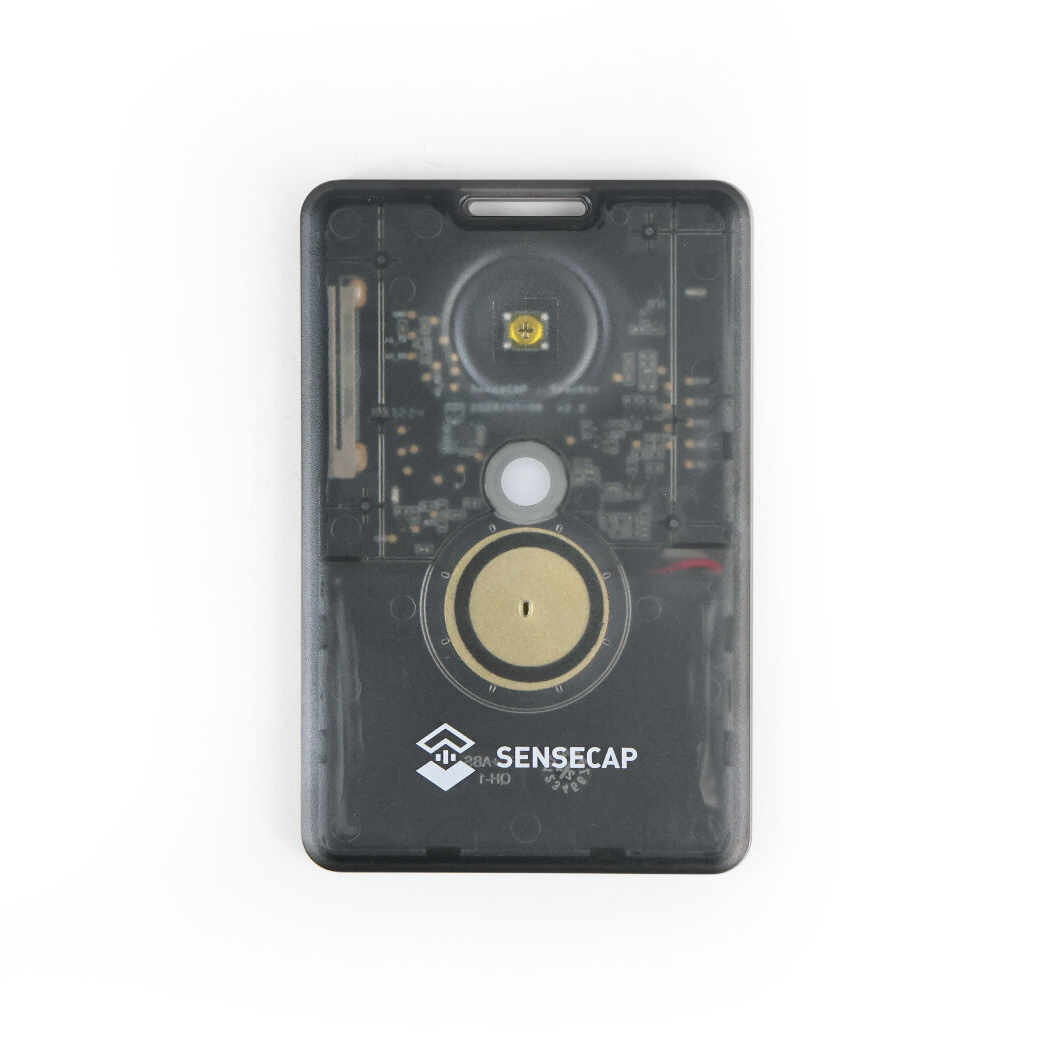

The SenseCAP™ T1000-E Meshtastic™ Radio from Seeed Studio is an IP-65 rated, all-in-one, fully sealed Meshtastic™ radio. Don’t let its compact form factor fool you! This compact, credit-card shaped radio has great range with its built-in internal antenna and includes most of the advanced features you’d want, built right in.

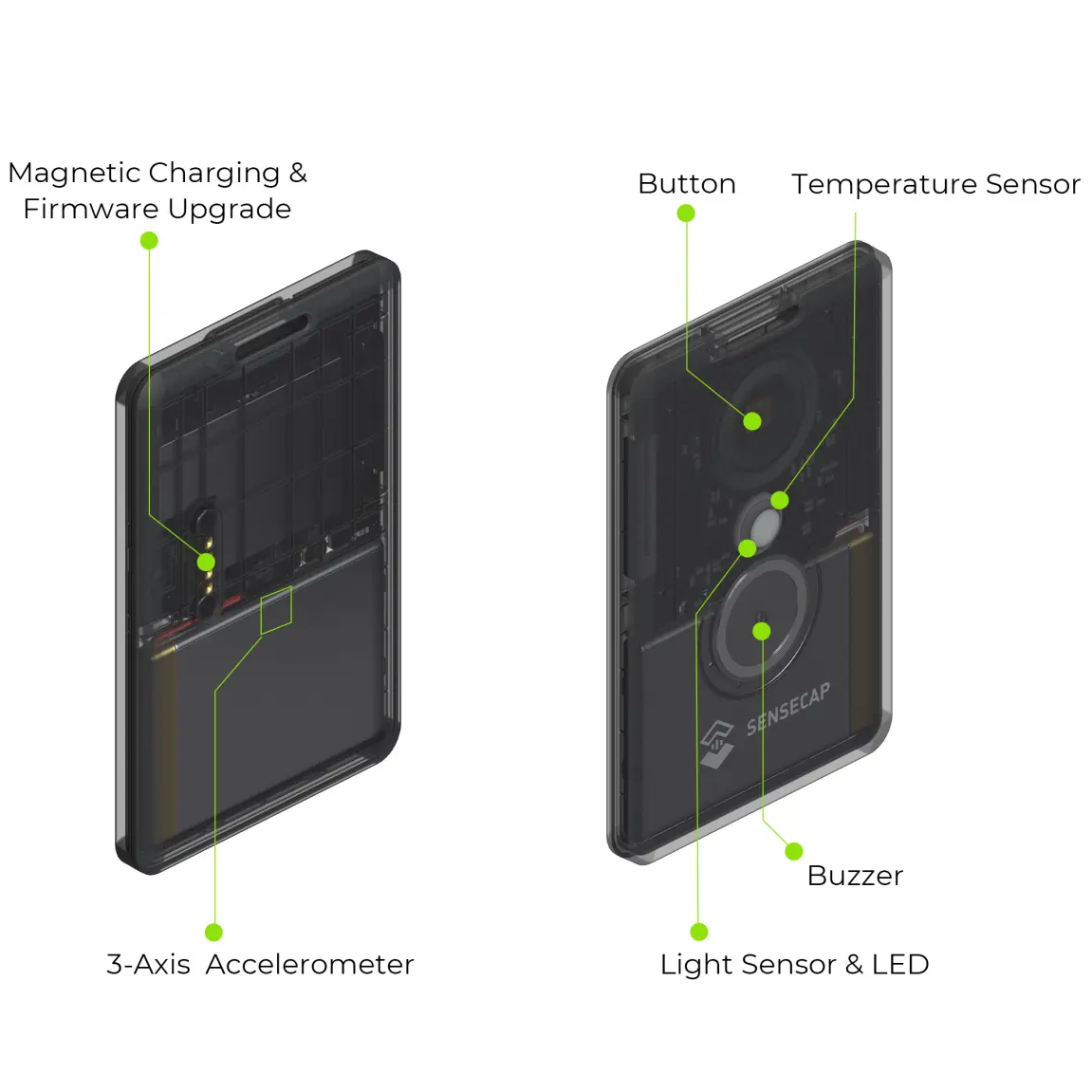

GPS, temperature sensor, light sensor, notification buzzer, LED indicator, waterproof housing, magnetic charging/firmware updates, and a 700mAh battery make this a perfect first Meshtastic™ device—or a convenient and inconspicuous everyday carry radio.

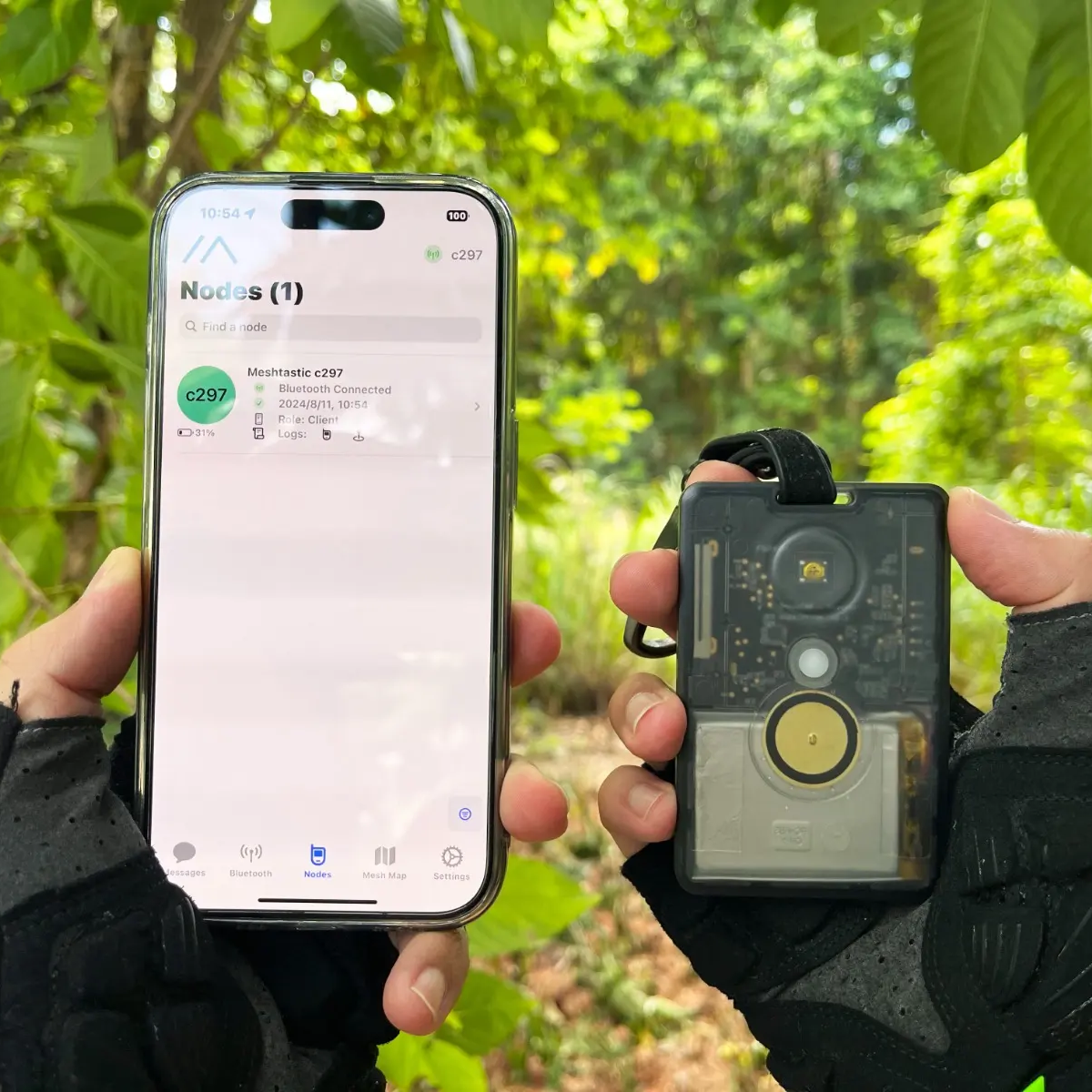

Connect the T1000-E to your phone via Bluetooth with the free, open source Meshtastic™ app to send texts and location data to your friends, or chat on the public channel. Or use it as a stand-alone asset tracker to report its location to another Meshtastic™ radio.
All radios purchased from Atlavox
- Flashed with the latest stable Meshtastic™ firmware immediately prior to shipping (not old firmware flashed months ago sitting on a shelf)
- Custom private encrypted primary channel with precise GPS positioning
- Public channel configured on a secondary channel
- When you buy multiple radios from Atlavox, all radios in your order will share your custom private primary channel key.
This is a complimentary service provided at no additional cost. You can always customize and change settings yourself later if needed.
Download PDF DATASHEET (685kb)
Specifications
| Feature | Specification |
|---|---|
| Network protocol | LoRa (Supports 863-928 MHz range), Bluetooth v5.1 |
| Temperature | Range: -20 to 60℃; Accuracy: ±1℃ (min ±0.5℃, max ±1℃); Resolution: 0.1℃ |
| Light | 0 to 100% (0% is dark, 100% is brightest) |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement (Not currently used in the Meshtastic firmware) |
| LED and Buzzer | 1* LED and 1* buzzer to indicate status |
| Button | 1* Button to operate |
| Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Communication Distance | 2 to 5km (depending on antenna, installation, and environments) |
| IP Rating | IP65 |

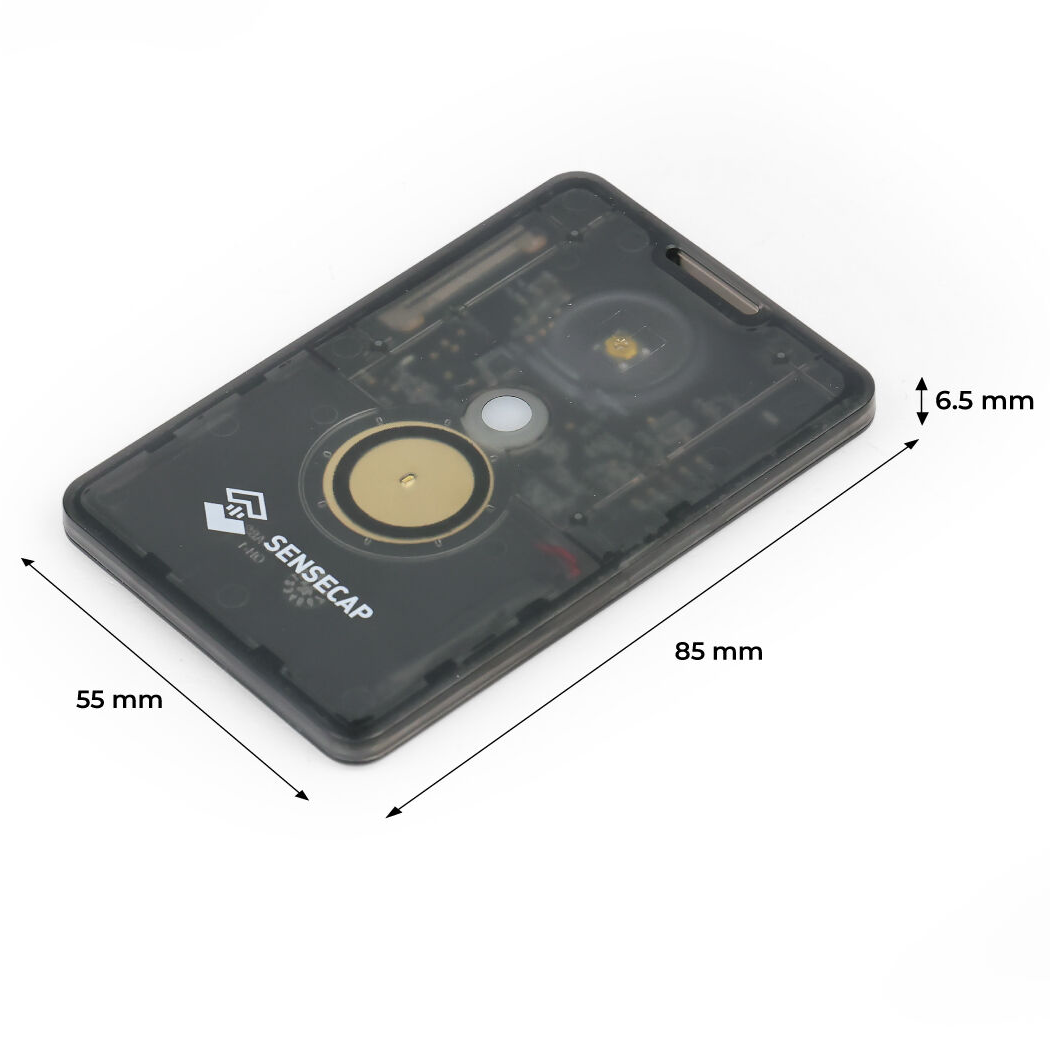

| Dimensions | 85 * 55 * 6.5 mm |
| Device Weight | 32g |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5% - 95% (No condensation) |
| Certification | CE / FCC |
| Battery Capacity | Rechargeable lithium battery, 700mAh |
| Battery Life Monitoring | Periodic uplink battery level |
| Charge Cable | USB magnetic charging cable, 1 meter (Adapter not included) |
| Power Input Voltage | 4.7 to 5.5V DC |
| Charging Temperature Limit | 0 to +45℃ |
