Elecrow ThinkNode M9 — MeshCore Communication Terminal with Full Keyboard (ESP32-S3 + LR1110)

The ThinkNode M9 is a standalone, all-in-one LoRa mesh communication terminal designed for off-grid messaging and location sharing. It features a full physical QWERTY keyboard, 2.4-inch color LCD, high-precision GPS, and the Semtech LR1110 LoRa transceiver. Pre-installed with MeshCore firmware, it is ready to use out of the box for decentralized mesh networking — ideal for outdoor adventures, emergency communication, and community mesh networks.

KEY FEATURES

• Standalone Design: No phone or extra devices needed — full keyboard + display in one handheld unit
• Pre-installed MeshCore: Ready for decentralized mesh messaging and location sharing on power-up
• ESP32-S3 Dual-Core: Up to 240 MHz with 8 MB PSRAM and 16 MB Flash
• Semtech LR1110 LoRa: Long-range communication (US915)

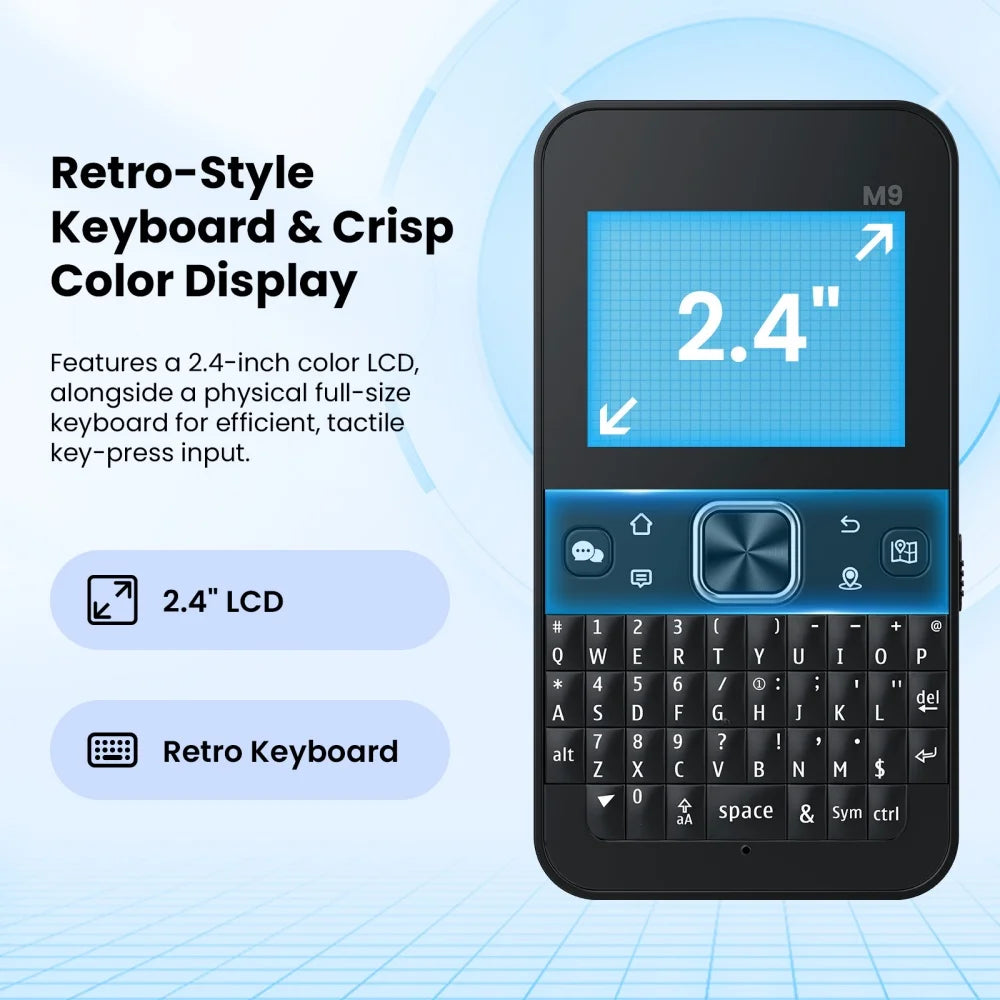

• Full QWERTY Keyboard: 37-key physical keyboard for comfortable text input
• 2.4-inch Color LCD: 240 × 320 resolution for clear message and status display
• Built-in GPS: Multi-constellation support (GPS, GLONASS, Galileo, BeiDou)
• Magnetic Compass: Real-time orientation awareness
• 2300 mAh Battery: Designed for multi-day standby use outdoors
• Wi-Fi + Bluetooth 5.0: Additional connectivity options

SPECIFICATIONS

Processor & Memory:

• SoC: ESP32-S3R8 (Dual-core Xtensa LX7, up to 240 MHz)
• SRAM: 512 KB
• PSRAM: 8 MB
• Flash: 16 MB

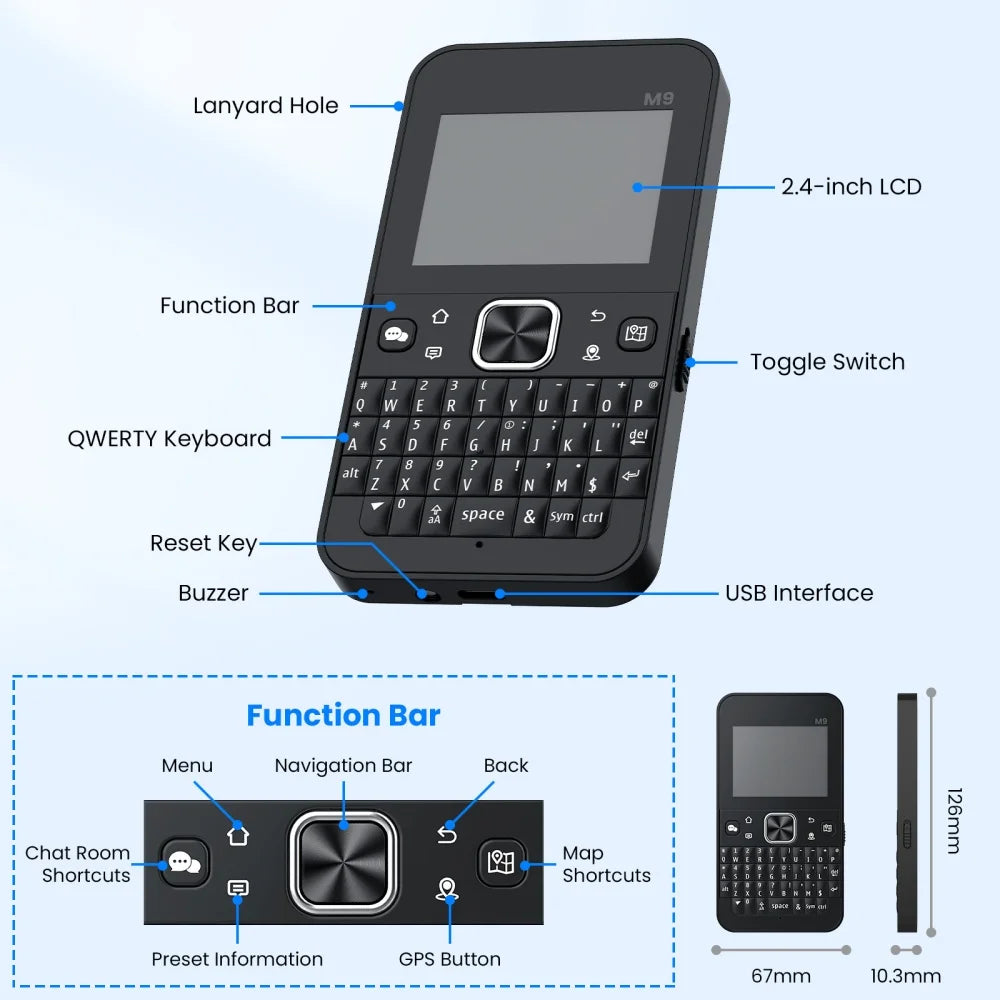

Display & Input:

• 2.4-inch TFT LCD, 240 × 320 resolution, 200 cd/m²
• Non-touch screen
• Full QWERTY keyboard (37 keys) with function and navigation keys
• Toggle power switch + hidden RESET button

Wireless:

• LoRa: Semtech LR1110 (US915)
• Wi-Fi: 802.11 b/g/n (2.4 GHz)
• Bluetooth 5.0 / BLE
• Built-in antennas for LoRa, Wi-Fi/BLE, and GPS

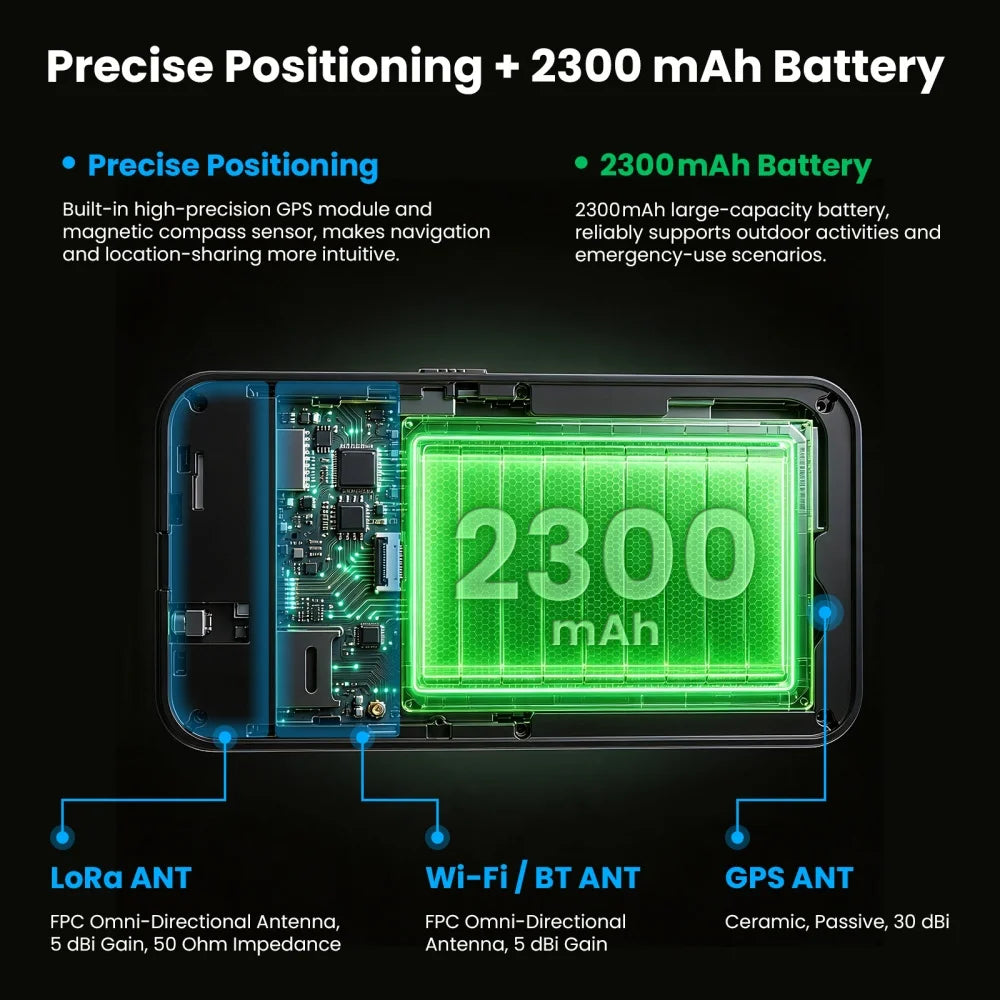

Positioning:

• High-precision GPS with ceramic antenna
• Supports GPS, GLONASS, Galileo, and BeiDou
• Magnetic compass sensor

Power:

• 2300 mAh / 3.8V Li-Po battery with protection circuit
• USB Type-C charging and data
• Approximately 2–3 days standby

Other:

• Built-in RTC clock
• Buzzer for alerts
• Dimensions: 126 × 67 × 10.3 mm
• Net Weight: Approx. 123 g

Firmware:

• Pre-installed MeshCore firmware
• Ready to use out of the box for mesh messaging and location sharing

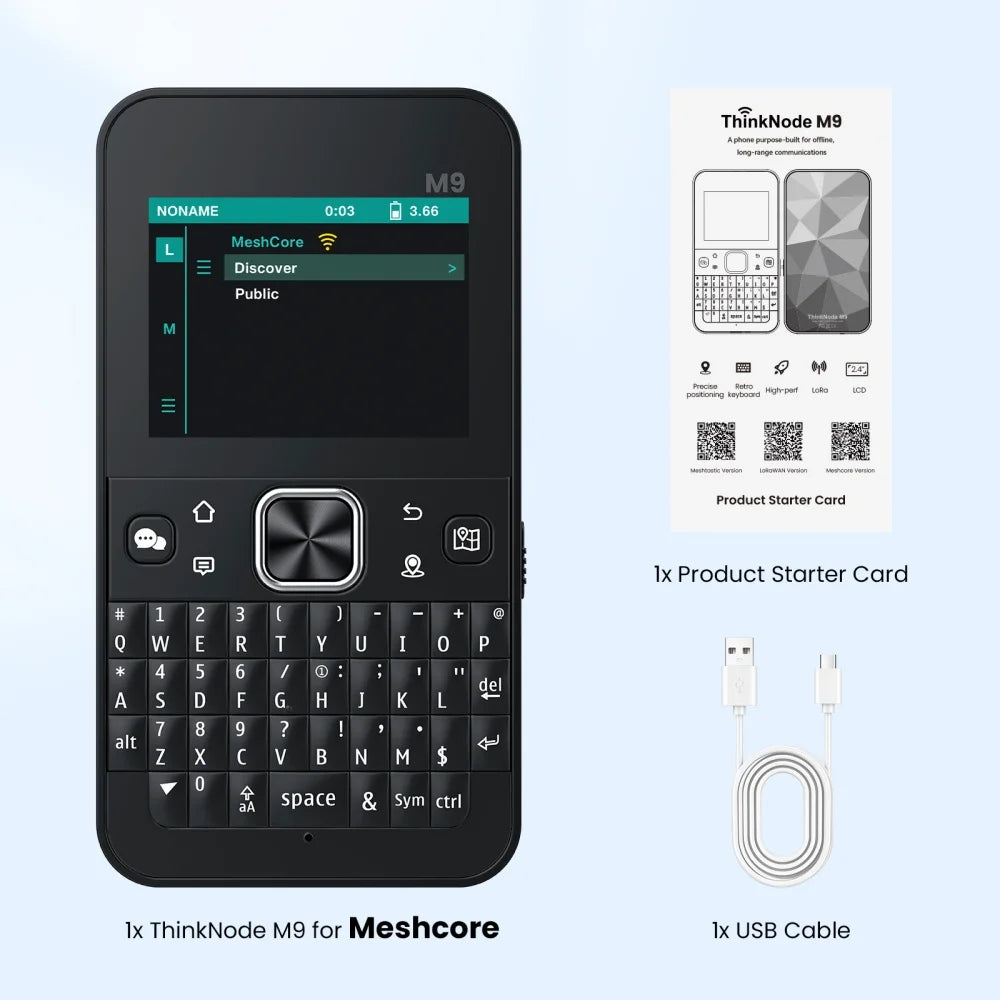

What's Included:

• 1 × ThinkNode M9 Communication Terminal
• 1 × USB Cable
• 1 × Starter Card / Quick Guide

NOTES

• This is the MeshCore version of the ThinkNode M9
• A separate Meshtastic version is planned by Elecrow and is not currently available
• This is a complete standalone mesh terminal — no phone required for basic messaging and GPS sharing
• Excellent for hiking, off-grid use, emergency preparedness, and local community mesh networks
