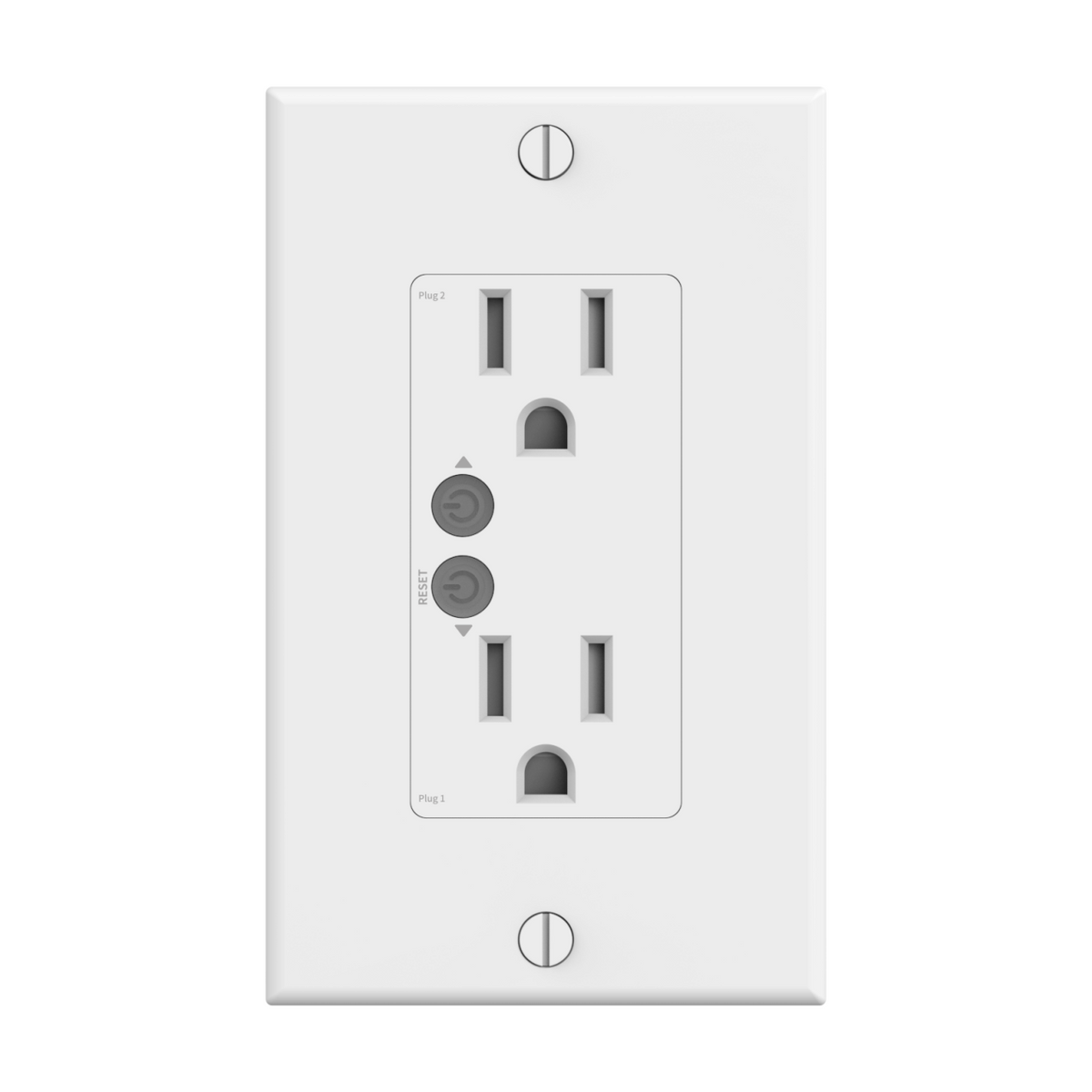

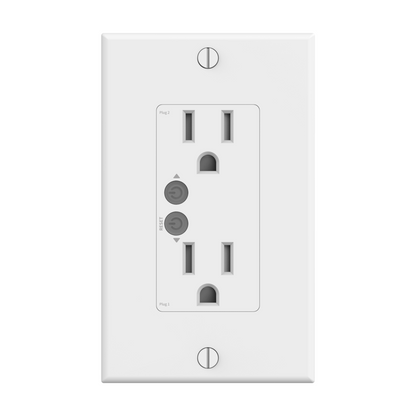

The ThirdReality Smart Wall Outlet ZW1 is a flush-mount Zigbee 3.0 dual wall receptacle. Each socket is controlled and energy-monitored independently, and the unit also acts as a Zigbee mesh repeater.
KEY FEATURES
- Two independently controlled US outlets
- Per-outlet energy monitoring (real-time and historical)

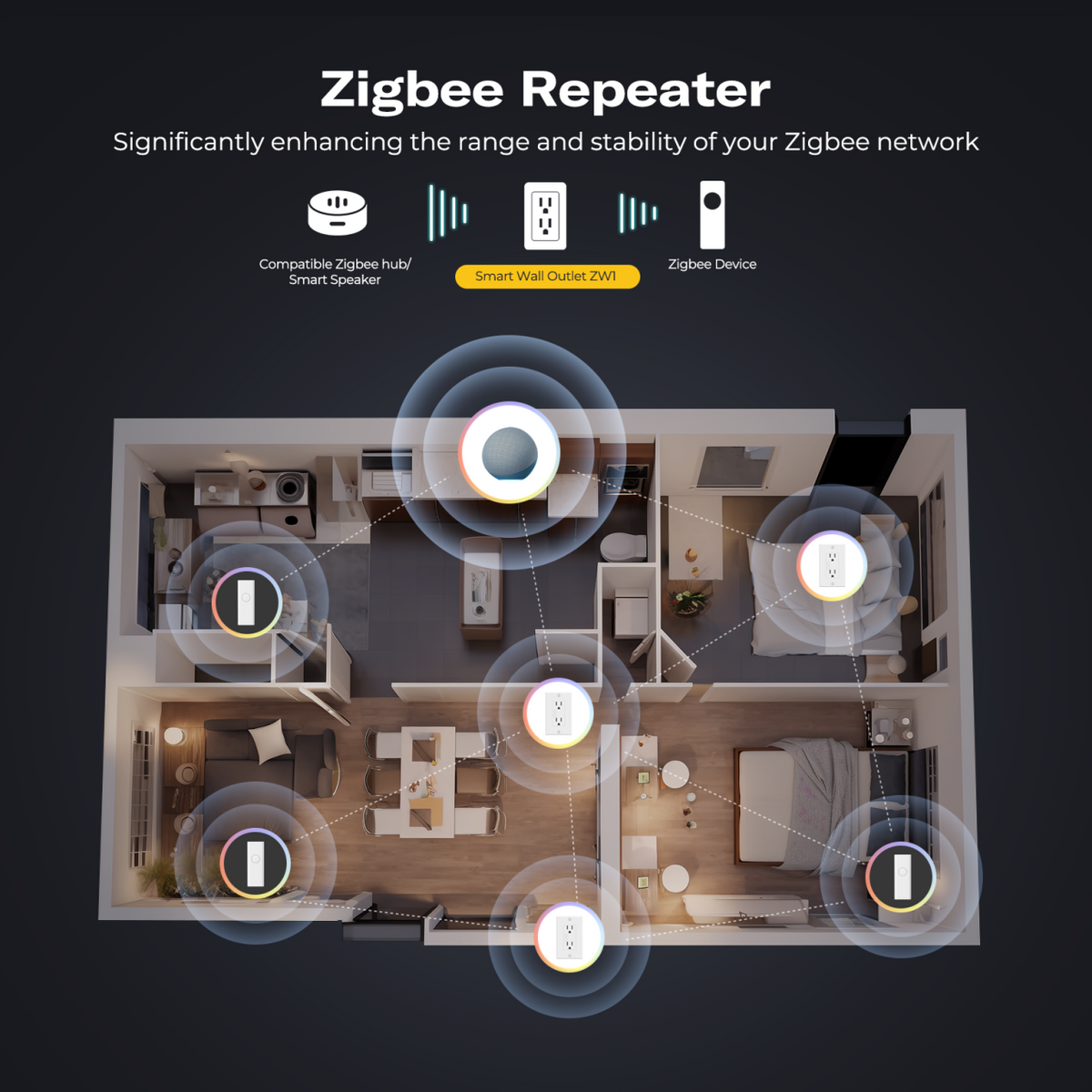

- Zigbee 3.0, acts as a mesh repeater
- Works with Home Assistant (ZHA or Zigbee2MQTT), SmartThings, Homey, and other Zigbee hubs
- Apple Home and Google Home support through the ThirdReality Smart Bridge MZ1 (sold separately)
- Zero-crossing switching and tamper-resistant (child-proof) shutters
- ETL-certified fire-resistant housing
- Replaces a standard in-wall duplex receptacle (deeper rear housing)
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | ThirdReality Smart Wall Outlet ZW1 |
| Outlets | 2× US (Type B), independently controlled and metered |
| Protocol | Zigbee 3.0 (2.4 GHz) |
| Mesh | Repeater / router |
| Energy monitoring | Per outlet (real-time and historical) |

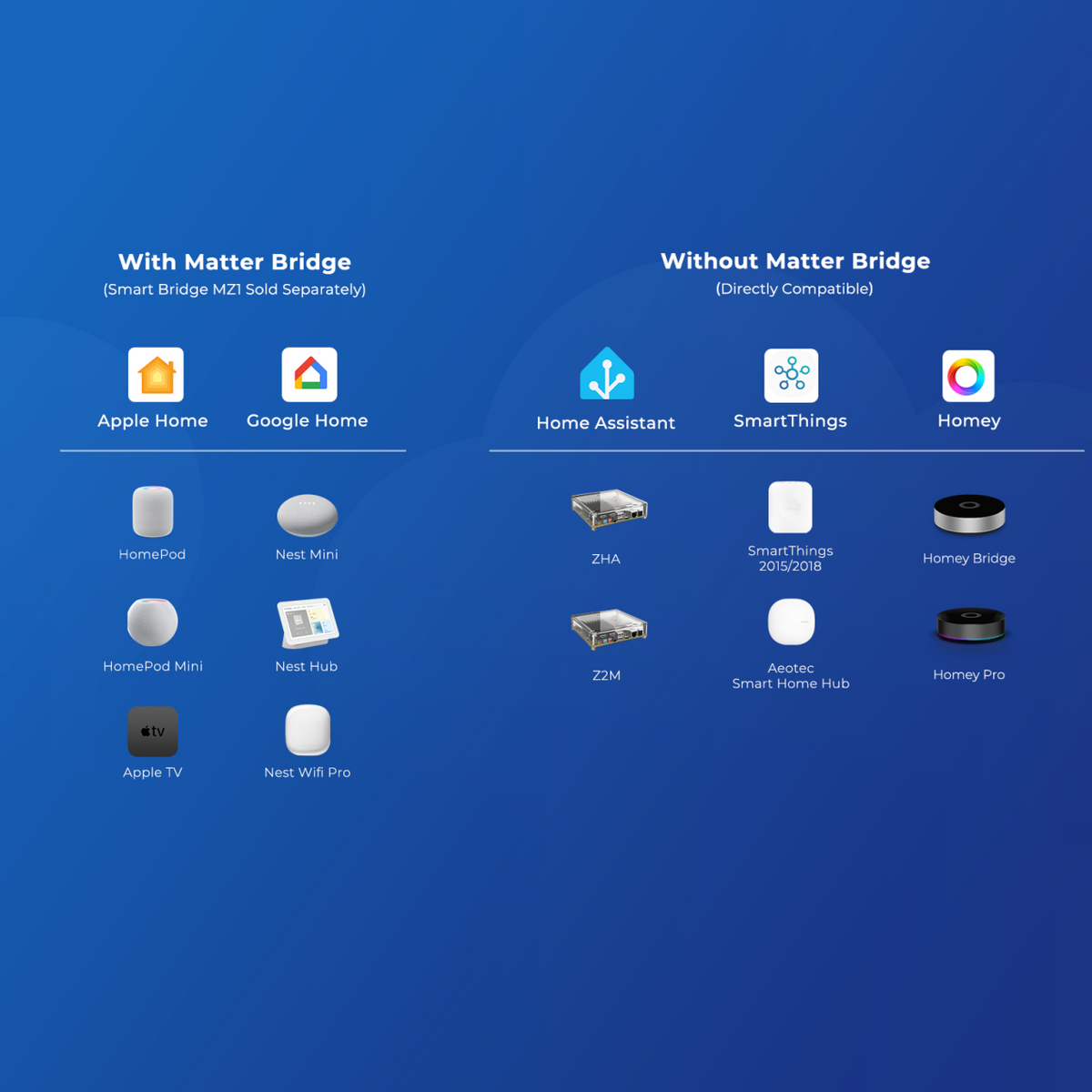

| Compatibility | Home Assistant (ZHA, Zigbee2MQTT) SmartThings (2015/2018 hubs, SmartThings Station, Aeotec Smart Home Hub) Homey (Homey Pro, Homey Bridge) ThirdReality Hub / Smart Bridge Apple Home and Google Home via ThirdReality Smart Bridge MZ1 (sold separately) |
| Safety | Zero-crossing detection Tamper-resistant shutters ETL certified, fire-resistant housing |

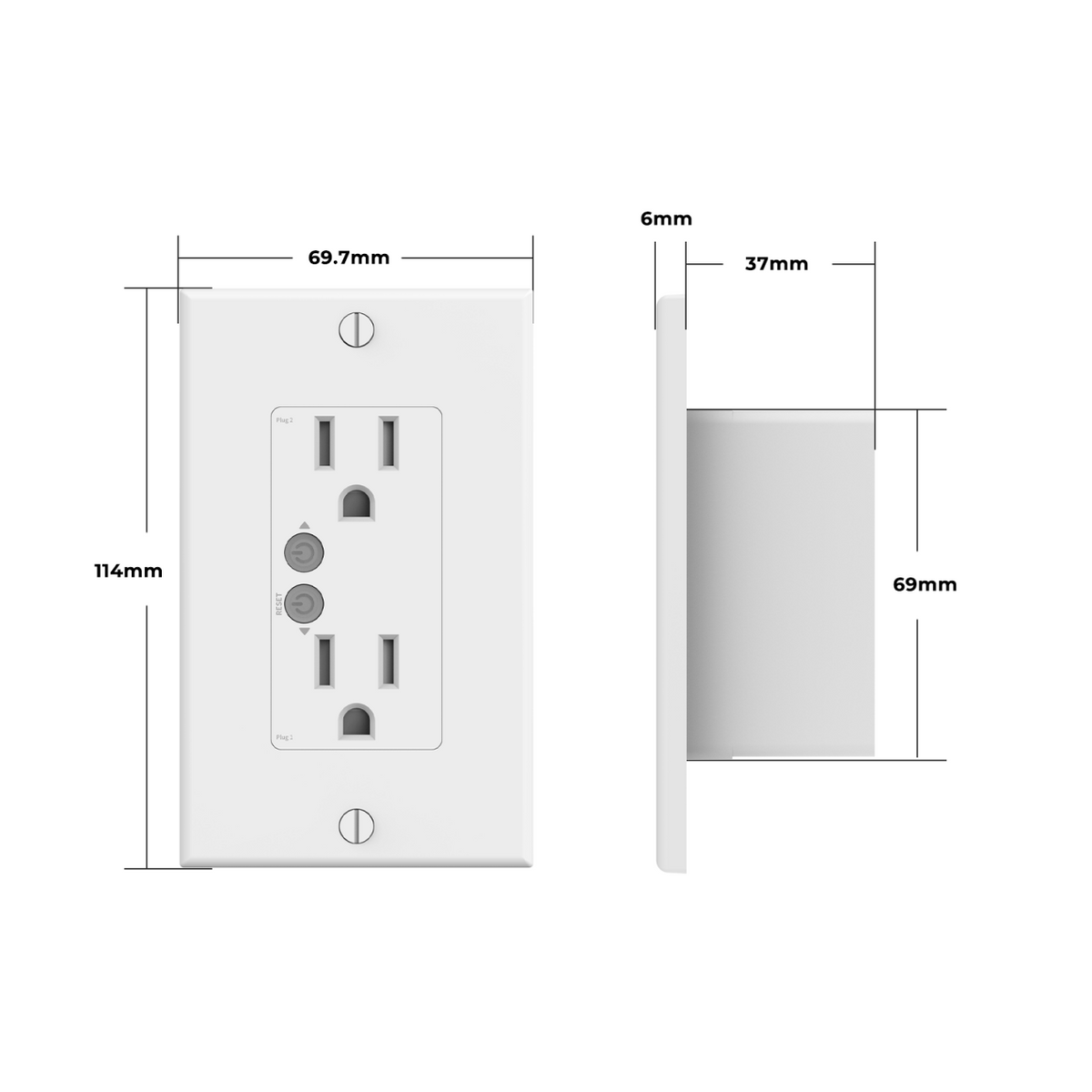

| Size | Wall plate about 114 × 69.7 mm Depth about 43 mm (6 mm plate + 37 mm rear housing) |
| Installation | In-wall, replaces standard duplex receptacle Requires deeper electrical box |
What's Included:
- 1 × ThirdReality Smart Wall Outlet ZW1
NOTES
- Requires a compatible Zigbee hub or coordinator. It is not Wi-Fi or Bluetooth.
- Works with Home Assistant via ZHA or Zigbee2MQTT.
- Apple Home and Google Home require the ThirdReality Smart Bridge MZ1 (sold separately).
- Each socket can be scheduled or controlled separately, or both together.
- Confirm your electrical box has enough depth before installation. Professional installation is recommended if you are not comfortable with mains wiring.
- Check local electrical codes and circuit capacity for the loads you plan to connect.
