Trimui Brick Pro Retro Handheld
Trimui Brick Pro Retro Handheld
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

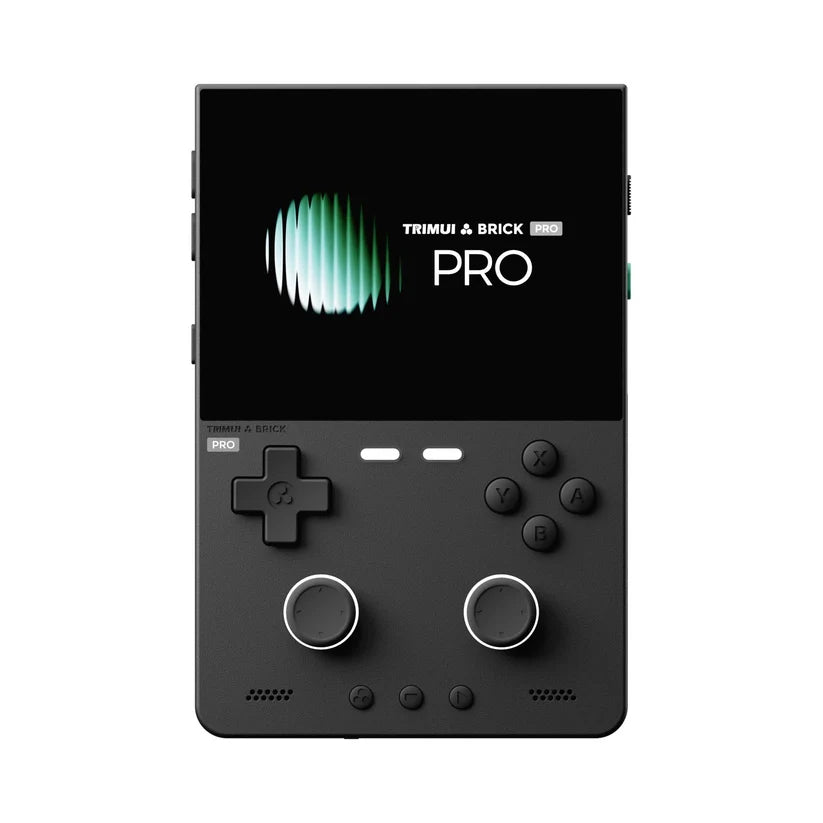

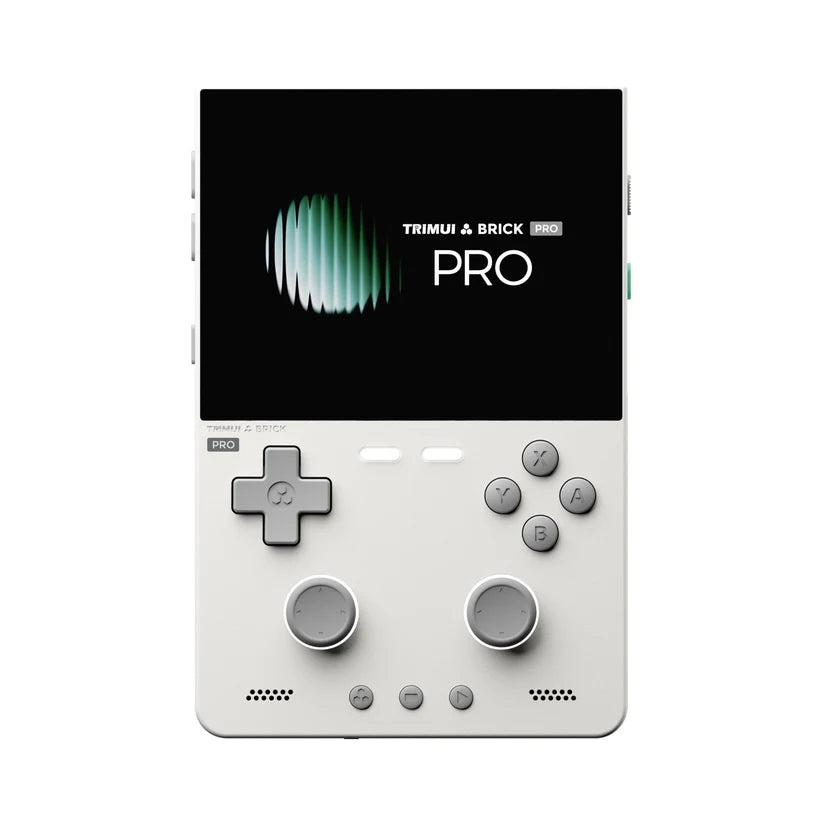

The Trimui Brick Pro is a compact retro handheld with a 3.95-inch 1024×768 IPS screen and dual Hall joysticks. Choose Black or White on this product page. No TF card is included. The console has 1 GB RAM and 8 GB eMMC.
KEY FEATURES
- Allwinner A133P at 1.8 GHz, PowerVR GE8300 GPU up to 660 MHz
- 3.95-inch IPS, 1024×768, 60 Hz, fully laminated
- 1 GB LPDDR3 and 8 GB eMMC
- TF slot, expandable up to 1 TB. No card in the box
- Dual Hall-effect joysticks (JF15), shoulder buttons, and a vibration motor
- Wi-Fi 802.11 b/g/n and Bluetooth 4.2
- Dual 1 W speakers, 3.5 mm jack, built-in microphone
- 5000 mAh battery. Trimui lists about 5–10 hours depending on the load
- USB-C charging, a second USB-C host port, and USB-C DisplayPort output up to 1080p60
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | Trimui Brick Pro |
| CPU | Allwinner A133P, 1.8 GHz |
| GPU | PowerVR GE8300, up to 660 MHz |
| RAM | 1 GB LPDDR3 |
| Storage | 8 GB eMMC TF slot, up to 1 TB (card not included) USB flash drives, FAT32 |

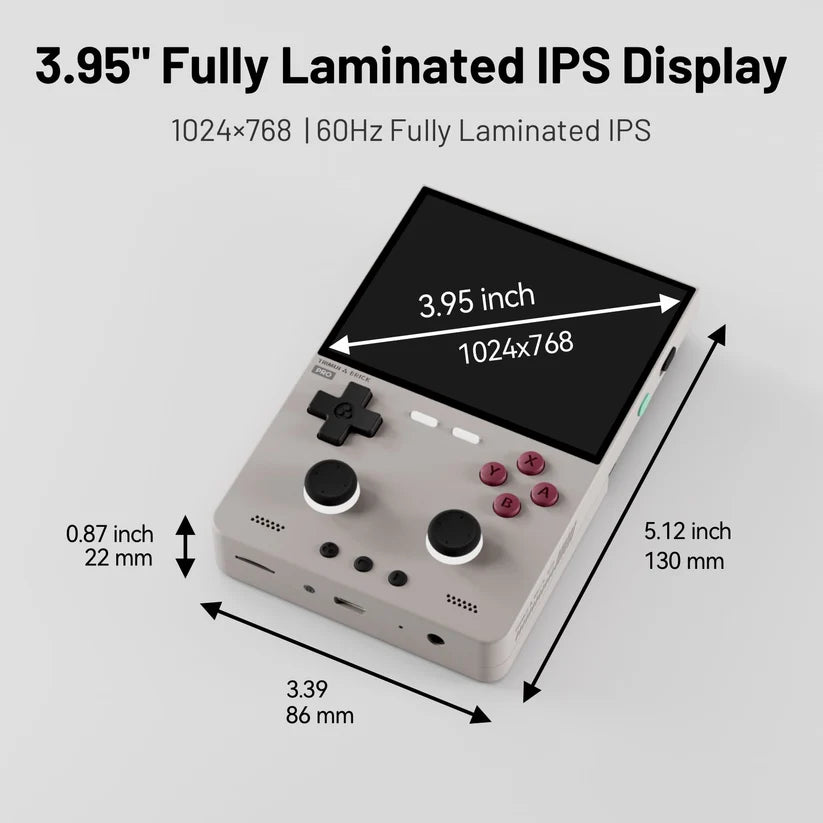

| Display | 3.95-inch IPS, 1024×768, 60 Hz, 324 ppi |
| Controls | Dual Hall joysticks (JF15) Shoulder buttons with lighting Vibration motor |
| Wireless | Wi-Fi 802.11 b/g/n Bluetooth 4.2 + EDR |
| Audio | 2× 1 W speakers 3.5 mm jack Mono microphone |
| Battery | 5000 mAh, 3.7 V About 5–10 hours USB-C, 5 V / 2 A |
| Video out | USB-C DisplayPort alt mode, up to 1920×1080 at 60 Hz |

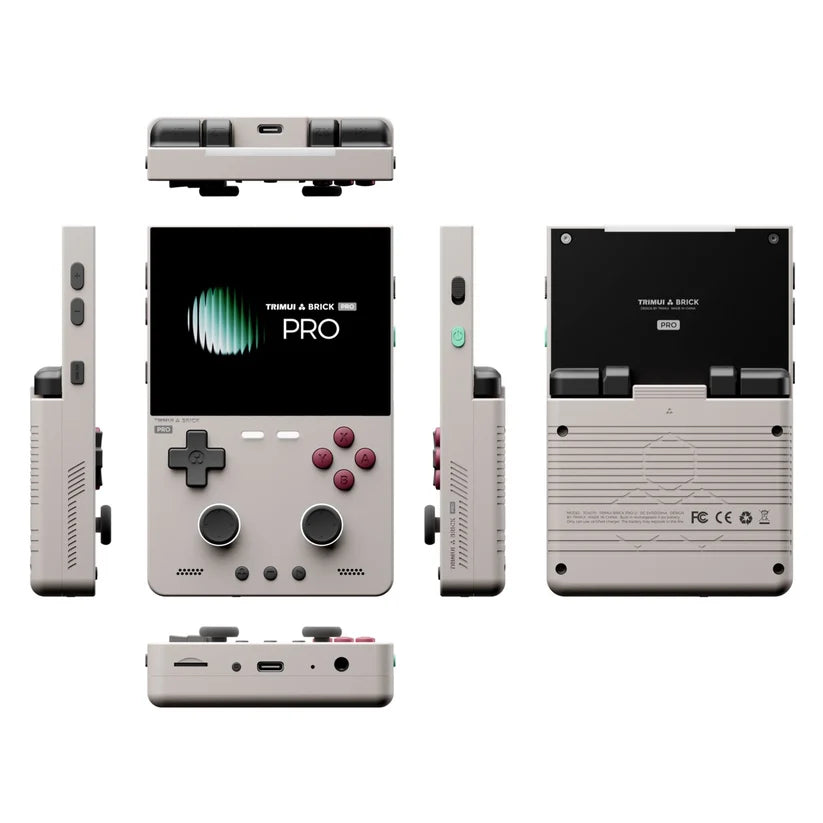

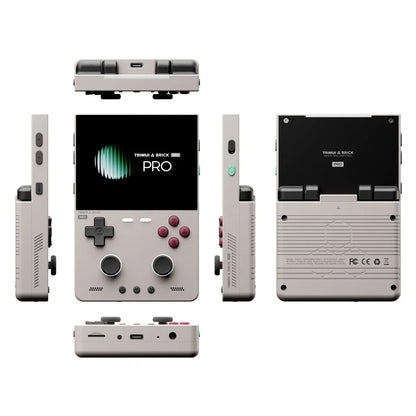

| Ports | Bottom USB-C (charge and data) Rear USB-C host TF slot |
| System | Linux 4.9, TrimUI |
| Weight | 236 g |

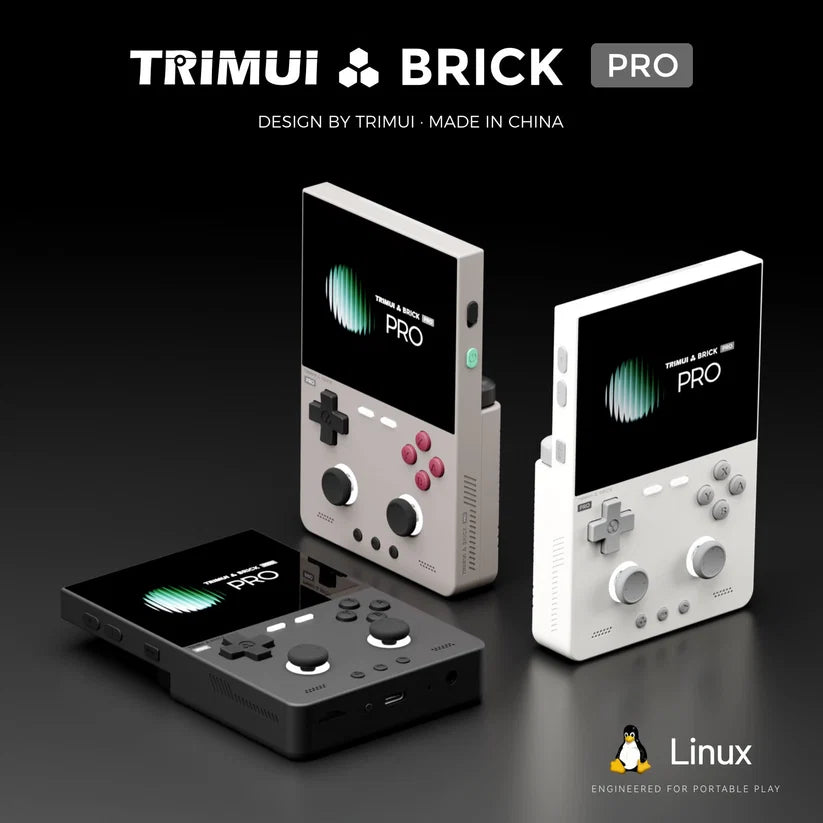

| Colors | Black or White |

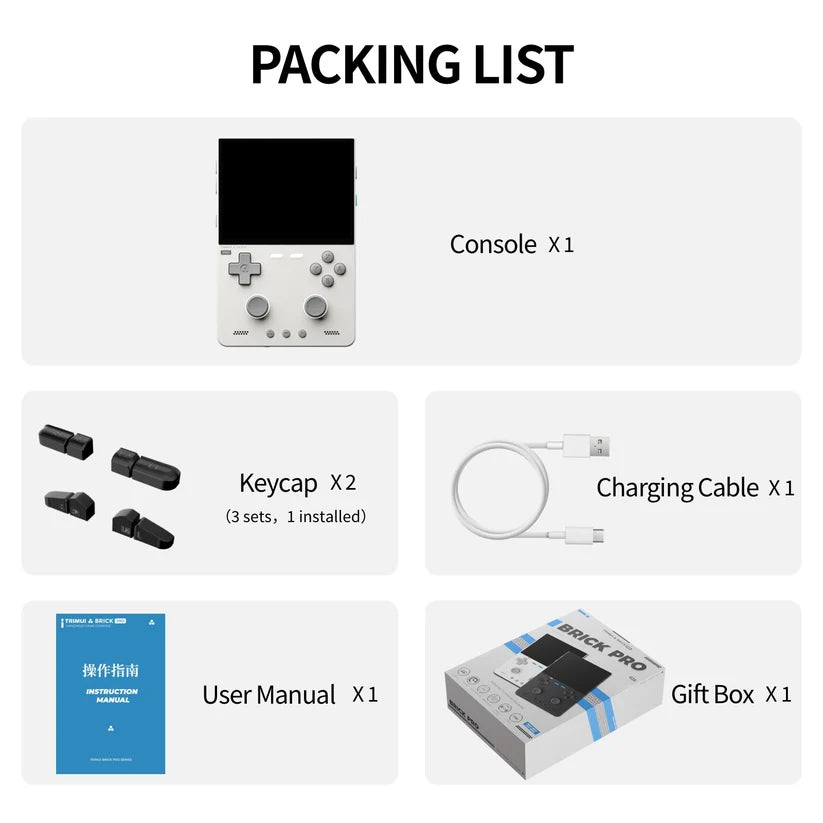

What's Included:
- 1 × Trimui Brick Pro (Black or White, as selected)

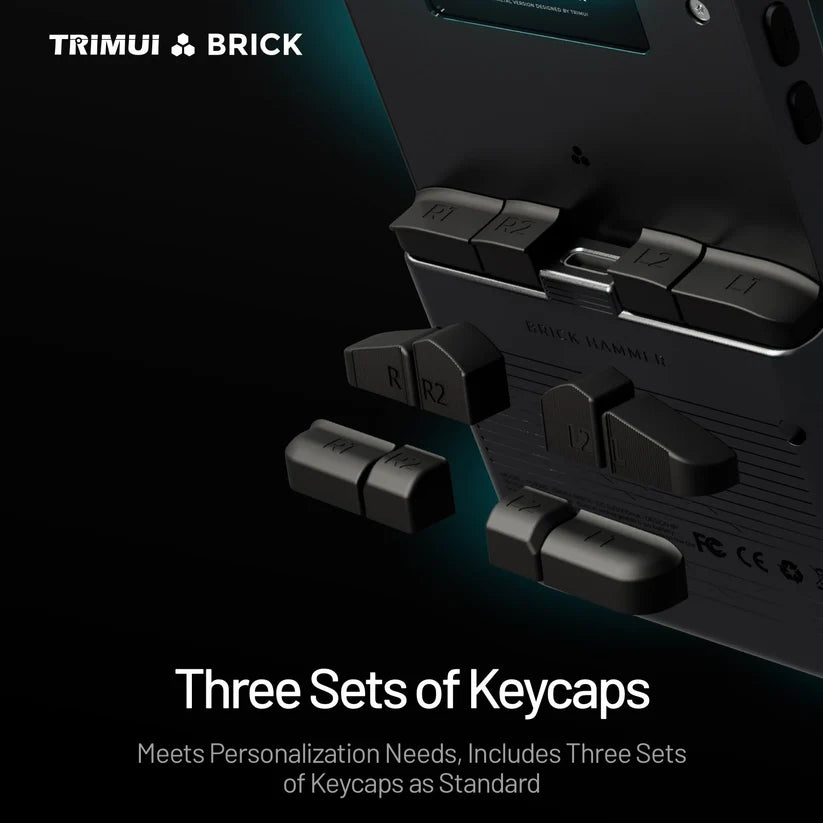

- 2 × spare keycaps (3 sets total, 1 already installed)
- 1 × USB charging cable
- 1 × user manual
NOTES
- Select Black or White on this product page
- No TF card is included. Games and extra storage go on a card you supply, up to 1 TB
- The 8 GB eMMC is onboard storage, not a removable card
- A wall charger is not included. The USB-C cable is. It charges at 5 V / 2 A
