USB3.0 to SATA Bridge Board
USB3.0 to SATA Bridge Board
Thank you for supporting a US-based small business!
Out of Stock! If you see a Pre-order badge and/or an Add to Cart/Preorder Now button, you can place a pre-order now!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

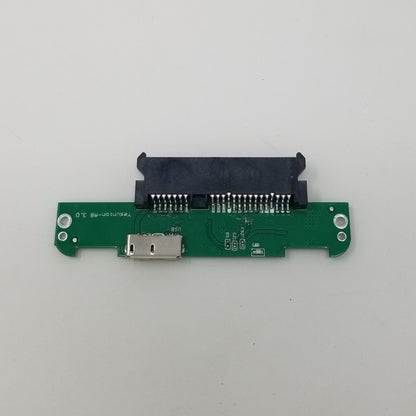

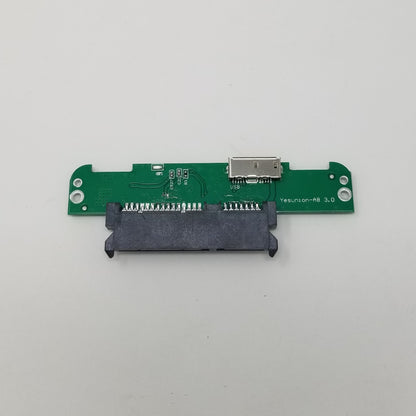

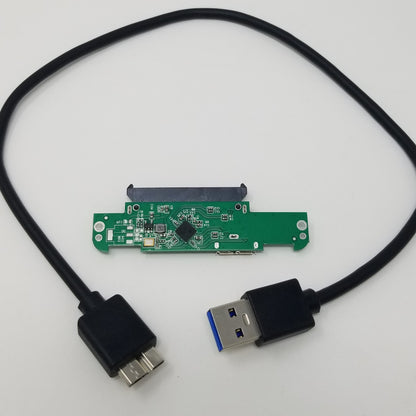

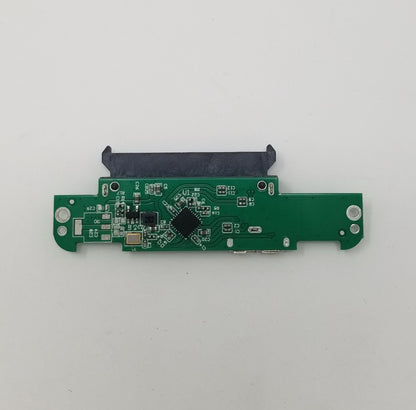

The USB3.0 to SATA Bridge Board contains a USB3.0 to SATA3 controller (Innostor 1S621) allowing interfacing with a single 2.5" SATA HDD/SSD. Achieve > ~260MB/sec transfer speeds with UAS capability.
The USB3.0 to SATA Bridge Board offers data and power to the HDD/SSD.
KEY FEATURES
- Dimensions: 70 x 22 x 8 mm (approx., including connector)
- Interface: microUSB3.0
- Connector: Compatible with 2.5inch SATA HDD / SSD
- Control IC: 1S621(VID:PID = 1F75:0621)
NOTES
- Apple Mac USB2.0 ports are under-powered and won't allow most drives to be recognized using this type of device.
PERFORMANCE
An SSD write and read tests with ODROID-XU4 USB 3.0 on Linux Kernel 4.9.44.
Write test
Write : dd if=/dev/zero of=test oflag=direct bs=4M count=256
256+0 records in
256+0 records out
1073741824 bytes (1.1 GB, 1.0 GiB) copied, 4.26754 s, 252 MB/s
Read test
dd if=test of=/dev/null iflag=direct bs=4M
256+0 records in
256+0 records out
1073741824 bytes (1.1 GB, 1.0 GiB) copied, 4.1119 s, 261 MB/s
