Wanderer Li 30A PWM Charge Controller with Breakers and Wiring Kit

Renogy Wanderer Li 30A PWM Solar Charge Controller (12V Lithium Compatible)

The Renogy Wanderer Li 30A is a compact and reliable PWM solar charge controller designed for 12V off-grid systems. Optimized for lithium (LiFePO4) batteries as well as sealed, gel, and flooded lead-acid batteries, it features smart 4-stage charging, comprehensive electronic protections, an LCD display, and low self-consumption. Ideal for RVs, cabins, boats, and small solar setups.

KEY FEATURES

• 30A PWM Charging for 12V systems
• Lithium Battery Compatible: Optimized for LiFePO4 as well as Sealed, Gel, and Flooded batteries
• Smart 4-Stage Charging: Improves battery performance and lifespan
• LCD Display: Shows real-time charging parameters and error codes
• Comprehensive Protections: Overcharge, over-discharge, reverse polarity, short circuit, overload, and reverse current
• Low Self-Consumption: ≤ 10 mA
• RS232 Port: Compatible with Renogy BT-1 Bluetooth module for app monitoring
• Temperature Compensation: Helps optimize charging based on battery temperature
• Compact & Lightweight: Easy to install in tight spaces

SPECIFICATIONS

Electrical:

• Nominal System Voltage: 12 VDC
• Rated Charge Current: 30A
• Max. PV Input Voltage: 25 VDC
• Max. PV Input Power: 400W (12V)
• Self-Consumption: ≤ 10 mA
• Temperature Compensation: -3 mV/°C/2V

Battery Compatibility:

• Lithium (LiFePO4)
• Sealed (AGM)
• Gel
• Flooded

Protections:

• Overcharging
• Over-discharging
• Short circuit
• Overload
• Reverse polarity
• Reverse current

Physical:

• Dimensions: 6.45 × 4.31 × 1.76 in (164 × 109 × 45 mm)
• Weight: 0.65 lbs (0.29 kg)
• Max. Terminal Size: 8 AWG
• Enclosure: IP20

Operating Conditions:

• Working Temperature: -20°F to 113°F (-35°C to +45°C)
• Storage Temperature: -31°F to 176°F

Connectivity:

• RS232 port for Renogy BT-1 Bluetooth module
• Compatible with Renogy DC Home App / Renogy ONE

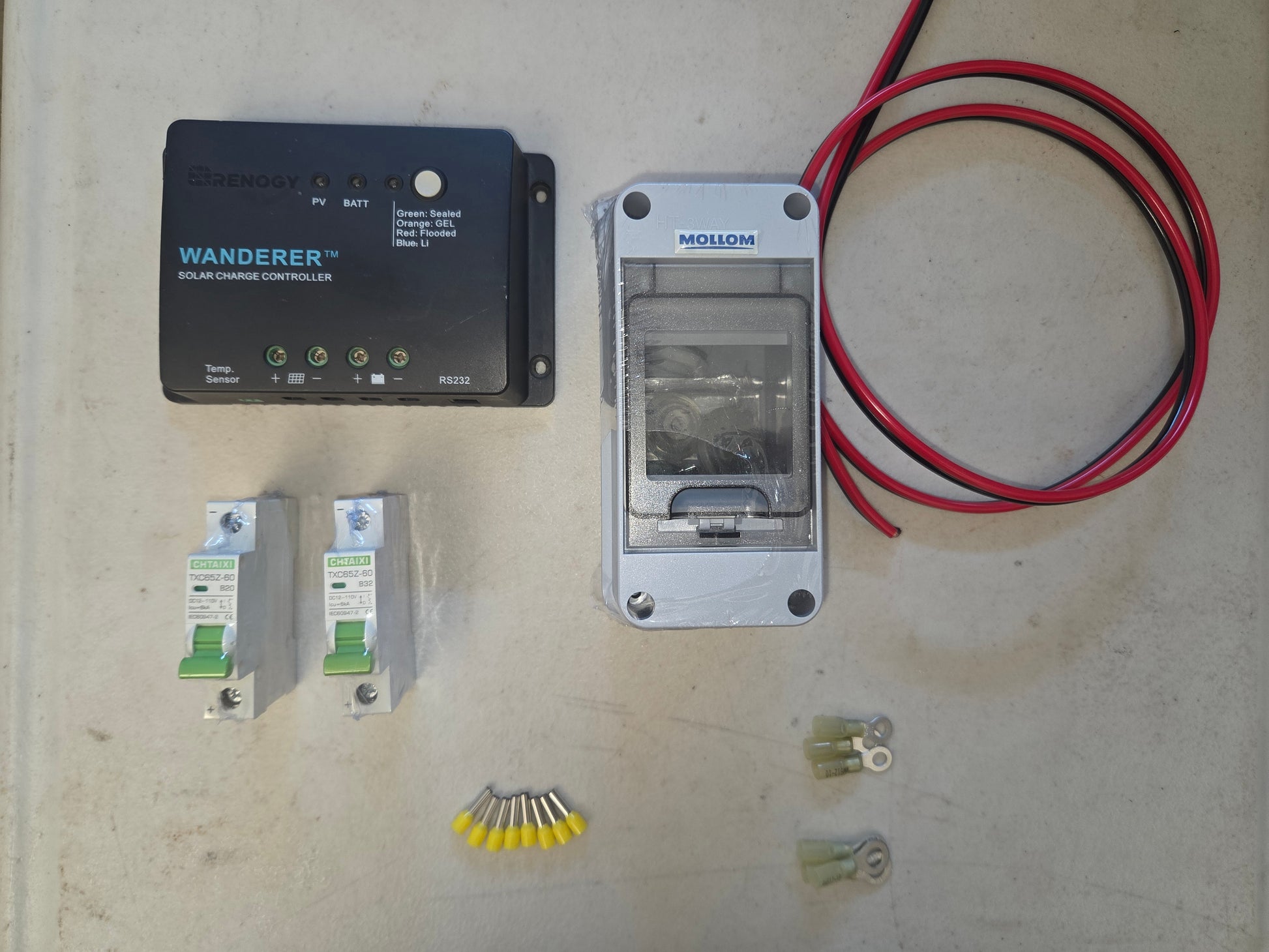

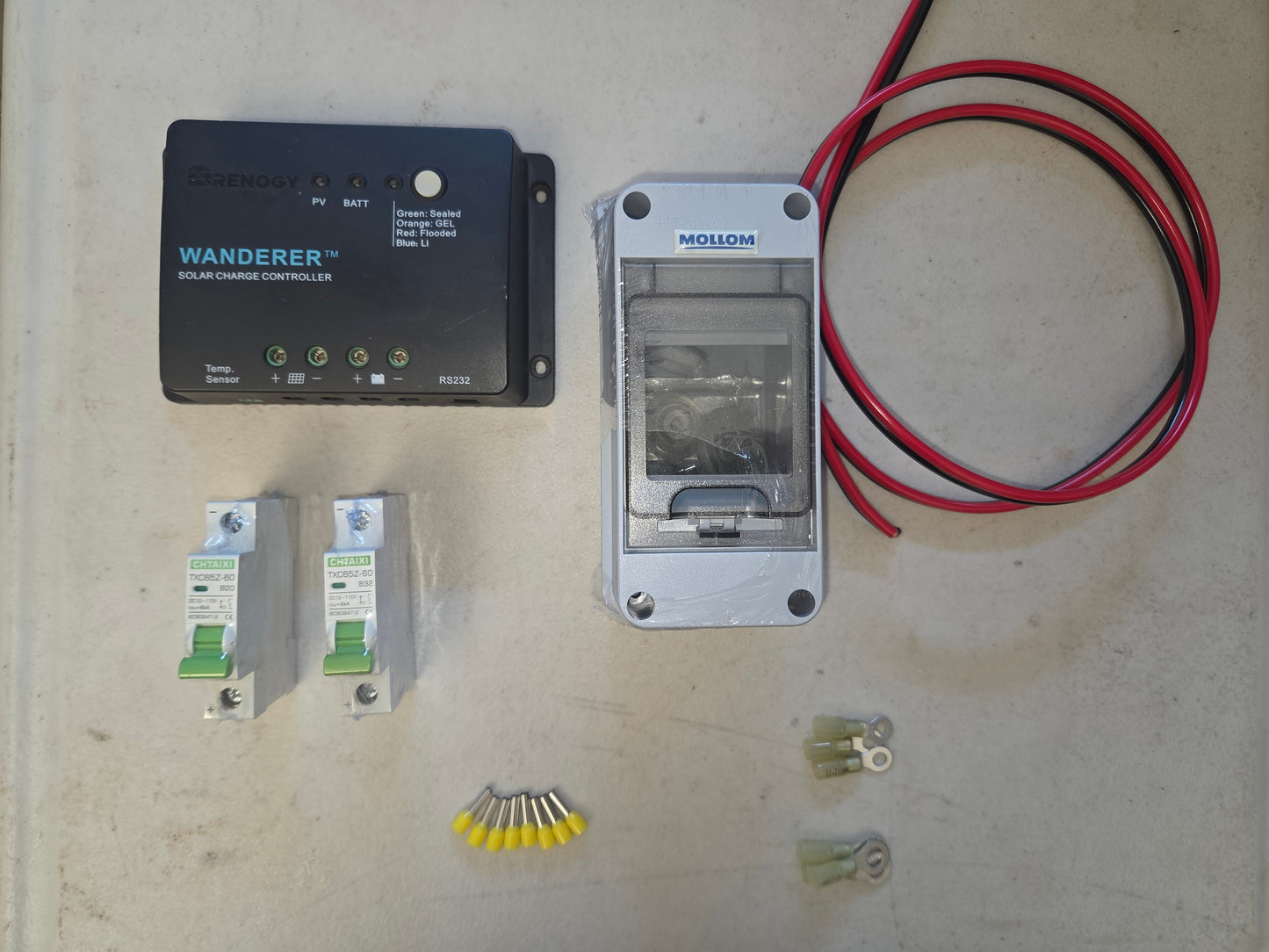

What's Included:

• 1 of Renogy 30 AMP 12 Volt PWM Charge Controller, lithium capable CTRL-WND30-LI
• 1 of 20 AMP DC rated DIN rail mount breaker for solar input
• 1 of 30 AMP DC rated DIN rail mount breaker for battery connection
• 1 of 3 slot DIN rail breaker enclosure
• 4FT set of 10 AWG OFC (oxygen free copper) wiring for connections
• 3 of 12-10 AWG x 1/4in (M6) ring terminals with heat shrink insulator for battery connection
• 3 of 12-10 AWG x 5/16in (M8) ring terminals with heat shrink insulator for battery connection
• 8 of 12-10 AWG ferrules

NOTES

• Designed for 12V systems only
• Bluetooth monitoring requires the optional Renogy BT-1 module (sold separately)
• Ideal for small to medium off-grid solar systems in RVs, boats, cabins, and similar applications
• Lithium charging parameters can be adjusted when using the BT-1 and Renogy app
