Wi-Fi HaLow Dongle V2 — 802.11ah Long Range Wireless Network Bridge

Wi-Fi HaLow Dongle V2 — 802.11ah Long Range Wireless Network Bridge

Regular price $81.95 USD
Regular price $84.95 USD Sale price $81.95 USD
4% OFF
Shipping calculated at checkout.
US Flag Thank you for supporting a US-based small business!

In stock

🎄 Sending this as a gift?

Add gift wrapping to this order for $6.95. Pricing is left out of the package.

Free standard shipping on US orders over $150

Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.

📦

US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.

Description ▼

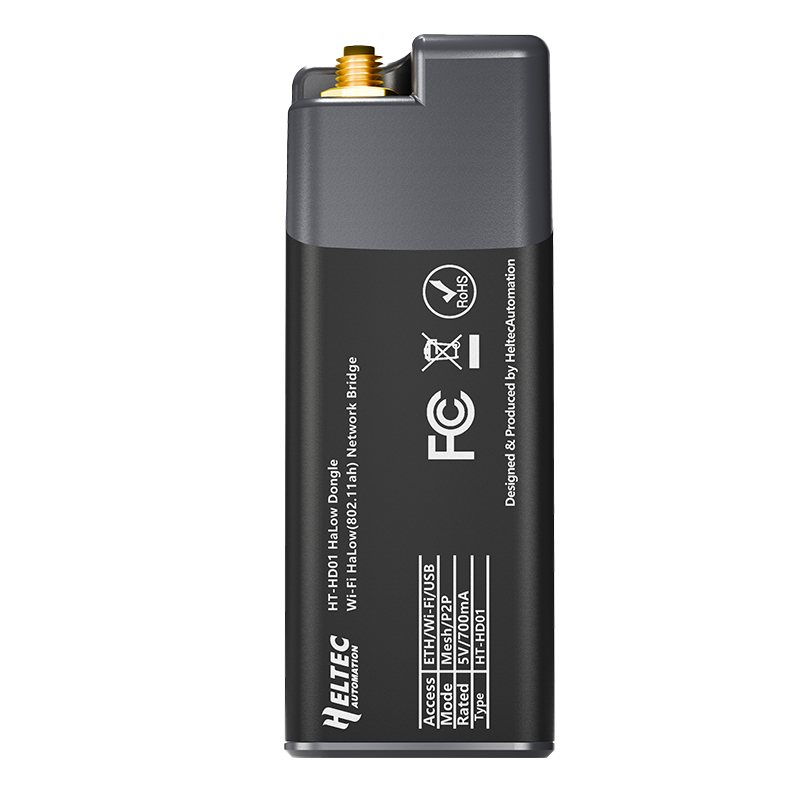

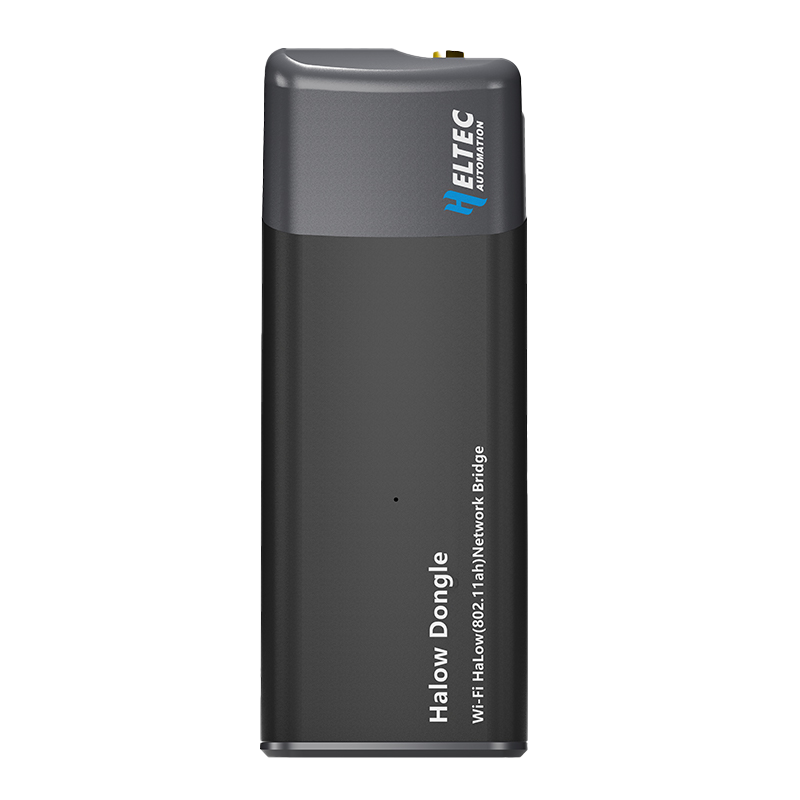

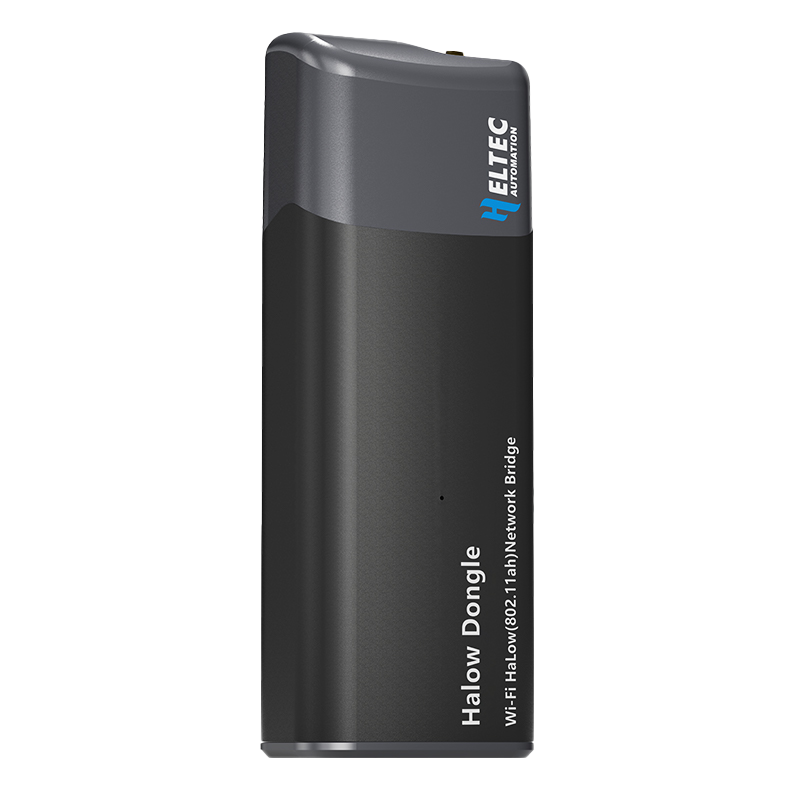

The Heltec HT-HD01 is a Wi-Fi HaLow (802.11ah) dongle that bridges a normal network over sub-GHz radio. This unit ships configured as an access point (AP) on the US band, 902–928 MHz. Plug a router or PC into it over Ethernet, USB-C, or its 2.4 GHz Wi-Fi, and it can talk to another HT-HD01 or a Heltec HaLow router such as the HT-H7608.

KEY FEATURES

  • Ships as AP on 802.11ah, 902–928 MHz
  • Same hardware can be flashed to STA. Buy two for a point-to-point link
  • Bandwidth 1 / 2 / 4 / 8 MHz, up to 32.5 Mbps at 8 MHz
  • V2 transmit power 27±1 dBm (V1 silk screen is 21±1 dBm)
  • Heltec lists about 1 km, farther with a clear line of sight

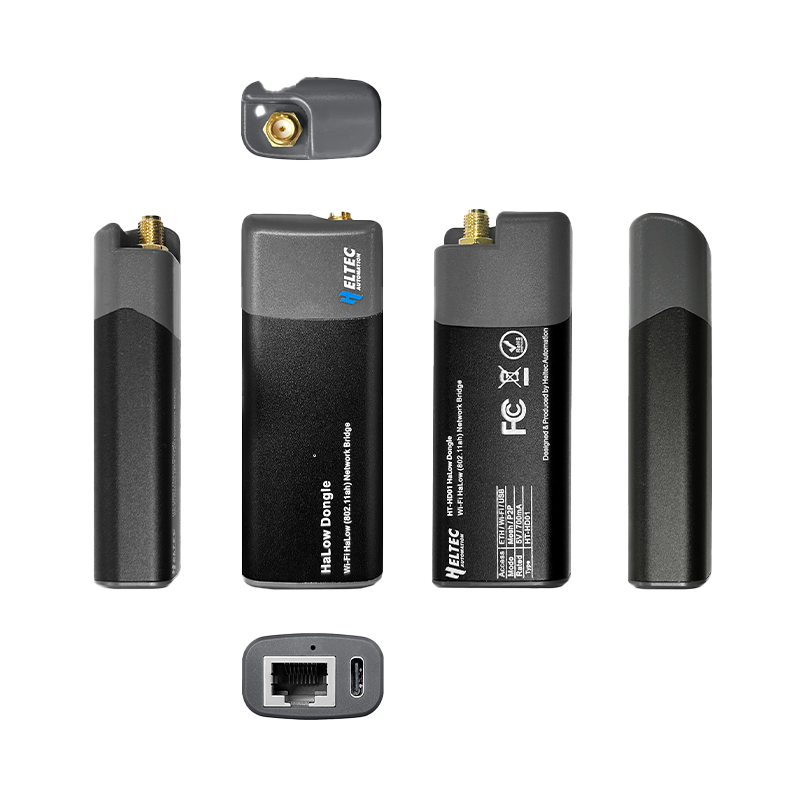

  • Upstream over USB-C, 10/100 Ethernet, or 2.4 GHz Wi-Fi (802.11 b/g/n)
  • One AP can serve one STA or several STAs, or join an HT-H7608 star network
  • SMA antenna, aluminum and plastic shell, USB-C 5 V

SPECIFICATIONS

Category Details
Model Heltec HT-HD01 Wi-Fi HaLow Dongle (AP)
MCU MT7628
HaLow IEEE 802.11ah
902–928 MHz
1 / 2 / 4 / 8 MHz
Up to 32.5 Mbps at 8 MHz
Max TX 27±1 dBm (V2), 21±1 dBm (V1)
2.4 GHz Wi-Fi IEEE 802.11 b/g/n
Ethernet RJ45 10/100, plus USB-C network
Antenna SMA female
Power USB-C, 5 V
About 300 mA typical
Operating range −20°C to +70°C
10–90% RH, non-condensing
Enclosure Aluminum alloy and plastic
Not waterproof
Size 87.5 × 32.5 × 20 mm (antenna not included)
Weight 40 g without antenna, 53.5 g with antenna

What's Included:

  • 1 × HT-HD01 Wi-Fi HaLow dongle, AP firmware

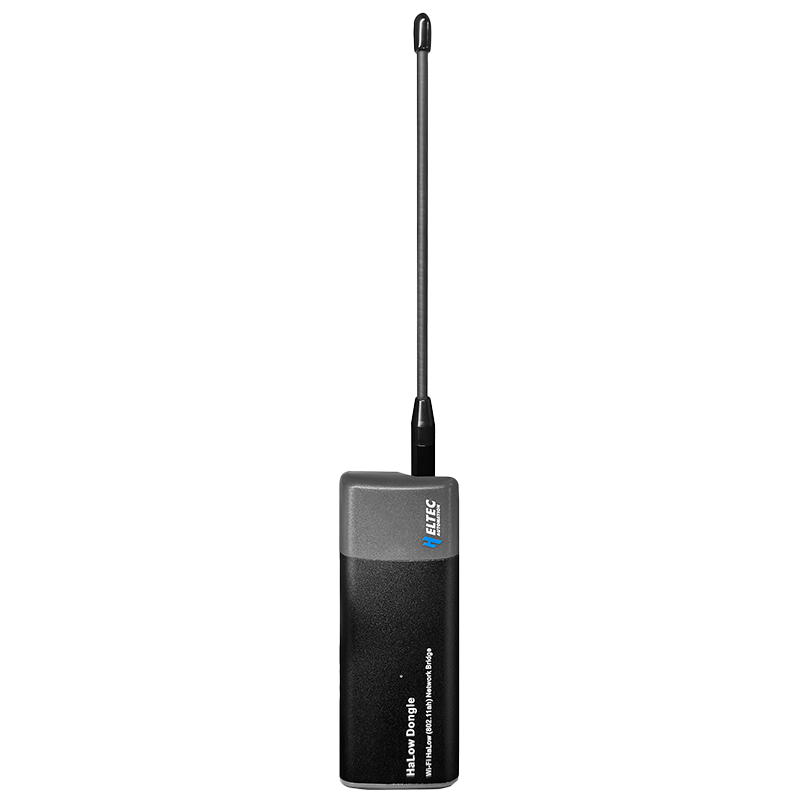

  • 1 × antenna
  • 1 × USB-C cable
  • 1 × Ethernet jumper
  • 1 × reset pin
  • 1 × paper user guide

NOTES

  • This listing is the AP unit. Buy two if you want a point-to-point link: Heltec uses the same hardware for AP and STA, and one can be flashed to STA
  • One AP can also serve several STA units, or join a Heltec HT-H7608 HaLow router
  • Do not open the web setup over Wi-Fi while an Ethernet cable is plugged in. Unplug power and Ethernet, then enter setup again
  • US 902–928 MHz. Not the 868 MHz EU version
