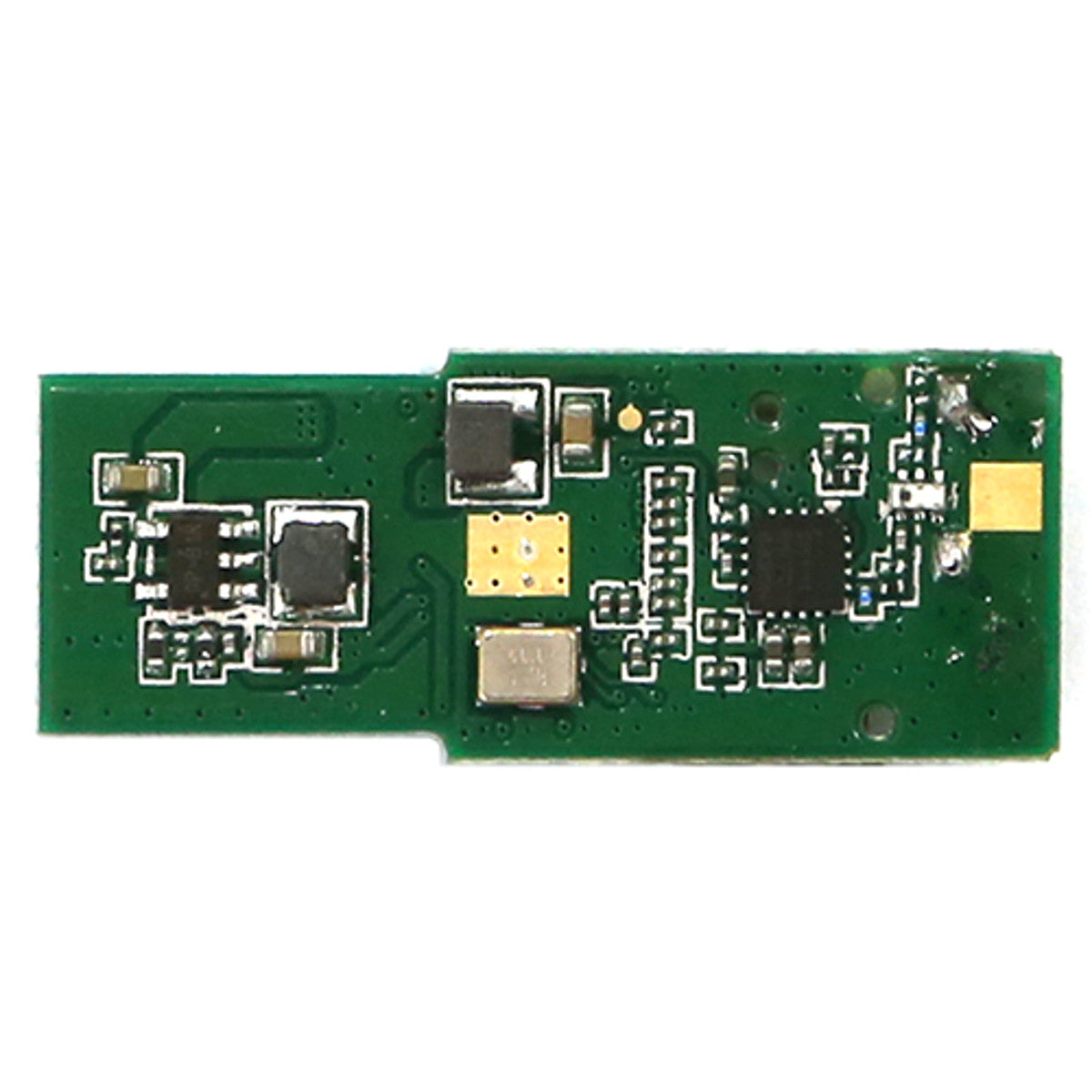

WiFi Module 5A 802.11a/b/g/n/ac Dual Band

The WiFi Module 5A is a FCC / CE certified IEEE 802.11a/b/g/n/ac WLAN module with on-board 2.4Ghz and 5.8Ghz Dual band antenna that works with ODROID series and is Android and Linux compatible. This module will also work out-of-the-box with other SBCs and operating systems that support the RTL8811AU chipset. Otherwise, the addition of drivers or recompilation may be required for full functionality.

Please update your OS to the latest version if it doesn’t work.

Links to compliance documentation available at the bottom of this listing.

KEY FEATURES

• Realtek RTL8811AU chipset ( USB ID = 0bda:a811 )
• Dual-Band 11ac 1×1 with 64/128/152 bit WEP, WPA/WPA-PSK,WPA2/WPA2-PSK securities
• Frequency Range: 2.4-2.483GHz ; 5.725~5.825GHz
• Support WLAN Standards: IEEE802.11ac/a/b/g/n
• Transmission Speed : ~200 Mbps
• USB 2.0 High-speed
• Antenna Gain: 2dBi
• Dimension : 36 x 19 x 9 mm
• LED for WiFi Link Activity
• Frequency Range: 2.4-2.483GHz ; 5.725~5.825GHz
• Dimension : 36 x 19 x 9 mm
• Weight : 5 g

LINKS

• FCC and CE Certifications - https://dn.odroid.com/testReport/wifi_M6/

CERTIFICATIONS

• FCC/CE/RoHS - https://dn.odroid.com/testReport/wifi_M6/

Warranty is valid for two weeks, starting upon date of receipt.
