WisMesh Meshtastic Starter Kit

Note: This kit comes pre-flashed with Meshtastic firmware for immediate use on US915 (900MHz) band. We sell the RAK19007 base board variant with no additional modules (OLED assembly method: None). We can assist with custom configurations, adding modules later (e.g., RAK1921 OLED, GNSS), or firmware tweaks. Reach out to us for a quote on bundles, upgrades, or regional variants!

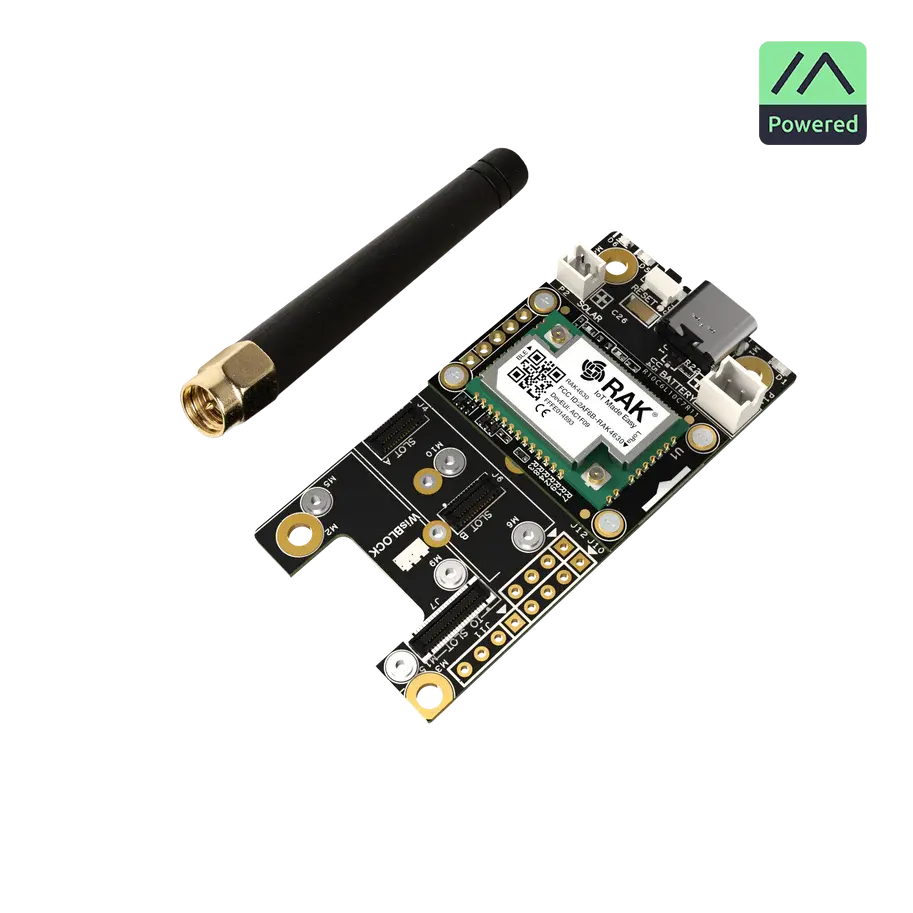

Discover the RAK WisBlock Meshtastic Starter Kit (RAK19007 Base Board variant)—the simplest, most reliable way to join the off-grid Meshtastic network for long-range text messaging, location sharing, and telemetry without internet or cellular service. Featuring the RAK4631 core (Nordic nRF52840 + SX1262 LoRa) on the upgraded RAK19007 base board, pre-flashed Meshtastic firmware, and an enhanced 2dBi rubber LoRa antenna for improved range and reliability. No additional modules included (OLED assembly: None), leaving all four sensor slots and one IO slot free for easy future expansions like displays, GPS trackers, sensors, or repeaters. Perfect for beginners, emergency comms, outdoor adventures, or building community mesh networks—compact, low-power, and fully modular.

KEY FEATURES

• Pre-Flashed Meshtastic Firmware: RAK4631 core ready out-of-the-box for instant setup as a Basic/Client/Tracker/Repeater node—supports decentralized LoRa mesh for off-grid messaging and location with low power draw.
• RAK19007 Base Board (No Additional Modules): Upgraded 2nd Gen design with 4 sensor slots (A-D) + 1 IO slot free for expansions; OLED assembly method: None—add displays, GNSS, environmental sensors, or Ethernet later as needed.
• Enhanced 2dBi Rubber Antenna: Upgraded high-gain rubber LoRa antenna (plus BLE PCB antenna) boosts connection reliability and range—ideal for US915 (900MHz) band in open areas or urban mesh setups.
• Modular & Expandable Design: WisBlock ecosystem allows plug-and-play additions without soldering; supports roles like Tracker (add GNSS), Client (add OLED), or Router (add PoE/Ethernet) for custom builds.
• Flexible Power & Connectivity: LiPo battery/solar support (via TP4054 charger), USB-C for programming/power; BLE for app pairing and LoRa for long-range comms—great for portable or fixed nodes.
• Reliable & Community-Driven: Nordic chipset for efficient performance; compatible with Meshtastic app (iOS/Android/Web); future-proof with open-source updates and RAK ecosystem growth.

SPECIFICATIONS

WHAT'S INCLUDED

• 1 × RAK19007 WisBlock Base Board
• 1 × RAK4631 WisBlock Core (pre-flashed with Meshtastic firmware)
• 1 × 2dBi Rubber LoRa Antenna
• 1 × IPEX LoRa PCB Antenna (alternative)
• 1 × BLE Antenna (PCB on core)
• 1 × MHF/IPEX to SMA Cable for LoRa
• 1 × USB Type-C to Type-A Cable
• Assembly Screws

NOTES

• Compatible with Meshtastic app for easy configuration, messaging, and node management—no extra hardware needed to start.
• Regional frequency: 900MHz variant for US915/AU915/KR920/AS923—ensure compliance with local regulations.
• Optional add-ons: Rechargeable LiPo batteries, Unify Enclosures for protection, RAK1921 OLED, RAK12501 GNSS, sensors—slots are ready for plug-in expansion.
• 3-Year Warranty (RAKwireless standard; contact us for support or custom setups).
