WisMesh 1W Booster Starter Kit

WisMesh 1W Booster Starter Kit

High-power Meshtastic solution with nRF52840, SX1262, and SKY66122 PA for extended mesh range

What is WisMesh 1W Booster Starter Kit?

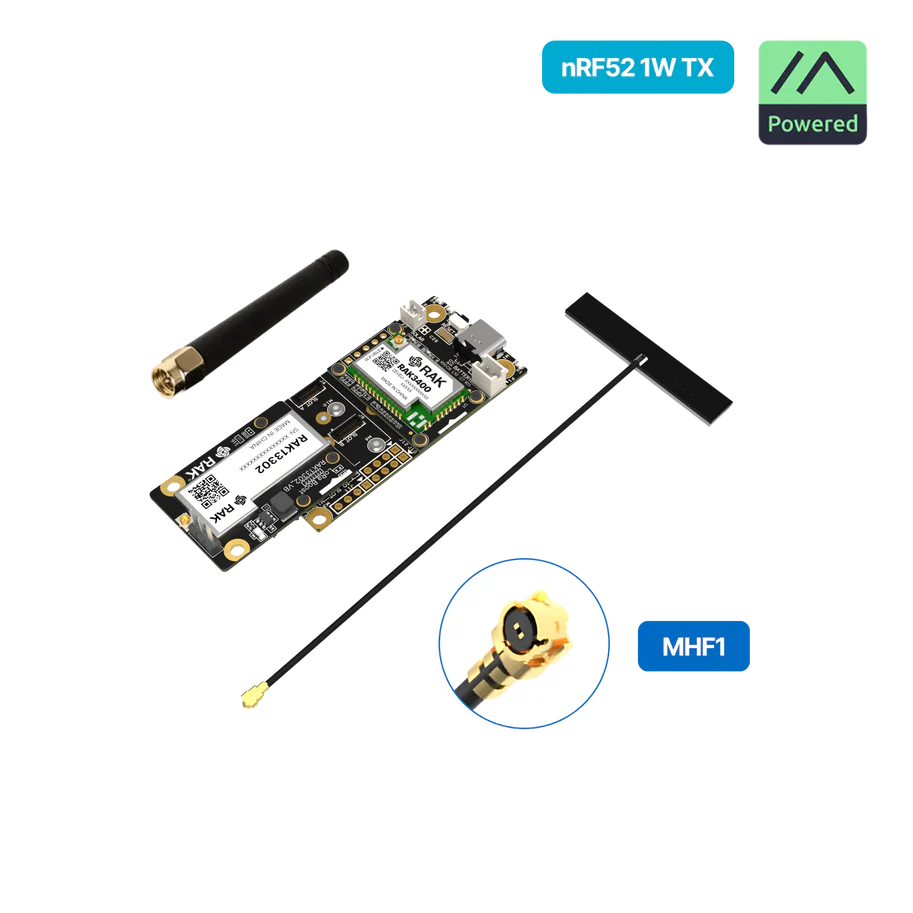

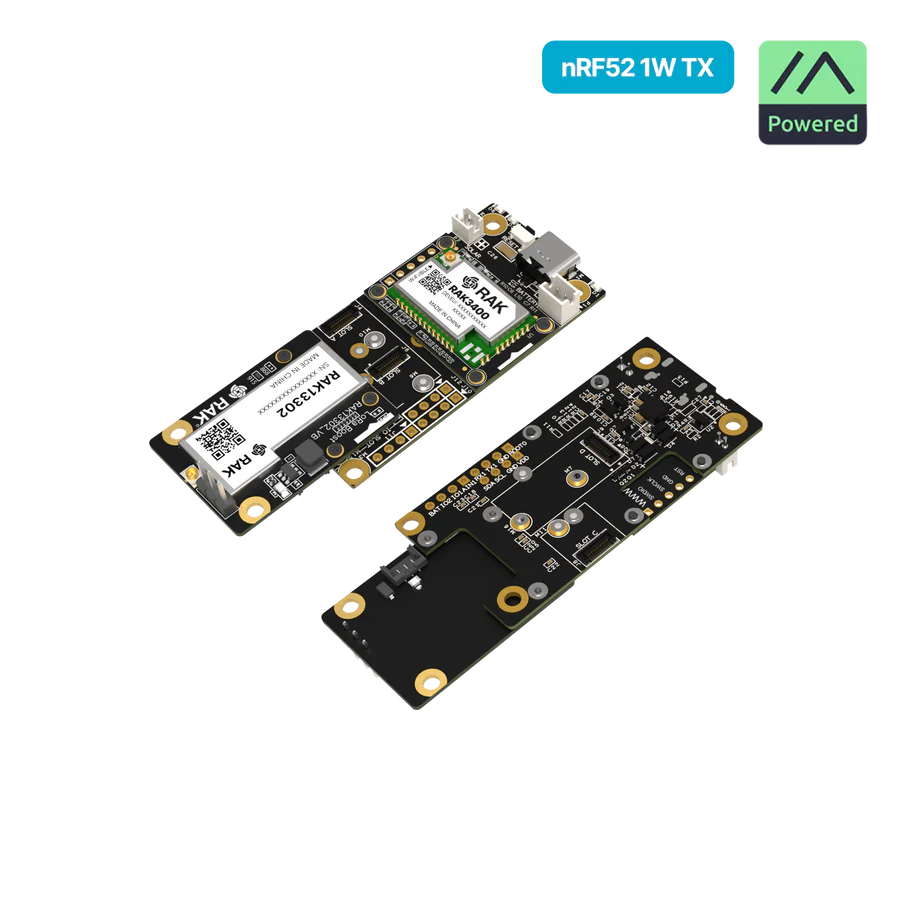

The WisMesh 1W Booster Starter Kit brings more TX power and better reception to Meshtastic networks. Powered by the RAK3401 WisBlock Core module with the Nordic nRF52840 MCU and a RAK13302 1W LoRa transceiver module, mounted on a RAK19007 Base Board.

Unlike common solutions, the RAK13302 integrates a dedicated RF filter stage, which not only enables 1W high-power transmission but also significantly enhances receiver sensitivity. This means longer range, more stable links, and stronger mesh reliability. This is ideal for outdoor adventures, emergency communications, or wide-area IoT coverage, positioning it as some of the best hardware for long-range Meshtastic networks.

Notes:
Transmit power limits and allowable frequency plans differ by country and region. This product supports high power operation, but users must configure transmit power, antenna gain, and frequency settings to comply with local regulations.

Due to the high power consumption of the 1W transceiver, the RAK13302 cannot work from the 3.3V supply voltage. It requires:

• Using a battery with the WisBlock Base Board
• External 5V supply for the RAK13302 module through its own power supply connector
• Always powering from USB

Why Choose the WisMesh RAK3401 Booster Starter Kit for Your Meshtastic Network?

Whether upgrading a Meshtastic 1W node or building a fresh deployment, this kit is engineered specifically for users who need reliable, long-range mesh communication in off-grid, outdoor, or emergency setups. With a full 1 W LoRa transmitter (30 dBm) and an integrated RF front-end including the SKY66122 amplifier + filter, you gain up to several times the coverage of standard Meshtastic nodes.

The use of the nRF52840 MCU ensures modern BLE and firmware compatibility, while the WisBlock modular ecosystem allows you to expand with sensors, displays, trackers, or repeater nodes with ease.

Compared to typical Meshtastic kits (100-160 mW output) or DIY 1W builds (which may lack RF filtering or stability), this kit delivers a proven, stable high-power solution—all while managing power, heat and regulatory concerns in a single product.

Key Features

• WisBlock RAK3401 Core module
  • Nordic nRF52840 MCU
  • ARM Cortex-M4F
  • 1MB Flash and 348KB SRAM
  • I/O ports: UART/I2C/SPI/ADC/GPIO
• WisBlock RAK13302 1W LoRa transceiver module
  • Semtech SX1262 LoRa transceiver
  • SKY66122 signal booster
  • Integrated RF filter for enhanced reception performance
  • IPEX antenna connector for LoRa
  • Support for 9xx MHz frequency band
• RAK19007 WisBlock Base Board
  • 4 sensor slots for WisBlock Sensor Modules
  • Supply voltage: 5V over USB, 5V over Solar Panel connector, Rechargeable battery

Range & RF Performance: SX1262 + SKY66122 Amplified Path

The WisMesh 1W Booster Starter Kit delivers exceptional performance for users needing a long-range Meshtastic solution. This is done by combining the Semtech SX1262 LoRa transceiver with the Skyworks SKY66122 high-power amplifier and a dedicated SAW filter. Unlike typical high-power boards that boost TX but degrade RX, this filtered RF chain preserves receiver performance while increasing output power up to 1 watt. The result is a cleaner signal, reduced self-interference, and significantly stronger SNR across real-world deployments.

Power Requirements & Thermal Notes

The 1W RF stage in the RAK13302 demands a stable 5V supply, as 3.3V sources cannot deliver the surge current required for high-power LoRa transmission. For reliable operation, users should power the module through USB, a regulated 5V adapter, or the WisBlock Base Board’s battery system—especially when using an SX1262 1W LoRa module in continuous or high-duty-cycle deployments.

Comparison Table: WisMesh RAK3401 Booster Starter Kit vs Popular Meshtastic Boards

Use Case #1: Remote Sensor Link Verification

A field technician evaluated environmental sensor communication across a 4km site using the WisMesh 1W Booster Starter Kit’s SX1262 + SKY66122 radio path. Tests showed 35% stronger signal retention, 98% packet delivery, and repeatable performance during five field trials, confirming reliable long-range operation.

Use Case #2: Community Emergency Relay Setup

During a local preparedness drill, engineers assembled a temporary Meshtastic network using several WisMesh 1W Booster Starter Kits. The result: stable 1W links, verified through 24 hours of uptime logs and user testimonials citing clear, uninterrupted message relays over forested terrain.

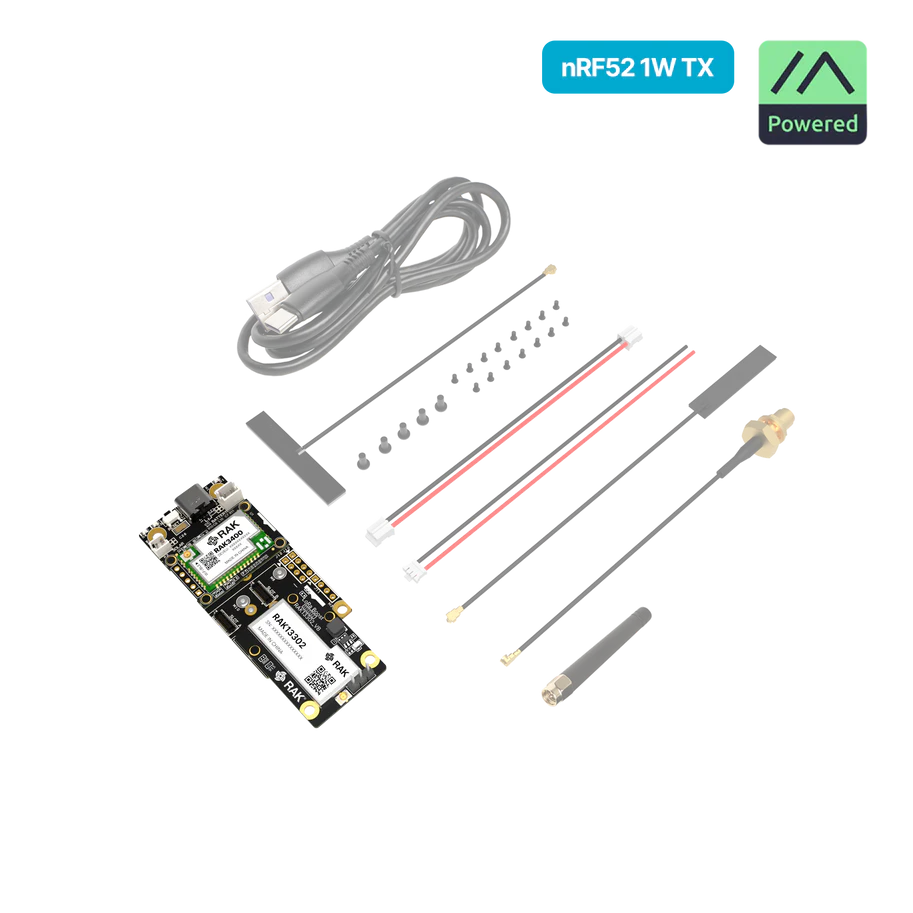

What’s in the Box

• 1 pc WisBlock Base Board RAK19007
• 1 pc WisBlock Core Module RAK3401
• 1 pc WisBlock LoRa module RAK13302
• 1 pc WiFi/BLE PCB antenna
• 1 pc 900Mhz LoRa PCB antenna
• 1 pc USB cable
• 1 pc IPEX to SMA cable for LoRa Antenna
• 1 pc SMA Rubber LoRa Antenna
• 2 pc 5V supply cable
• 1 set screw
• 1 pc Quick Start Guide

How to Get Started / Documentation

• First Steps for WisMesh 1W Booster Starter Kit
• Overview of WisMesh 1W Booster Starter Kit
• Quick Start Guide for WisMesh 1W Booster Starter Kit
• Overview of RAK3401 WisBlock BLE Module
• Quick Start Guide for RAK3401 WisBlock BLE Module
• Datasheet for RAK3401 WisBlock BLE Module
• RAK3401 3D Model
• RAK19007 3D Model
• RAK13302 3D Model
