Note: This is the Yuzuki Avaota-A1 — a compact Single Board Computer featuring the Allwinner A527 SoC. It offers strong performance with low heat generation, making it ideal for embedded projects, Home Assistant nodes, IoT, and maker applications.

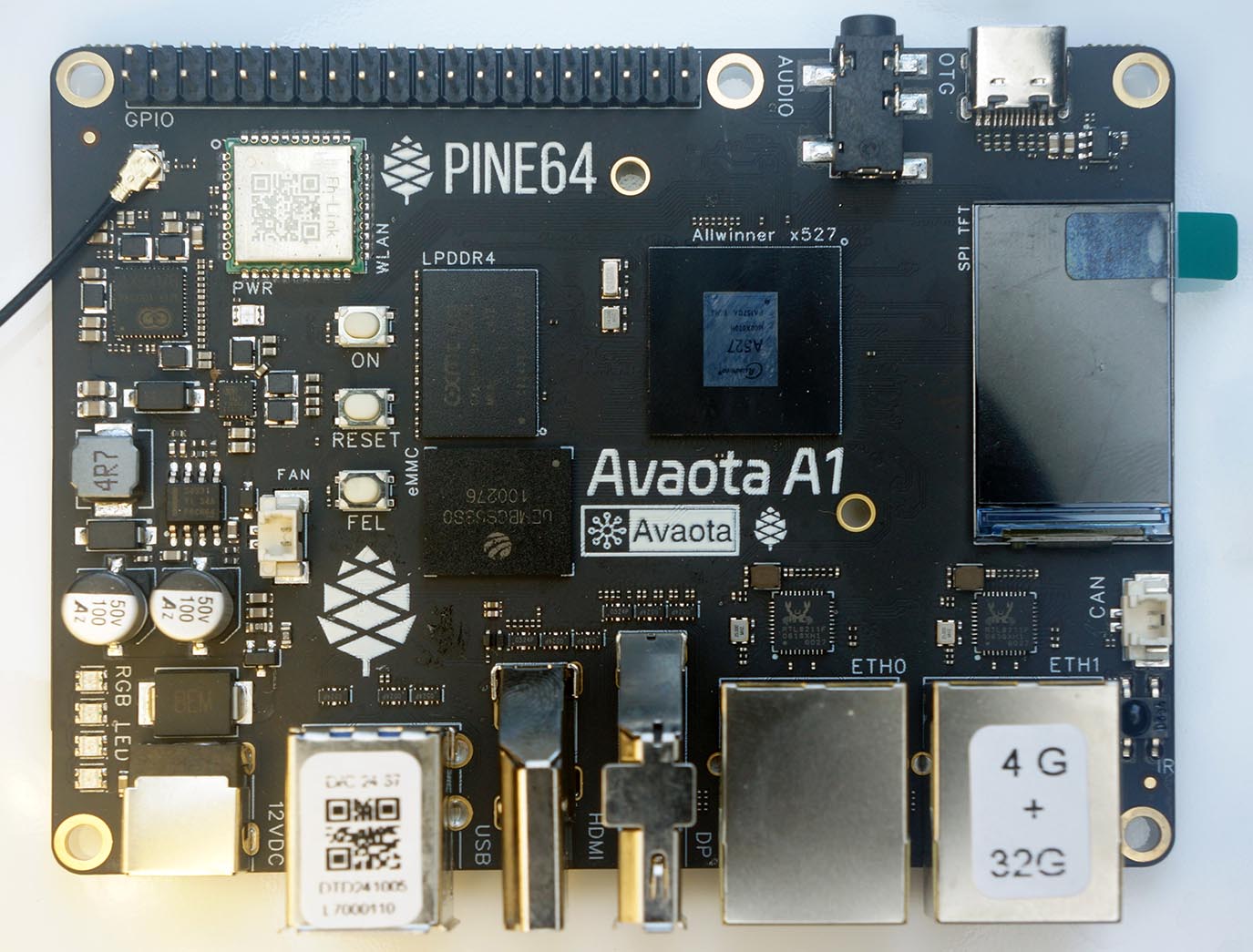

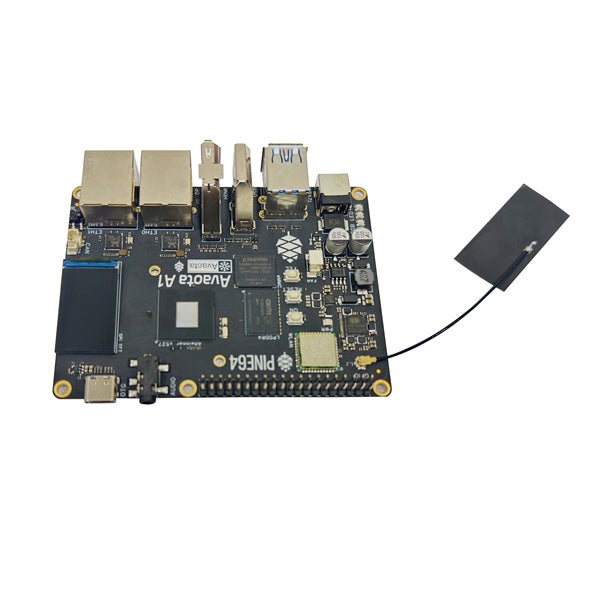

The Yuzuki Avaota-A1 is a small form-factor SBC powered by the Allwinner A527. It combines an octa-core ARM Cortex-A55 CPU with a Mali-G57 GPU capable of 4K@60fps output. The board runs very cool even under sustained load, often without a heatsink, and provides excellent Linux support.
This SBC is perfect for developers and makers who need solid performance, dual Gigabit Ethernet, WiFi 6, and rich expansion options in a compact package.
KEY FEATURES
- Octa-core ARM Cortex-A55 CPU up to 1.8 GHz
- Mali-G57-MC1 GPU with open source Panfrost driver
- 4K@60fps 10-bit display output
- WiFi 6 + Bluetooth 5.4 with flex antenna
- Dual Gigabit Ethernet ports
- USB 3.0 OTG port
- 40-pin GPIO header with I2C, SPI, and UART support
- Very low operating temperature
- 2GB/4GB LPDDR4 + 16GB/32GB eMMC storage
SPECIFICATIONS
| Product Name | Yuzuki Avaota-A1 |
| SoC | Allwinner A527 |
| CPU | Octa-core 64-bit ARM Cortex-A55 up to 1.8 GHz + 32-bit RISC-V E906 @ 200 MHz |
| Memory | 2GB/4GB LPDDR4 |
| Storage | 16GB/32GB eMMC + microSD slot |
| GPU | Mali-G57-MC1 (Panfrost open source driver) |
| Display | 4Kp60 10-bit Digital Video output |
| Wireless | WiFi 6 (802.11ax) + Bluetooth 5.4 |
| Ethernet | Dual Gigabit Ethernet ports |
| USB | 1x USB 3.0 Type-A OTG port |
| GPIO | 40-pin header (I2C, SPI, UART) |
| Power Supply | 12V 2A (5.5mm OD / 2.1mm ID barrel jack, Type M) |
WHAT'S INCLUDED
- 1 × Yuzuki Avaota-A1 2GB/16GB or 4GB/32GB SBC board
NOTES
- For OS builds, schematic, and further information, please visit the Pine64 Wiki.
- 30 Days warranty.
- Power Adapter requirement: 12V 2A type M 5.5mm OD/2.1mm ID barrel type DC Jack Power Supply (Not Included)
