KEY FEATURES

• Light Dimmer with Z-Wave and manual control from the main button: use with quality dimmable LED lights up to 150 W. Read more about the main button dimming functionality here: How to Dim the Connected Load With the ZEN35 Scene Dimmer.

• 4 smart buttons for remote control*

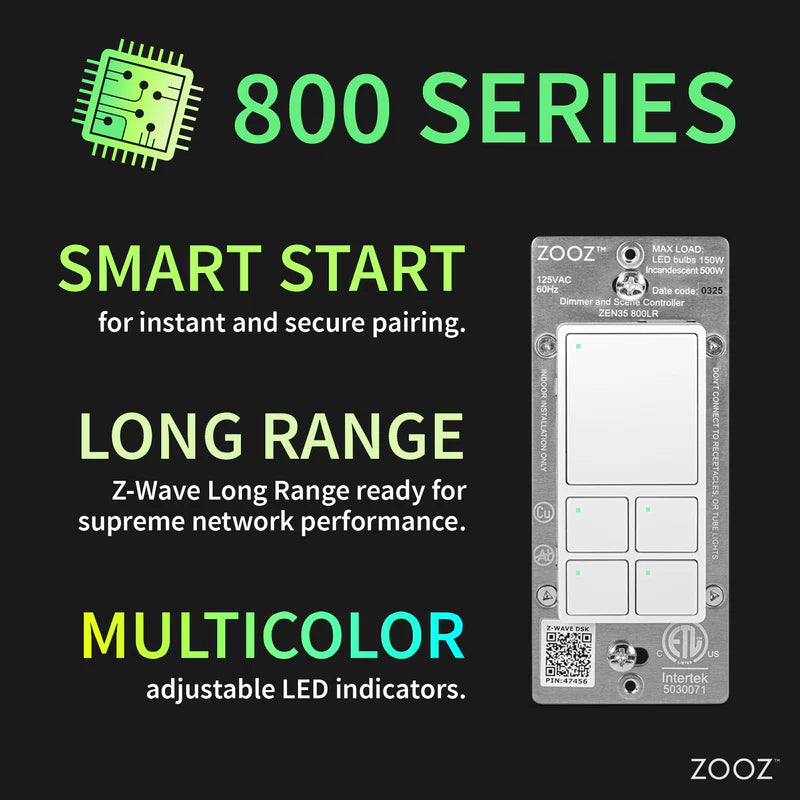

• NEW 800 series chip: more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: wireless coverage up to 1300 feet if your hub supports Long Range
• Direct 3-Way Solution: no add-on switch needed, wires just like the ZEN72 model (Neutral required, 4-Way wiring possible if direct connection to load and line are in the same box, check before buying)

• Great for a simple single pole installation
• Adjustable LED indicators: choose from different colors and brightness levels
• Built-in range test tool: troubleshoot your network straight from the device

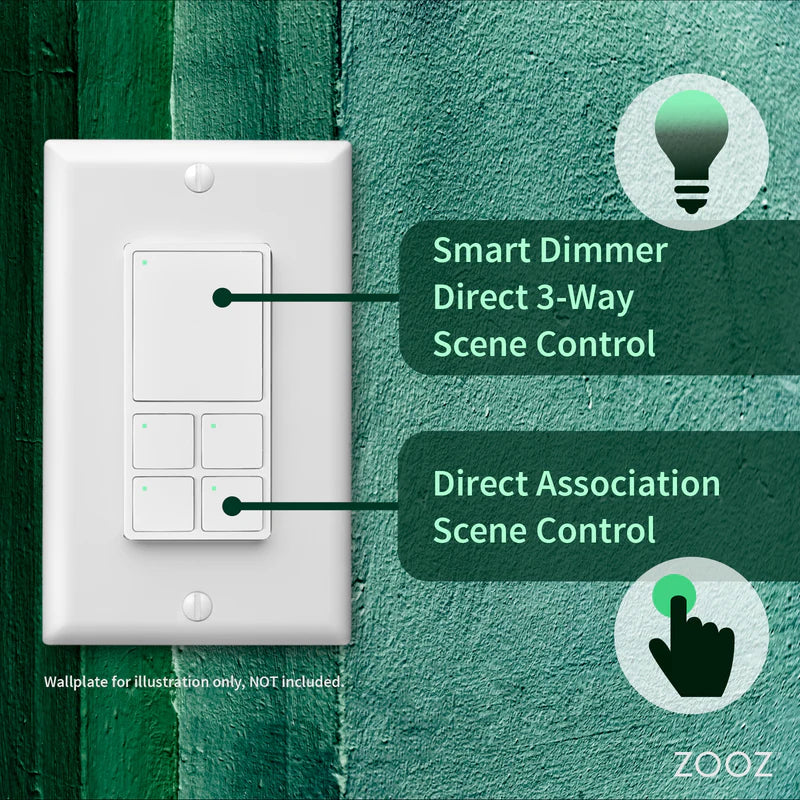

• Scene control: trigger up to 35 scenes, control up to 35 devices (available on hubs that support multi-tap triggers*)

• Smart bulb mode: disable the relay for truly wireless control or use as a remote control / smart add-on switch
• Compatible with quality LED and incandescent bulbs (don't connect to ballast tube lights, halogen bulbs, transformers, switched receptacles, or fans; NOTE: FEIT bulbs are not recommended)

• Extra-strong repeater to expand the coverage of your Z-Wave network

• Use a standard-size wall plate for single gang installations (wall plate not included)


SPECIFICATIONS

• Z-Wave Region: US / MX / CA
• Power: 120 VAC, 60 Hz

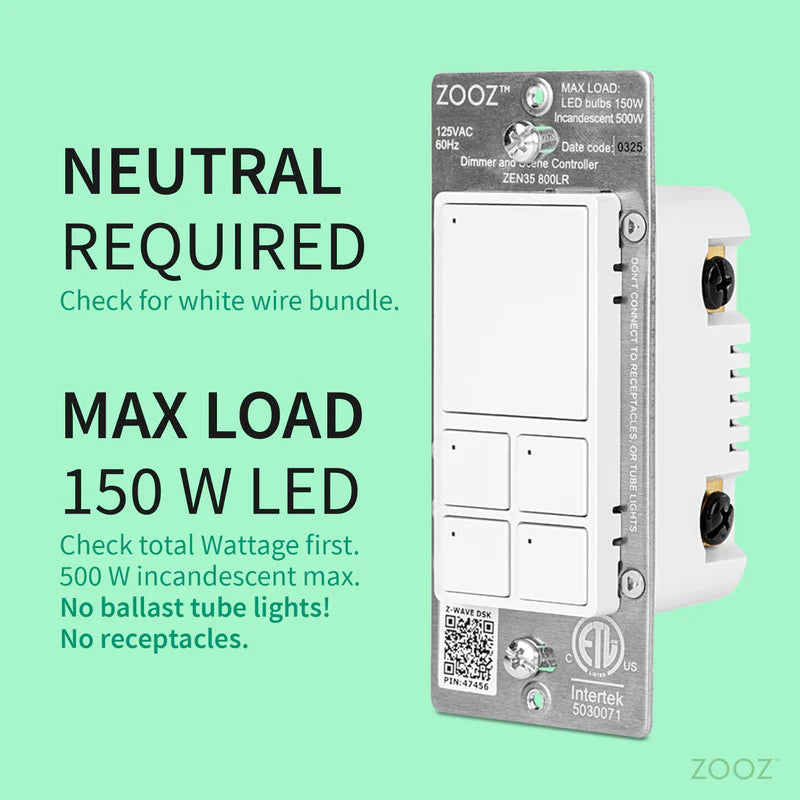

• Maximum Loads: 150W LED or 500W Incandescent. To be used with LED or incandescent lights only; DON’T use with receptacles, motors, fans, or tube lights.
• Z-Wave Range: Up to 500 feet line of sight or up to 1300 feet with Z-Wave Long Range
• Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor use only


WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• Home Assistant (Z-Wave JS or Z-Wave JS UI)
• HomeSeer (with Z-Wave Plus plug-in or Z-Wave JS Front-End)
• Homey (Zooz App for Homey)
• Hubitat (with custom driver)
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• SmartThings Hub (with Edge Driver)

INSTALLATION

Before installing, make sure the load does not exceed 500W for incandescent lights or 150W for LED's. Check your wiring first to confirm that you have all the following wires present in your gang box: load (most often black), line (most often black), neutral (most often white), and ground (most often green).

If you are not comfortable identifying the wiring and following the instructions, please hire a licensed electrician.

Here are some helpful wiring tips:

• Make sure the gang box you are about to install the switch has a neutral wire available - you will not be able to get the ZEN35 switch to work without a neutral wire.
• Unlike regular mechanical switches, Z-Wave switches require all of the wires to be connected exactly as indicated - line and load wires can never be swapped as it sometimes happens to the most experienced electricians.

How to include the Dimmer & Scene Controller switch to your smart home network?
1. Bring your Z-Wave hub or controller as close to the switch as possible
2. Put your hub in inclusion/pairing mode
3. Tap the main button 3 times quickly to finalize the inclusion process
4. A new dimmer and scene controller should appear on your controller's device list

 NOTE:  Use a dedicated diagram from the manual to wire the switch in a 3-way setting with a regular electrical switch if you are looking to control one light with 2 or 3 switches.
