Zooz 800 Series Z-Wave Long Range Double Switch ZEN30 800LR (White) for Light & Fan Combo

KEY FEATURES

• Z-Wave Plus Dimmer (up to 75 W LEDs and 250 W incandescent) and On/Off Relay in one
• The first Z-Wave double wall switch! Here are some ideas for how to use it in your smart home.
• Direct replacement for fan / light combo switches or other double switches in your home
• NEW 800 chip:  more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range
• DIMMER: double tap to full brightness, custom brightness level on, adjustable ramp rate and dimming speed, and more great features you've known Zooz for!*
• RELAY: on/off control only, use it with ceiling fans or exhaust fans, built-in overload protection, dry contact relay for more creative applications, no load necessary so you can use it as a virtual switch or scene controller.
• Scene Control (select hubs only): trigger up to 18 scenes or control up to 18 devices with multi-tap control.*
• Smart bulb ready: use scene control or simple automations to easily program smart bulb control with this switch without cutting power to them

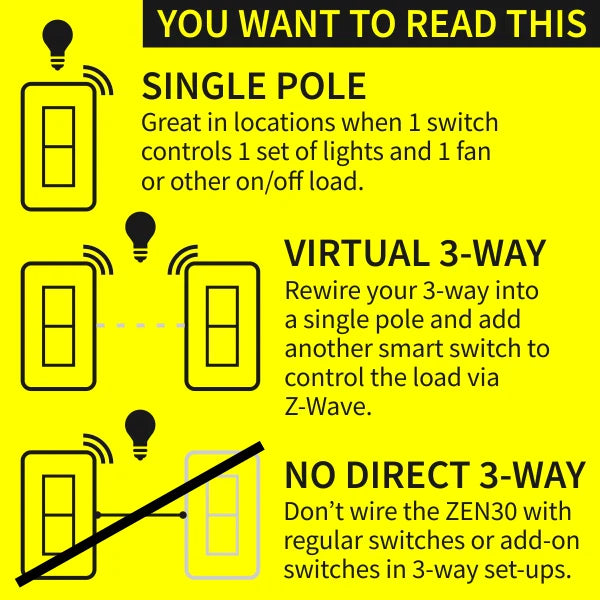

• NO DIRECT 3-WAY: use in single pole set-ups only. Can be used in virtual 3-way's without any direct connections to the other switches in 3-way and 4-way installations. Contact us for details.
• Adjustable LED indicator: choose from 4 colors and 3 brightness levels

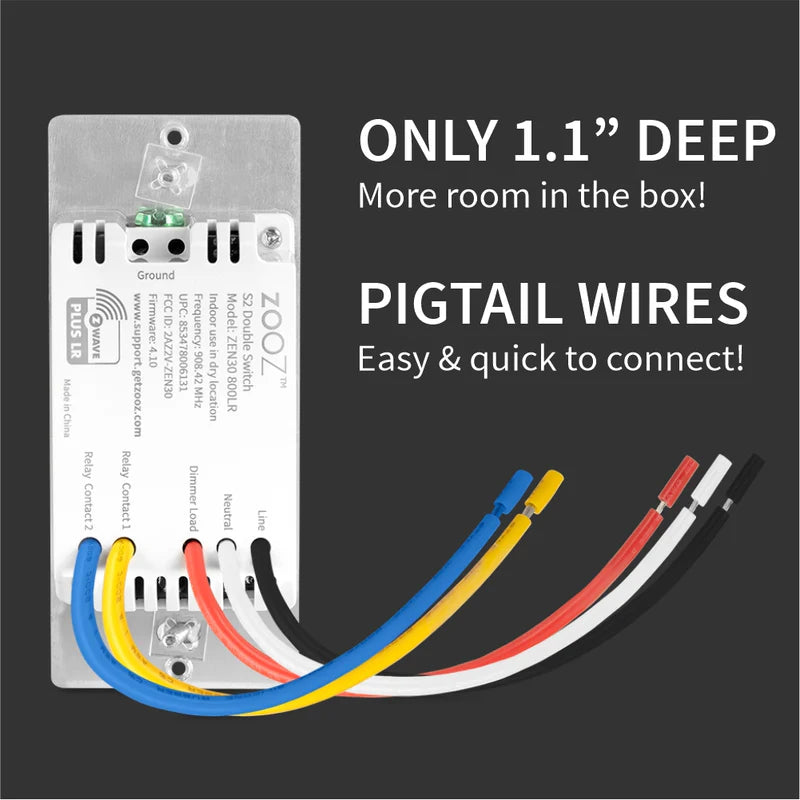

• Quick Installation: pigtail wires (wire nuts included), only 1.1" deep and no heatsink tabs for an easy fit
• White (no other color available - currently no plans for other colors)

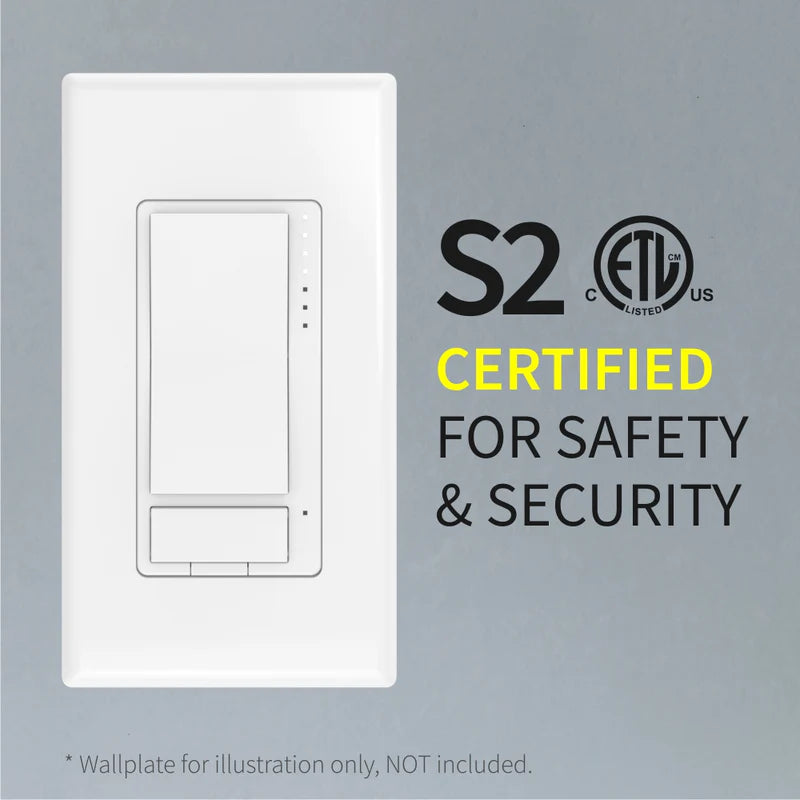

• S2 security with SmartStart for safer wireless communication

• OTA firmware updates for a future-proof device
• Built-in signal repeater to boost your Z-Wave network

• Restores status after power failure
• Air-gap switch for added safety
• Use a standard-size wall plate for single gang installations (wall plate not included)


SPECIFICATIONS

• Z-Wave Frequency: 908.42 MHz (US)
• Power: 120 VAC, 60 Hz
• Z-Wave Chip: 800 Series (800LR only)

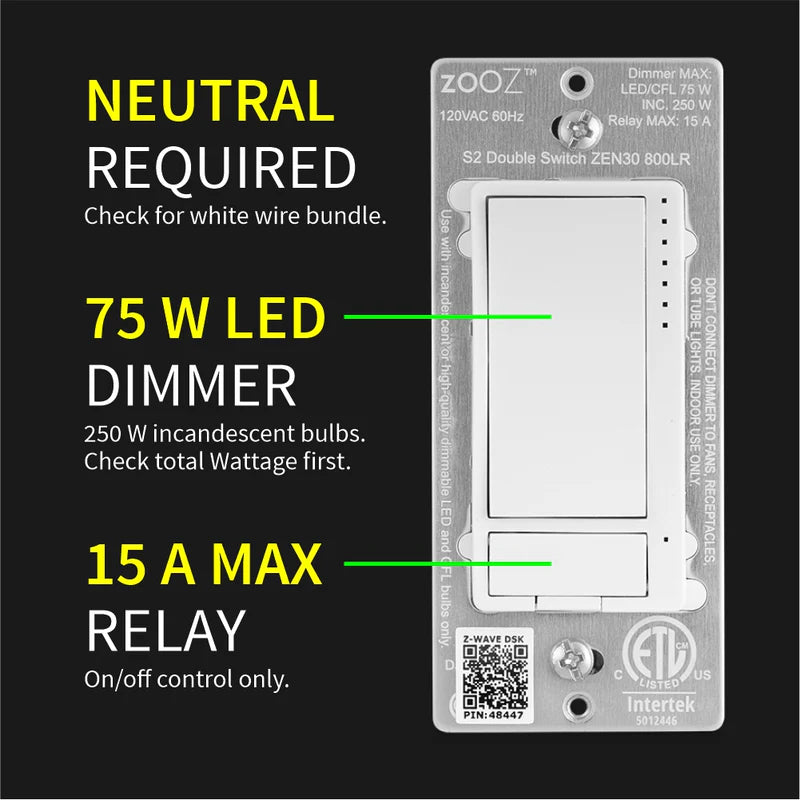

• Maximum Load for Dimmer: 75 W LED, 250 W incandescent (don't use with tube lights, chandeliers, switched receptacles, or fans)
• Maximum Load for Relay: 15 A
• Z-Wave Range: Up to 100 feet line of sight
• Operating Temperature: 32-104° F (0-40° C)
• Dimensions: 1.7" x 4.1" x 1.1"
• Installation: Indoor use only


WORKS WITH

• Z-Box Hub
• Home Assistant (Z-Wave JS/JS UI)
• HomeSeer (with Z-Wave Plus plug-in)
• Hubitat (2.1.8 release or higher, custom driver needed: install here)
• Homey (Zooz App for Homey)
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• ISY
• openHAB (2.5.1 or higher)
• SmartThings (custom lua driver needed, download it here)
• Wink and Wink 2 (no advanced settings, add as Generic Z-Wave Switch)

INSTALLATION

Please follow the manual carefully and refer to the supplied diagrams when installing your Zooz S2 switches. It's recommended that a licensed electrician performs the installation.

Check for neutral connections BEFORE you buy. A white wire from a 14-3 romex is usually NOT a neutral.

How to include the Z-Wave Plus S2 Double Switch to your smart home hub?

1. Make sure the switch is installed within range of your Z-Wave network
2. Put your Z-Wave hub in inclusion/pairing mode
3. Tap the upper paddle of the dimmer 3 times quickly to finalize the inclusion process
4. A new dimmer and on/off switch will appear on your controller's device list
