Zooz 800 Series Z-Wave Long Range MultiRelay ZEN16 800LR with 3 Dry Contact Relays (20A, 15A, 15A)

FEATURES

• 3 Powerful Dry Contact Relays to add Z-Wave control to any 12 - 240 V load under 15A / 20A
• NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1300 feet if your hub supports Long Range

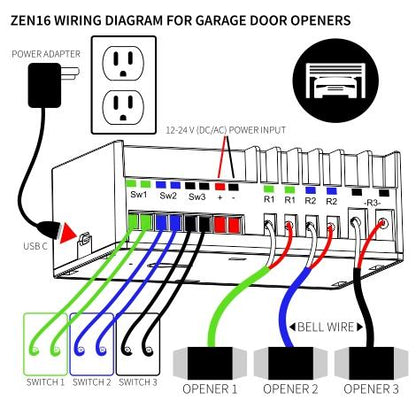

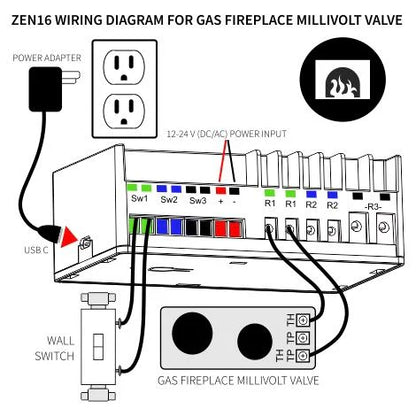

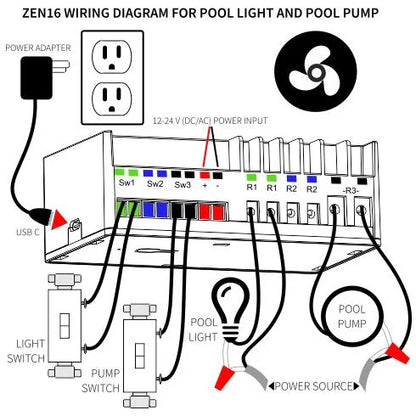

• Perfect for garage door (will NOT work with MyQ or other smart openers), gas fireplace, sprinkler, pool pump, landscape lights, doorbell button, or whole house fan automation
• Powered by USB C or 12-24 V (AC/DC) - power supply NOT included, USB C cable included (do NOT use laptop or tablet chargers to power the ZEN16!)

• Add optional wall switches for physical control of connected devices (do NOT apply Voltage to the input terminals, they're dry contact only)
• Wall-mount ready
• SmartStart and S2 authenticated security for a truly secure smart home
• Remembers and restores on/off status after power failure

• 5-year warranty (when registered)


NOTE: Z-Wave gateway controller required - sold separately. You need a security enabled controller to take full advantage of the product.

SPECIFICATIONS

• Z-Wave Region: US/MX/CA
• Power: 12 - 24 V / USB C
• Maximum Load: Relay 1: 15 A, Relay 2: 15 A, Relay 3: 20 A,
• Range: Up to 150 feet line of sight

• Installation and Use: Indoor Only
• Operating Temperature: 32-104° F (0-40° C)
• Dimensions: 4" x 2.5" x 1.5"


NOTES

• Compatibility:
• Z-Box Hub

• ADT Pulse (no advanced settings)
• Ezlo
• Fibaro Home Center 2
• Fibaro Home Center Lite
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)
• Homey (Zooz App for Homey, NOTE: creating child devices for inputs is NOT  currently supported.)
• Hubitat (2.1.8 release or higher)
• Indigo
• ISY
• Nexia (no access to advanced settings, on/off control only)
• openHAB (2.5.1 or higher)
• SmartThings (dedicated instructions here)
• Product Registration: for extended warranty https://www.getzooz.com/register/
