Zooz 800 Series Z-Wave Long Range Outdoor Smart Plug ZEN05 800LR

KEY FEATURES

• Single outlet with on/off Z-Wave control for outdoor Holiday lights, patio lights, small pumps or motors under 1/3 hp, and other appliances under 15 A resistive power (no dimming control)

• Weather and impact-resistant housing withstands damp or wet conditions (IP65 rated)
• NEW in 800LR version: energy monitoring with live power reports
•  DO NOT SUBMERGE IN WATER:  Keep the plug at least a foot above ground when using it with an extension cord to avoid damage.

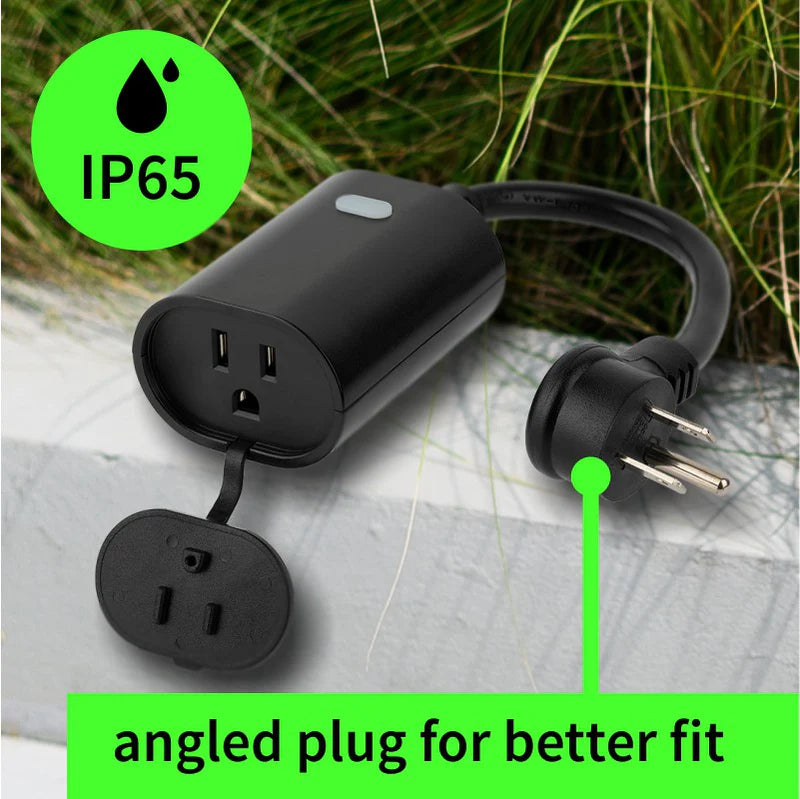

• Angled plug for optimal outlet placement created with outdoor receptacles in mind
• NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1300 feet if your hub supports Long Range

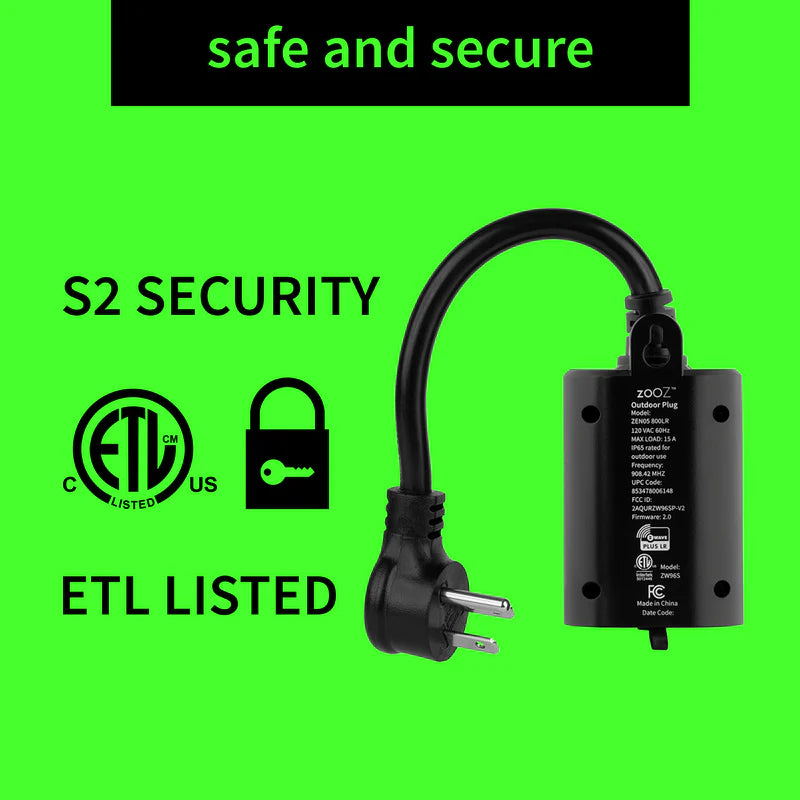

• SmartStart and S2 authenticated security for a truly secure smart home
• LED indicator for easier inclusion and troubleshooting diagnostics
• Compatible with quality LED and incandescent bulbs (don't connect to fans over 3A or large appliances; NOTE: FEIT bulbs are not recommended)

• Built-in signal repeater: helps keep your network reliable, indoors and outdoors


SPECIFICATIONS

• Z-Wave Region: US / CA / MX
• Power: 120 VAC, 60 Hz
• Maximum Loads: 960W incandescent, 150W LED bulbs, 15A resistive, 1/3 HP fan motors
• Z-Wave Range: Up to 150 feet line of sight (up to 1300 feet with Z-Wave Long Range)
• Dimensions: 3.25" tall, 2.25" wide, 1.5" deep
• Cord Length: 6.5"
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor or outdoor use, IP65 rated


WORKS WITH

• Z-Box Hub
• 2GIG (no advanced settings available)
• ADT Pulse (no advanced settings available)
• Ezlo Plus
• Ezlo Secure
• Fibaro Home Center 2
• Fibaro Home Center Lite
• Home Assistant (Z-Wave JS)
• HomeSeer (Z-Wave Plus or Z-Wave JS Front End)
• Hubitat
• Indigo
• ISY994Zw
• Jeedom
• openHAB
• Ring (no advanced settings available)
• SmartThings (install the custom lua driver for advanced functionality)
• Vera

INSTALLATION

Before installing, make sure the load does not exceed 960W for incandescent lights, 150W for LED's, 3A for fans and motors, or 15 A for resistive load.

How to include the Outdoor Smart Plug to your smart home network?
1. Insert the Smart Plug into a standard 120 V receptacle
2. Put your Z-Wave controller in inclusion/pairing mode
3. Click the Z-Wave button on the plug 3 times quickly to finalize the inclusion process
4. A new on/off device will appear on your hub's device list
