KEY FEATURES

• Turn your lights on, dim them, or turn them off from the wall dimmer or through Z-Wave
• NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range

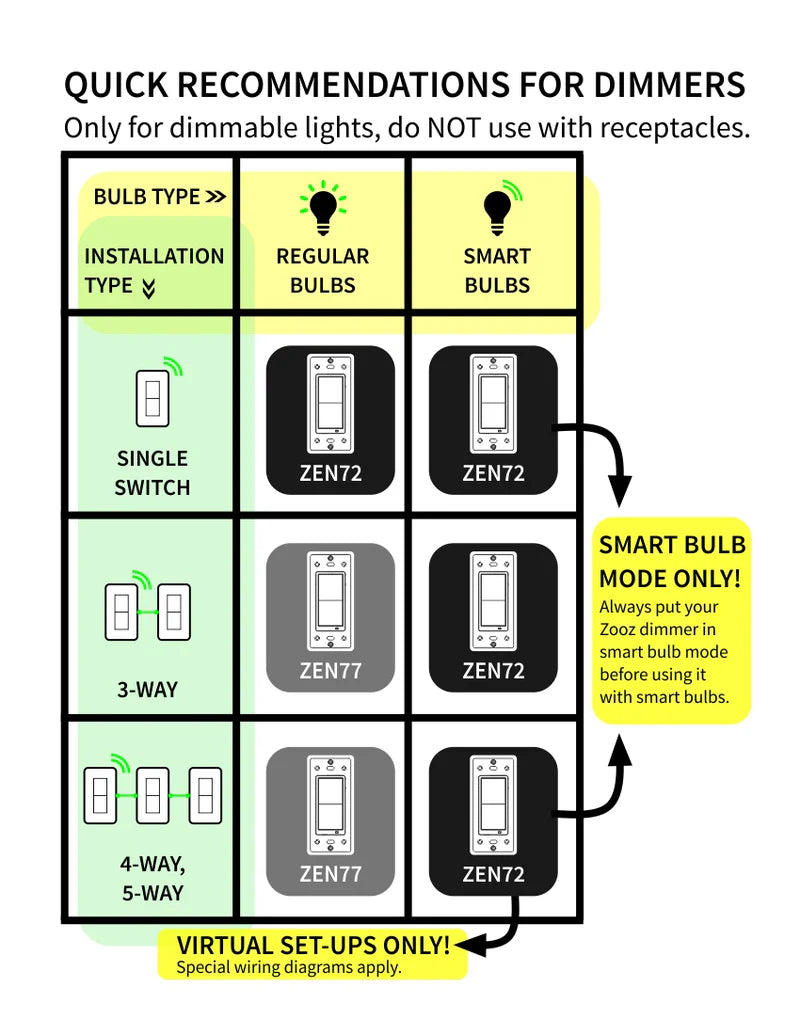

• What's the difference between the ZEN77 and the ZEN72 model? Read here!
• TRIAC Dimmer: use with high-quality LED bulbs up to 100 W or incandescent bulbs up to 300 W (do NOT connect to tube lights, halogen bulbs, transformers, chandeliers, fans, switched receptacles, or CFL bulbs, FEIT bulb are NOT recommended)
• Simple Direct 3-Way & 4-Way: Less rewiring for more multi-point control scenarios like 4-ways and 5-ways where load and line are in separate boxes. Use it the same way as the ZEN27 dimmer. Neutral wire required.

• Replaceable paddles (almond, brown, and black paddle kits available)

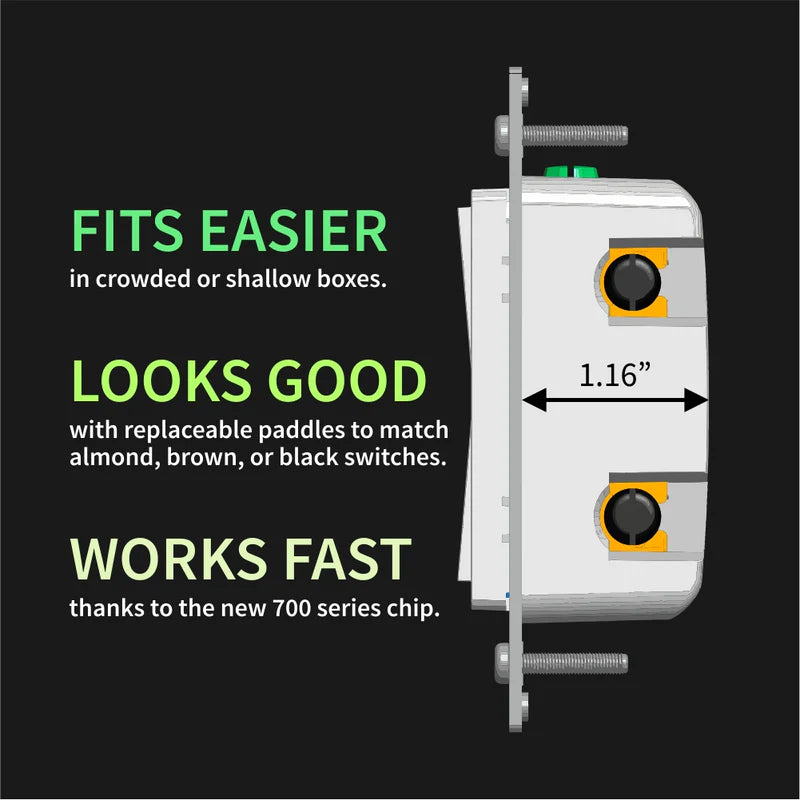

• Small profile (just 1.1" deep) to fit easily in a crowded or shallow box
• Adjustable LED indicator: choose the color and brightness that works for you!
• Night Light Mode: press and hold the lower paddle when dimmer is off to turn the light on to low brightness
• Scene Control (select hubs only): activate scenes and trigger other devices with multi-tap*
• You choose the color and brightness level of the LED indicator*
• Programmable double tap and single tap for truly customized control*

• Adjustable ramp rate and maximum/minimum brightness levels*

• OTA firmware updates for a future-proof device

• Signal repeater will make your Z-Wave network more reliable

• Use a standard-size wall plate for single gang installations (wall plate not included)


SPECIFICATIONS

• Z-Wave Region: US/MX/CA
• Hardware version: 4.0
• Power: 120 VAC, 60 Hz
• Maximum Load: 100 W LED, 300 W incandescent
• Z-Wave Range: Up to 200 feet line of sight, up to 1 mile with Z-Wave Long Range enabled (your Z-Wave hub needs to support that feature)
• Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor use only


WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• 2GIG (no advanced settings available)
• Abode (no advanced settings available)
• ADT Pulse (no advanced settings available)
• Almond (Securify) (no advanced settings available)
• Fibaro Home Center 2
• Fibaro Home Center Lite
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)
• Homey (Zooz App for Homey)
• Hubitat
• InControl
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• ISY
• Ring (no advanced settings or scene control)
• SmartThings (click here to access the custom lua driver for advanced functionality)
• Wink and Wink 2 (no advanced settings)

INSTALLATION

Please follow the manual carefully and refer to the supplied diagrams when installing your Zooz switches. It's recommended that a licensed electrician performs the installation.

Check for neutral connections BEFORE you buy. A white wire from a 14-3 romex is usually NOT a neutral. Ask us if you're not sure what to look for, we'll be happy to help!

How to include the 800 Series S2 Dimmer to your smart home hub?

1. Make sure the dimmer is located within range of your Z-Wave network
2. Put your Z-Wave controller in inclusion/pairing mode
3. Tap the upper paddle of the dimmer 3 times quickly to finalize the inclusion process
4. A new dimmer switch will appear on your controller's device list

 NOTE:  Follow an appropriate diagram from the manual to wire the dimmer in a 3-way or 4-way setting with a regular on/off electrical switch if you are looking to control one light with 2 or 3 switches. If you can't match your wiring with any of the diagrams, let us know and we'll walk you through the wiring process.
