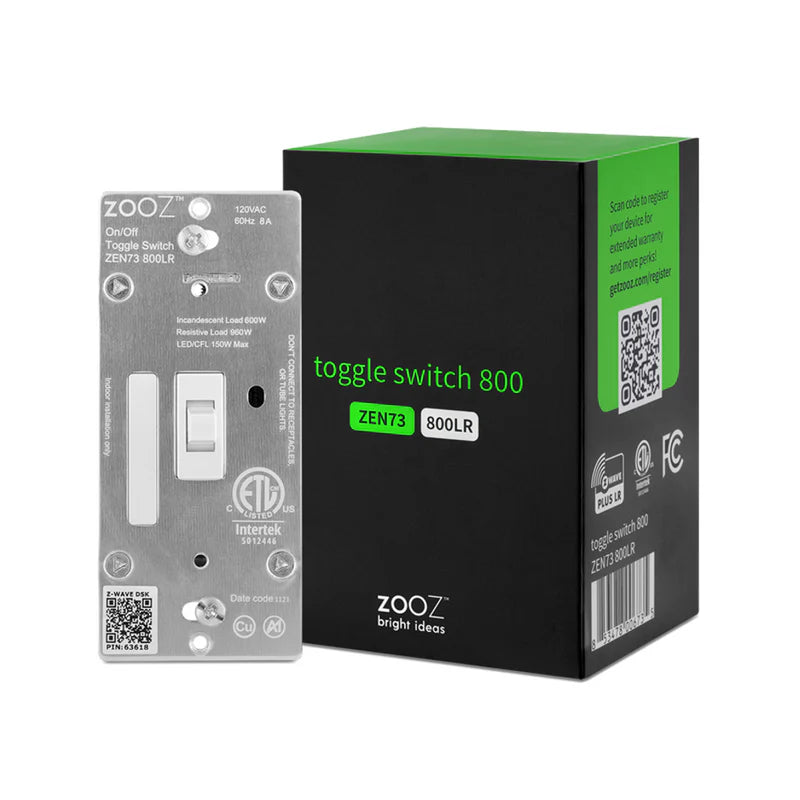

Zooz 800 Series Z-Wave Long Range S2 On / Off Toggle Switch ZEN73 800LR

KEY FEATURES

• Add wireless on/off control to your lights with the classic toggle design (no dimming)

• NEW 800 chip:  more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range
• NEW 3-WAY & 4-WAY WIRING: Still no add-on and use it in larger set-ups for multi-point control. Wires like the ZEN26 model; always follow the diagram in the manual, do NOT wire like the older ZEN23/ZEN24 switches. Neutral required.
• Use with high-quality LED or incandescent lighting only: do NOT connect to switched receptacles, fans, halogen bulbs, transformers, or tube lights (NOTE: FEIT bulbs are not recommended)

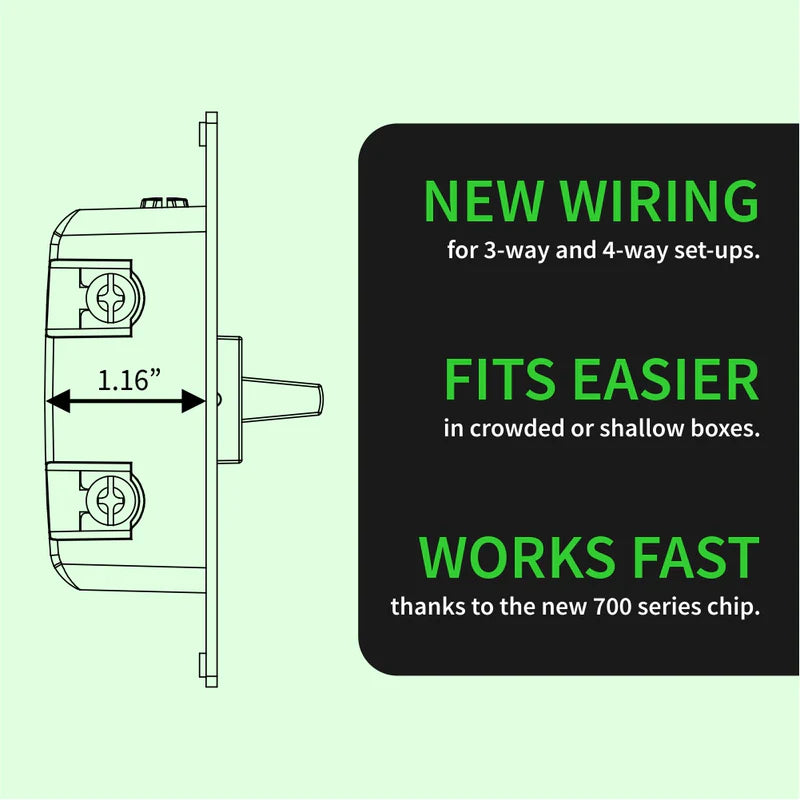

• NEW 800 SERIES: Minimized switch depth to fit shallow and crowded boxes (just 1.1" deep); optimal antennae positioning for better signal
• Scene Control if your system supports multi-tap triggers*

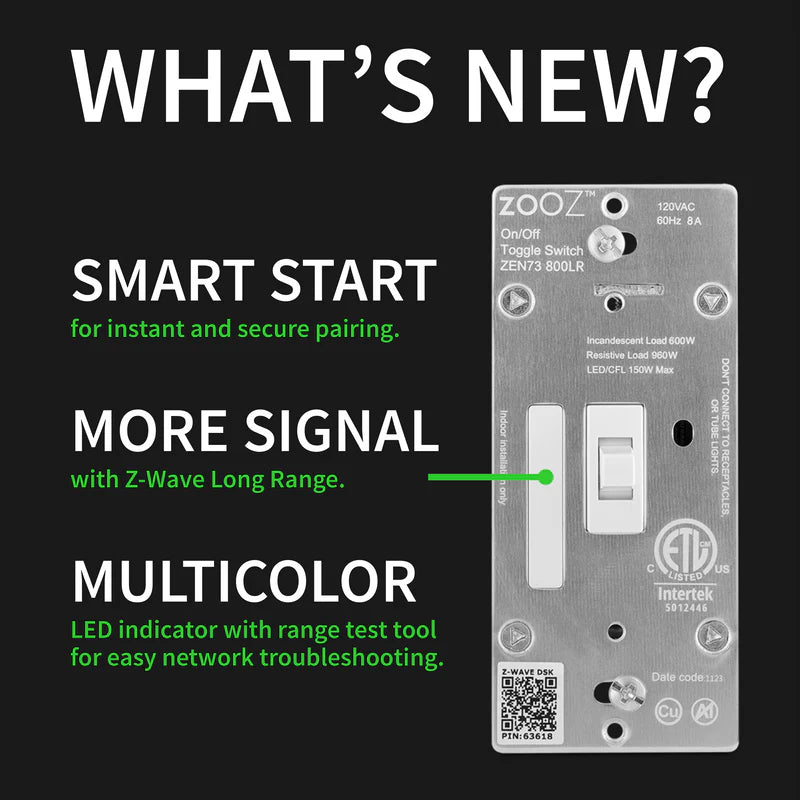

• Smart LED indicator with 4 colors to help you through the inclusion, exclusion, and reset process (LED indicator for diagnostic purposes only, not visible with the wall plate on)
• Range test mode: troubleshoot your network straight from the switch
• Instant on/off status reported to the hub

• S2 security for hacker-proof smart home
• Update firmware via OTA anytime in the future to keep your device up to date with latest technology*
• Restores status after power failure

• Use a standard-size wall plate for single gang installations (wall plate not included)


SPECIFICATIONS

• Z-Wave Region: US/CA
• Power: 120 VAC, 60 Hz
• Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent
• Z-Wave Range: Up to 200 feet line of sight
• Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor use only

WORKS WITH

• Z-Box Hub
• 2GIG (no advanced settings or scene control available)
• Abode
• ADT Pulse (no advanced settings or scene control available)
• Almond (Securify)
• Fibaro Home Center 2
• Fibaro Home Center Lite
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)
• Homey (Zooz App for Homey)
• Hubitat (no advanced settings)
• InControl
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• ISY994Zw
• openHAB
• Open Z-Wave
• Piper (no advanced settings - on/off control only)
• Ring (no advanced settings or scene control)
• SmartThings Hub (click here to access the custom lua driver for advanced functionality)
• Wink and Wink 2 (no advanced settings or scene control)

INSTALLATION

Please follow the manual guidelines and diagrams when installing your Zooz S2 switches. It's recommended that a licensed electrician performs the installation.

Check for neutral wires BEFORE purchasing. One white wire from a 14-3 romex is NOT a neutral. Ask us if you're not sure about the wiring, we'll help quickly!

How to include the 800 Series On / Off switch to your smart home hub?

1. Make sure the switch is installed within range of your Z-Wave network
2. Put your Z-Wave hub in inclusion/pairing mode
3. Tap the toggle up 3 times quickly to finalize the inclusion process
4. A new on/off switch will appear on your controller's device list

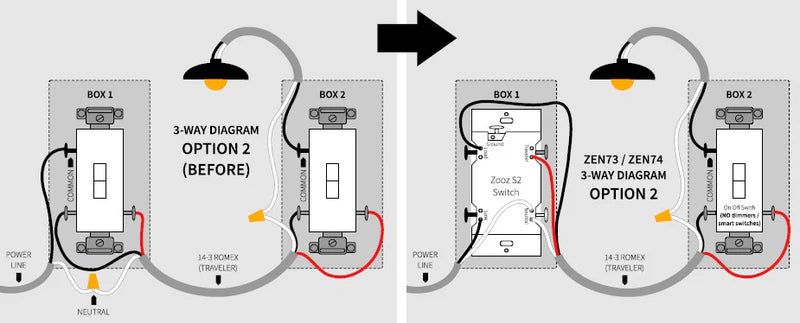

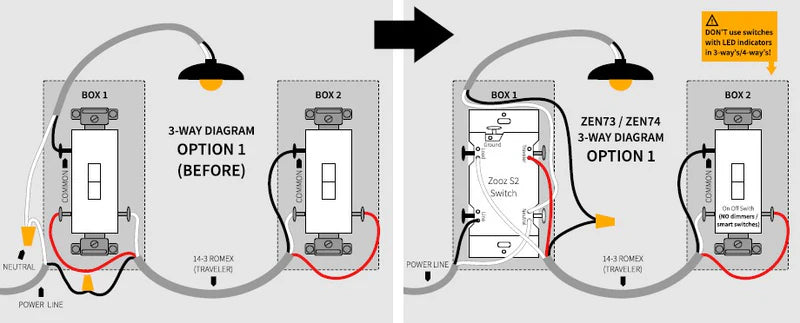

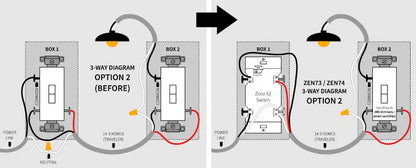

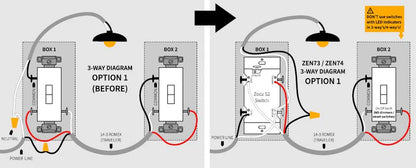

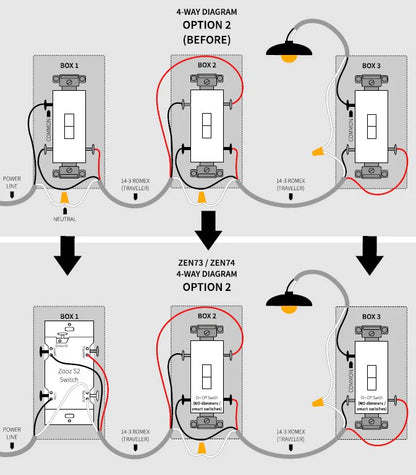

 NOTE:  Follow an appropriate diagram from the manual to wire the switch in a 3-way or 4-way setting with a regular electrical switch if you are looking to control one light with 2 or 3 switches. If you can't match your wiring with any of the diagrams, let us know and we'll walk you through the wiring process.
