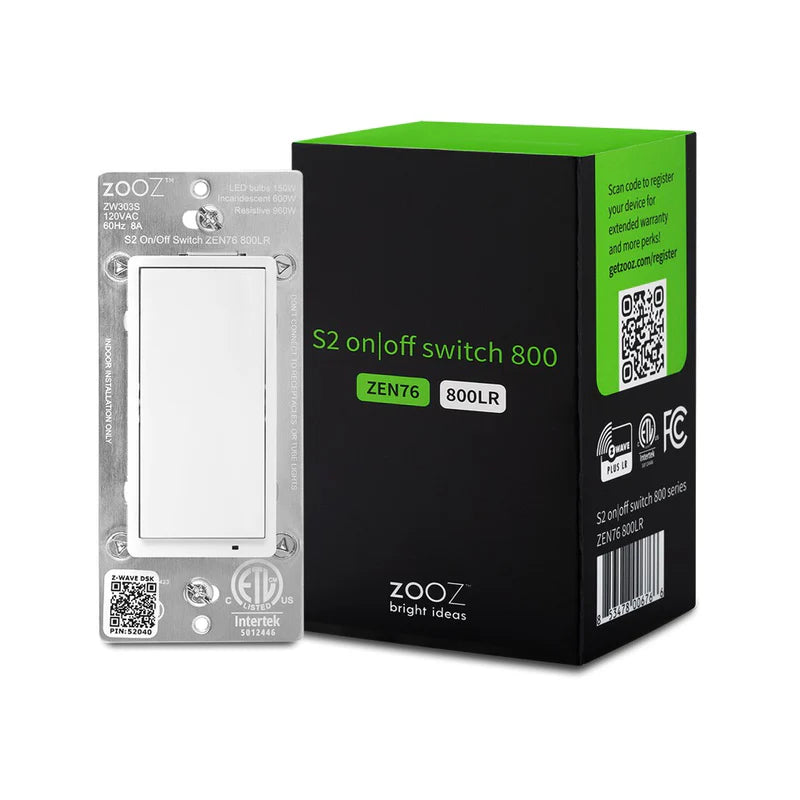

Zooz 800 Series Z-Wave Long Range S2 On / Off Wall Switch ZEN76 800LR

KEY FEATURES

• Control your lights from the switch and via Z-Wave (no dimming, get the dimmer here)
• NEW 800 chip:  more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range
• Use with high-quality LED or incandescent lighting only: do NOT connect to switched receptacles, fans, halogen bulbs, transformers, or tube lights (NOTE: FEIT bulbs are not recommended)
• Simple Direct 3-Way & 4-Way: Still no add-on and use it in larger set-ups for multi-point control. Wires like the ZEN26 model with quick and easy installation guaranteed. (Neutral wire required)

• Replaceable paddles (almond, brown, and black paddle kits available)

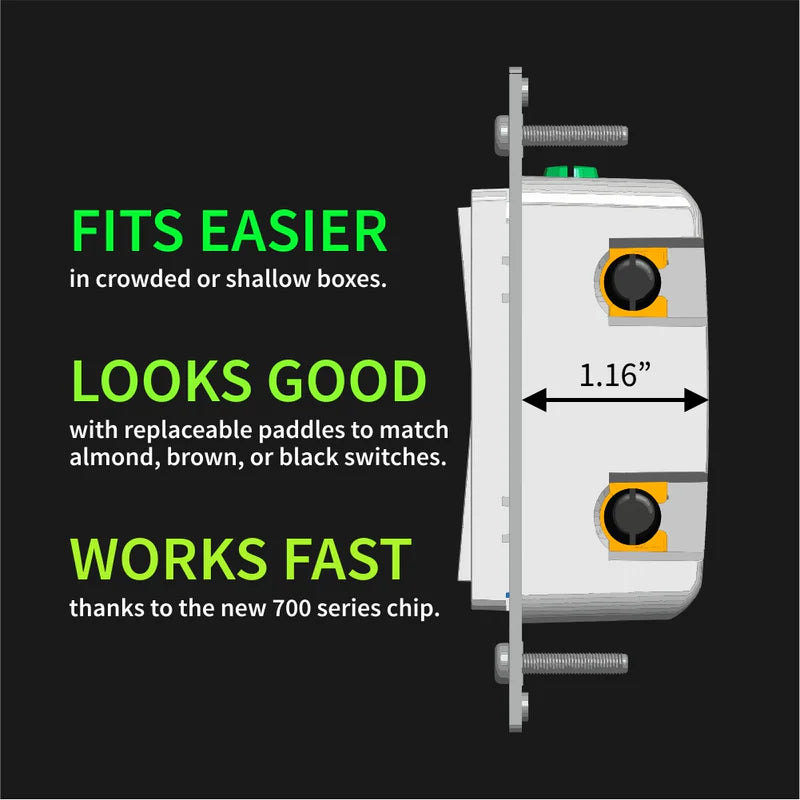

• Small profile (just 1.1" deep) to fit easily in a crowded or shallow box
• Scene Control on hubs that support multi-tap triggers*

• Adjustable LED indicator: choose the color and brightness that works for you!
• Smart range test mode: troubleshoot communication issues right from your switch
• Immediate on/off status reports

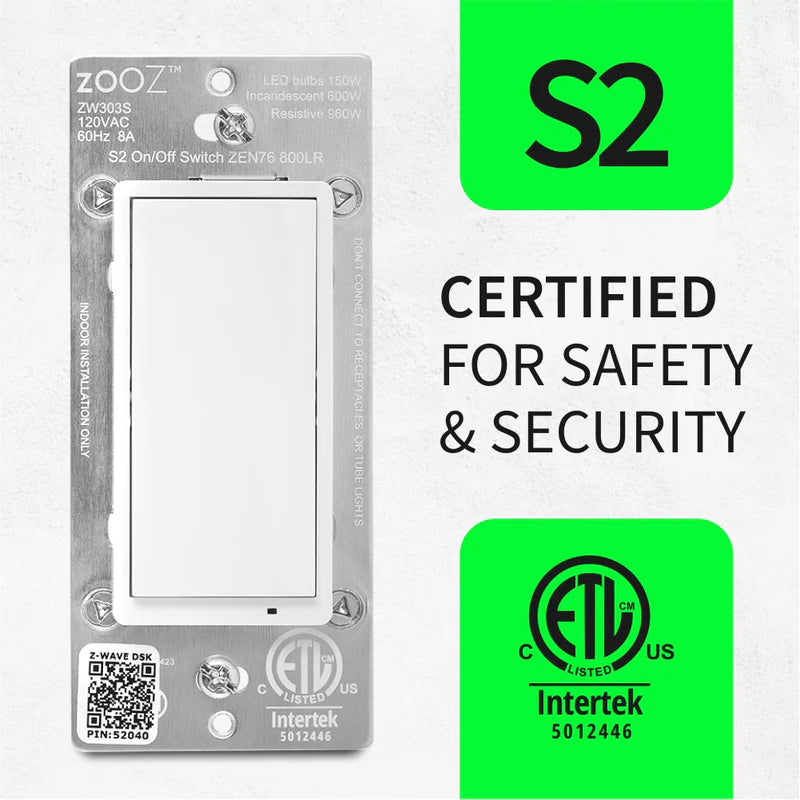

• S2 security for hacker-proof smart home
• Update firmware via OTA anytime in the future to keep your device up to date with the latest technology
• Smart LED indicator makes pairing and set-up more intuitive (now control the LED mode with 6 clicks of any paddle!)
• Stronger signal extender for a more reliable Z-Wave mesh
• Restores status after power failure

• Use a standard-size wall plate for single gang installations (wall plate not included), Leviton plates work best


SPECIFICATIONS

• Z-Wave Region: US/MX/CA
• Hardware Version: 3.0
• Power: 120 VAC, 60 Hz

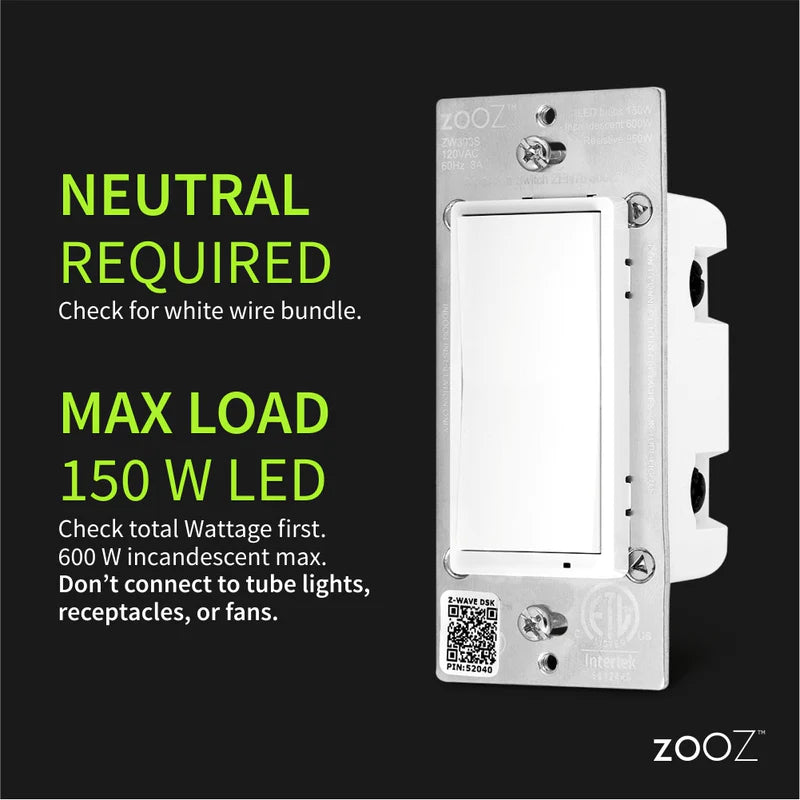

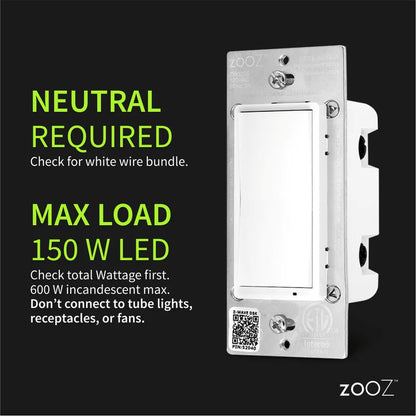

• Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent
• Z-Wave Range: Up to 200 feet line of sight, up to 1 mile with Z-Wave Long Range enabled (your Z-Wave hub needs to support that feature)
• Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
• Operating Temperature: 32-104° F (0-40° C)
• Installation: Indoor use only


WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• 2GIG (no advanced settings available)
• Abode
• ADT Pulse (no advanced settings available)
• Almond (Securify)
• Fibaro Home Center 2
• Fibaro Home Center Lite
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)
• Homey (Zooz App for Homey)
• Hubitat
• InControl
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• ISY994Zw
• Ring (no advanced settings or scene control)
• SmartThings (click here to access the custom lua driver for advanced functionality)
• Staples Connect DLink (no advanced settings - on/off control only)
• Wink and Wink 2 (no advanced settings)

INSTALLATION

Please follow the manual guidelines and diagrams when installing your Zooz S2 switches. It's recommended that a licensed electrician performs the installation.

Check for neutral wires BEFORE purchasing. One white wire from a 14-3 romex is NOT a neutral.

How to include the 800 Series On / Off switch to your smart home hub?

1. Make sure the switch is installed within range of your Z-Wave network
2. Put your Z-Wave hub in inclusion/pairing mode
3. Tap the upper paddle of the switch 3 times quickly to finalize the inclusion process
4. A new on/off switch will appear on your controller's device list

 NOTE:  Follow an appropriate diagram from the manual to wire the switch in a 3-way or 4-way setting with a regular electrical switch if you are looking to control one light with 2 or 3 switches. If you can't match your wiring with any of the diagrams, let us know and we'll walk you through the wiring process.
