KEY FEATURES

• 4 smart buttons: control Z-Wave devices and activate scenes

• Install anywhere: fits a standard decora switch box, sticks to a wall, or keeps handy on your night stand

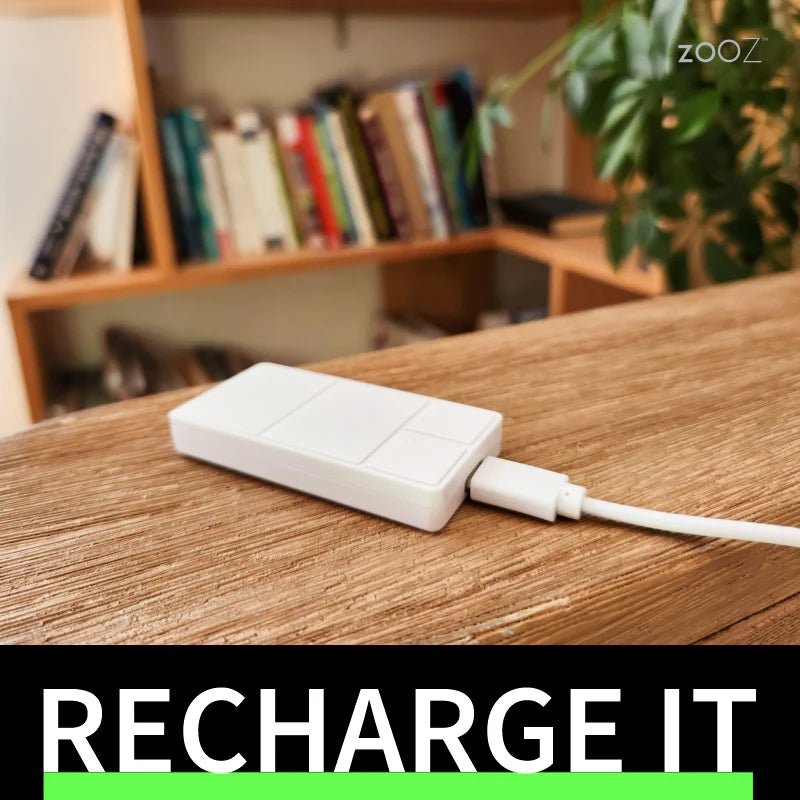

• No wires: this device is powered by a rechargeable battery for easier installation and low maintenance (use a small 5V max 1A power supply for charging only)
• Scene Control (select hubs only): run up to 24 scenes or control up to 24 devices with multi-tap triggers.*

• NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1300 feet if your hub supports Long Range
• Smart bulb control: program the buttons to access your favorite smart bulb presets with just one click

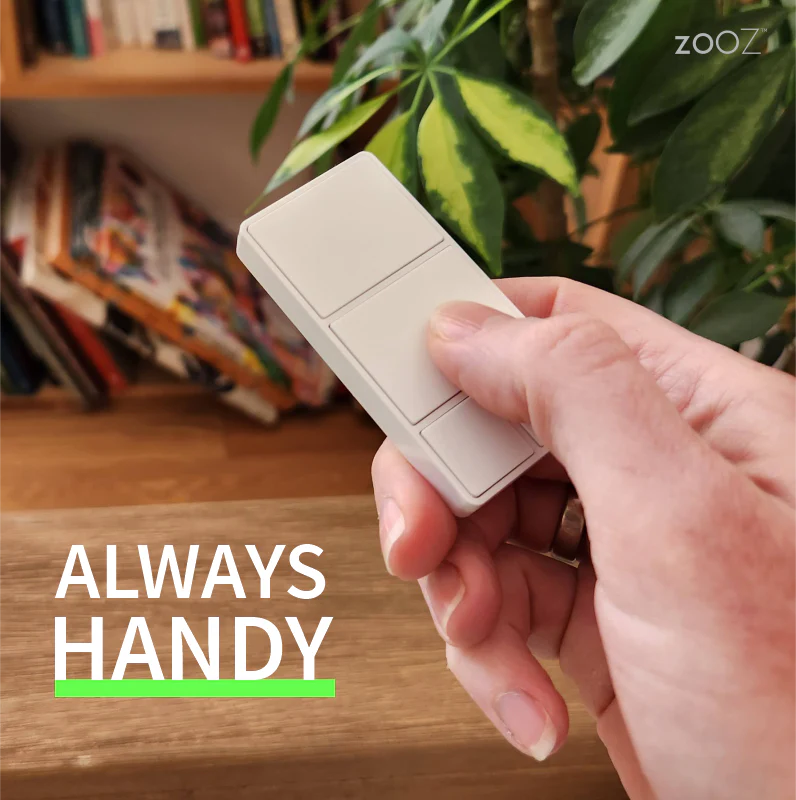

• Magnetic base: take the remote out whenever you need to use it like a traditional remote control and put it back on the base for easy access next time
• Adjustable LED indicator: choose from 7 colors and 10 brightness levels
• White (no other color available)

• S2 authenticated security with SmartStart for the safest and most convenient way to add and manage your Z-Wave devices

• OTA firmware updates for a future-proof device

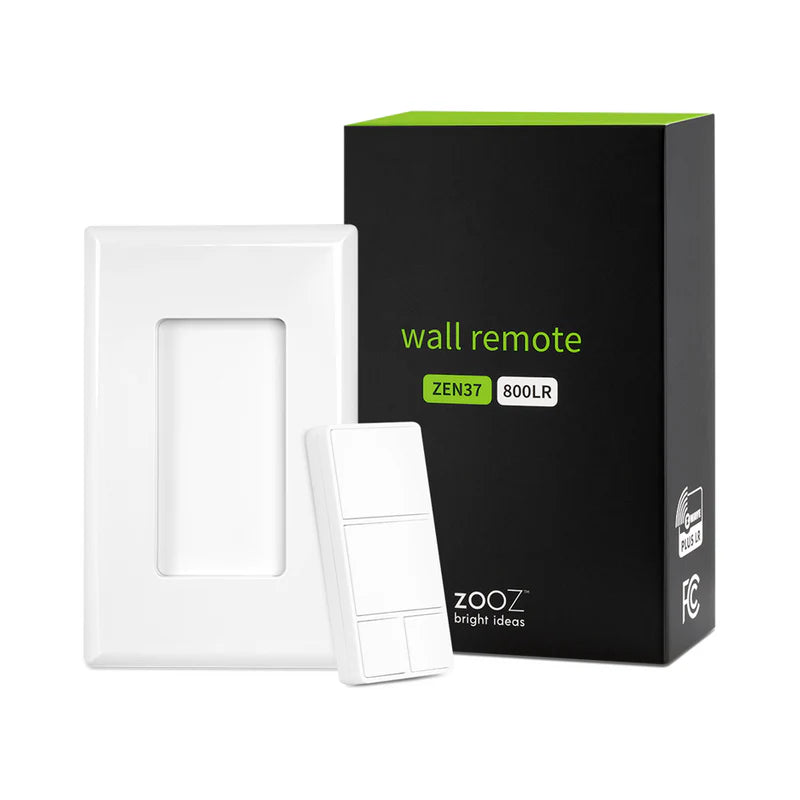

• Included accessories: mounting screws, adhesive tape, wall plate and switch box screws, triangle tool to open the remote, magnetic base, standard single-gang wall plate (white), and charging cable


SPECIFICATIONS

• Z-Wave Region: US / CA / MX
• Power: Re-chargeable Lithium battery pack (200mAh). The rechargeable Lithium battery pack is soldered to the PCB on VER 2.0 and up. Use a small  5V max 1A power supply  for charging only. Do not use Apple chargers with any Zooz device, as they can provide up to 20V or more to non-Apple products, which would damage the device.
• Z-Wave Range: Up to 250 feet line of sight (and up to 1300 feet with Z-Wave Long Range)

• Operating Temperature: 32-104° F (0-40° C)
• Installation: Indoor use only


WORKS WITH

• Z-Box Hub
• Alarm.com (scene triggers only, see programming instructions here)
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)
• Homey (Zooz App for Homey)
• Hubitat (custom driver needed)
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• SmartThings (custom lua driver needed)

INSTALLATION

Simply use the provided triangle tool to open the Wall Remote, take out the pull-tabs from the battery slots to activate the device. Follow the instructions to integrate the device with your hub and install the base in a standard switch box or on any flat surface using the provided screw or adhesive tape. Finish the installation by attaching the wall plate to the magnetic base of the Wall Remote.

How to add the Wall Remote to your Z-Wave home hub?

1. Make sure the device is within range of your Z-Wave network
2. Put your Z-Wave hub in inclusion/pairing mode
3. Tap the top button of the Remote Switch 6 times quickly to finalize the inclusion process (or scan the QR code / enter the 4-digit DSK number printed on the back of the remote if using the new SmartStart method)
4. A new remote control / button controller device will appear on your hub's device list
