Zooz Z-Wave Long Range High Power Relay ZEN78 800LR

KEY FEATURES

• BETA RELEASE:   You may need to update the firmware for this device, selected functionality or advanced features may not be available on your hub at the time of purchase

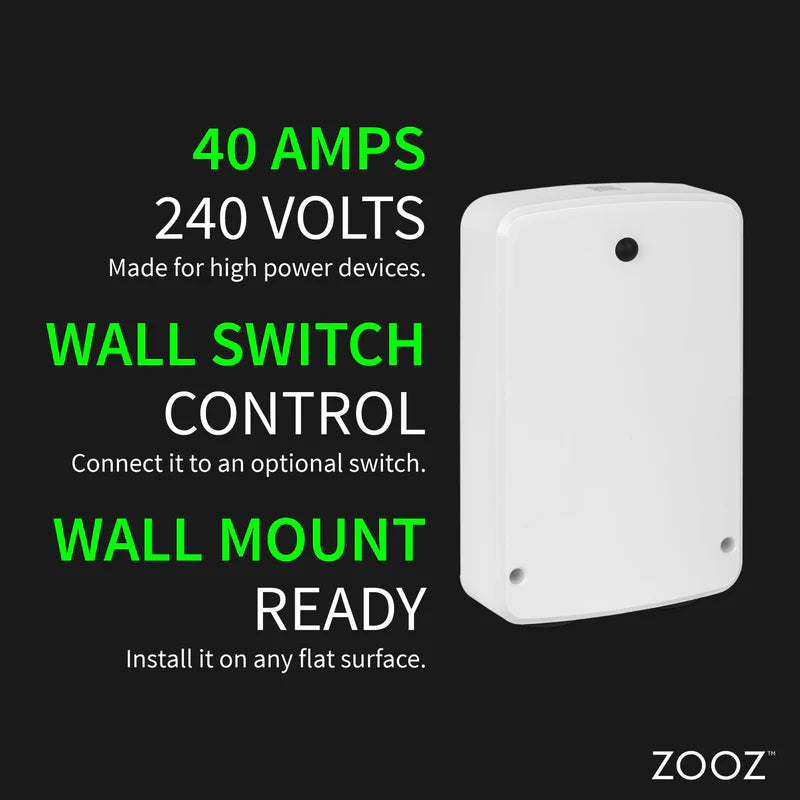

• On/off Z-Wave control for high power loads up to 40A, perfect for 240VAC heavy duty installations

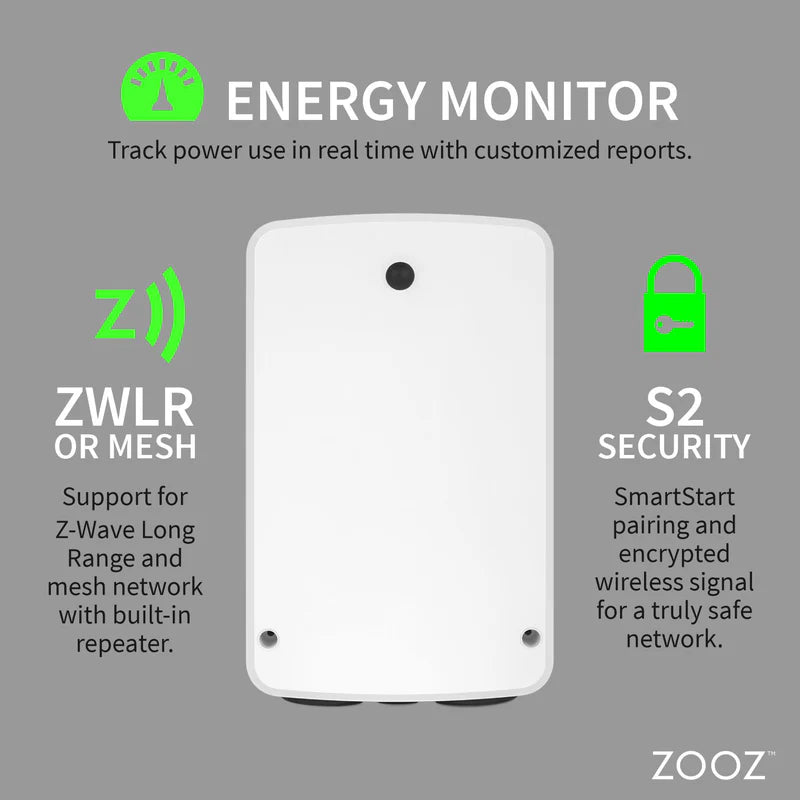

• Power monitoring: this device reports energy use in Watts, kWh, Amps, and Volts (reporting threshold and frequency are adjustable in advanced settings)
• Dry contact switch: connect and control from a wall switch ( NO VOLTAGE ON INPUT  , see diagram)

• Recommended applications:
  • Pool Pumps
  • Electric Water Heaters or Boilers
  • Air Compressors
  • Air Conditioners (e.g., Mini Splits)
  • High-Power Outlets
  • Shop Vacuums
  • Commercial Lighting
  • Heated Driveways
  • EV Charging Stations
  • Electric Heaters (garages, warehouses)
• 800 series Z-Wave chip: fast, secure, and rock solid wireless connectivity

• Z-Wave Long Range (ZWLR): if your hub implements ZWLR, you'll benefit from the ultra reliable direct device-to-hub communication which extends the range like never before and eliminates network lags
• Indoor only: you will need a weatherproof box to install this device outdoors, see specs for details
• SmartStart and S2 authenticated security for a truly protected smart home
• Built-in signal repeater: helps keep your network quick and reliable in a traditional Z-Wave mesh

SPECIFICATIONS

• Z-Wave Region: US/CA/MX
• Power: 120-240 VAC, 60 Hz
• Maximum Load: Resistive Load: 40 A, 9600 W; Inductive Load: 4HP - 5,000 Cycles, 3HP - 20,000 Cycles
• Standby power consumption: 1W
• Operating Temperature: 32° – 104° F
• Range: Up to 300 feet (or up to 1300 feet with ZWLR)
• Installation and Use: Indoor only (IPX3)

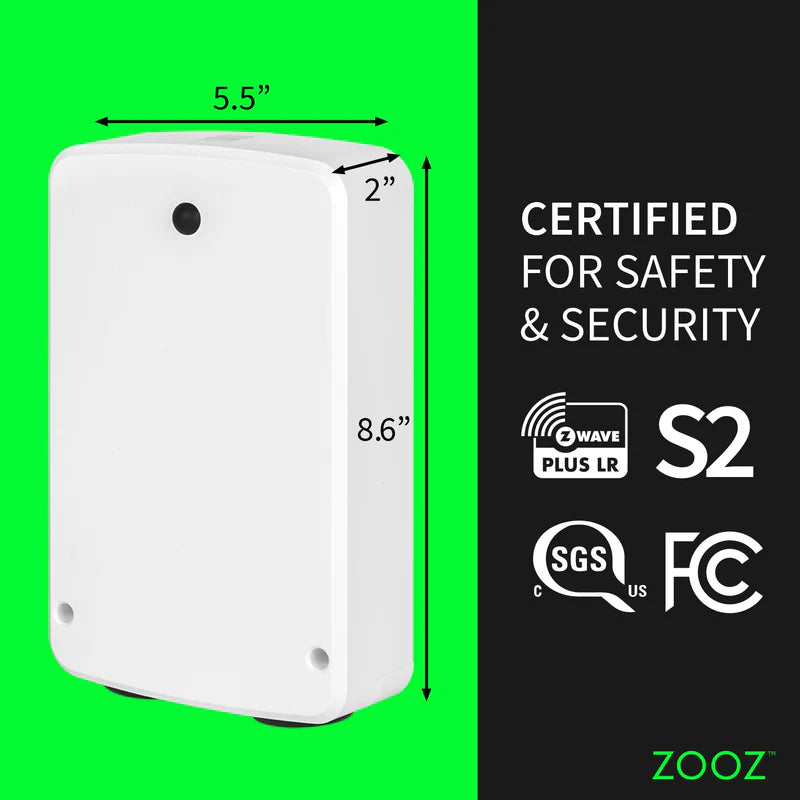

• Dimensions: 8.6” x 5.5” x 2”

WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• Ezlo Plus
• Ezlo Secure
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)

• Hubitat
• SmartThings (custom driver)
