KEY FEATURES

•   BETA RELEASE:   You may need to update the firmware for this device, selected functionality or advanced features may not be available on your hub at the time of purchase
• Dry Contact On/off Z-Wave control for 0-240V loads up to 3A

• Low Voltage power: this relay runs on a 9-40V power supply
• Dry analog input: connect it to a wall switch for manual control or separate the "S" input from output to monitor analog sensors, including leak and open/close sensors (no Voltage, see diagram)

• Great for automating garage doors, entry gates, gas fireplace, or any analog equipment under 3A that accepts simple relay on/off control
• 800 series Z-Wave chip: fast, secure, and rock solid wireless connectivity

• Z-Wave Long Range (ZWLR): if your hub implements ZWLR, you'll benefit from the ultra reliable direct device-to-hub communication which extends the range like never before and eliminates network lags
• Super compact design: fits it anywhere, perfect for stacked switches or shallow electrical boxes
• SmartStart and S2 authenticated security for a truly protected smart home

• Multicolor LED indicator for easier troubleshooting
• Built-in signal repeater: helps keep your network quick and reliable in a traditional Z-Wave mesh


SPECIFICATIONS

• Z-Wave Region: US/CA/MX
• Power: 9~40V AC/DC
• Maximum Load: 3A at 240 V
• Maximum wire AWG accepted in terminals: 14 AWG
• Z-Wave Range: Up to 300 feet line of sight (up to 1300 feet with Z-Wave Long Range)

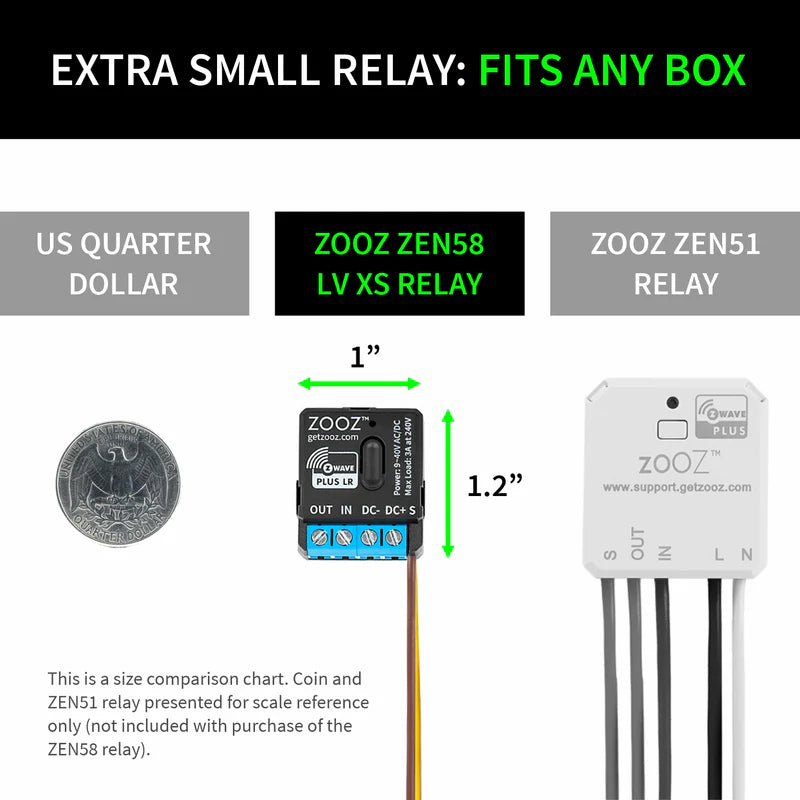

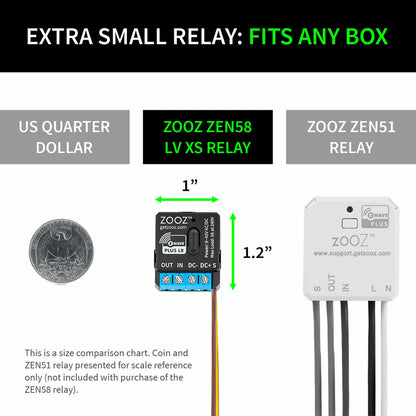

• Dimensions: 1.2” x 1” x 0.6”
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor use only


WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• Ezlo Plus
• Ezlo Secure
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)

• Homey
• Hubitat (change device type to Generic Z-Wave Plus Switch manually)
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• SmartThings (install the custom lua driver for advanced functionality)


INSTALLATION

Before installing, make sure the load does not exceed the Wattage provided in the specs. Always use the appropriate type of power supply for the controlled load.

If you are not comfortable identifying the wiring and following the instructions, please hire a licensed electrician.

Here are some helpful wiring tips:

• Always use the correct screwdriver size for the terminal screws on your Z-Wave relay and wall switches (if connecting them). Use appropriate electrical tools when cutting, prepping, and stripping electrical wires. If you don’t have the necessary tools to perform the installation or are not sure which tools to use or how, please hire an electrician to complete the installation for you. wires to be connected exactly as  indicated - line and load (OUT) wires can never be swapped as it sometimes happens to the most experienced electricians.
•   Do NOT insert wires larger than 14 AWG to the block terminals on the ZEN58 as this will damage the device.
• Follow the National Electrical Code and your local safety regulations when performing the installation, including (but not limited to), choosing the correct gauge of jumper wires.

SmartStart Inclusion:

Open your hub's app and initiate pairing as usual. Scan the SmartStart QR code on the ZEN58 relay and power it up - it will include automatically. You don't need to click the Z-Wave button unless you're using SmartThings in which case, you may need to activate the relay by tapping the Z-Wave button 3 times quickly.

Manual Inclusion:

1. Bring your Z-Wave hub or controller as close to the relay as possible
2. Put your Z-Wave controller in inclusion/pairing mode
3. Click the Z-Wave button on the relay 3 times quickly to finalize the inclusion proces
4. A new on/off switch should appear on your controller's device list
