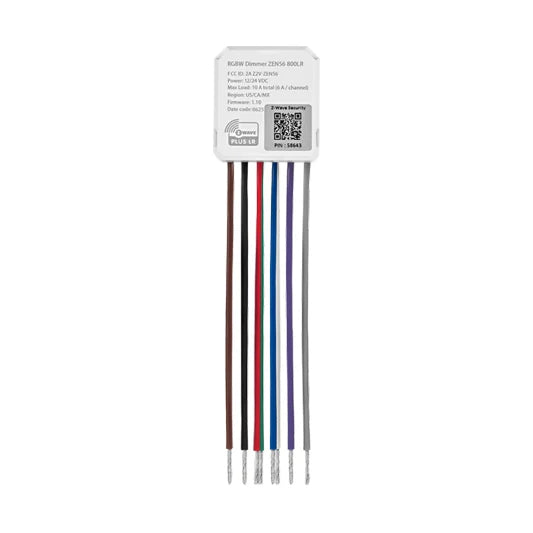

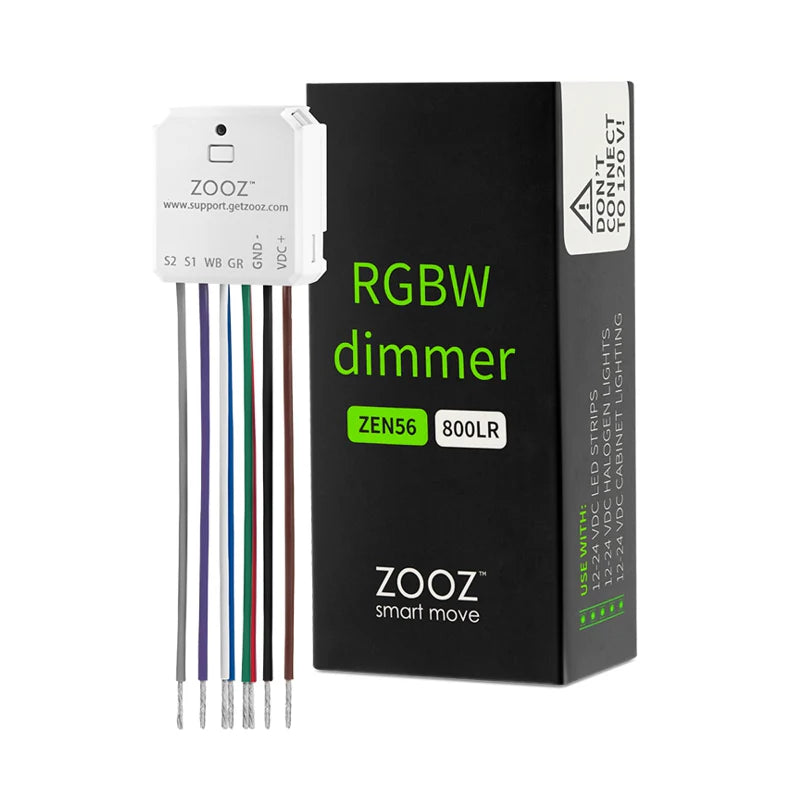

Zooz Z-Wave Long Range RGBW Dimmer ZEN56 800LR for 12-24 V LED Strips

KEY FEATURES

• RGBW Control of your existing LED strip or DC lighting straight from your Z-Wave hub
• Use with 12-24 V DC LED strips and fixtures
• Can be manually controlled from an on/off or momentary wall switch
• 800 series Z-Wave chip: delivers fast, secure, and highly reliable wireless performance

• Z-Wave Long Range (ZWLR): when supported by your hub, it enables ultra-stable, long-distance direct communication to the device, reducing delays and dramatically expanding coverage

• SmartStart and S2 authenticated security: ensure your smart home is set up securely from the start and stays fully protected

• Multicolor LED indicator for quick and effective troubleshooting
• Optional scene control* for multi-tap triggers from the connected wall switch
• Built-in signal repeater for your Z-Wave mesh

SPECIFICATIONS

• Z-Wave Region: US / CA / MX
• Power: 12 / 24 V DC (Do NOT connect to 120 V AC)
• Maximum Load: 10 A TOTAL between all channels (6 A per channel max); 120 W total at 12 V DC / 240 W total at 24 V DC
• PWM Frequency: 244 Hz
• Range: Up to 300 feet line of sight (or up to 1300 feet with ZWLR)

• Installation and Use: Indoor Only
• Operating Temperature: 32-104° F (0-40° C)
• Dimensions: 1.5" tall, 1.4" wide, 0.7" deep

WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• Home Assistant (Z-Wave JS)
• HomeSeer

• Homey
• Hubitat
• ISY (Universal Devices)
• SmartThings (with custom driver, please note the current Android limitations)

INSTALLATION

1. You'll need a 12-24 V DC power supply to power your LED strip and the Zooz RGBW Dimmer. Follow the diagram to connect the device to the power supply, your LED strip, and a wall switch (if needed) using a flat screwdriver and 16 AWG jumper wires.



   Include your RGBW Dimmer using the SmartStart feature if your hub supports it by simply scanning the QR code located on the product and inputting the SDK code to confirm inclusion.


   To manually include the product, put your hub into inclusion mode and click the Z-Wave button on the RGBW Dimmer 3 times quickly to finalize the process.
