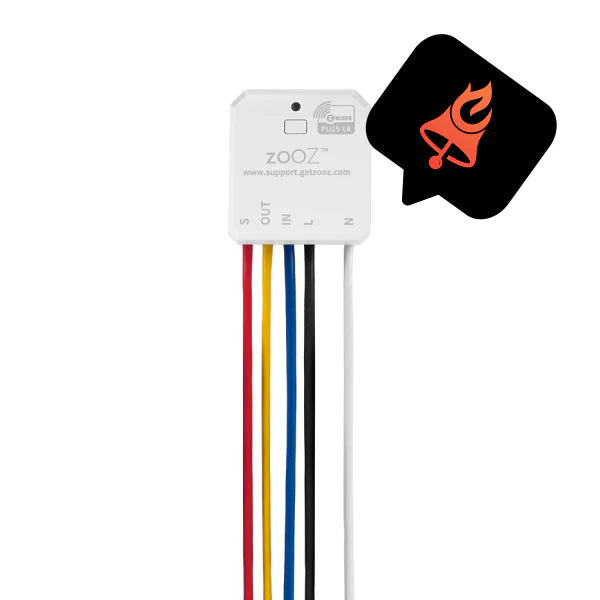

Zooz Z-Wave Plus Smoke and CO Detector Bridge ZEN55 800LR

Original price $31.95 - Original price $31.95
Original price
$31.95
$31.95 - $31.95
Current price $31.95
Product: Zooz Z-Wave Plus Smoke and CO Detector Bridge ZEN55 800LR
Price: $31.95
Availability:
In-Stock

FEATURES

  • Quick reports to your hub for low-voltage trigger signals from your interconnected hard wired smoke and CO detectors by all major brands like First Alert, Kidde, and BRK (do NOT use with battery powered detectors)
  • Recognizes and reports both smoke and CO signals from interconnected hard wired analog detectors individually
  •  NOTE:  This is NOT a security alarm component and the device is NOT part of a life-safety system. Check local regulations before installing.
  • Optional 120 V relay to control lighting or a security siren
  • 800 series Z-Wave chip: faster communication and more reliable network
  • Long Range: if your hub implements Z-Wave Long Range, you'll benefit from the latest direct device-to-hub communication which extends the range like never before and eliminates network lags
  • Built-in signal repeater: keep your mesh network stable and your system fast (not applicable to Long Range installations)
  • SmartStart and S2 authenticated security for a truly protected smart home
  • Installs in any interconnected detector box; the last box is recommended as it has fewer wires (check your wiring first and always follow the diagrams in the manual).
  • Pigtail wires included for quicker set-up
  • 5-year extended warranty when registered and tech support forever

SPECIFICATIONS

  • Z-Wave Frequency: 908.42 MHz (US)
  • Power: 120-240 VAC, 50/60 Hz
  • Maximum Loads: 10 A
  • Z-Wave Range: Up to 300 feet line of sight (or up to a mile with Long Range enabled)
  • Dimensions: 1.5" tall, 1.4" wide, 0.7" deep
  • Operating Temperature: 32-104° F (0-40° C)
  • Installation: Indoor use only

NOTES

  • Compatibility:
  • Installation tips:
    • Use with any standard interconnect smoke and/or CO alarms.
    • Always turn off the power at the breaker before handling the wiring, this is a 120 V high-voltage installation.
    • The last detector in series will be the one that only has 3 wires coming into the box (vs 5 or more in other boxes). This is where you'll have the most space to install your smart device at. (NOTE: it can be installed in any box in the series; the last is recommended only because of space.)
    • When adding the ZEN55 relay to your hub, you may need to scan the QR code or enter the PIN code located on the back of the relay (if your system supports SmartStart). Read more about adding the device to your hub here.
    • Test the detector's alarm (follow the instructions for your unit) to see if the status of the device changes in your hub's interface once the alarm goes off. Remember to warn your family members or roommates when testing this!
    • Always turn the power off when securing the module and the detector back in the electrical box.
    • You'll need to create an automation in your hub for a notification to be sent to your phone or email once the status on the ZEN55 changes so you can immediately know if the alarm is triggered.


SKU U0236
