Analog 0-30 V Add-on (Accessory for The Pill by Shelly)

Analog 0-30 V Add-on (Accessory for The Pill by Shelly)

$6.95 USD
$6.95 USD
Shipping calculated at checkout.
US Flag Thank you for supporting a US-based small business!

In stock

Description ▼

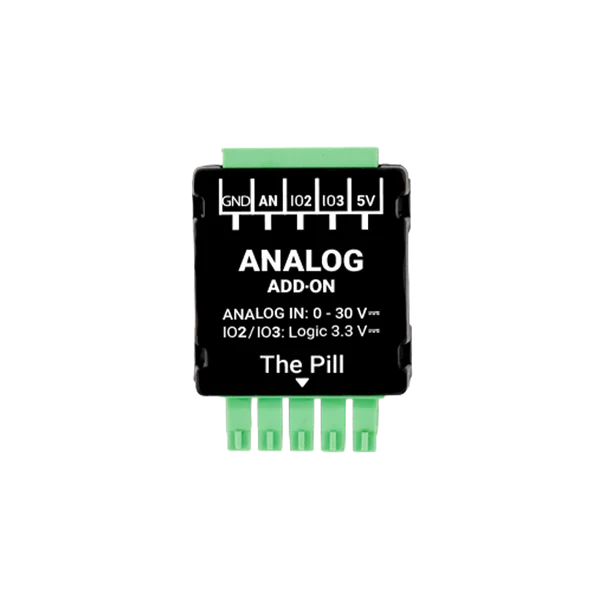

Add-on module for The Pill by Shelly that measures analog sensors and DC voltages up to 30 V. Ideal for monitoring batteries, power supplies, and other low-voltage devices.
*The Analog 0-30 V Add-on is sold separately and requires the 5-Terminal Add-on to connect with The Pill by Shelly.

KEY FEATURES

  • Measurement range: 0-30 V DC
  • Extends The Pill’s measurement range for sensors and batteries
  • Compatible via 5-Terminal Add-on
  • 1 Analog Input (AN) + 2 configurable Digital IOs (3.3 V logic)
  • 5 V power output for connected sensors


Physical

Size (HxWxD):

36.5 mm x 26.5 mm x 11.5 mm

Weight:

8 g

Shell color:

Black

Environmental

Ambient working temperature:

0 to 40 °C / 32 to 105°F

Storage temperature:

-20°C to 40°C / -5°F to 105°F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Sensors, meters

Voltmeter range (DC)

0 V - 30 V

Voltmeter accuracy:

±(2% + 5d)

Input circuits ratings

Digital inputs triggering voltage:

Active LOW;

Trigger low: < 0.83 V

Trigger high: > 2.48 V

Digital inputs max. voltage

3.3 V

Output circuits ratings

Max. switching voltage:

3.3 V (logic-level)

Max. switching current:

20 mA
