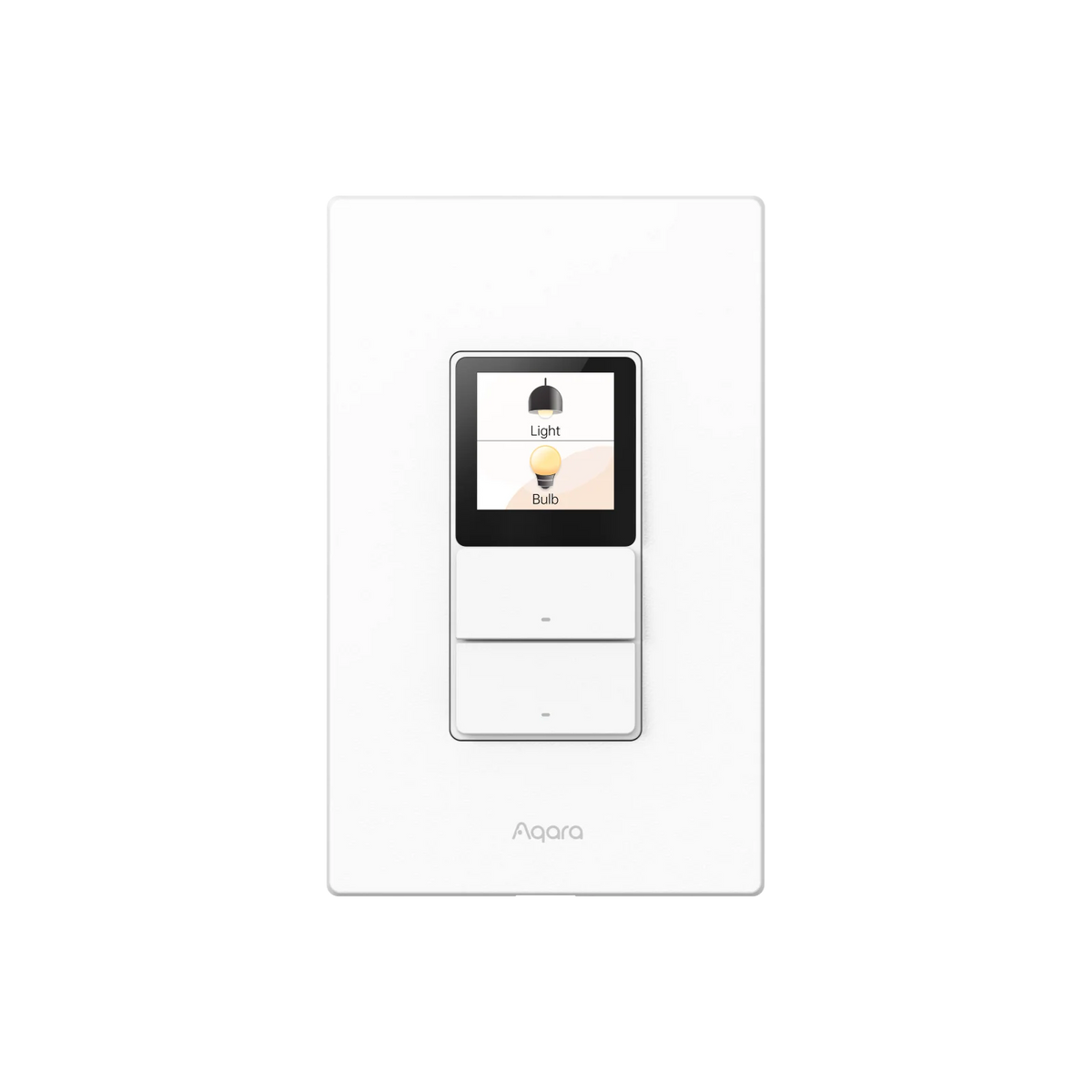

Aqara Touchscreen Switch S100 US
The Aqara Touchscreen Switch S100 US is a 2-gang in-wall switch with a 1.3-inch color LCD. The two physical buttons still switch the wired lights. The screen adds scenes, Matter devices, and energy use. Matter over Wi-Fi, Thread, and Bluetooth. Neutral wire required.
KEY FEATURES
- 1.3-inch color LCD with customizable cards and wallpaper
- Two physical buttons for two wired light circuits
- Up to 8 wireless buttons for scenes (6 on screen, 2 via the physical buttons)
- Matter over Wi-Fi — Apple Home, Alexa, Google Home, SmartThings, Home Assistant
- Built-in Thread Border Router
- Control Matter devices and Aqara Zigbee devices from the screen (Aqara Home + supported Aqara hub)

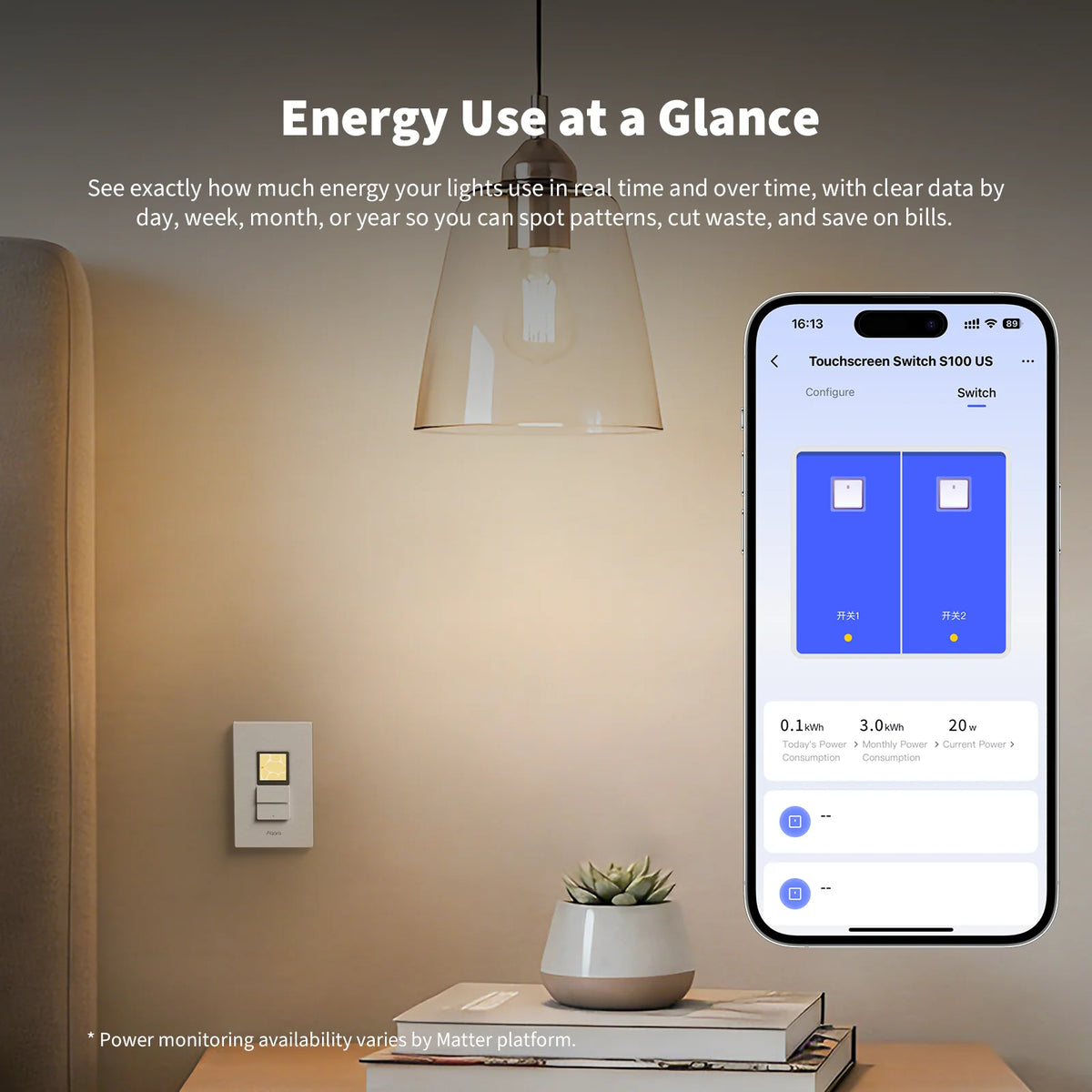

- Real-time and historical energy monitoring
- Proximity wake and ambient light for the display
- Overheat and overload protection
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | Touchscreen Switch S100 US (WS-K06E) |
| Screen | 1.3-inch color LCD |
| Wired channels | 2 relays Max 10 A incandescent Max 400 W LED / CFL |
| Wireless buttons | Up to 8 scene / automation triggers |
| Connectivity | Wi-Fi IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz and 5 GHz) Bluetooth Thread |
| Smart home | Native Matter over Wi-Fi Apple Home, Alexa, Google Home, SmartThings, Home Assistant |
| Thread Border Router | Yes — official support in Aqara Home and Samsung SmartThings |
| Power | 100–240 V~, 50/60 Hz Neutral wire required |
| Operating range | −10°C to 40°C (14°F to 104°F) 0–95% RH, no condensation |

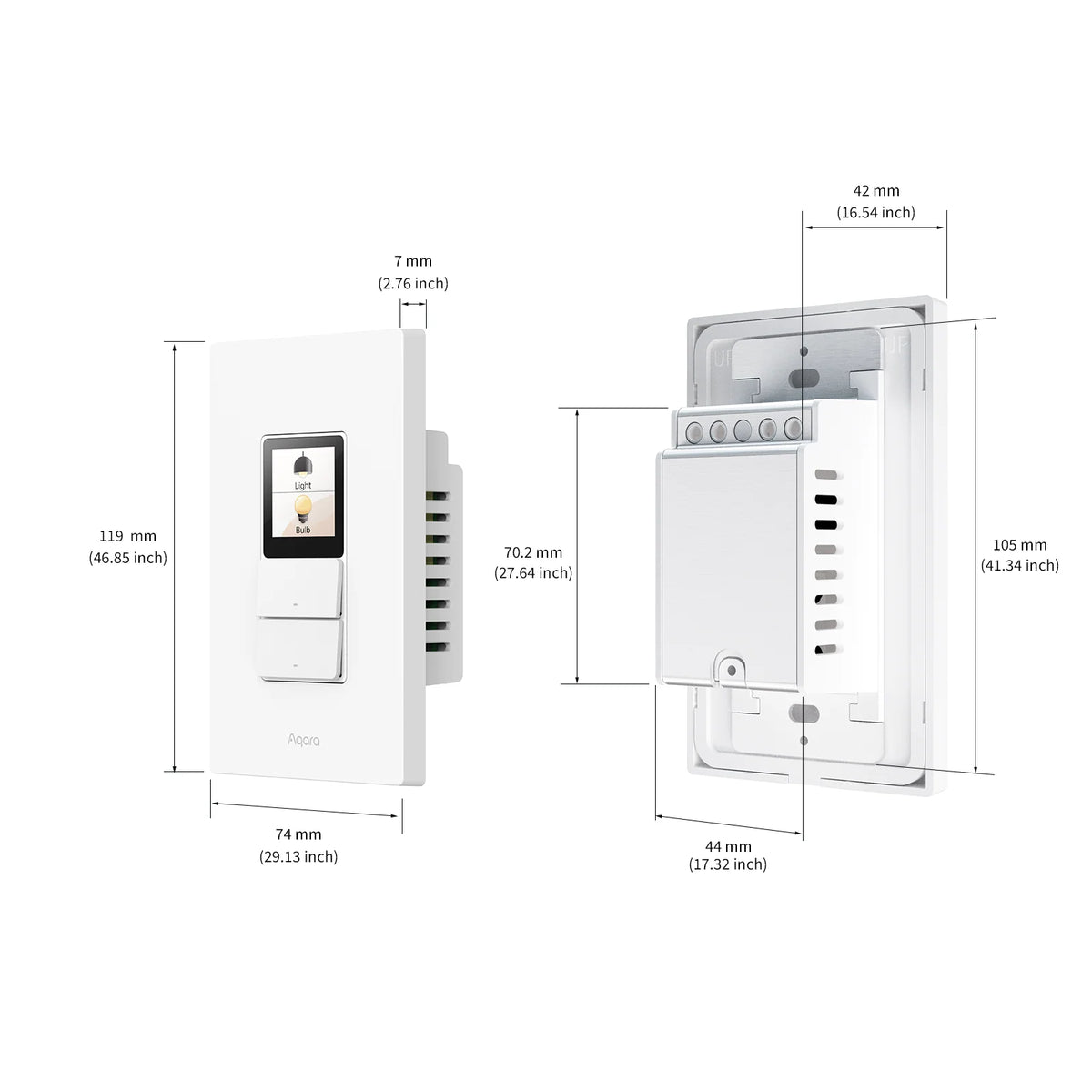

| Dimensions | 119 × 74 × 42 mm (4.69 × 2.93 × 1.67 in) |
What's Included:
- 1 × Aqara Touchscreen Switch S100 US
- 1 × screw kit
- 1 × wire nuts kit
- 1 × wiring sticker sheet
- 1 × user manual
- 1 × compliance statement
NOTES
- Hardwired US wall-box install. A neutral wire is required
- A Matter controller / hub is required for Apple Home, Alexa, Google Home, SmartThings, or Home Assistant
- Full on-screen device and scene layout uses the Aqara Home app and a supported Aqara Matter hub (M3, M100, M200, or W200)
- This is not a Zigbee switch. Matter is over Wi-Fi
