Banana Pi BPI-R4

$129.95

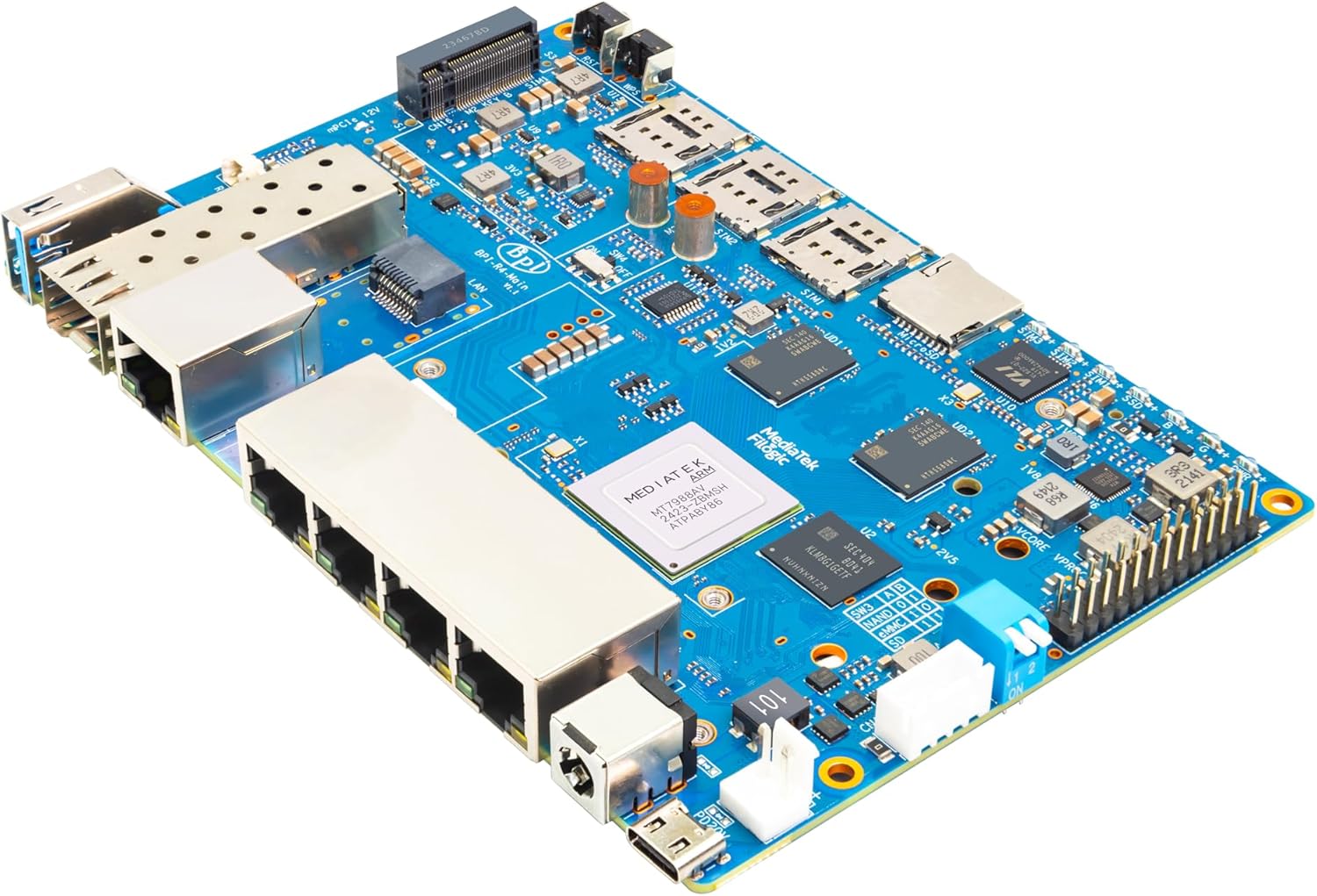

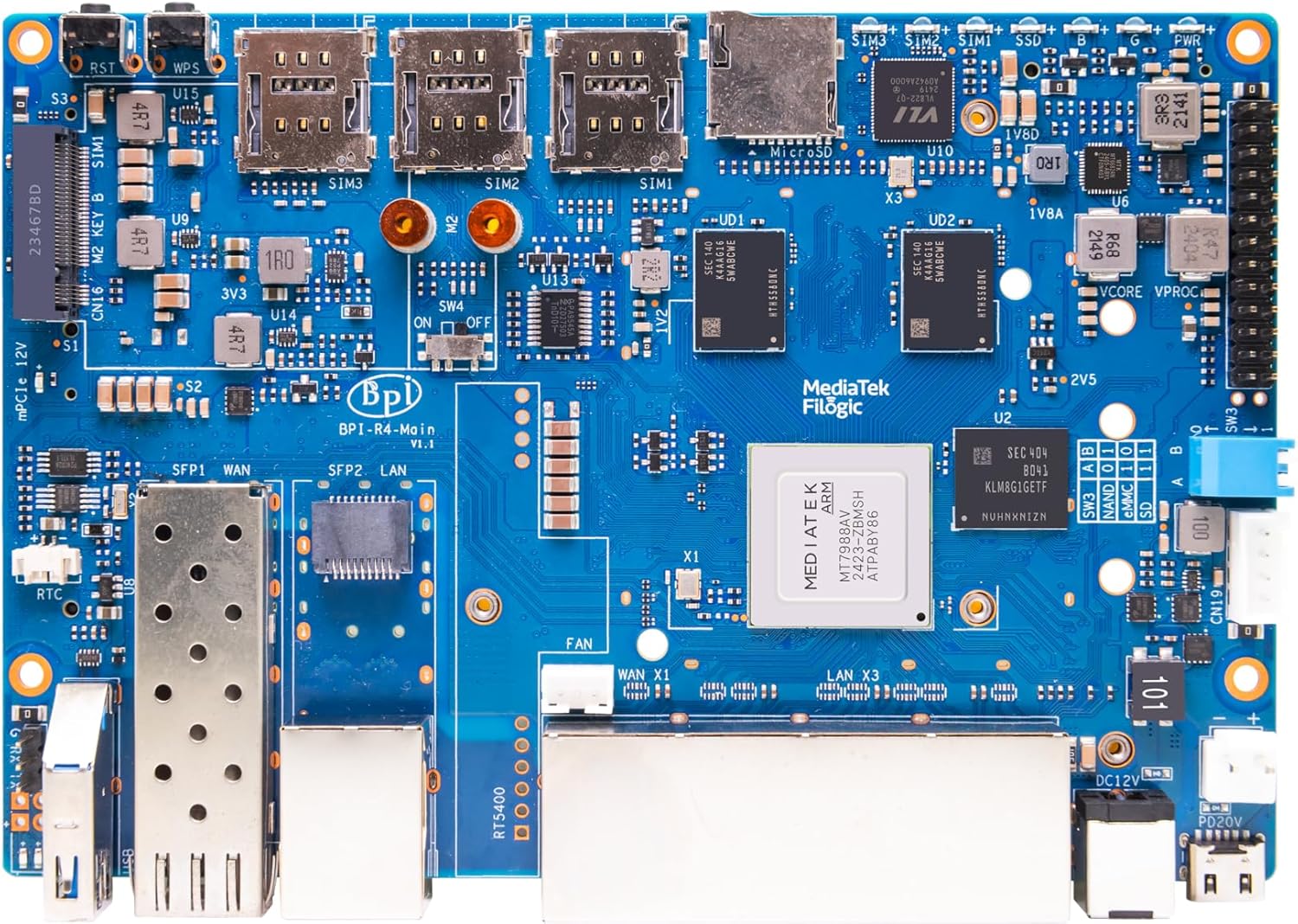

The Banana Pi BPI-R4 Router board features a MediaTek MT7988A quad-core ARM Cortex-A73 design, 4GB DDR4 RAM, 8GB eMMC, and 128MB SPI-NAND flash onboard. It includes 2x 10Gbe SFP, 4x Gbe network ports, USB3.2 port, and M.2 support for 4G/5G/NVME SSD. With 2x miniPCIe slots supporting Wi-Fi 7 NIC, it is a high-performance open-source router development board.

The MediaTek MT7988A is a leading network processing platform for wired and wireless applications, offering 36Gbps Wi-Fi 7 with tri-band connectivity (2.4 GHz, 5 GHz, and 6 GHz). It features 4 Gigabit Ethernet ports, 2 US GMII interfaces, 4 PCIe interfaces, and 2 USB 3.2 ports. The MT7988A supports fast-evolving tunneling applications with MediaTek Tunnel offload processor System (TOPS) for optimized networking performance.

KEY FEATURES

  • MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
  • 4GB DDR4
  • 8GB eMMC flash
  • 128MB SPI-NAND Flash
  • Micro SD card slot
  • 2x 10Gbe SFP slot
  • 4x Gbe network port
  • 1x USB3.2 slot
  • 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G
  • 1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
  • 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
  • 26 PIN GPIO Header for expanding application
  • POE function customizable (present version not support POE function)

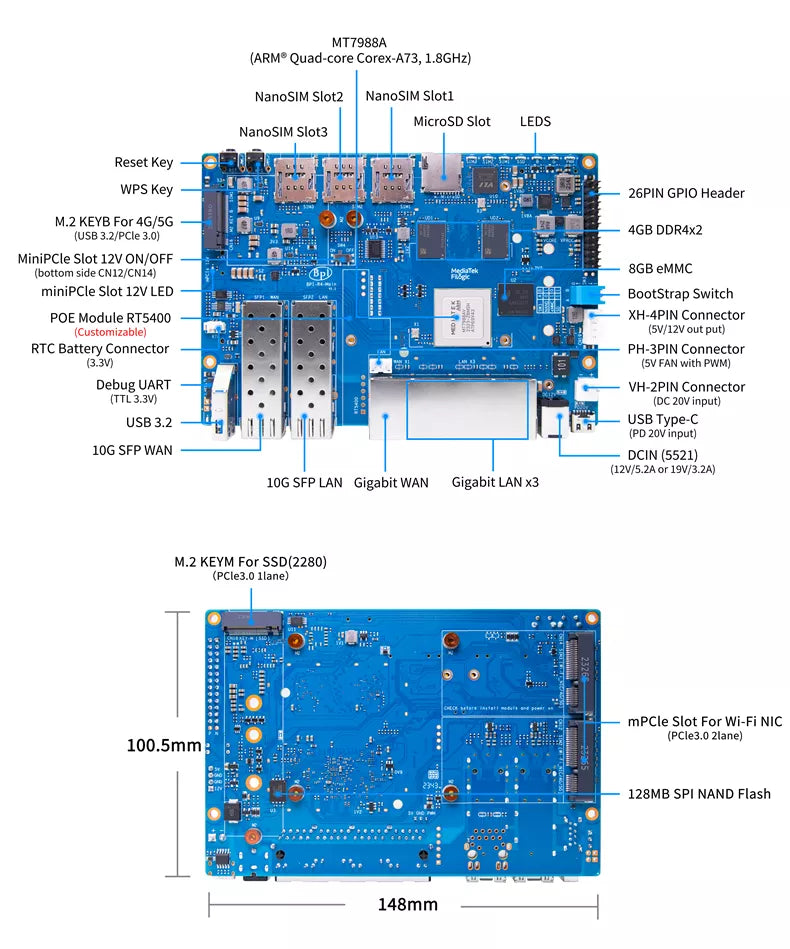

SPECIFICATIONS

CPU MediaTek MT7988A (Filogic 880) Quad-core Arm Corex-A73,1.8GHz processor
SDRAM 4 GB DDR4
On board Storage MicroSD (TF) card,128MB SPI NAND, 8GB eMMC
GPIO 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
On board Network 4 Port 10/100/1000Mbps Ethernet
SFP 2x10G SFP
mini PCIE 2x miniPCIe slots with PCIe3.0 2lane interface for BPI Wi-Fi 7 NIC (Network Interface Card)
M.2 interface 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
USB 1xUSB 3.2 slot
Buttons Reset button,WPS botton, boot switch
Leds Power status Led and RJ45 Led
DC Power 12V/5.2A or 19V 3.2A(The power consumption will not exceed 10W without any peripheral equipment, and 12V/2A can be used.)
Sizes 100.5x148mm
Weight 250g
