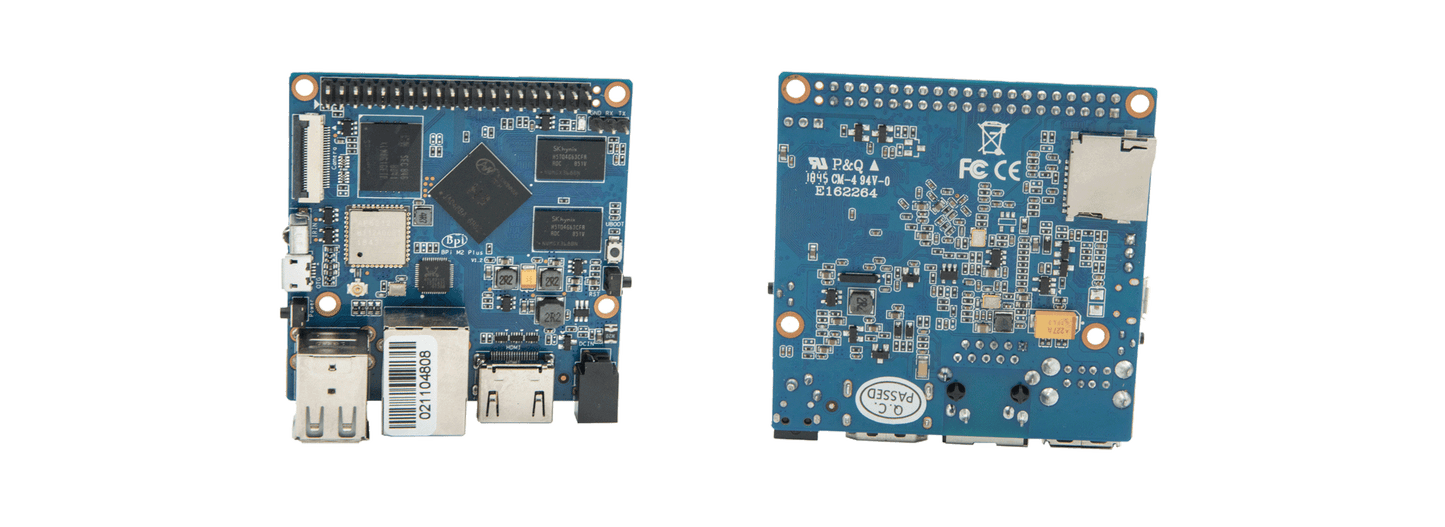

Banana Pi M2+

Prices include 25% tariffs for import into the US from China

Banana PI BPI-M2+ is an open source hardware platform that uses an Alliwnner H3 processor. It has a 1GHz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8GB eMMC flash, SDIO WiFi & BT 4.0 module and Gigabit Ethernet on board. The BPI-M2+ series runs Android, Debian Linux, Ubuntu Linux, and Raspberry Pi images, among others.

KEY FEATURES

• CPU: H3 Quad-core Cortex-A7
• GPU: Mali 400 MP2
• Memory: 1GB DDR3
• Storage: 8GB eMMC flash onboard, MicroSD slot.
• USB Ports: 2 x USB 2.0 ports, 1 x USB 2.0 OTG
• GPIO: GPIO (x28), Power (+5V, +3.3V and GND), UART, I2C, SPI or PWM
• Power Input: 5 volt @2A
• Video Output: HDMI port and multi-channel audio output
• Audio Output: HDMI
• Camera interface: CSI
• Network: 10/100 Mbit/s Ethernet, Wi-Fi 802.11 b/g/n, Bluetooth 4.0
• Size: 65x65mm, 44g
• OS: Android, Linux.

NOTES

• The Banana Pi M2+ should be powered through the GPIO port as shown in the video below.


LINKS

• https://wiki.banana-pi.org/Banana_Pi_BPI-M2+#Image_Release
