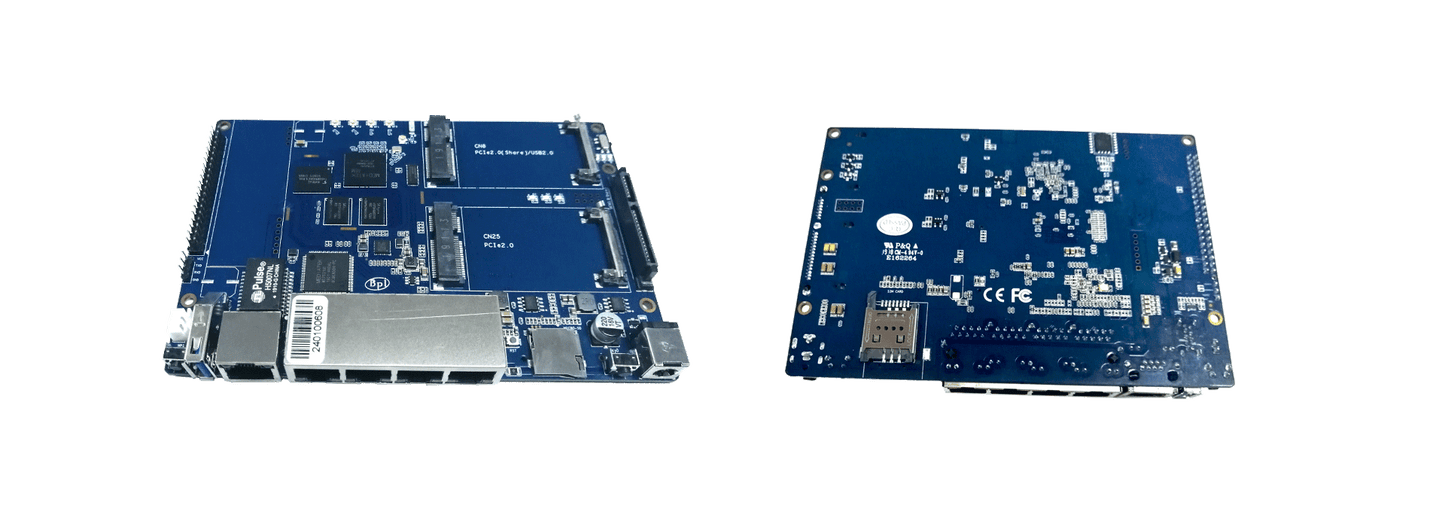

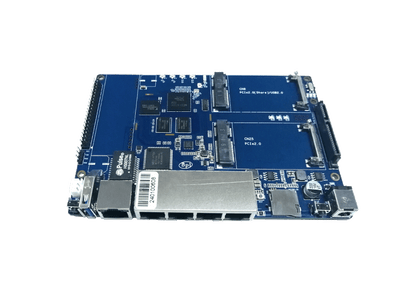

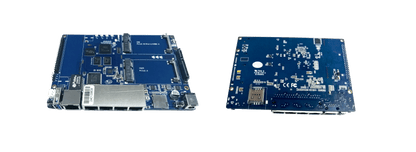

Banana Pi R64

The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt and Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC WiFi AP function.

KEY FEATURES

• CPU: MediaTek MT7622, Dual-core ARM Cortex-A53
• Memory: 1G DDR3 SDRAM
• Storage: 8G eMMC flash onboard, MicroSD slot, 1 SATA 2.0 Port
• Network: 5 x 10/100/1000 Mbit/s Ethernet (MT7530), built-in 4x4n WiFi 802.11n, Bluetooth BT 5.0.
• USB Ports: 1 x USB 3.0 ports
• GPIO: GPIO (x28), Power (+5V, +3.3V and GND), UART, I2C, SPI or PWM
• Power Input: 12 volt @2A, PoE(require extra PoE module)
• PCIE: 1 mini PCIE interface
• Size: 148mm×100.5mm, 100g
• OS: OpenWRT, Debian, Ubuntu.

LINKS

• https://wiki.banana-pi.org/Banana_Pi_BPI-R64#Release
