Banana Pi M5
Banana Pi M5
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

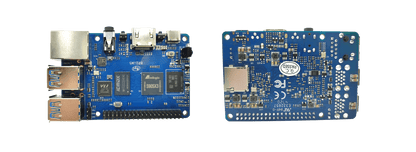

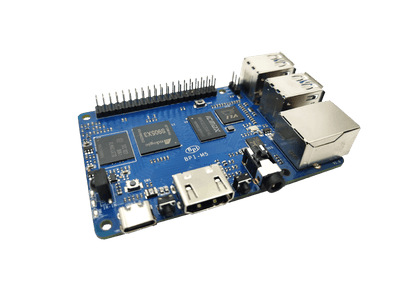

Banana Pi BPI-M5 is the next generation single board computer powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor. Onboard 4GB LPDDR4 memory, 16GB EMMC storage, MicroSD slot that supports up to 256GB, 4 USB 3.0 interface, and a gigabit network port.
KEY FEATURES
- CPU: Amlogic S905X3 Quad-Core Cortex-A55.
- GPU: Mali-G31 GPU.
- Memory: 4GB LPDDR4.
- Storage: 16GB eMMC onboard/MicroSD slot with support for up to 256GB expansion.
- 4 USB port.
- GPIO (x28), Power (+5V, +3.3V and GND), UART, I2C, SPI or PWM.
- Power Input: 5 volt @2A via Micro USB (TYPE C).
- Video Output: HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID).
- Audio Output: 3.5mm jack and HDMI.
- Network: 10/100/1000 Mbit/s Ethernet, Optional WiFi USB dongle.
- Size: 92x60mm, 48g.
- OS: Android, Linux.
LINKS
Recommended Accessories ▼
Bundle Deals▼
Let’s Connect! We’re a small business passionate about helping you achieve your goals of comfort, privacy, and security with Home Assistant, Single Board Computers, and more. Get in touch for a free consultation or just a fun chat about what’s possible—we’ll do our best to guide you in the right direction and get you the best deal! As a small team, we’ll strive to be available or get back to you as soon as possible.
SKU:E0458
