CrowPanel Advance 3.5" ESP32-S3 AI HMI Display for Meshtastic – 480x320 IPS Touch Screen with Case

Smart off-grid Meshtastic HMI with AI voice interaction – CrowPanel Advance 3.5"! This powerful 3.5-inch IPS touch display combines an ESP32-S3 microcontroller, built-in AI voice capabilities, and a plug-in SX1262 LoRa module for seamless Meshtastic mesh networking. Run Meshtastic firmware right out of the box while enjoying a vibrant graphical interface, voice commands, speech synthesis, and rich IoT connectivity—all without cell service or internet. Perfect for portable Meshtastic nodes, smart dashboards, field communication, environmental monitoring, or custom HMI projects.

The CrowPanel Advance 3.5" is designed for Meshtastic and advanced HMI applications, offering:

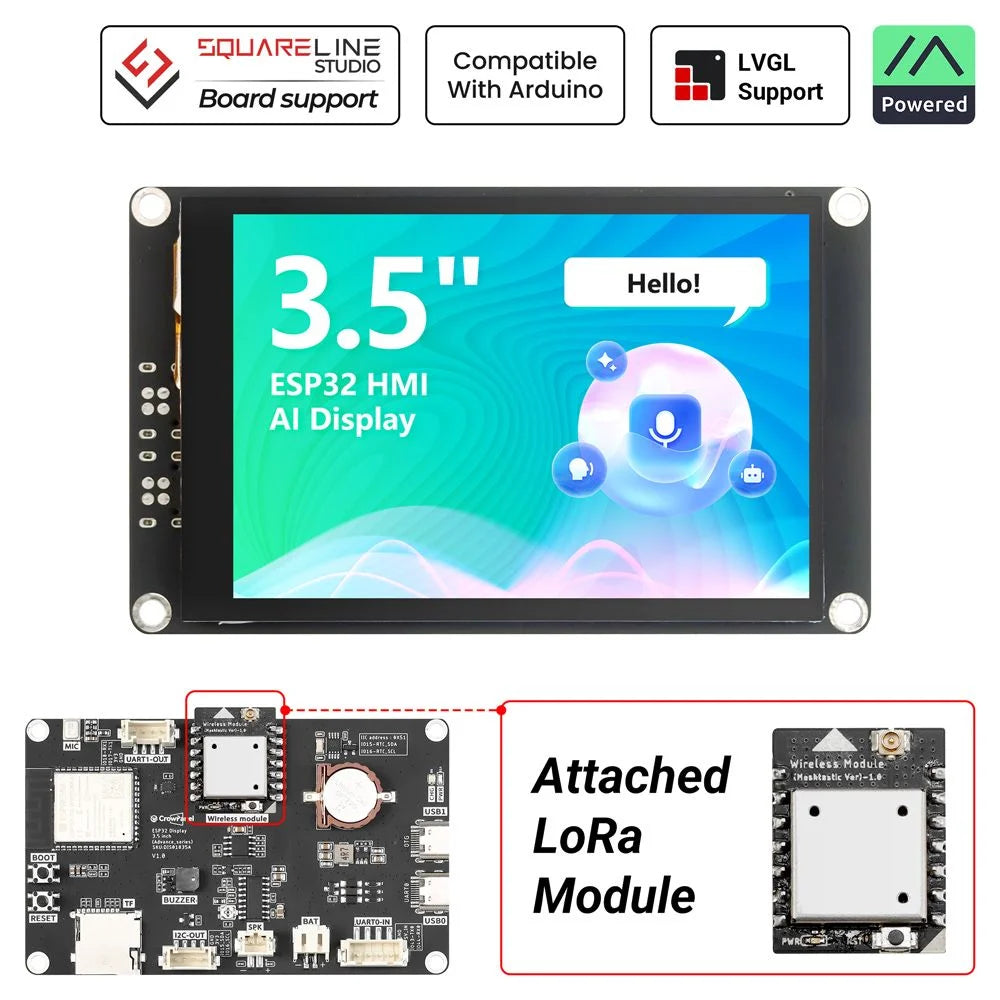

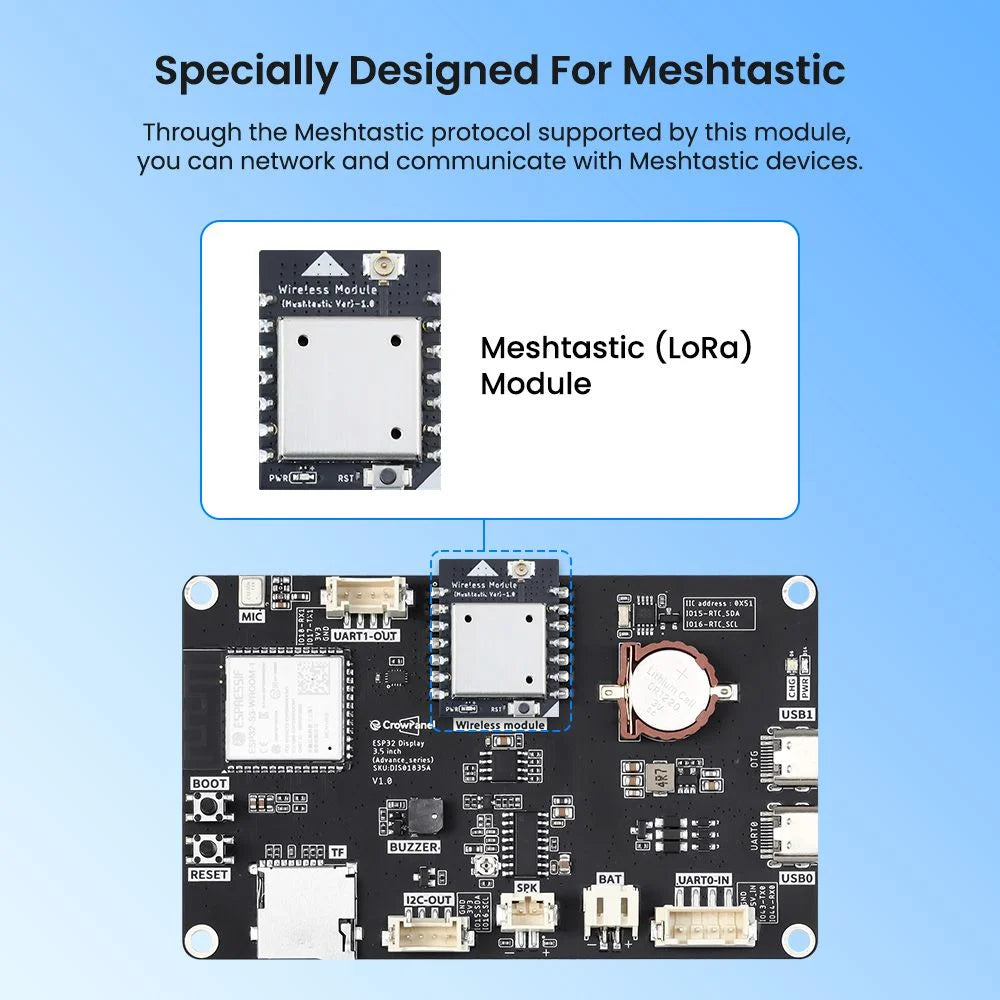

• Meshtastic-Ready LoRa Communication: Includes a replaceable SX1262 LoRa module (868/915 MHz) with antenna for long-range encrypted messaging and location sharing on the Meshtastic mesh network.
• High-Resolution IPS Touch Display: Bright 3.5-inch 480×320 IPS screen with 178° viewing angle, capacitive touch, and 400 cd/m² brightness—ideal for clear Meshtastic UI, maps, and custom interfaces.

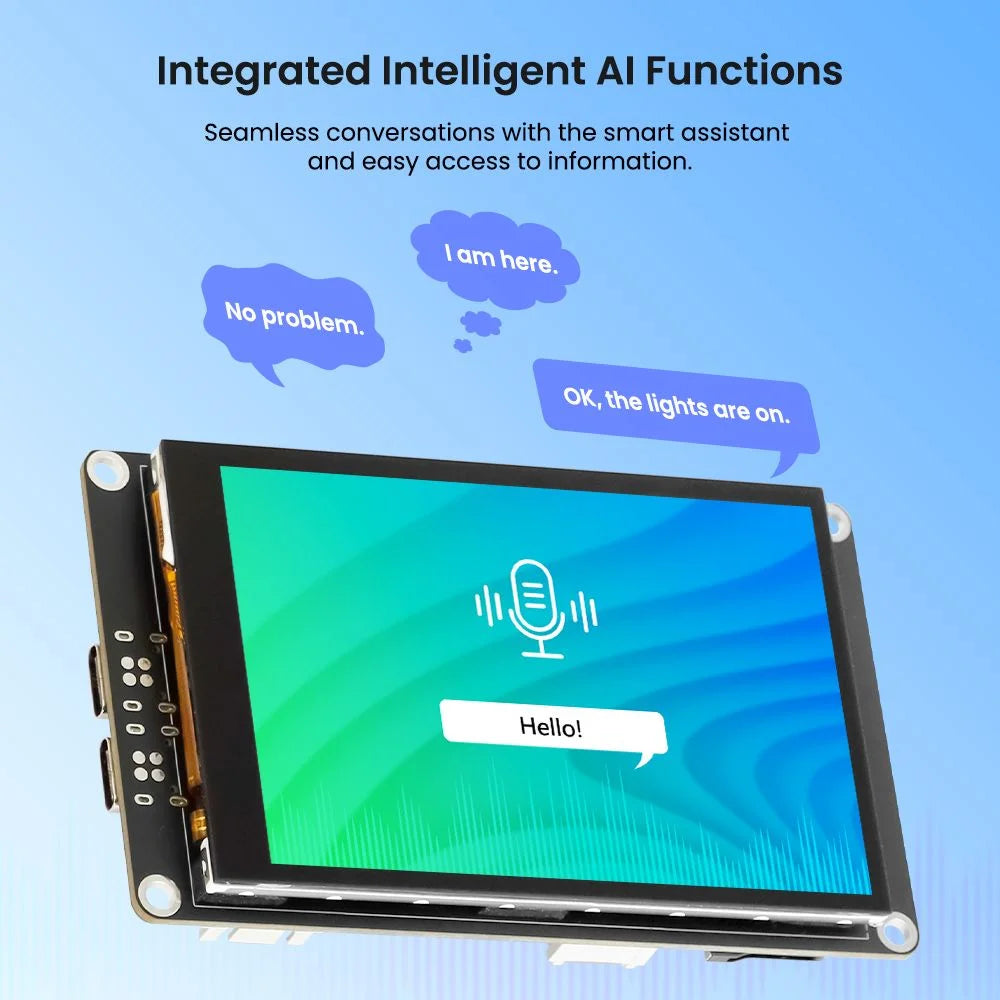

• AI Voice Interaction: Built-in high-performance microphone and speaker support for voice recognition, speech synthesis, and natural conversations with smart assistants directly on the device.

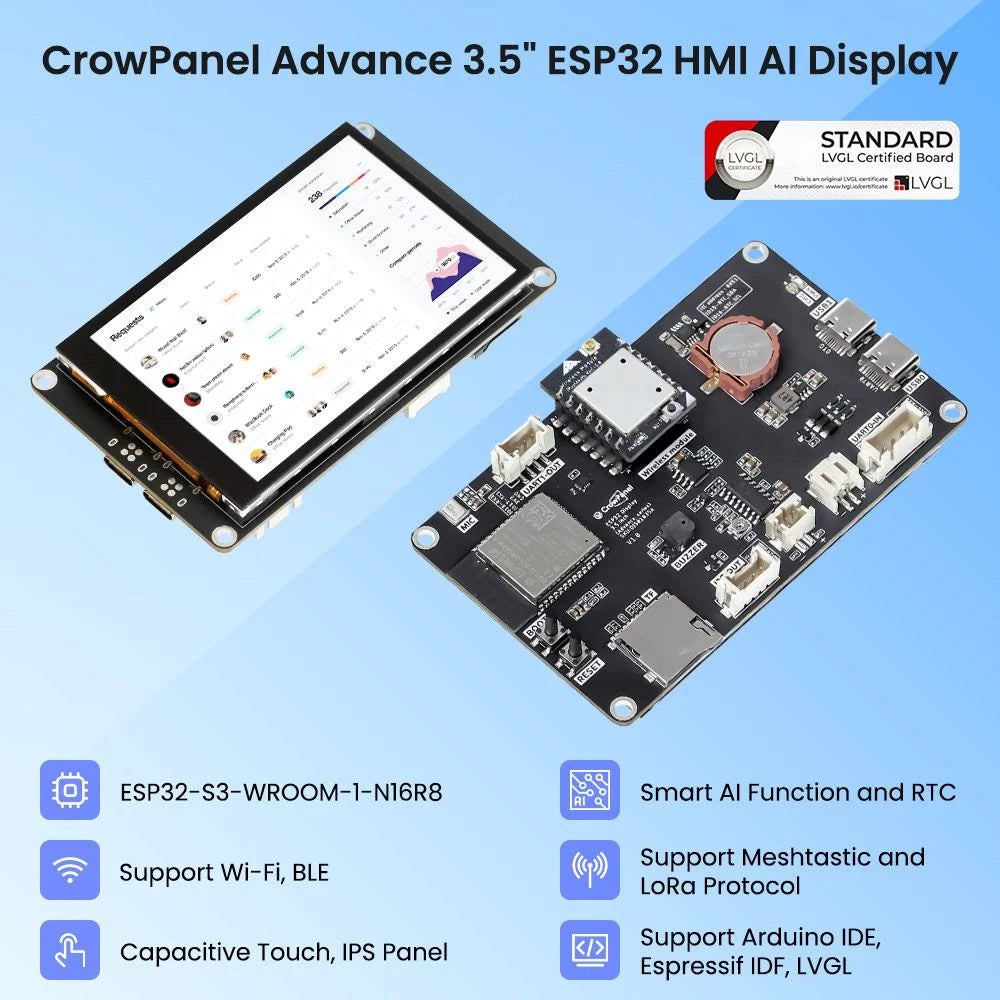

• Powerful ESP32-S3 Core: Dual-core Xtensa LX7 processor up to 240 MHz, with 16 MB Flash, 8 MB PSRAM, Wi-Fi, and Bluetooth 5.0/BLE for versatile wireless connectivity and fast performance.

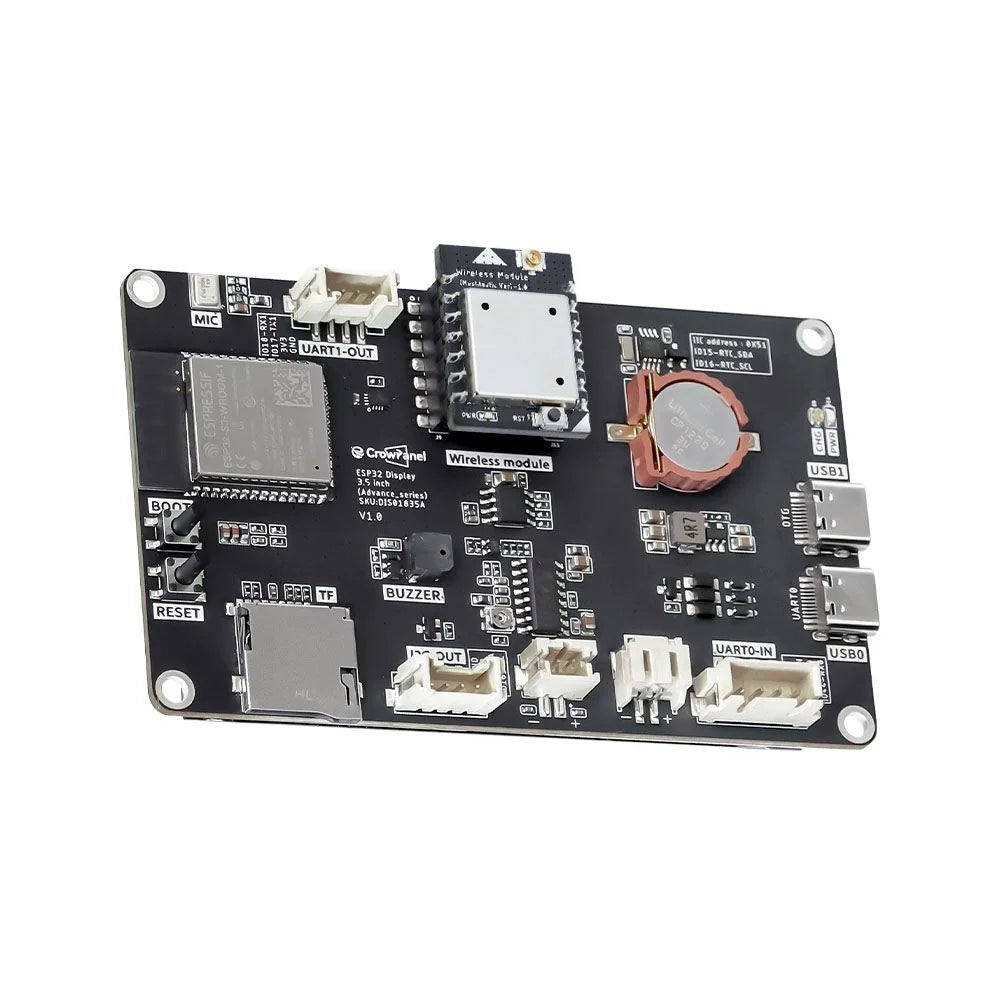

• Rich Expansion & Interfaces: USB-C, UART (IN/OUT), I2C, SD card slot, battery connector with charging circuit, speaker port with volume control, and support for over 150 Crowtail/Grove sensors.
• Built-in RTC & Development Friendly: Real-time clock for accurate timing, plus full support for Arduino IDE, ESP-IDF, PlatformIO, LVGL, and SquareLine Studio for rapid UI and firmware development.

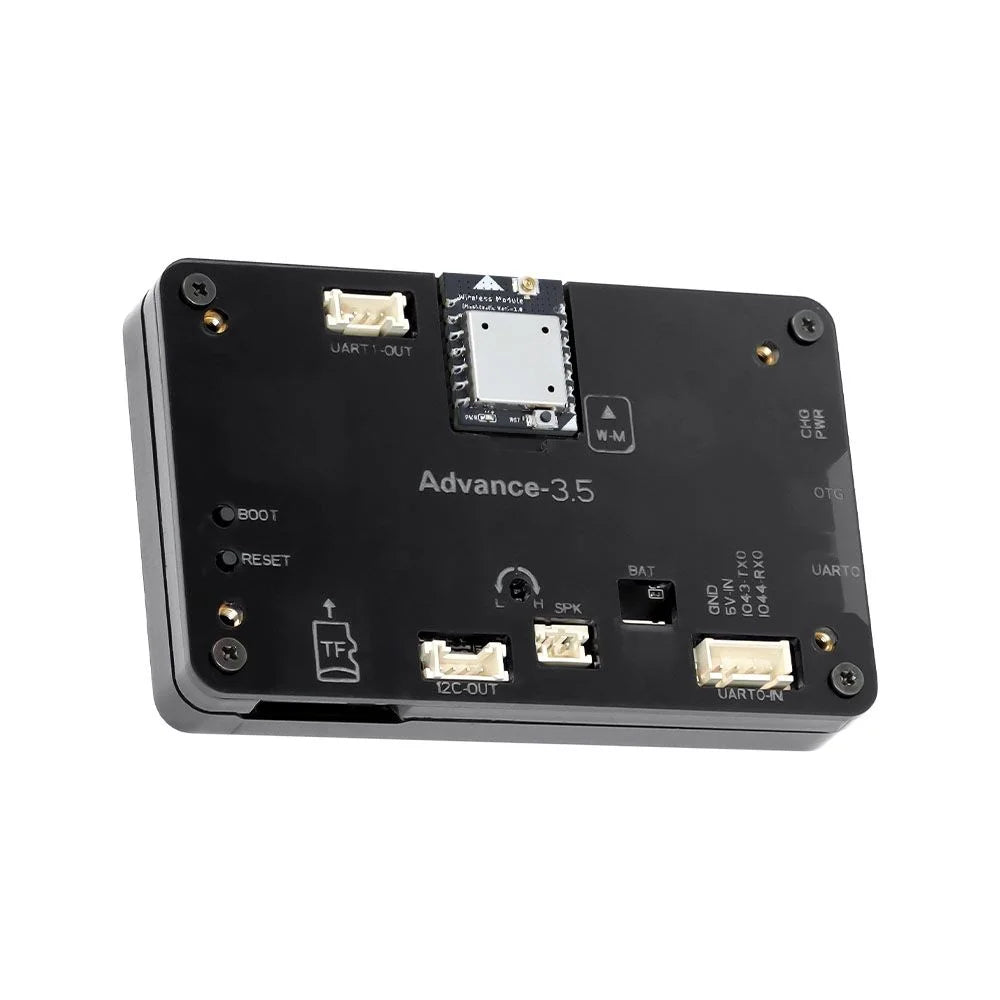

• Compact & Mountable Design: Slim form factor with back-hanging mounting holes and included protective case—easy to integrate into projects, vehicles, or portable setups.
• Multiple Applications: Use as a standalone Meshtastic client/node with graphical UI, a voice-enabled smart display, a portable HMI controller, or part of a larger IoT/sensor network.

Specifications

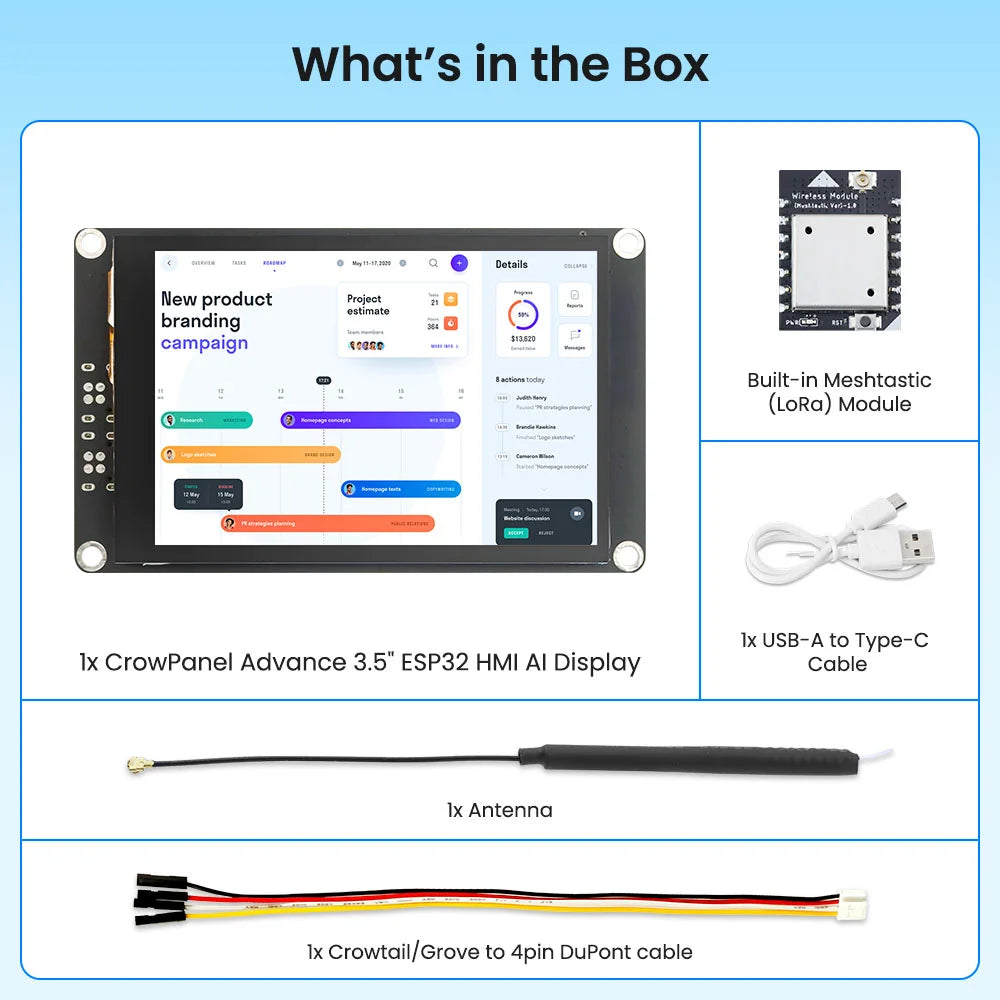

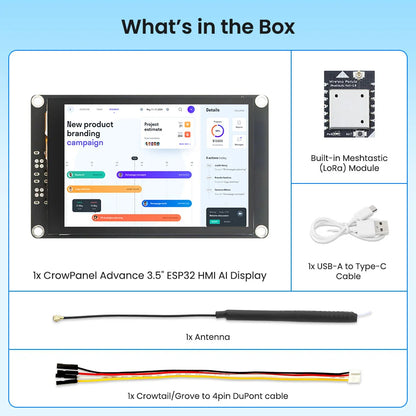

Package List:

• 1x CrowPanel Advance 3.5" ESP32-S3 AI HMI Display
• 1x SX1262 LoRa Wireless Module with Spring Antenna
• 1x USB-A to USB-C Charging Cable
• 1x Crowtail/Grove 4-pin DuPont Cable
• 1x Protective Case
