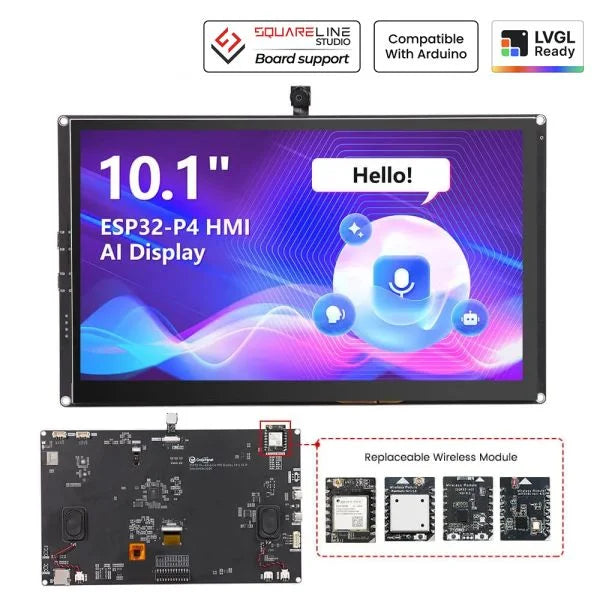

CrowPanel Advanced 10.1inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen
CrowPanel Advanced 10.1inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen
Thank you for supporting a US-based small business!
Out of Stock! If you see a Pre-order badge and/or an Add to Cart/Preorder Now button, you can place a pre-order now!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
Note: This is the CrowPanel Advanced 10.1" ESP32-P4 HMI AI Display **with 2MP Camera**. A powerful 10.1-inch IPS touchscreen HMI with ESP32-P4 processor, Wi-Fi 6, dual speakers, microphone, and 2MP camera — perfect for smart home control panels, industrial HMIs, AI vision projects, and interactive IoT dashboards.

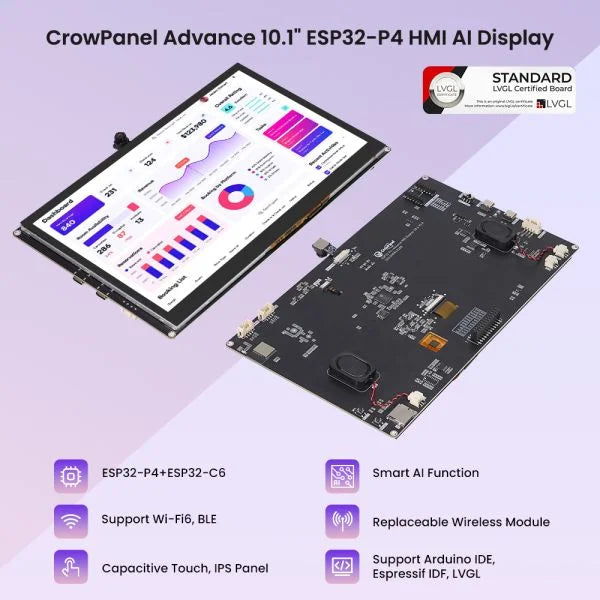

The CrowPanel Advanced 10.1" delivers high-performance human-machine interaction with a large 1024×600 IPS display, powerful AI acceleration, rich audio system, and a 2MP camera. Powered by the ESP32-P4 + ESP32-C6 architecture, it excels in complex graphical interfaces, voice interaction, and edge AI vision applications.
KEY FEATURES
- Large 10.1" HD IPS Touchscreen: 1024×600 resolution, wide 178° viewing angle, and smooth capacitive multi-touch.
- Powerful ESP32-P4 Processor: Dual-core RISC-V architecture (up to 400 MHz) with 32MB PSRAM and 16MB Flash for smooth UI and multitasking.
- Wi-Fi 6 + Bluetooth 5.3: Fast and stable wireless connectivity via dedicated ESP32-C6 module.
- 2MP Camera: Included MIPI-CSI camera for AI vision, video monitoring, face recognition, and other vision-based applications.
- Rich Audio System: Dual speakers + microphone for voice interaction and high-quality audio feedback.

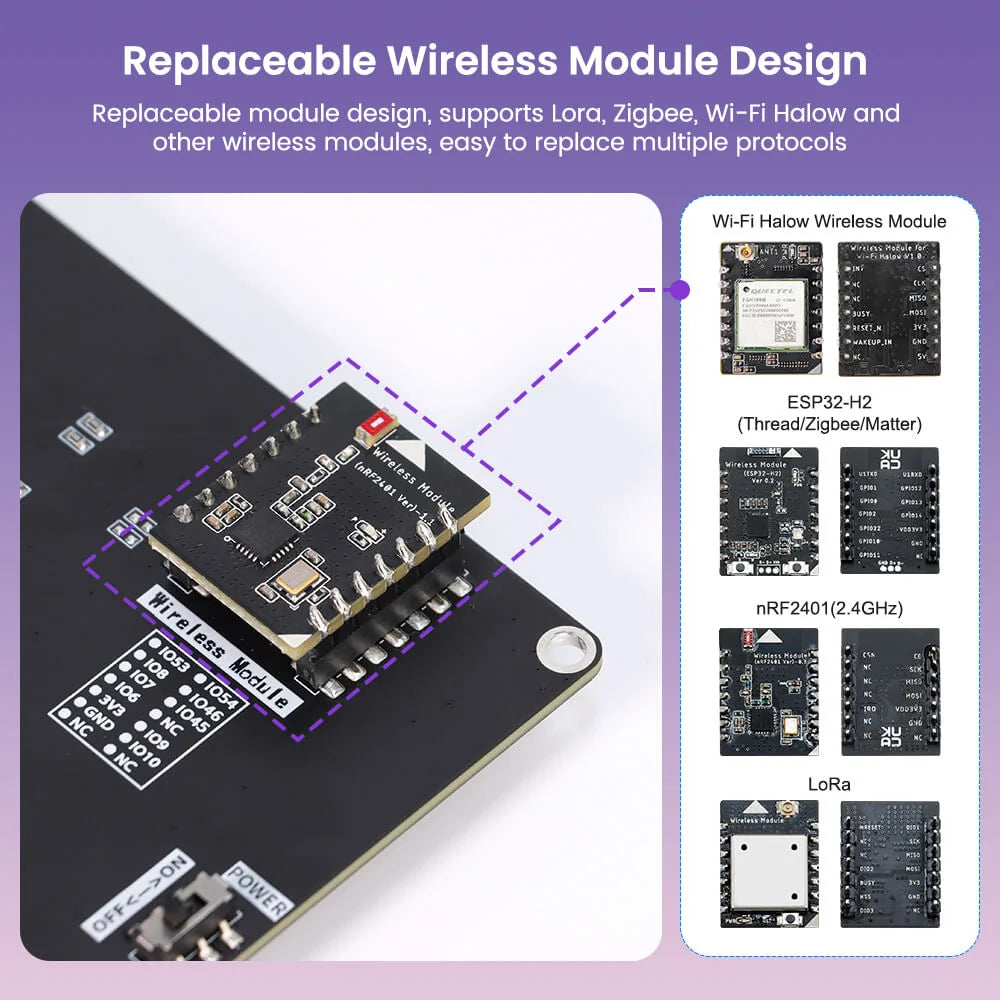

- Flexible Expansion: GPIO, UART, I2C, Crowtail interfaces, and support for additional modules (sold separately).
- Premium Design: Modern industrial look with excellent heat dissipation and multiple mounting options.
SPECIFICATIONS
| Product Name | CrowPanel Advanced 10.1" ESP32-P4 HMI AI Display with 2MP Camera |
| Main Processor | ESP32-P4 (RISC-V dual-core, up to 400 MHz) |
| Memory | 32 MB PSRAM + 16 MB Flash |
| Display | 10.1 inch IPS, 1024 × 600 resolution, Capacitive Touch |
| Camera | Included 2MP MIPI-CSI Camera |
| Wireless | Wi-Fi 6 (2.4 GHz) + Bluetooth 5.3 (ESP32-C6) |
| Audio | Dual speakers + Microphone |
| Interfaces | Dual USB-C, GPIO, UART, I2C, Crowtail, SD Card |
| Power Supply | 5V / 2A (USB-C) |
| Dimensions | 248 × 147 mm |
| Operating Temperature | -20°C ~ +70°C |
| Compatibility | Arduino IDE, ESP-IDF, LVGL, SquareLine Studio, MicroPython |
WHAT'S INCLUDED
- 1 × CrowPanel Advanced 10.1" ESP32-P4 HMI Display
- 1 × 2MP Camera Module
- 1 × USB-A to USB-C Cable
- 1 × Crowtail/Grove 4-pin Dupont Cable
NOTES
- This version includes the 2MP camera. No additional add-on modules are included.
- Excellent for building professional smart home panels, AI vision projects, security monitors, and interactive kiosks.
- Powerful LVGL support for creating beautiful, responsive graphical user interfaces.
- Wiki
- User Manual
- ESP32-P4 Datasheet
- IDF User Lessons
- Arduino User Lessons
- ESP Home Tutorial
- Guide to Upgrading the C6 Firmware Using the ESP32-P4 Chip
