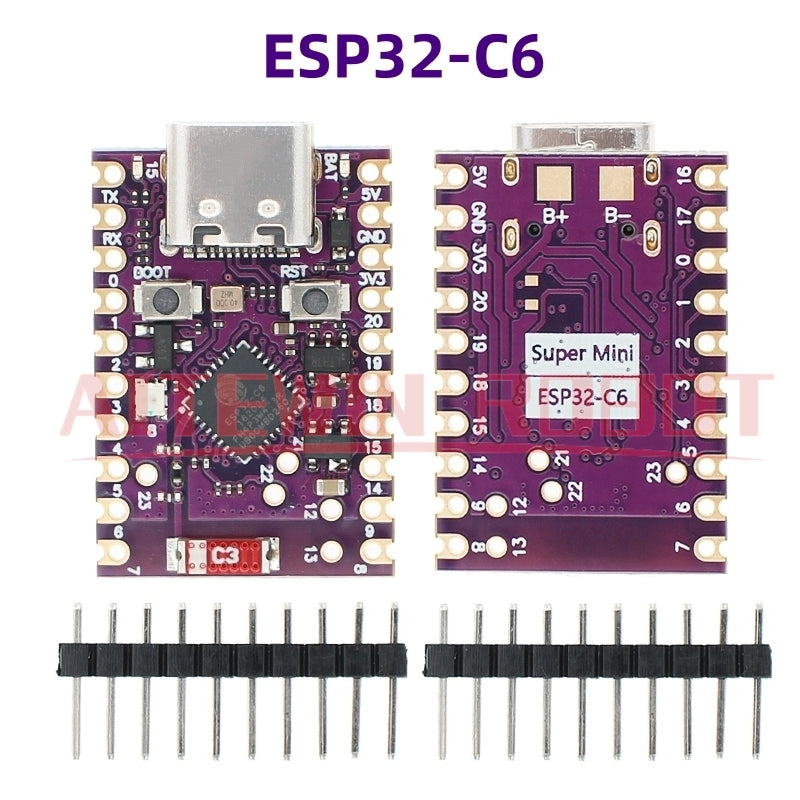

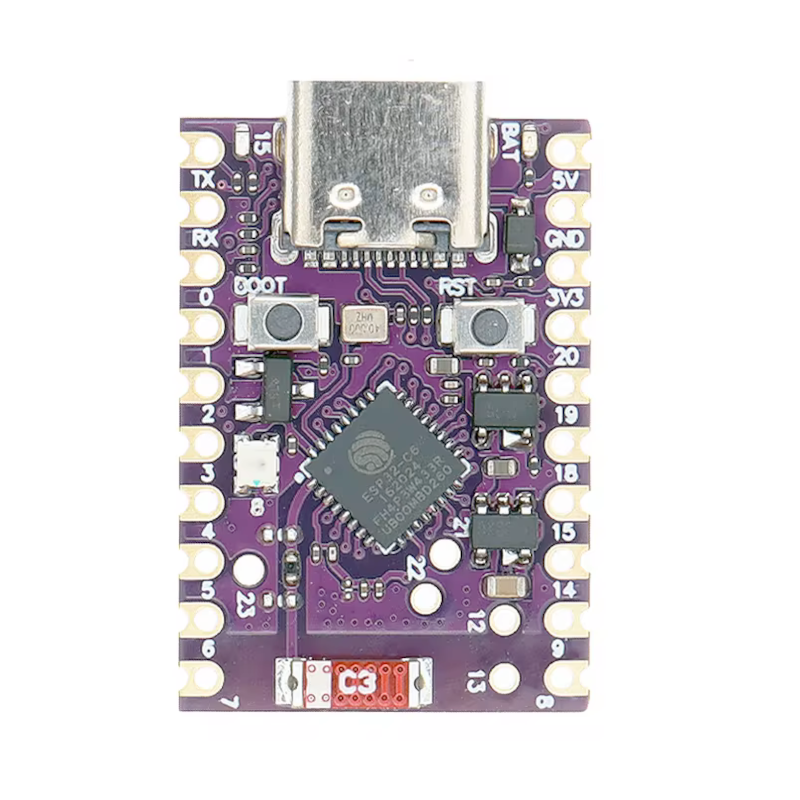

ESP32-C6 SuperMini Development Board
The ESP32-C6 SuperMini is a tiny ESP32 board with Wi-Fi 6, Bluetooth LE, and 802.15.4 (Zigbee / Thread) on one chip. RISC-V core at up to 160 MHz, USB-C programming, and a stamp-size footprint for ESPHome, Matter, and other IoT projects.
KEY FEATURES
- ESP32-C6 32-bit RISC-V, up to 160 MHz
- Wi-Fi 6 (802.11ax, 2.4 GHz)
- Bluetooth 5 LE with mesh
- IEEE 802.15.4 for Zigbee 3.0 and Thread
- 4 MB flash, 512 KB SRAM + 16 KB low-power SRAM
- USB-C for power and programming (native USB Serial/JTAG)
- Ultra-compact SuperMini / stamp form factor
- BOOT and RESET buttons
- Works with Arduino, ESP-IDF, and ESPHome
SPECIFICATIONS
| Category | Details |
|---|---|
| SoC | Espressif ESP32-C6 RISC-V 32-bit single-core up to 160 MHz Low-power RISC-V coprocessor |
| Memory | 4 MB flash 512 KB HP SRAM 16 KB LP SRAM 320 KB ROM |
| Wireless | Wi-Fi 6 802.11ax/b/g/n, 2.4 GHz Bluetooth 5.3 LE + Mesh IEEE 802.15.4 — Zigbee 3.0 / Thread 1.3 |
| Antenna | Onboard ceramic / PCB antenna |
| I/O | Broken-out GPIO with UART, SPI, I2C, PWM, ADC 3.3 V logic |
| Power | 5 V via USB-C 3.3 V on-board regulator |
| Buttons | BOOT (GPIO9) and RESET (EN) |
| Size | About 22.5 × 18 mm |
| Home Assistant | ESPHome supported Useful as a Wi-Fi 6 / Thread / Zigbee endpoint (firmware dependent) |
What's Included:
- 1 × ESP32-C6 SuperMini development board
NOTES
- This listing is the ESP32-C6 SuperMini board only.
- 2.4 GHz Wi-Fi only (no 5 GHz)
- Logic is 3.3 V. Do not feed 5 V into GPIO
- Zigbee / Thread / Matter need the matching firmware stack (ESP-IDF, ESPHome, or similar). The radio is on the chip; a coordinator or border router is still required for a mesh
