Geekom iX12 Intel® Processor N95

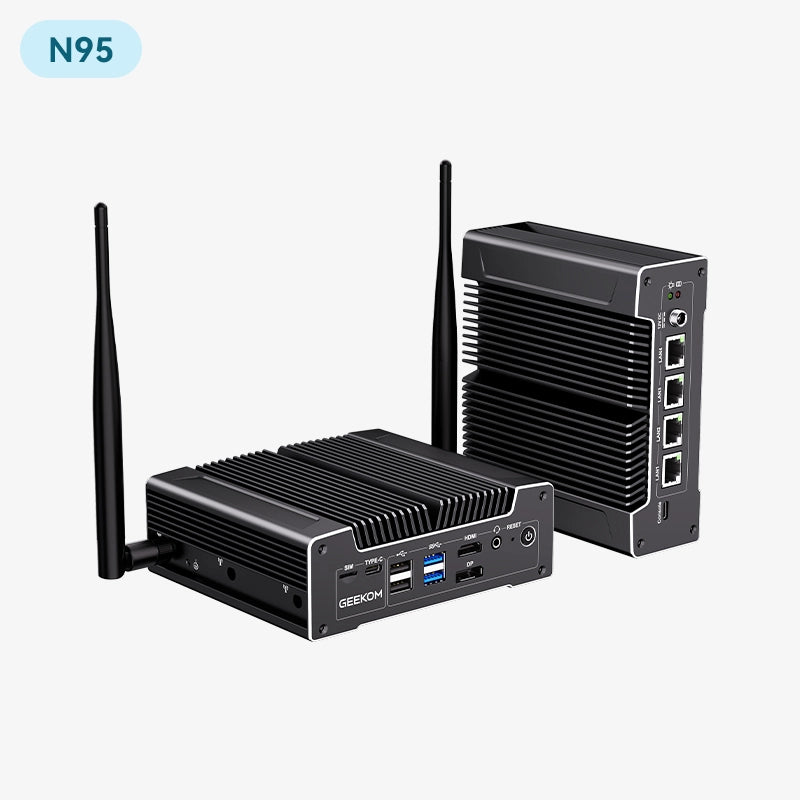

GEEKOM iX12 Fanless Mini PC

The GEEKOM iX12 is a fanless industrial mini PC built around the Intel Processor N95. It combines silent passive cooling, four Intel 2.5GbE LAN ports, DDR5 memory, and flexible storage in a rugged aluminum chassis. Designed for 24/7 use as a firewall, soft router, Proxmox / virtualization host, IoT gateway, digital signage box, or quiet home/office PC.

KEY FEATURES

• Intel Processor N95 — 4 cores / 4 threads, up to 3.4 GHz, 15W TDP

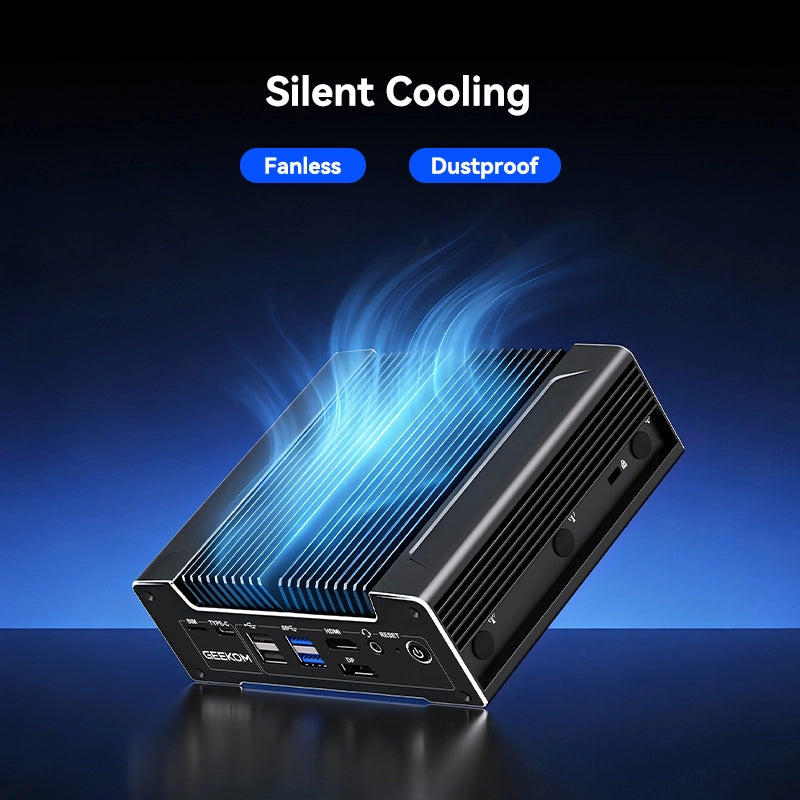

• 100% fanless aluminum chassis with passive cooling
• 4 × Intel I226-V 2.5GbE LAN ports
• DDR5 SO-DIMM memory, up to 32GB
• Triple storage: M.2 2280 SATA + 2.5" SATA bay + onboard eMMC option
• 4G/5G ready with SIM slot and modem expansion
• USB-C console / UART for direct serial access

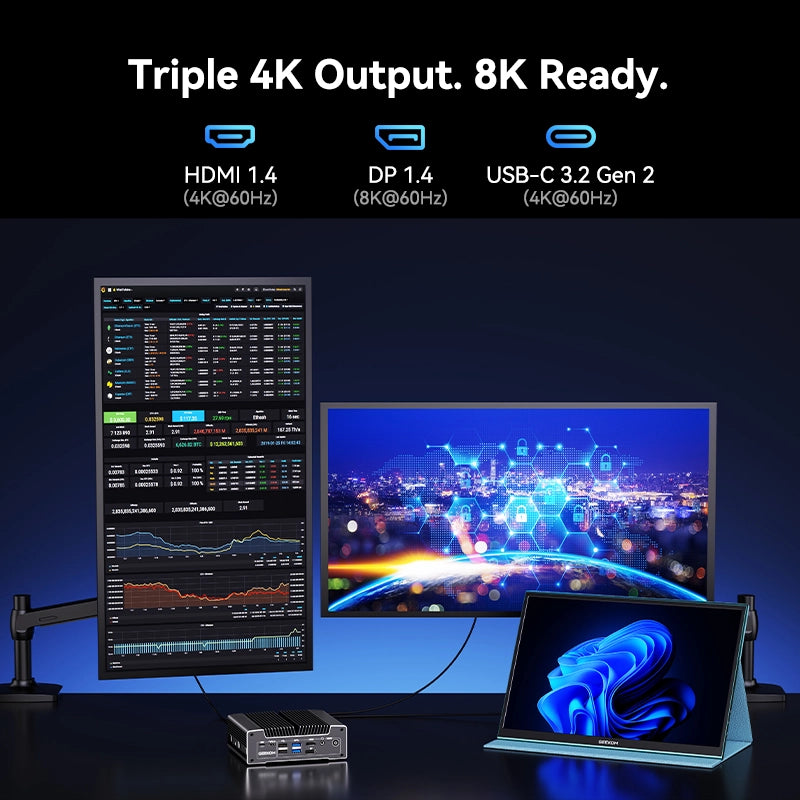

• Triple display output via HDMI, DisplayPort, and USB-C
• TPM 2.0, auto power-on, VESA mount
• Ideal for pfSense / OPNsense, OpenWrt, Proxmox, and industrial edge use

SPECIFICATIONS

Processor & Graphics:

• CPU: Intel Processor N95 (4 cores / 4 threads, up to 3.4 GHz, 15W)
• GPU: Intel UHD Graphics
• Virtualization: VT-x / VT-d
• AES-NI hardware encryption

Memory:

• 1 × SO-DIMM DDR5-4800
• Up to 32GB

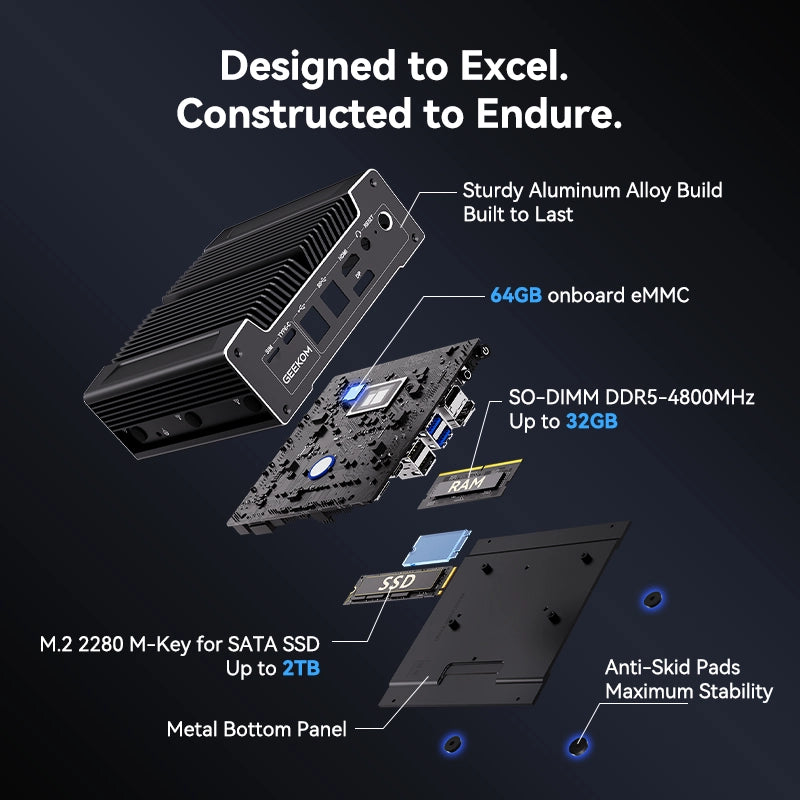

Storage:

• 1 × M.2 2280 SATA SSD slot
• 1 × Internal 2.5" SATA 3.0 bay
• Onboard eMMC (optional, depending on configuration)

Networking:

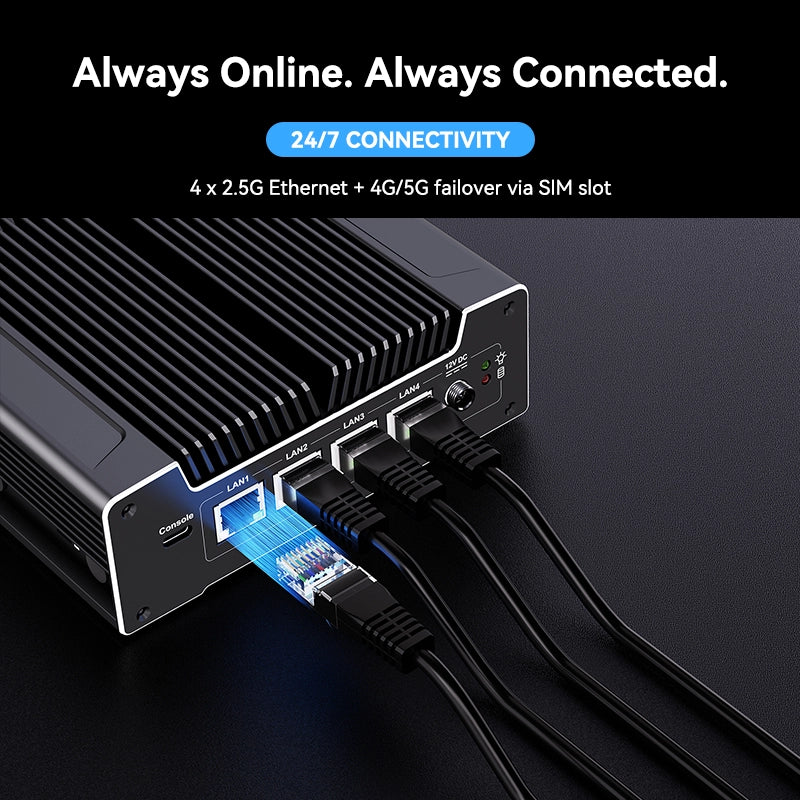

• 4 × 2.5GbE RJ45 (Intel I226-V)
• M.2 2230 E-key for Wi-Fi
• M.2 B-key for 4G / 5G modem
• 4FF SIM card slot
• 6 antenna mounting holes (2 Wi-Fi + 4 cellular)

Display:

• 1 × HDMI 1.4 (up to 4K@60Hz)
• 1 × DisplayPort 1.4 (up to 8K@60Hz)
• 1 × USB-C with DisplayPort 1.4

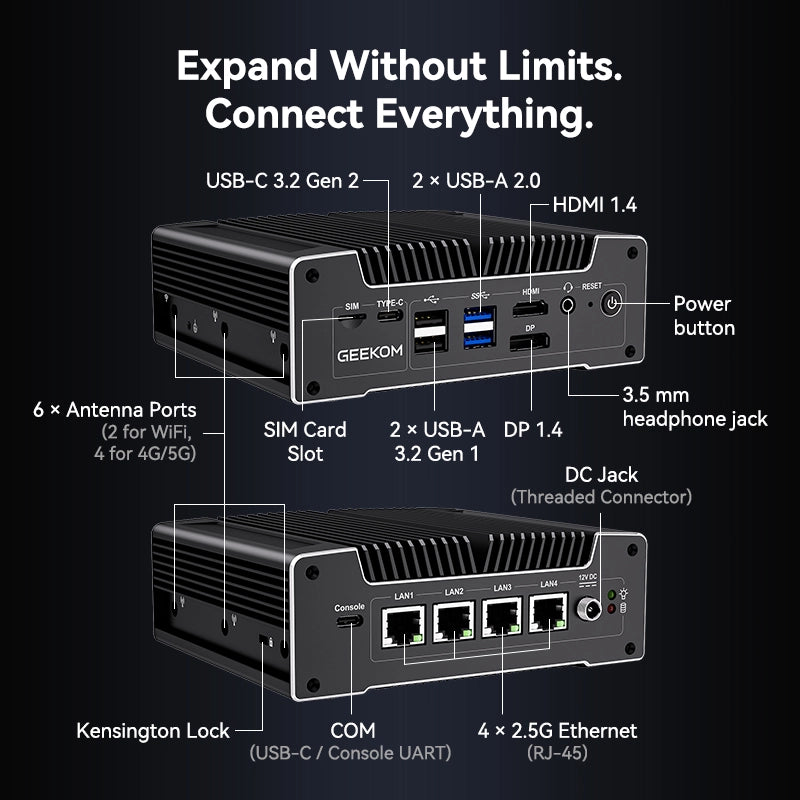

I/O:

• 2 × USB 3.2 Gen1 Type-A
• 2 × USB 2.0 Type-A
• 1 × USB-C 3.2 Gen2 (DisplayPort, no PD)
• 1 × USB-C console / UART
• 1 × 3.5mm audio jack
• Threaded locking DC-in jack
• Kensington lock

Power:

• 12V DC, threaded locking connector
• 48W adapter

Physical:

• Fanless anodized aluminum chassis
• Dimensions: 132.1 × 145 × 52.5 mm (5.20 × 5.71 × 2.07 in)
• Weight: approx. 0.95 kg / 2.1 lbs
• Operating temperature: -10°C to 50°C
• VESA mount included

Software:

• Windows 11 Pro
• Compatible with Linux, Ubuntu, Proxmox, XCP-ng, pfSense / OPNsense, and OpenWrt

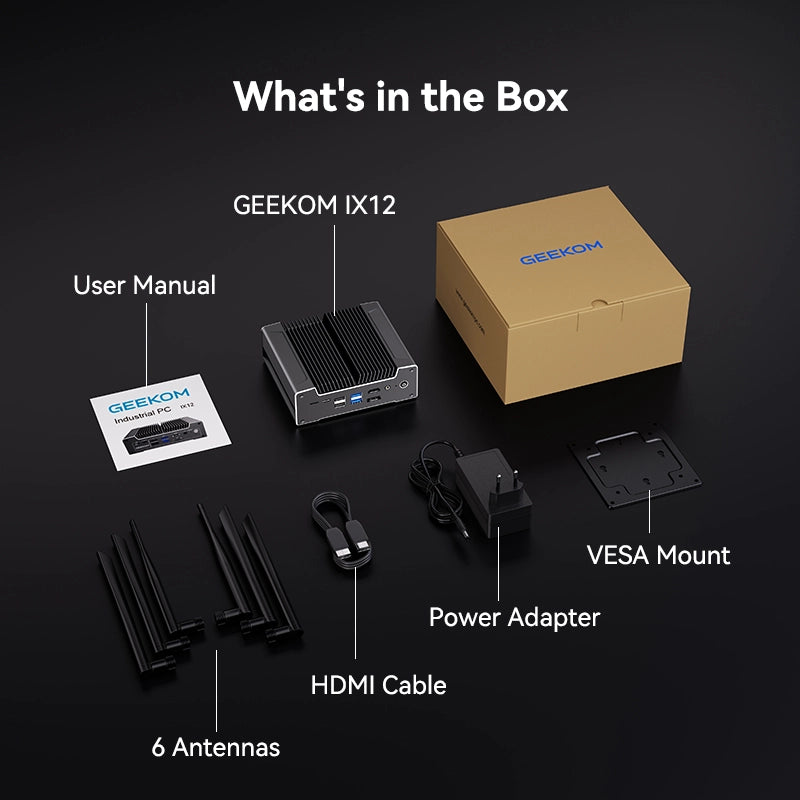

What's Included:

• 1 × GEEKOM iX12 Fanless Mini PC
• 1 × Power adapter
• 1 × VESA / desktop mounting bracket

NOTES

• Fully fanless design — silent operation with no moving parts
• Excellent platform for firewalls, soft routing, virtualization, and always-on edge / industrial use
• 4G/5G modem is optional and uses the internal M.2 B-key slot
• The M.2 2280 slot is SATA, not NVMe
