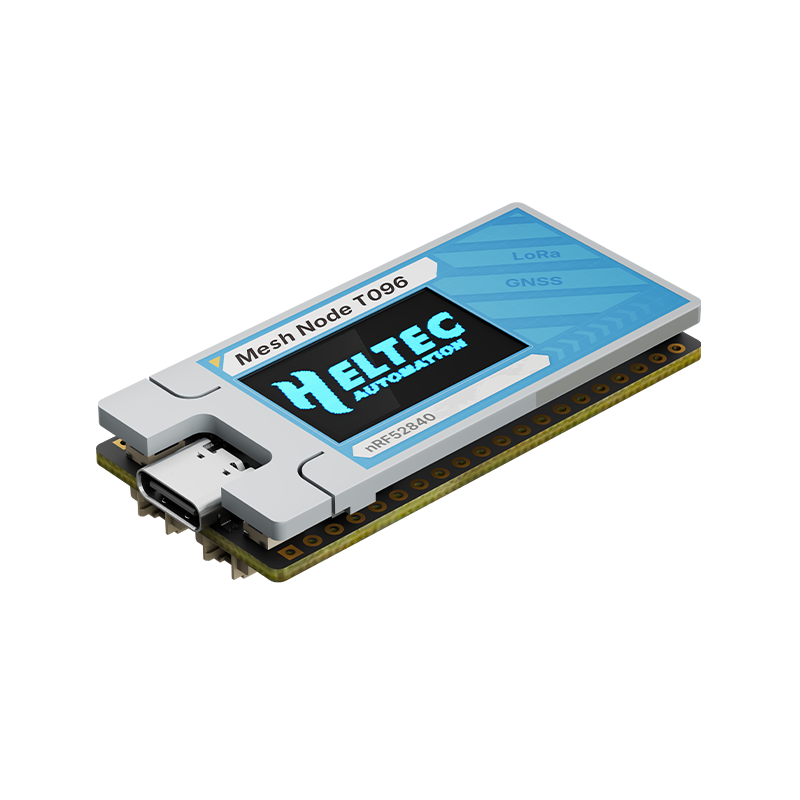

Note: This is the Heltec Mesh Node T096 for the US band (902–928 MHz), with onboard 0.96″ TFT display and integrated UC6580 GNSS (L1+L5). Compatible with Meshtastic, MeshCore, and LoRaWAN.

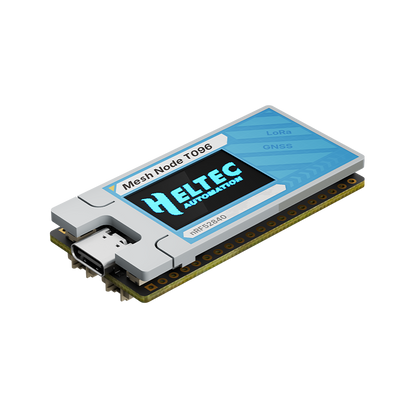

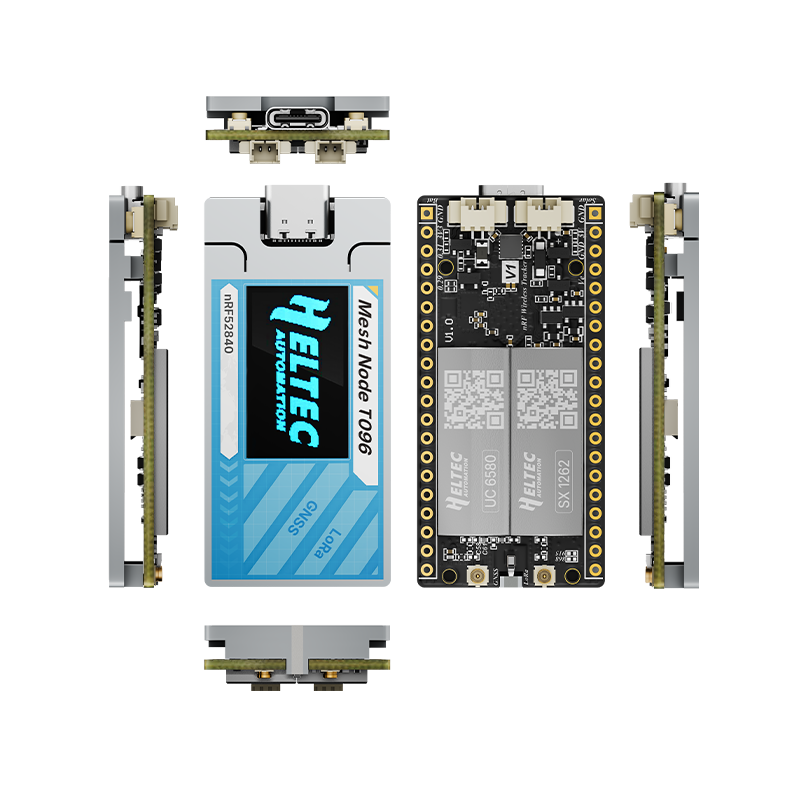

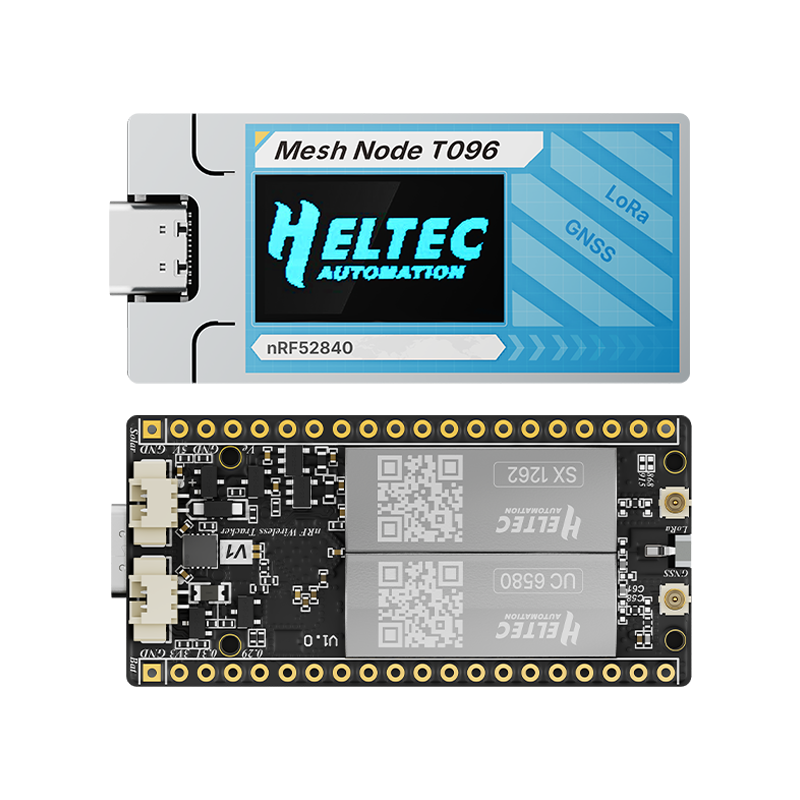

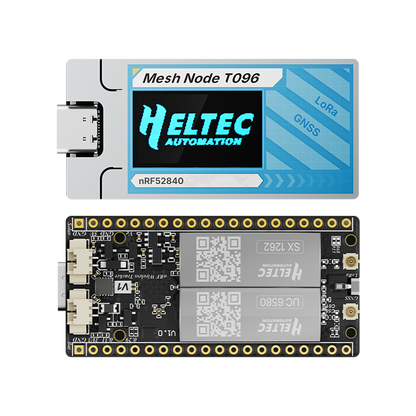

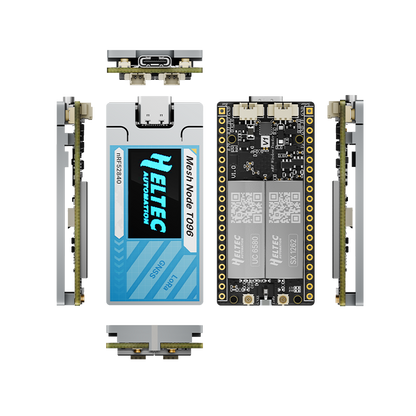

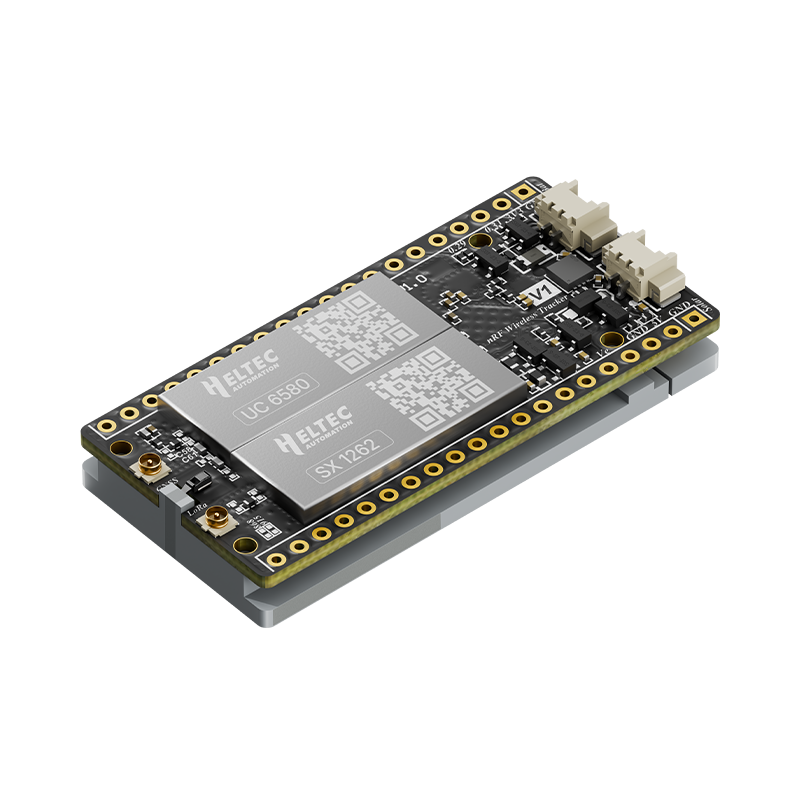

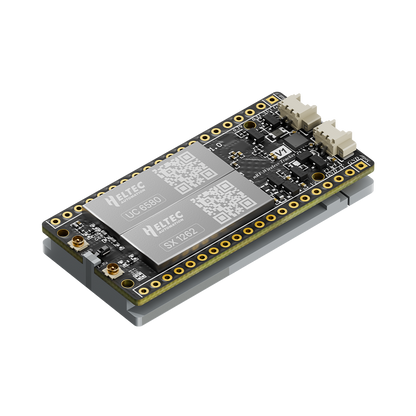

Mesh Node T096 is a low-power development board that integrates Bluetooth, LoRa, and GNSS. The nRF52840 MCU provides processing and Bluetooth connectivity, while the SX1262 LoRa transceiver with PA delivers 28±1 dBm transmit power. The UC6580 GNSS chip enables precise global positioning for mesh networks, asset tracking, and remote sensing. LDS antennas for GNSS and Bluetooth keep the package compact; an IPEX LoRa antenna connector is provided for the included whip.
KEY FEATURES
- MCU nRF52840 (Bluetooth 5 / BLE / Bluetooth mesh) + LoRa chipset SX1262 with PA (max TX 28±1 dBm; LNA can be bypassed).
- Band: 902–928 MHz (US915 / commonly called 915 MHz).

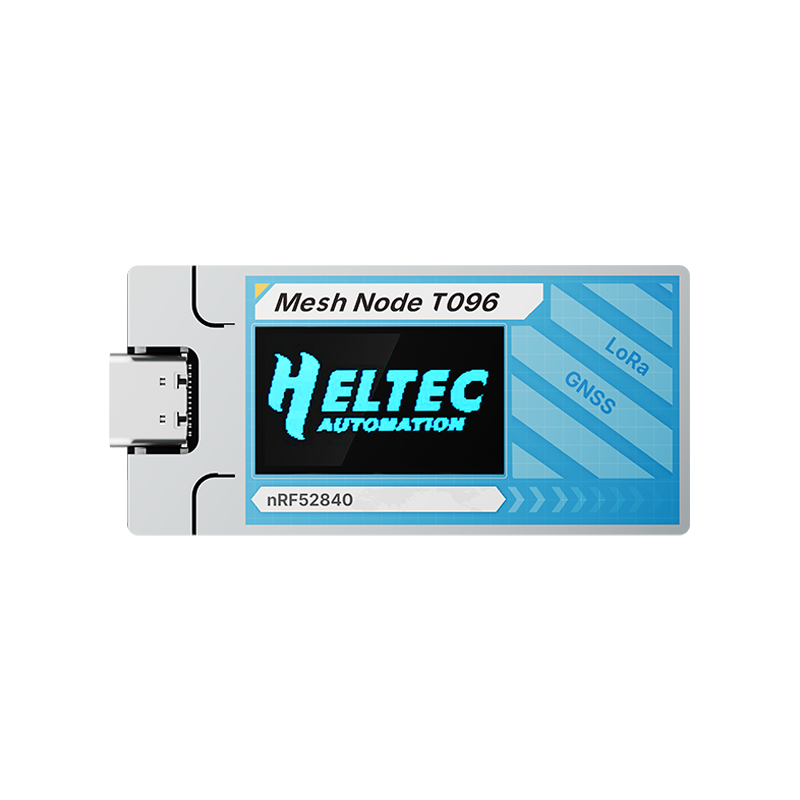

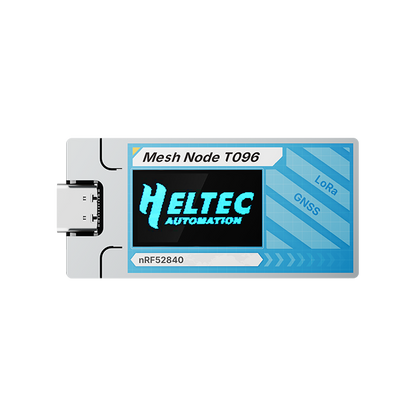

- Onboard 0.96-inch TFT-LCD (ST7735S), 80×160 RGB.
- Integrated UC6580 GNSS (L1+L5) — supports GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS. LDS GNSS antenna onboard; external GNSS antenna via IPEX 1.0 also supported.
- Ultra-low power: deep sleep ~13 µA.
- Lithium battery management (charge/discharge, overcharge protection, battery detection, USB/battery auto-switch) with CN3165 charge IC; solar input supported.
- Type-C USB with voltage regulation, ESD / short-circuit protection, and RF shielding.

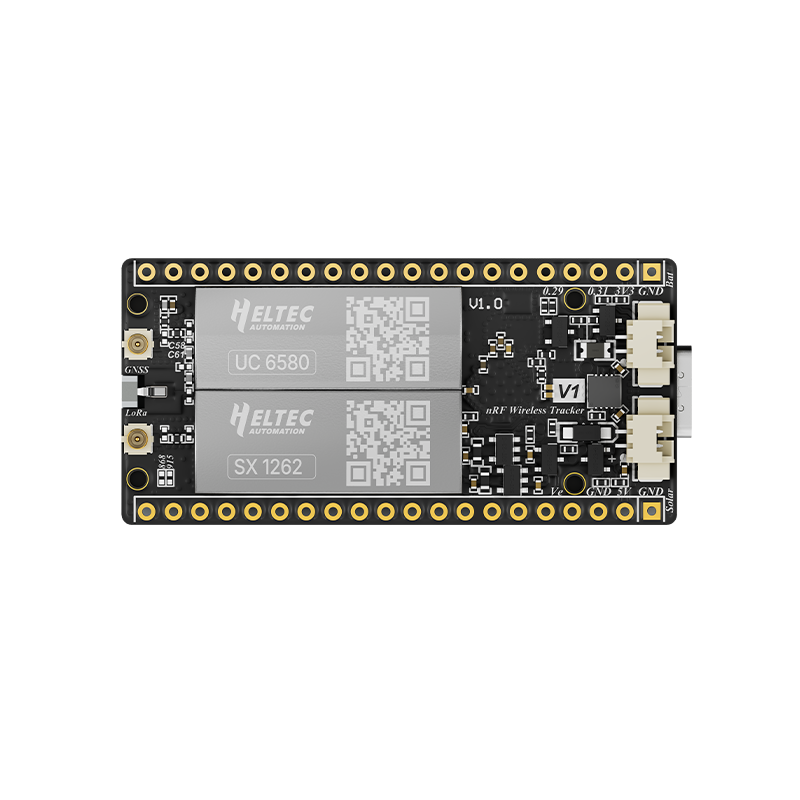

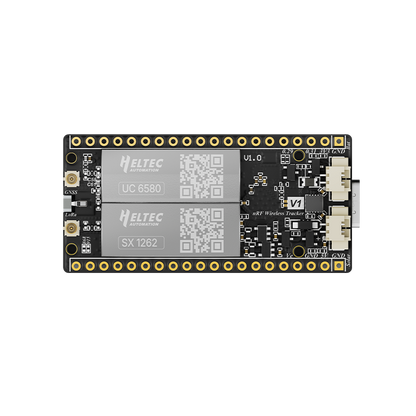

- Interfaces: SH1.25×2 LiPo, SH1.25×2 solar, LoRa ANT (IPEX 1.0), GNSS ANT (IPEX 1.0), onboard LDS BT & GNSS antennas, 2×13×2.54 header pins, 2× LEDs, 2× buttons.
- Development: Arduino / Heltec nRF52 framework & libraries. Compatible with Meshtastic and MeshCore; LoRaWAN examples available in the nRF52 Arduino framework.
SPECIFICATIONS
| Category | Details |
| Product Name | Mesh Node T096 — 902–928 MHz (with display + GNSS) |
| MCU | nRF52840 |
| LoRa Chip | SX1262 (with PA) |
| LoRa Frequency | 902–928 MHz (US915 / commonly called 915 MHz) |
| Max TX Power | 28±1 dBm @ 902–928 MHz |
| Bluetooth | Bluetooth LE, Bluetooth 5, Bluetooth mesh (onboard LDS antenna) |
| Memory | 1 MB ROM; 256 KB SRAM |
| Display | 0.96-inch TFT-LCD (ST7735S), 80×160 RGB; active area 10.8 × 21.7 mm |
| GPS / GNSS | UC6580 (L1+L5); GPS, GLONASS, BDS, Galileo, NAVIC, QZSS |
| Interfaces | Type-C USB; SH1.25×2 LiPo; SH1.25×2 solar; LoRa ANT (IPEX 1.0); GNSS ANT (IPEX 1.0); 2×13×2.54 headers |
| Battery / Solar | Battery 3–4.2 V (SH1.25×2). USB-C 5 V (3–5.5 V). Solar charging supported. Battery not included. |
| Deep Sleep | ~13 µA |
| Operating Temperature | −20 ~ 70 ℃; 90% RH (no condensing) |
| Board Dimensions | 52.00 × 25.40 × 10.26 mm |
| Product Weight | 55 g |
| Compatibility | Meshtastic, MeshCore, LoRaWAN, Arduino, PlatformIO |
WHAT'S INCLUDED
- 1 × Mesh Node T096 board (902–928 MHz) with 0.96″ TFT display
- 1 × LoRa Antenna
- 1 × SH1.25×2 Battery Connector
- 2 × Pin Headers
NOTES
- This product is the 902–928 MHz configuration. Other-band configurations are separate listings.
- Battery is not included — use a compatible 3.7V Li-Ion / Li-Po with an SH1.25×2 connector.
- GNSS works best outdoors with a clear view of the sky; an external GNSS antenna can be used via the IPEX connector when needed.
- Docs: product page, wiki overview, datasheet.
