Heltec Mesh Node T114 (Rev. 2.0), nRF52840 + SX1262, Display + GPS + Shell, 915 MHz
Heltec Mesh Node T114 (Rev. 2.0), nRF52840 + SX1262, Display + GPS + Shell, 915 MHz
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

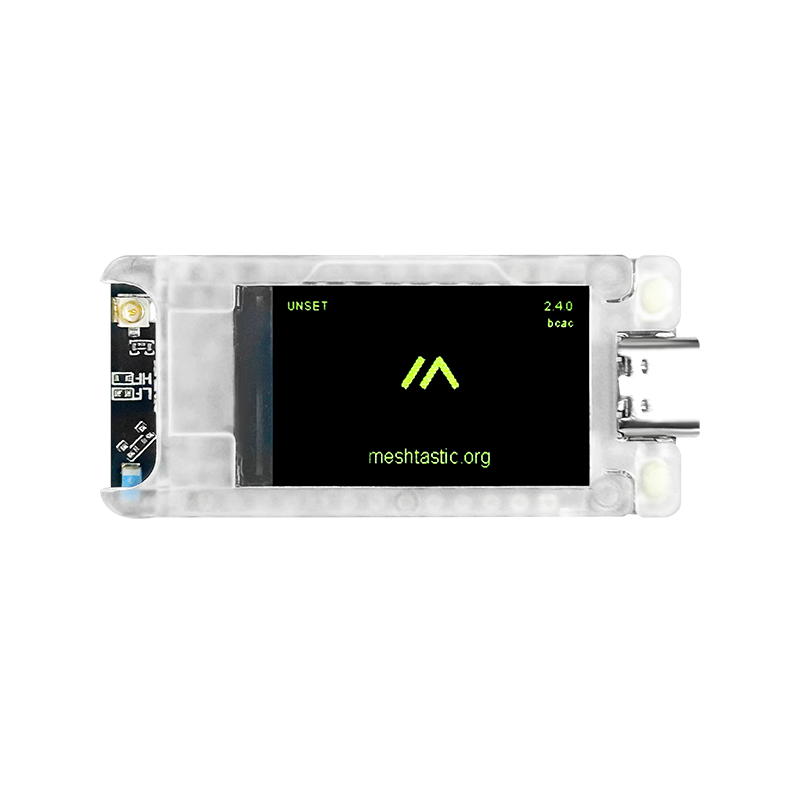

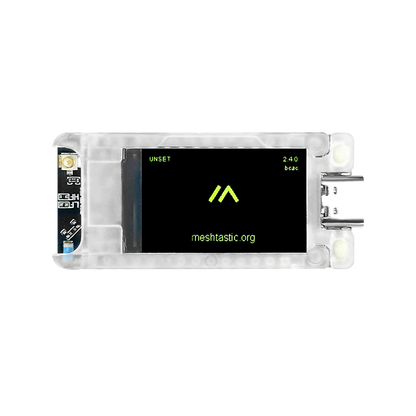

Note: This is the Heltec Mesh Node T114 (Rev. 2.0) for the US band (902–928 MHz), configured with 1.14″ TFT display, with Quectel L76K GPS/GNSS, and with protect shell (plus transfer LoRa antenna). Compatible with Meshtastic, MeshCore, and LoRaWAN.
Mesh Node T114 is a low-power development board based on nRF52840 + SX1262, supporting LoRa and Bluetooth 5.0. It integrates multiple power interfaces (USB Type-C, lithium battery, solar panel), a 1.14-inch TFT display, GPS module, and a protect shell — suited to mesh and tracker use.
KEY FEATURES
- MCU nRF52840 (Bluetooth 5 / BLE / Bluetooth mesh) + LoRa chipset SX1262.
- Band and options: 902–928 MHz, with display, GPS, and protect shell.

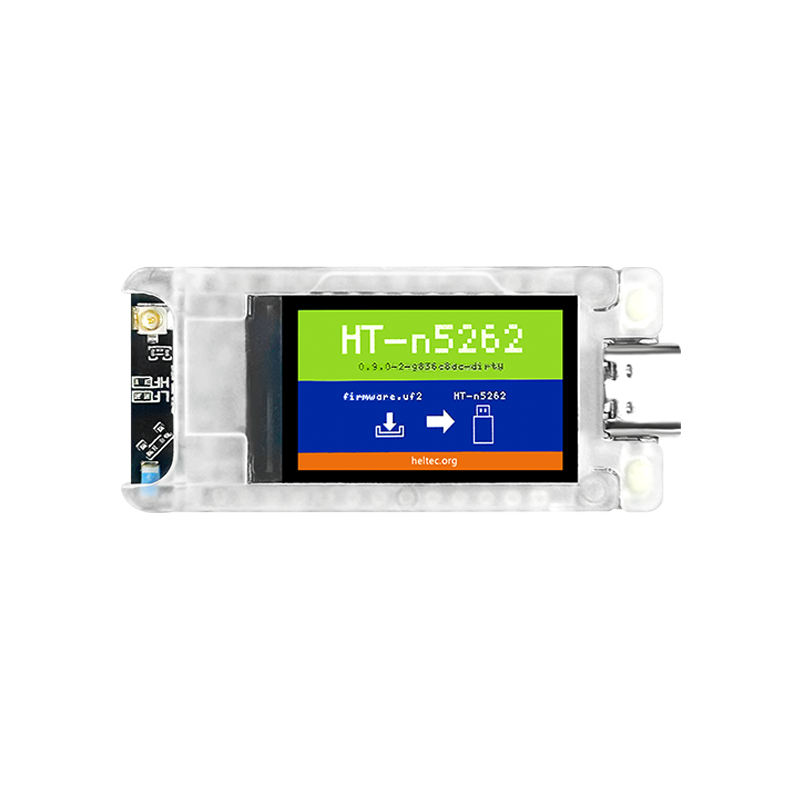

- Onboard 1.14-inch TFT-LCD (LH114T-IF03), 135×240, up to 262K colors, with transparent plastic support between PCB and display.

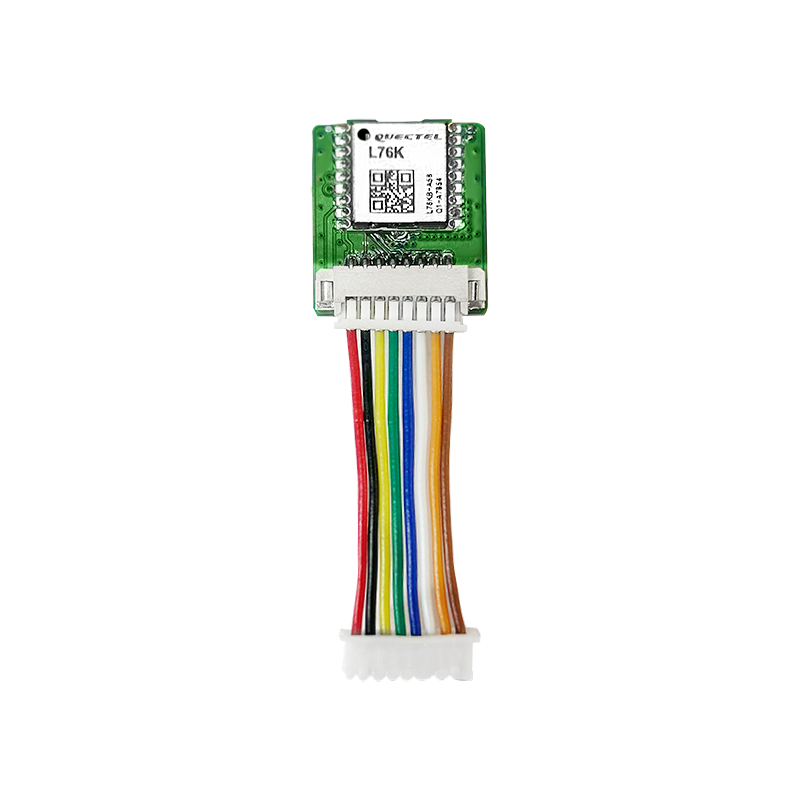

- Quectel L76K GNSS module included (SH1.25-8P connector on the board).

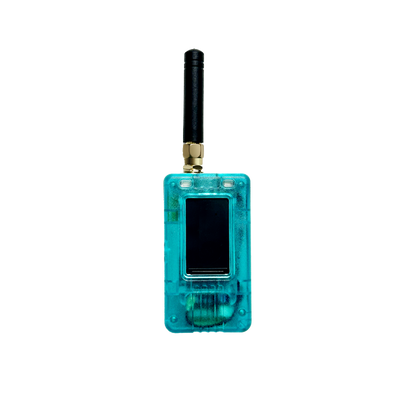

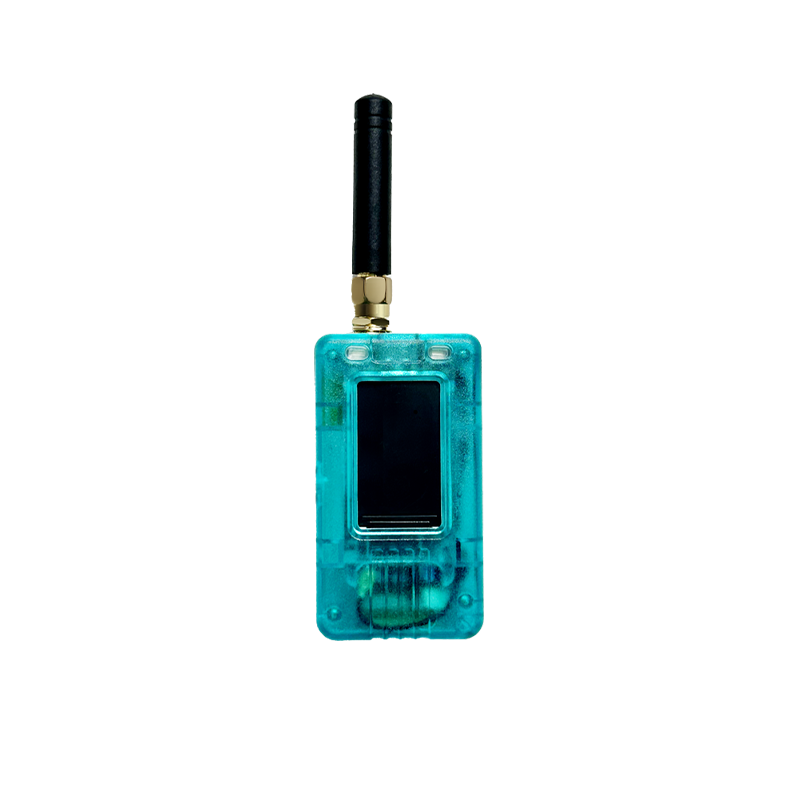

- Protect shell and transfer LoRa antenna included. Shell battery bay max ~42 × 28 × 11 mm; example cell 40 × 25 × 10 mm (battery not included).
- Low power: LoRaWAN deep sleep ~11 µA; Meshtastic low-power mode ~23 µA. Tracker mode sleep ~22 µA; GPS ON + TFT ON ~51 mA.
- Type-C USB with voltage regulation, ESD / short-circuit protection, and RF shielding measures.
- Interfaces: SH1.25×2 LiPo, SH1.25×2 solar, SH1.25×8 GNSS, LoRa ANT (IPEX 1.0), onboard 2.4 GHz BT ceramic antenna, 2×13×2.54 header pins.
- Development: Arduino / Heltec nRF52 framework & libraries, PlatformIO. Open-source projects: Meshtastic, MeshCore; LoRaWAN also available in the nRF52 Arduino framework.
- Hardware V2 (vs V1): 6-layer PCB, immersion-gold process, RF path / BT–LoRa antenna spacing improvements; HF T114 can stably send long Meshtastic LongFast packets after V2.
SPECIFICATIONS
| Category | Details |
| Product Name | Mesh Node T114 (Rev. 2.0) — 902–928 MHz, with display, GPS, and shell |
| Hardware Revision | Rev. 2.0 |
| MCU | nRF52840 |
| LoRa Chip | SX1262 |
| LoRa Frequency | 902–928 MHz (US915 / commonly called 915 MHz) |
| Max TX Power | 21±1 dBm |
| Max Receive Sensitivity | −135 dBm @ SF12, BW 125 kHz |
| Bluetooth | Bluetooth LE, Bluetooth 5, Bluetooth mesh (onboard multilayer ceramic 2.4 GHz antenna — not replaceable) |
| Memory | 1 MB ROM; 256 KB SRAM |
| Display | 1.14-inch TFT-LCD, 135×240, 262K colors (module LH114T-IF03) |

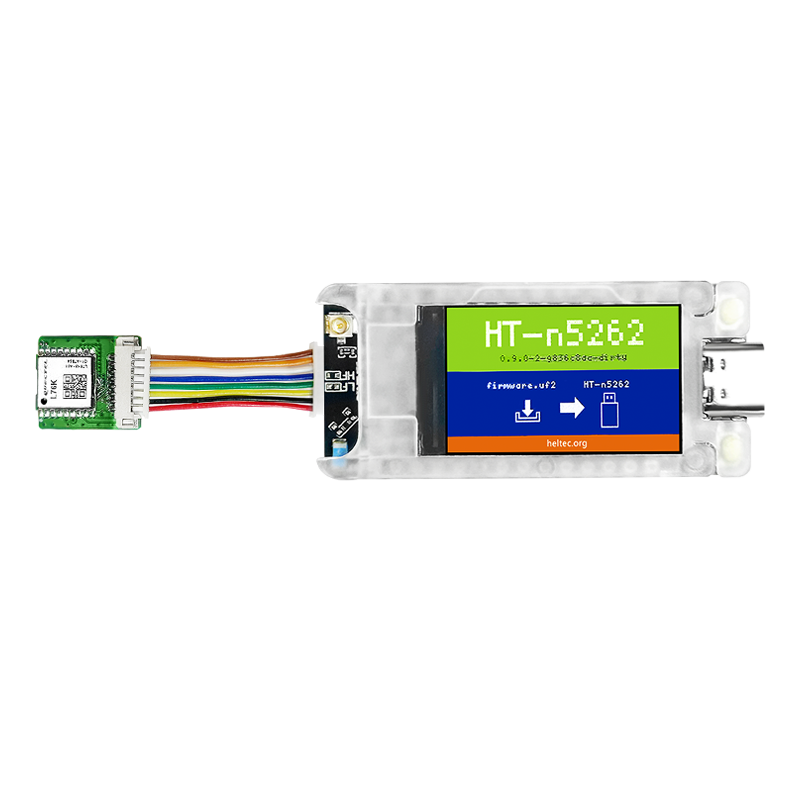

| GPS / GNSS | Quectel L76K module + cable |
| Shell | Protect shell + transfer LoRa antenna |
| Interfaces | Type-C USB; 2× SH1.25 LiPo; 2× SH1.25 solar; LoRa ANT (IPEX 1.0); 8×1.25 GPS connector; 2×13×2.54 headers |
| Battery / Solar | Battery 3–4.2 V charge/supply (SH1.25×2). Solar input: ~5 V panels recommended; acceptable range 5–6.5 V. Battery not included. |
| Operating Temperature | −20 ~ 70 ℃; 90% RH (no condensing) |

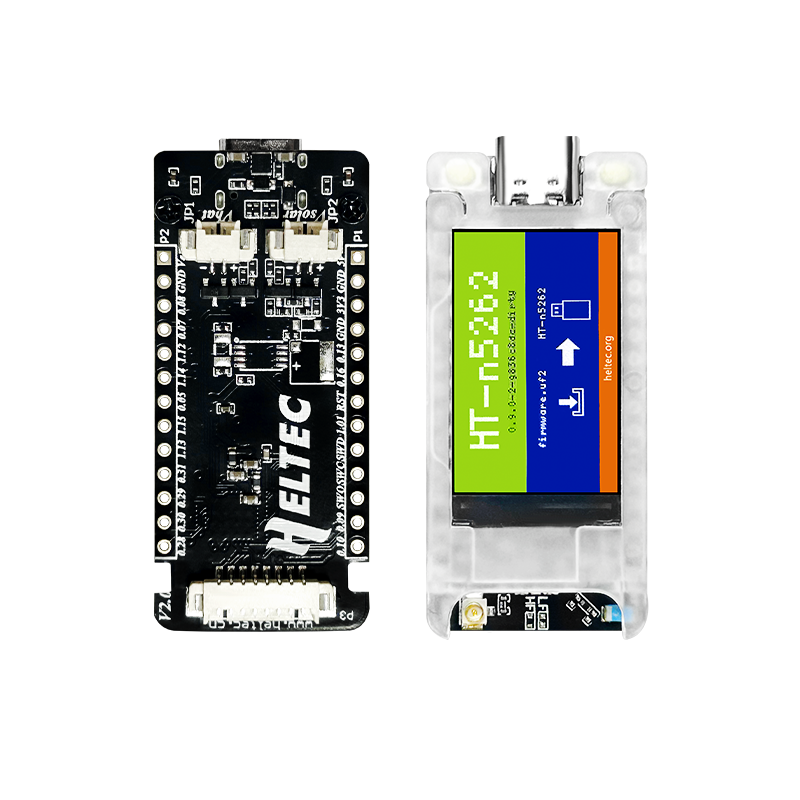

| Board Dimensions | 50.80 × 22.86 mm (PCB) |
| Product Weight | 35 g |
| Compatibility | Meshtastic, MeshCore, LoRaWAN, Arduino, PlatformIO |
WHAT'S INCLUDED

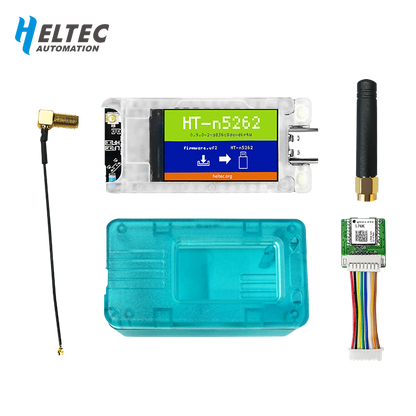

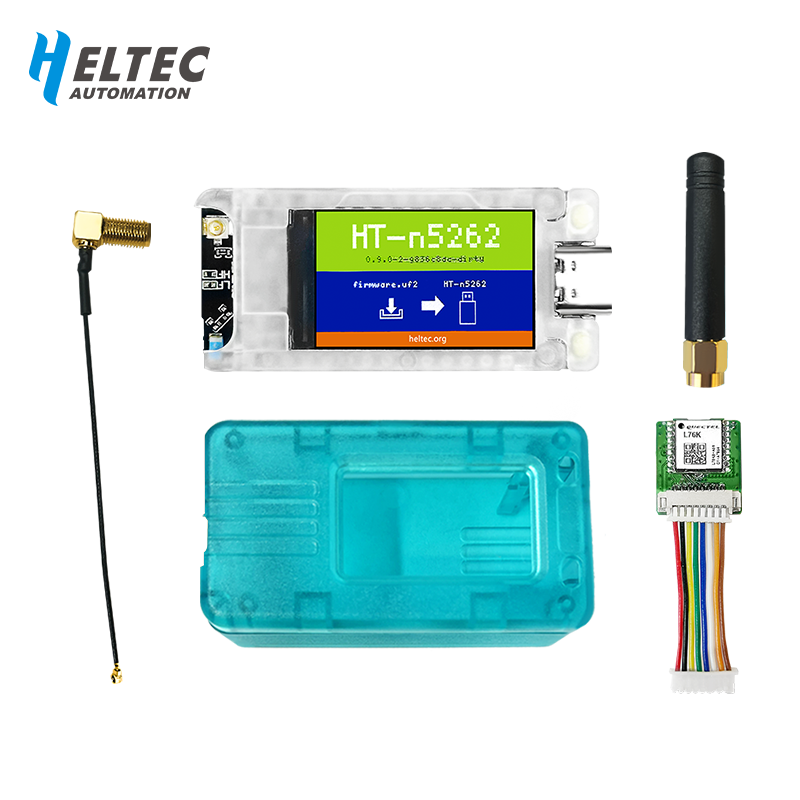

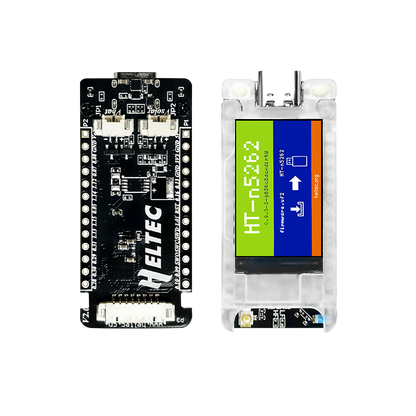

- 1 × Mesh Node T114 board (902–928 MHz) with 1.14″ TFT display
- 1 × LoRa Antenna
- 2 × SH1.25×2 Battery / solar connectors
- 2 × 2.54×13 Header Pins

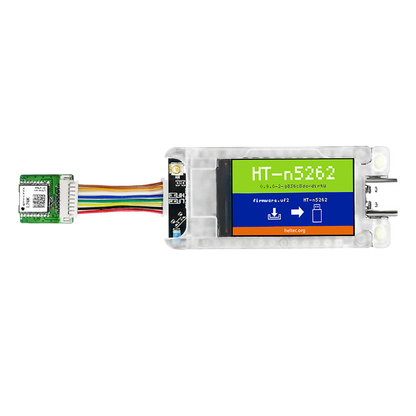

- 1 × Quectel L76K GNSS module
- 1 × Protect Shell and transfer LoRa antenna
NOTES
- This product is the 902–928 MHz configuration with display, GPS, and shell. Screenless / no-GPS / no-shell / other-band configurations are separate.
- Use Meshtastic / Heltec firmware appropriate for T114 with display (screenless builds use a different setup path).
- Battery is not included — use a compatible 3.7V Li-Ion / Li-Po with an SH1.25×2 connector that fits the shell bay if you use the case.
- Onboard 2.4 GHz Bluetooth ceramic antenna cannot be replaced.
- Docs: product page, wiki overview, user docs, datasheet.
VIDEOS
Official Heltec introduction and operation guide for the Mesh Node T114.
