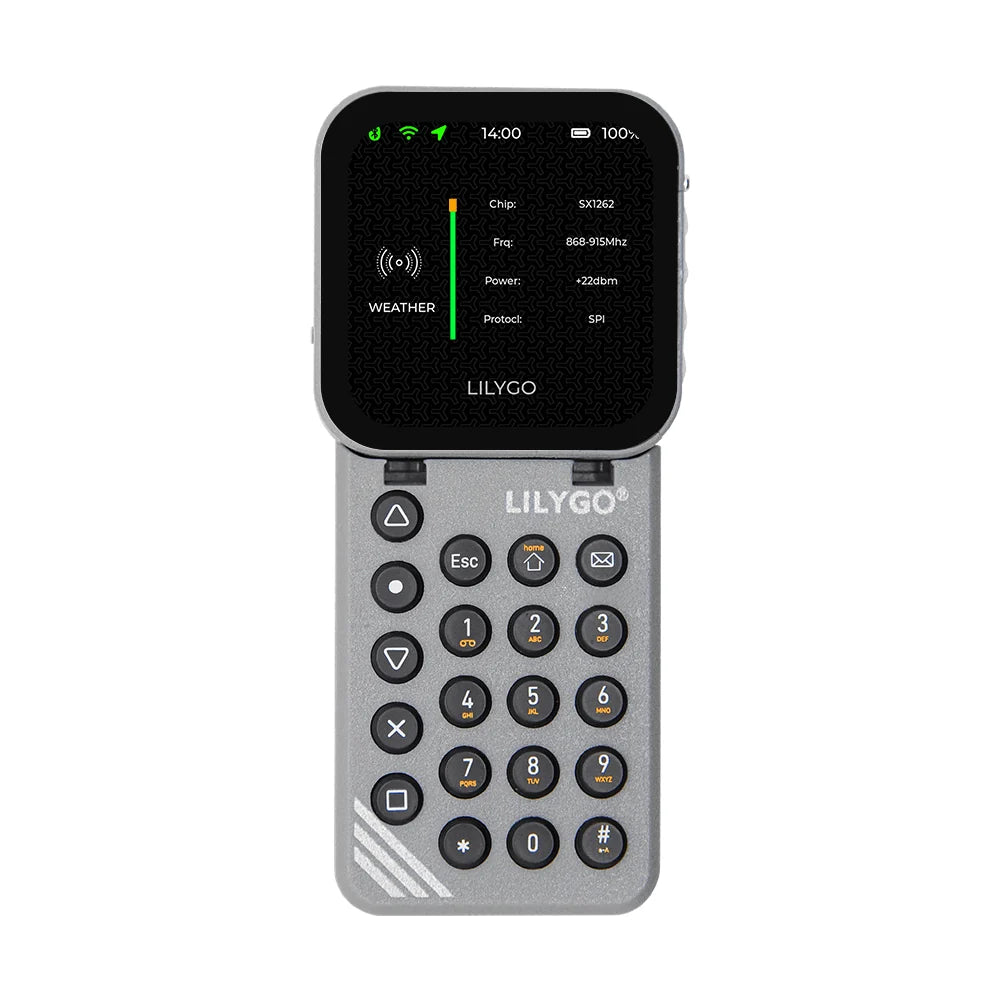

Keyboard for T-Display SF32

LILYGO T-Display SF32 Keyboard Expansion

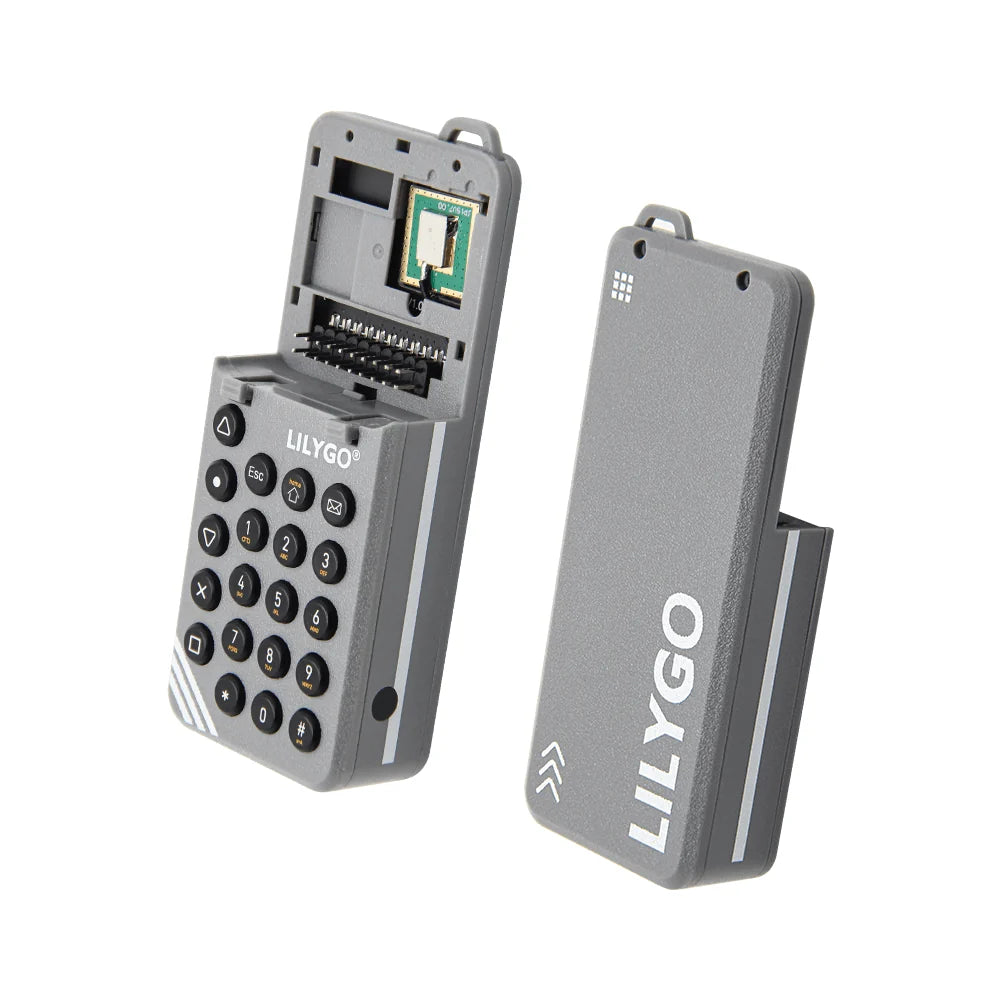

The LILYGO T-Display SF32 Keyboard is the official expansion board designed for the T-Display SF32. It adds a physical matrix keyboard, GNSS positioning, environmental sensing, vibration feedback, and infrared transmission, turning the compact AMOLED board into a more complete handheld device.

Note: This is the Keyboard expansion only. The T-Display SF32 main board is sold separately. Add both items to your cart if you want the complete set.

KEY FEATURES

• 8×8 Matrix Keyboard for physical input
• L76K GNSS (GPS / GLONASS / BeiDou / QZSS)
• BME280 Temperature & Humidity sensor
• Vibration Motor for haptic feedback
• IR Transmitter
• Designed specifically for the T-Display SF32
• Expands the board into a more complete portable device

SPECIFICATIONS

Added Features:

• Matrix Keyboard: 8×8 (TCA8418 + backlight driver)
• GNSS: L76K multi-constellation
• Environmental Sensor: BME280 (Temperature + Humidity)
• Haptic: Vibration motor (AW86224)
• IR: Infrared transmitter

Compatibility:

• Designed exclusively for the LILYGO T-Display SF32

What's Included:

• 1 × T-Display SF32 Keyboard Expansion board

NOTES

• This listing is for the Keyboard expansion only
• Requires the T-Display SF32 main board (sold separately)
• When combined with the main board, it adds positioning, environmental sensing, physical keypad input, haptic feedback, and IR capabilities
• Ideal for building a more complete portable LoRa / AMOLED device
