LILYGO T-Display SF32

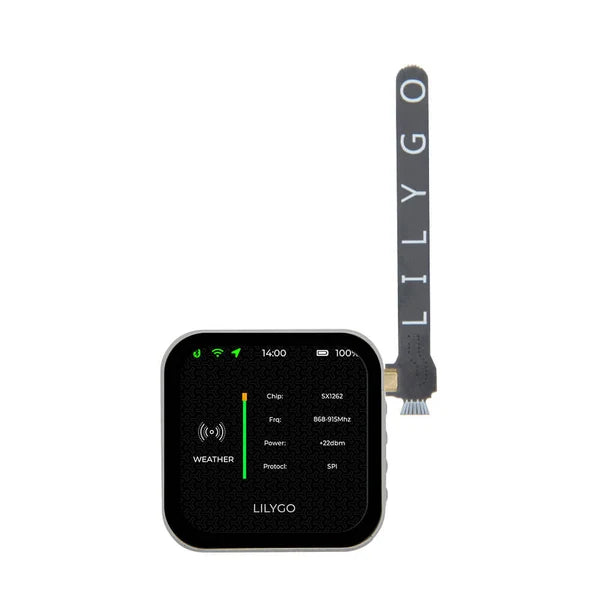

The LILYGO T-Display SF32 is a compact, ultra-low-power development board powered by the SiFli SF32LB52X AIoT processor. It features a vibrant 2.16-inch square AMOLED capacitive touchscreen (480 × 480), integrated SX1262 LoRa, Bluetooth 5.3, 9-axis IMU, 24-bit audio, and USB PD fast charging. Ideal for wearables, portable LoRa projects, smart sensors, and low-power AMOLED applications.

Note: The Keyboard expansion is sold separately. If you want both the display board and the keyboard, please add both items to your cart.

KEY FEATURES

• SiFli SF32LB52X dual-core Arm Cortex-M33 (192 MHz + 24 MHz)
• ePicasso 2.5D GPU for smooth low-power graphics
• 2.16-inch AMOLED (480 × 480) with capacitive touch
• SX1262 LoRa (supports 400–520 MHz / 830–945 MHz)
• Bluetooth 5.3 (BLE + Classic + BLE Audio)
• 9-Axis IMU (BHI260AP)
• 24-bit Audio support
• USB PD fast charging
• Built-in 470mAh battery
• Compact design (approx. 46 × 46 × 16 mm)

SPECIFICATIONS

Processor:

• SoC: SF32LB52X
• CPU: Dual-core Arm Cortex-M33 (HCPU 192 MHz + LCPU 24 MHz)
• Graphics: ePicasso 2.5D GPU + AI accelerator
• Flash: 16 MB
• PSRAM: 8 MB

Display:

• 2.16-inch AMOLED
• Resolution: 480 × 480
• Capacitive multi-touch

Wireless:

• LoRa: SX1262
• Bluetooth 5.3 (BLE + Classic + BLE Audio)

Sensors:

• BHI260AP 9-axis IMU

Audio:

• 24-bit ADC/DAC
• Speaker / microphone / headphone support

Power:

• Built-in 3.8V 470mAh battery
• USB PD fast charging
• USB-C

Physical:

• Dimensions: approx. 46 × 46 × 16 mm

Software:

• SiFli SF32 SDK

What's Included:

• 1 × LILYGO T-Display SF32 board

NOTES

• This listing is for the T-Display SF32 board only
• The Keyboard expansion is available as a separate product — add both to cart if you want the complete set
• Excellent platform for low-power AMOLED projects, portable LoRa devices, and wearable prototypes
