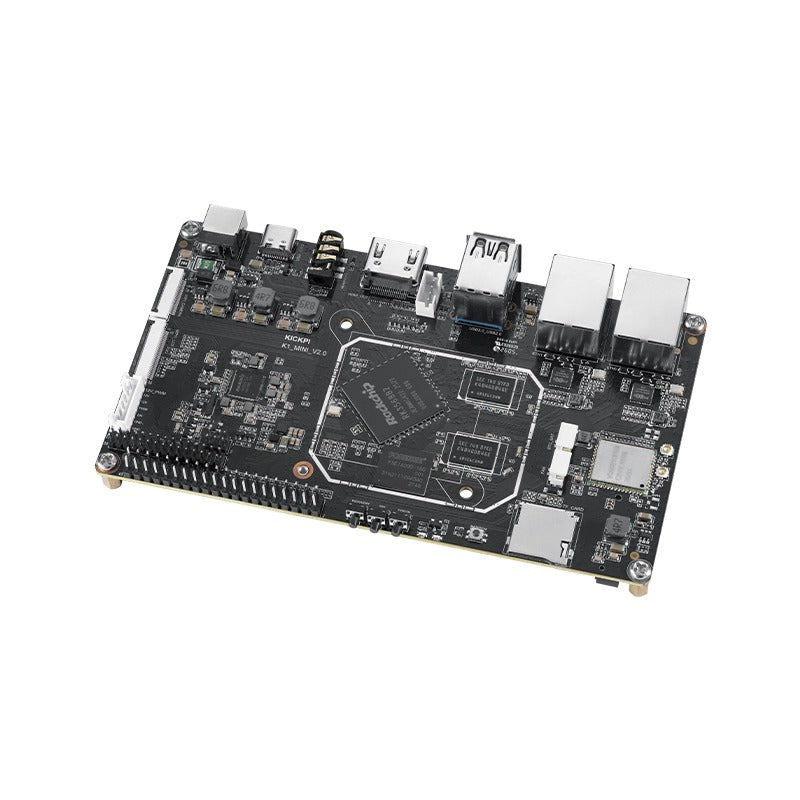

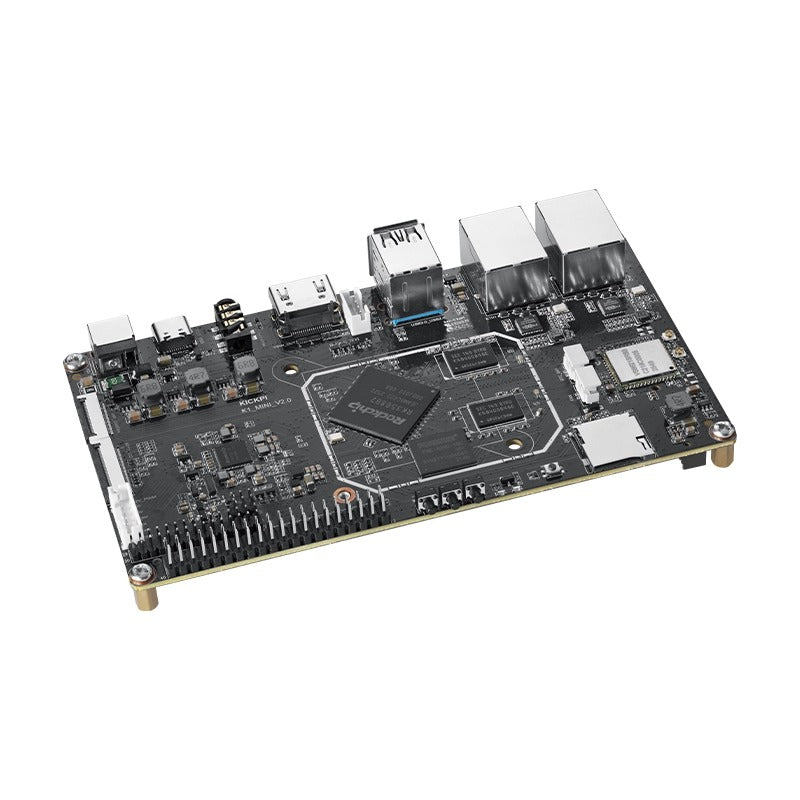

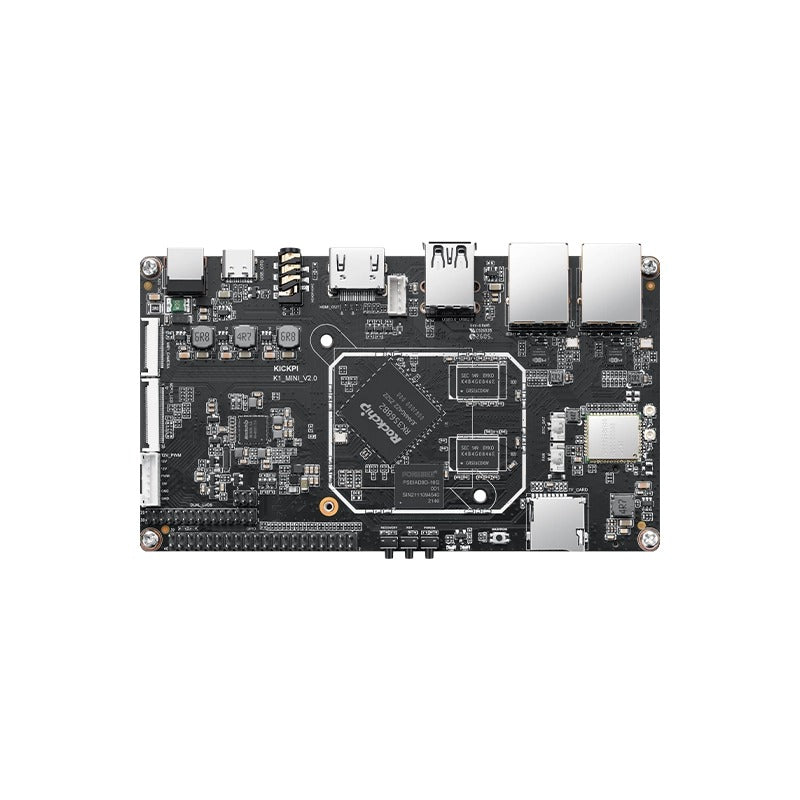

The KickPi K1-Mini is a compact single board computer built on the Rockchip RK3568B2 quad-core Cortex-A55 processor running at up to 2.0GHz. With dual Gigabit Ethernet, dual-band Wi-Fi and Bluetooth, an M.2 SSD slot, 4K HDMI output and support for MIPI DSI and LVDS panels, it is designed for IoT gateways, NVR storage, industrial control tablets, commercial displays and in-vehicle control projects. It ships with Android pre-installed on the onboard eMMC and also supports Debian, Ubuntu and Armbian.
KEY FEATURES
- Rockchip RK3568B2: Quad-core ARM Cortex-A55 up to 2.0GHz on a 22nm process, Mali-G52 2EE GPU and a 1 TOPS NPU for light AI workloads
- Dual Gigabit Ethernet: Two 1000M ports for stable, low-latency wired networking, plus dual-band 2.4G/5G Wi-Fi and Bluetooth (VS6621SR80)
- Multi-Display Output: HDMI up to 4096×2304@60Hz, dual MIPI DSI, single and dual LVDS, with dual- and triple-screen simultaneous/independent display
- 4K Video Decoding: 4K@60fps and 1080P@60fps video decode

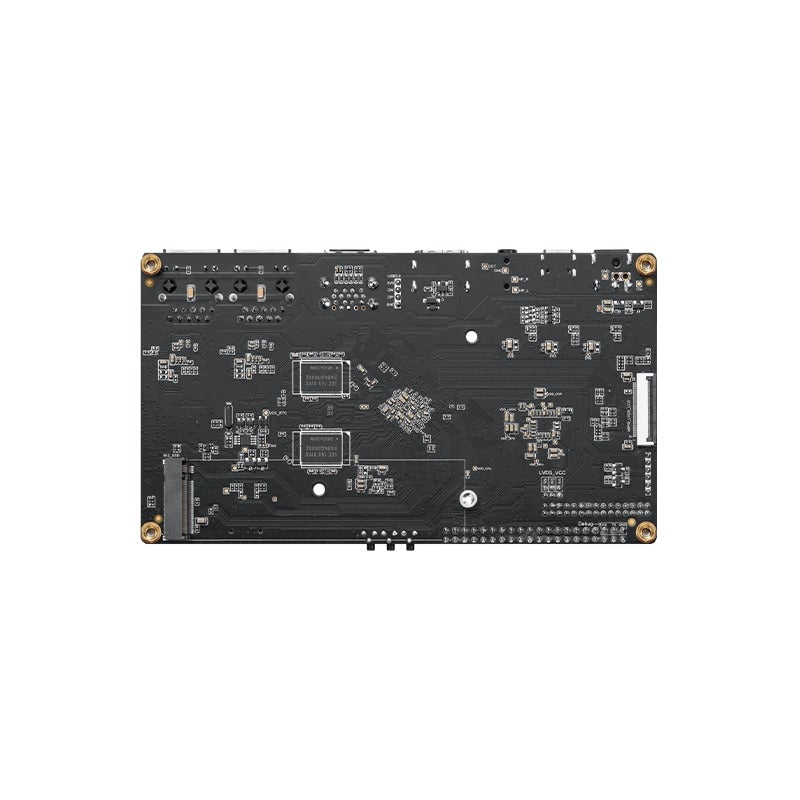

- Expandable Storage: Onboard eMMC plus TF card slot and an M.2 SSD slot
- 40-Pin Expansion Header: GPIO, UART, SPI, PWM, ADC, I2C, PDM, I2S and CAN
- Android & Linux: Android 13, Debian 11, Ubuntu 20.04 and Armbian
MULTI-SCREEN DISPLAY
Drive up to three screens at once using HDMI 4K@60Hz, MIPI DSI (1080P@60Hz) and single or dual LVDS (720P to 1080P@60Hz) panels, with support for simultaneous and independent display, ideal for digital signage, kiosks and HMI panels.
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | KickPi K1-Mini |
| SoC | Rockchip RK3568B2 |
| CPU | Quad-core ARM Cortex-A55, up to 2.0GHz |
| GPU | Mali-G52 2EE |
| NPU | RKNN 1 TOPS |
| Memory (RAM) | 2GB or 4GB (depending on option selected) |
| Storage (eMMC) | 16GB or 32GB onboard eMMC (depending on option selected) TF card slot M.2 SSD slot |

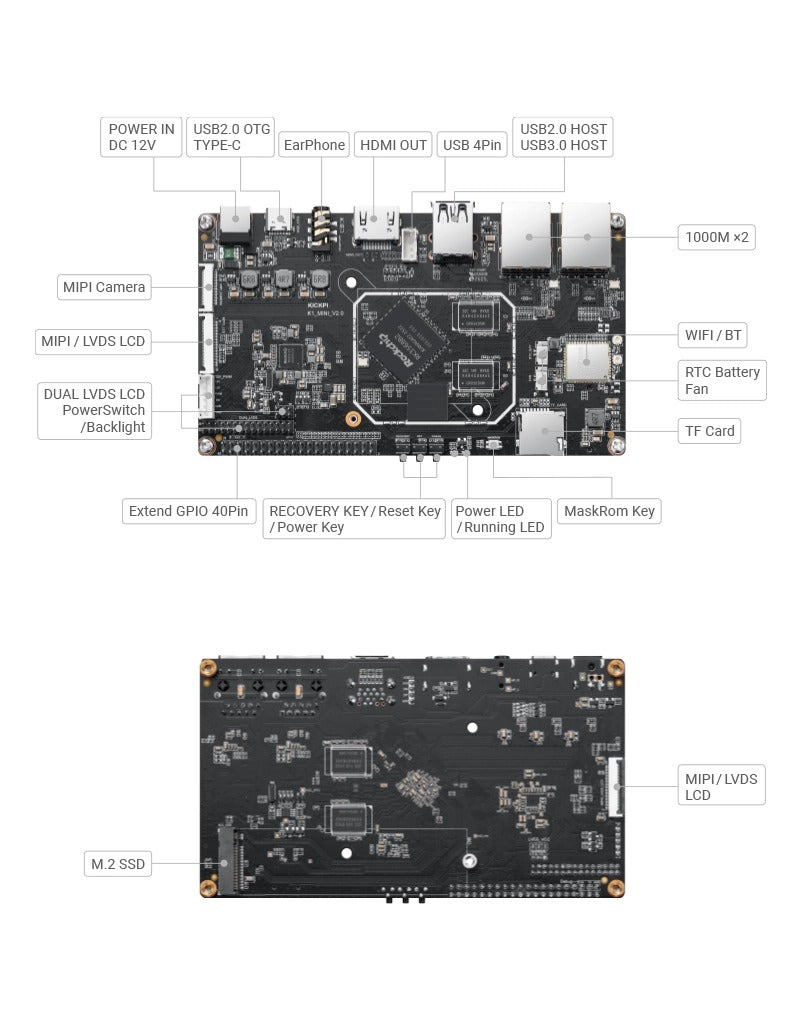

| Video Output | HDMI ×1, up to 4096×2304@60Hz MIPI DSI ×2, up to 1920×1080@60Hz Single LVDS ×2, up to 1280×720@60Hz Dual LVDS ×1, up to 1920×1080@60Hz |
| Camera | MIPI CSI 4-lane ×1 (OV5647 camera supported) |
| Audio | Earphone jack (audio output only) |
| Networking | Gigabit (1000M) Ethernet ×2 Dual-band Wi-Fi + Bluetooth (VS6621SR80) 4G mobile network supported |
| USB | USB 3.0 Type-A ×1 USB 2.0 Type-A ×1 USB 2.0 Type-C OTG ×1 |
| Expansion Header | 40-pin: GPIO ×26, UART ×5, SPI ×1, PWM ×10, ADC ×1, I2C ×2, PDM ×3, I2S ×1, CAN ×2 |
| Other | RTC, debug UART, fan header Power LED and running LED RESET, POWER, RECOVERY and MASKROM keys |
| Power | DC 12V (1.5A or higher) |
| Operating Systems | Android 13, Debian 11, Ubuntu 20.04, Armbian |
| PCB Size | 141 × 80 mm |
What's Included:
- 1 × KickPi K1-Mini single board computer (RAM/eMMC per selected option)
NOTES
- Variants differ only in RAM and eMMC capacity: 2GB RAM / 16GB eMMC or 4GB RAM / 32GB eMMC.
- Android AOSP is pre-installed on the onboard eMMC. To use another OS, KickPi recommends a TF (microSD) card of 16GB or larger for booting or flashing.
- Power: requires a 12V DC power supply rated at 1.5A or higher. A power supply is not listed as included.
- Default Linux logins per KickPi: Debian 11 linaro/linaro, Ubuntu 20.04 kickpi/kickpi.
- Install or remove MIPI displays only with the board powered off.
- OS images, documentation and support are provided by KickPi at kickpi.com and doc.kickpi.com.
