KickPi K7C
KickPi K7C
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
The KickPi K7C is a compact RK3576 single board computer that brings octa-core performance (quad Cortex-A72 + quad Cortex-A53), a Mali-G52 MC3 GPU and a 6 TOPS NPU to a 110 × 75 mm board powered over USB Type-C. It offers HDMI up to 4K@120Hz, Gigabit Ethernet, dual-band Wi-Fi and Bluetooth, 4G module support and three MIPI CSI camera inputs, making it a strong fit for AI edge devices, HMI panels, smart displays and IoT projects. Android 14 is pre-installed on the onboard eMMC, with Debian 12 and Ubuntu 24.04 also supported.
KEY FEATURES
- Rockchip RK3576 Octa-Core: Quad Cortex-A72 + quad Cortex-A53 with Mali-G52 MC3 graphics
- 6 TOPS NPU: Built-in RKNN NPU for AI inference, image recognition and computer vision
- Compact & USB-C Powered: 110 × 75 mm board running from a 5V Type-C supply
- 4K@120Hz HDMI: Plus a MIPI DSI display interface for embedded screens
- Connectivity: Gigabit Ethernet, dual-band Wi-Fi and Bluetooth (VS6621SR80), and 4G module support (Quectel EC20/EC200)
- Triple Camera Input: Three 4-lane MIPI CSI camera interfaces
- Android & Linux: Android 14, Debian 12 and Ubuntu 24.04
SMALL BOARD, BIG PERFORMANCE

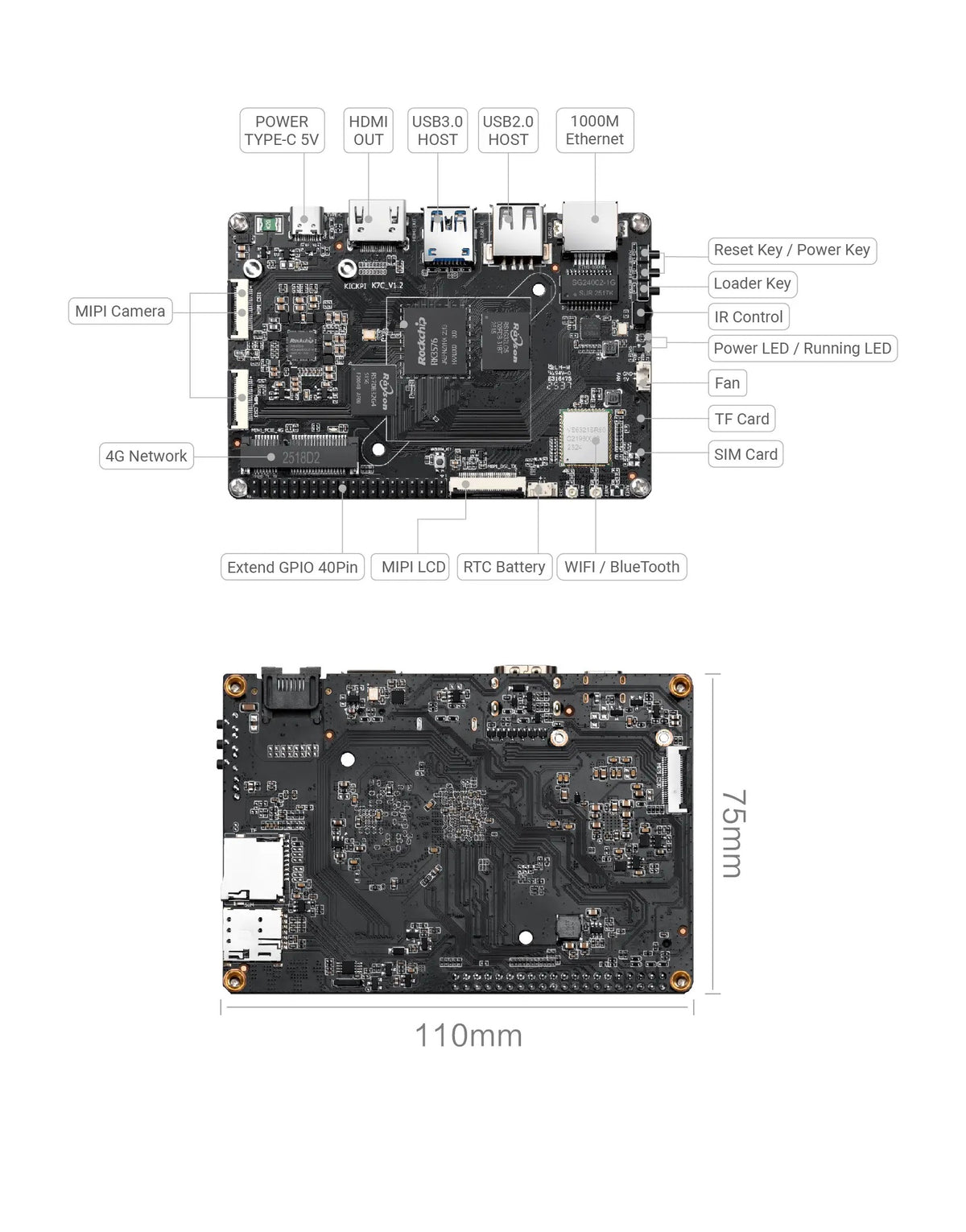

The K7C keeps the RK3576 octa-core CPU and 6 TOPS NPU in a smaller footprint, with USB 3.0 and USB 2.0 host ports, an IR receiver, RTC, a fan header and a 40-pin expansion header with UART, SPI, PWM, ADC, I2C, I3C, CAN and USB.
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | KickPi K7C |
| SoC | Rockchip RK3576 |
| CPU | Quad-core Cortex-A72 + quad-core Cortex-A53 |
| GPU | Mali-G52 MC3 |
| NPU | RKNN 6 TOPS |
| Memory (RAM) | 3GB or 4GB (depending on option selected) |
| Storage (eMMC) | 32GB onboard eMMC TF card slot |
| Video Output | HDMI ×1, up to 4K@120Hz MIPI DSI ×1 |
| Camera | MIPI CSI 4-lane ×3 |
| Networking | Gigabit (1000M) Ethernet ×1 Dual-band Wi-Fi + Bluetooth (VS6621SR80) 4G (EC20/EC200) module support |
| USB | USB 3.0 Host ×1 USB 2.0 Host ×1 USB 2.0 Type-C OTG / USB debug ×1 |
| Expansion Header | 40-pin: UART ×4, SPI ×1, PWM ×7, ADC ×3, I2C ×2, I3C ×1, GPIO ×23, PDM ×1, CAN ×1, USB ×1 |
| Other | IR receiver, RTC (HYM8563), debug serial port, cooling fan header (5V) Power LED and work LED Recovery, Reset, Maskrom and Power buttons |
| Not Supported | Onboard speaker, headphone and microphone; M.2 drive |
| Power | USB Type-C 5V (2A or higher) |
| Operating Systems | Android 14, Debian 12, Ubuntu 24.04 |
| PCB Size | 110 × 75 mm |
What's Included:
- 1 × KickPi K7C single board computer (RAM/eMMC per selected option)
NOTES
- Variants differ only in RAM: 3GB RAM / 32GB eMMC or 4GB RAM / 32GB eMMC.
- Android 14 AOSP is pre-installed on the onboard eMMC. To use another OS, KickPi recommends a TF (microSD) card of 16GB or larger for booting or flashing.
- Power: requires a USB Type-C 5V power supply rated at 2A or higher. A power supply is not listed as included.
- The K7C has no M.2 slot and no onboard audio (speaker, headphone or microphone).
- Some generic HDMI displays may flicker; KickPi recommends trying another display or lowering the HDMI resolution/refresh rate.
- Default Linux logins per KickPi: Debian 12 linaro/linaro, Ubuntu 24.04 kickpi/kickpi.
- Install or remove MIPI displays only with the board powered off.
- OS images, documentation and support are provided by KickPi at kickpi.com and doc.kickpi.com.
