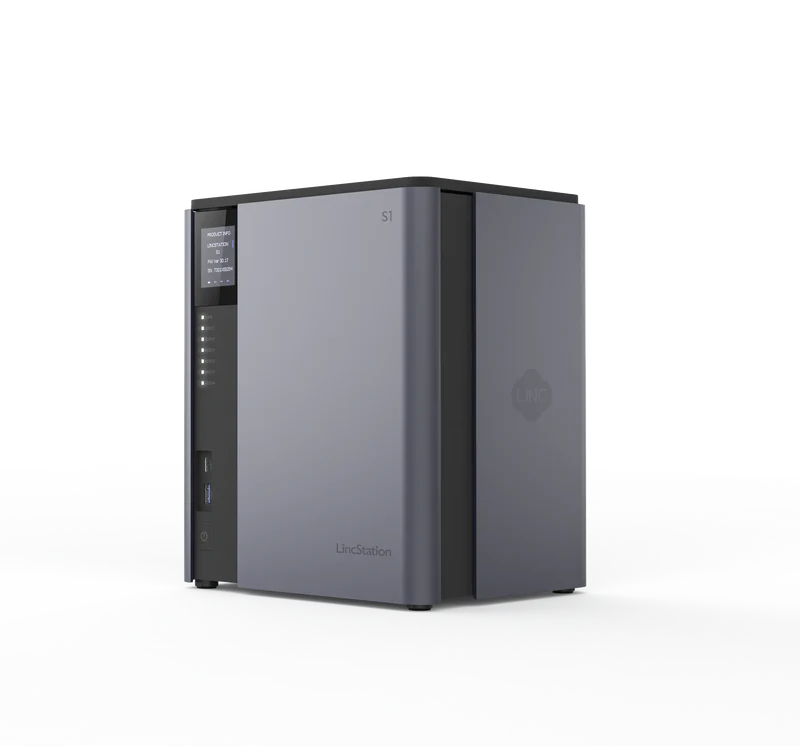

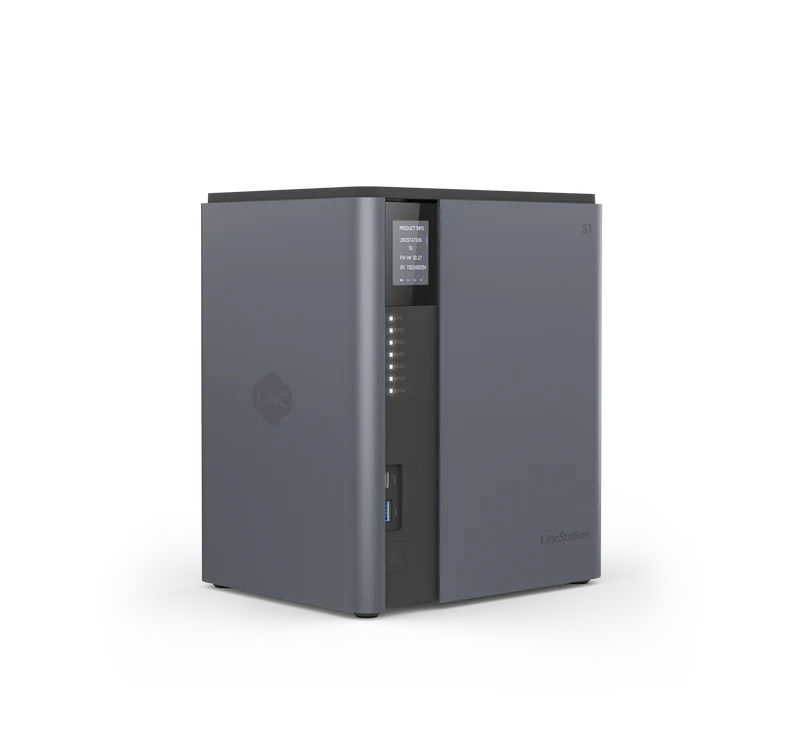

The LincStation S1 is a powerful 6-bay network attached storage (NAS) that goes beyond simple file storage. It functions as a full-featured private cloud and home server with no monthly fees. Pre-installed with Unraid OS (Starter license included), it supports complete Docker container management with one-click application deployment, as well as virtualization for running Android, Linux, or Windows virtual machines with hardware pass-through. Powered by the efficient Intel Alder Lake-N N97 processor, 8GB DDR5 RAM, and 128GB eMMC storage, the S1 delivers reliable performance for backups, 4K media streaming, remote access, and multi-user sharing. Using Unraid's flexible disk array technology, your data remains safe even if a drive fails, providing maximum protection without traditional RAID limitations. Secure remote access and layered security mechanisms keep your private cloud protected while allowing easy file management from anywhere.
Key Features
- Full Docker & Virtualization Support – One-click deployment of Docker apps and the ability to create virtual machines (Android, Linux, Windows) with hardware pass-through (Unraid version).
- Unraid OS Starter License Included – Flexible storage management, no data loss on single-disk failure, automatic backups, remote downloads, intelligent photo albums, music playback, and smart partitioning.

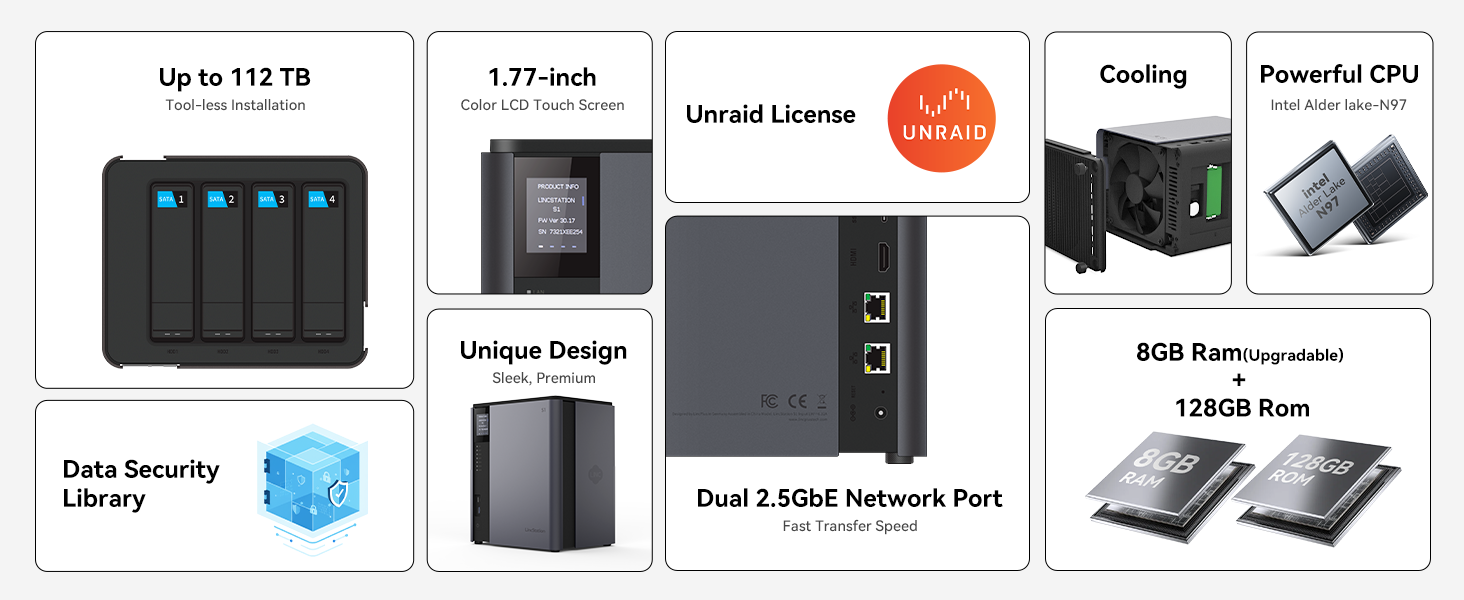

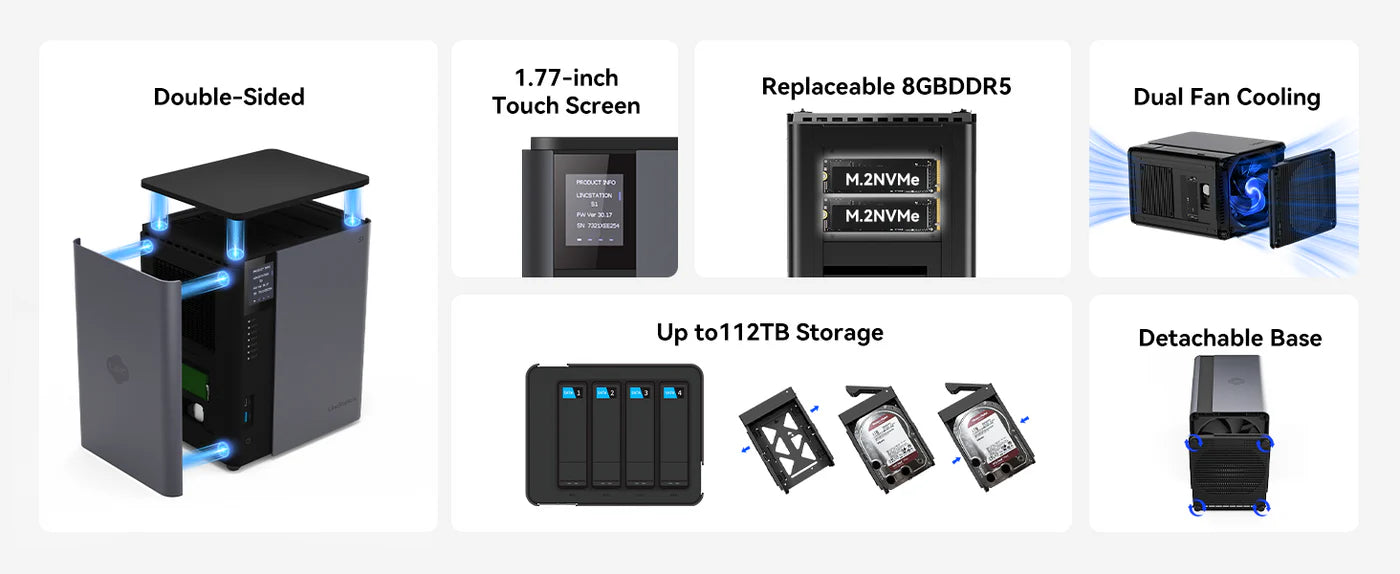

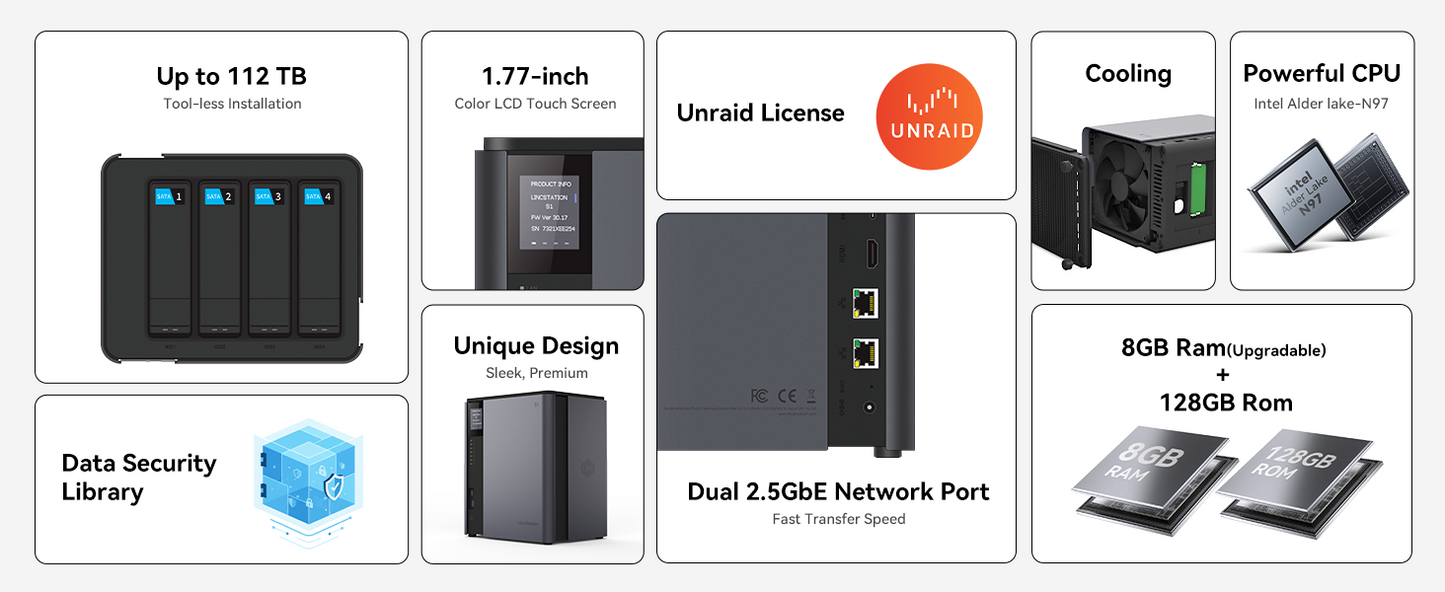

- High-Capacity Hybrid Storage – 4× 3.5"/2.5" SATA bays + 2× M.2 2280 NVMe SSD slots for up to 112TB total capacity.
- Fast Networking & Connectivity – Dual 2.5GbE RJ45 ports, HDMI 2.0, multiple USB 3.2 Gen 2 ports (Type-A & Type-C), USB 2.0 ports, and rich front-panel indicators.
- Powerful Yet Efficient Processor – Intel Alder Lake-N N97 (4 cores/4 threads, up to 3.6 GHz, 12W TDP) for smooth multitasking and demanding workloads.
- Private Cloud & Remote Access – Centralized storage, secure sharing, and remote file access with deep multi-layer security protection.

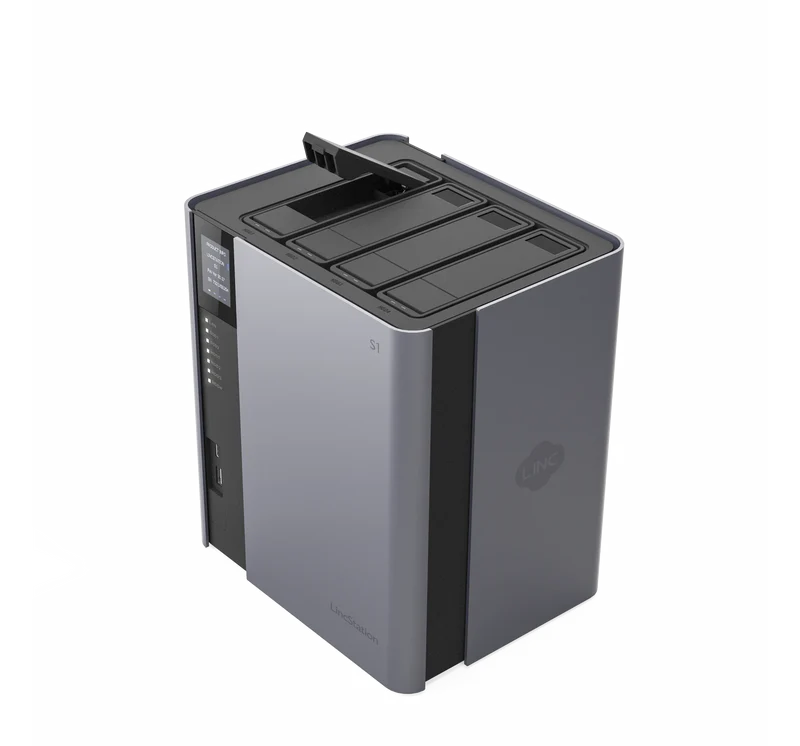

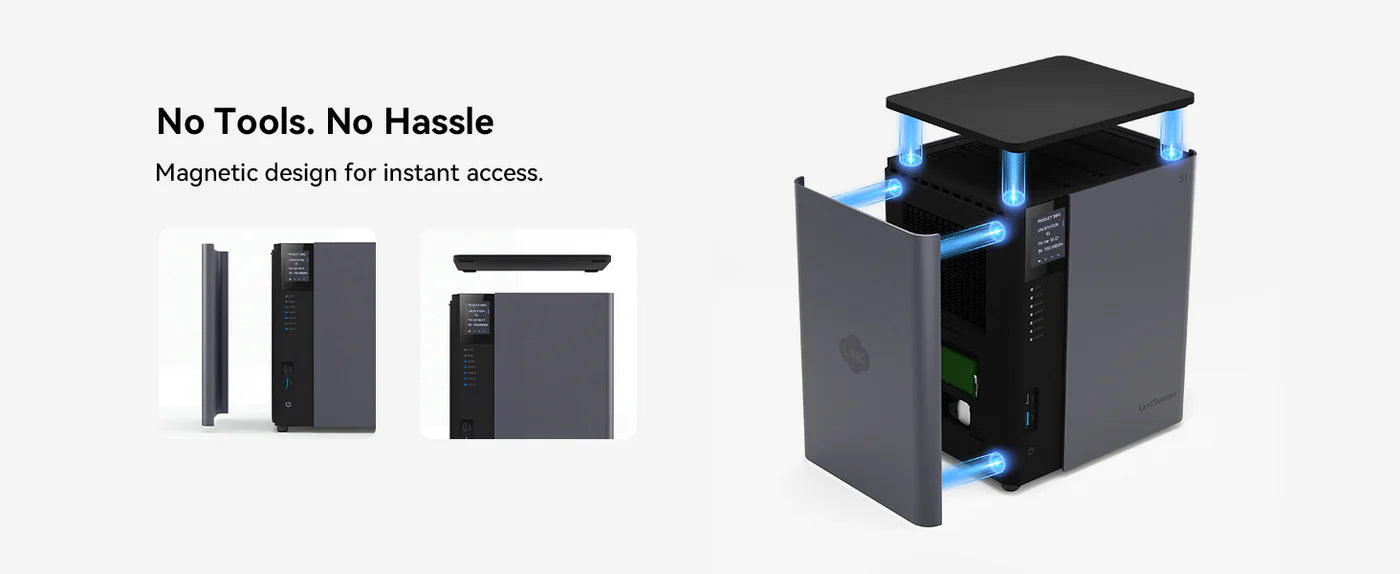

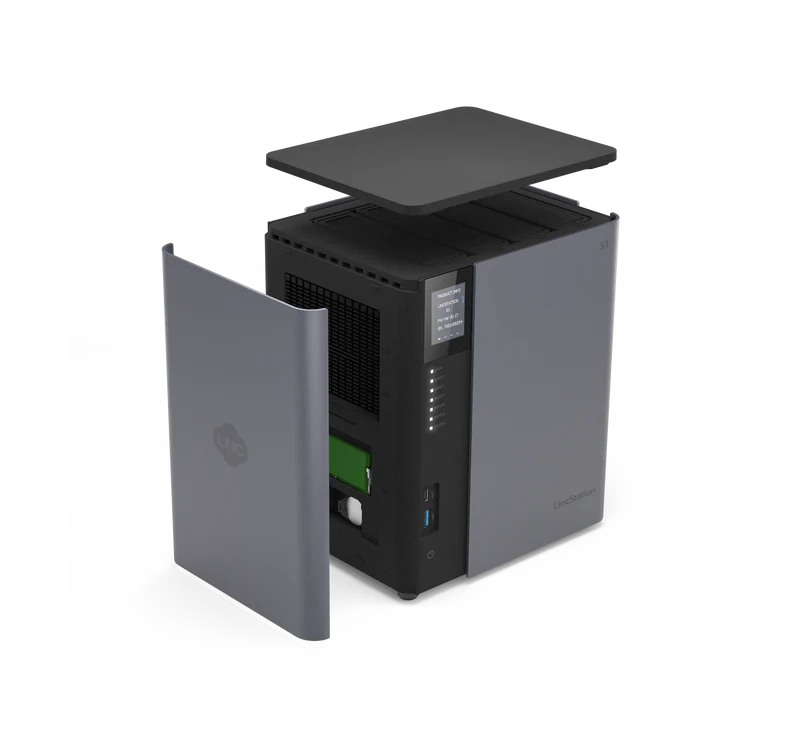

- User-Friendly Design – Tool-free drive installation, front status indicators, LED light strip, and intuitive Unraid interface.
Specifications
| Category | Details |
|---|---|
| CPU | Intel Alder Lake-N N97, 4 cores 4 threads, up to 3.6 GHz, 12W TDP |
| OS | Unraid OS (Starter license included) |
| Memory | 8GB DDR5 SODIMM (replaceable up to 32GB) |
| Built-in Storage | 128GB eMMC (This is used for the operating system, rather than something that's user accessible) |
| SATA Bays | 4-bay (supports 2.5"/3.5" HDD/SSD, SATA 3.0) |
| M.2 Slots | 2-bay M.2 2280 (NVMe protocol) |
| USB Ports | 2× USB 3.2 Gen 2 Type-C 2× USB 3.2 Gen 2 Type-A 2× USB 2.0 Type-A |
| HDMI | 1× HDMI 2.0 (Type A) |
| Network | 2× 2.5GbE RJ45 |
| Power | 20V 7A DC (φ5.5 × 2.5mm) |

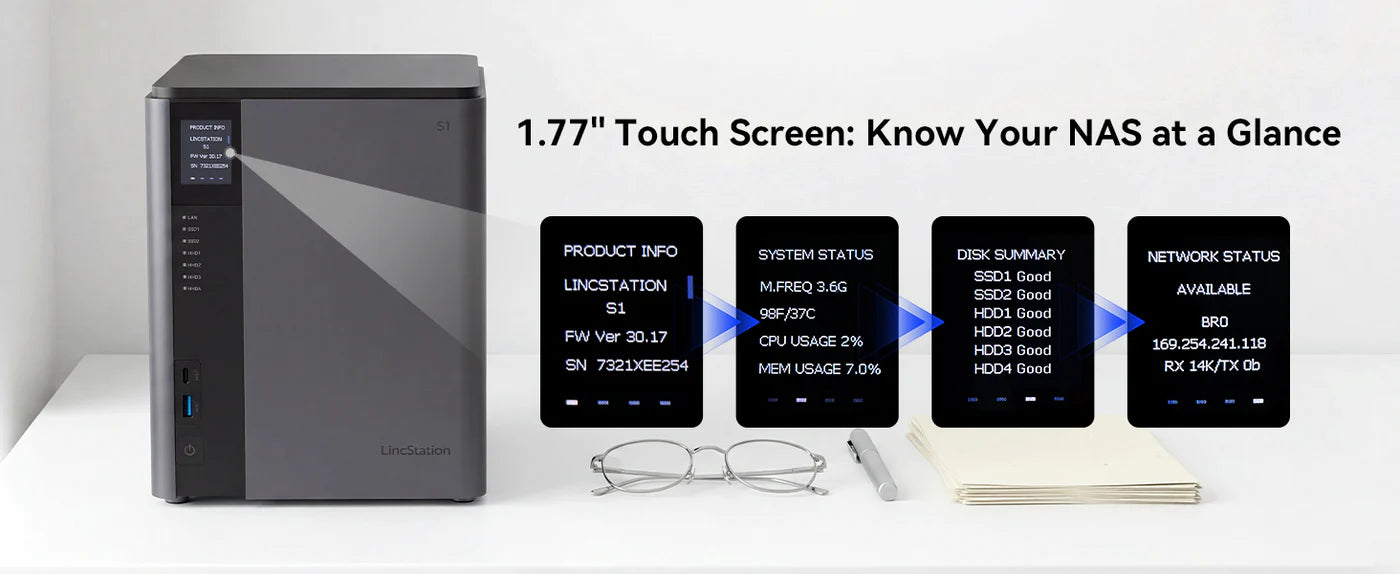

| Buttons & Switches | Power button ×1 Toggle switch 1: LCD screen on/off Toggle switch 2: Indicator lights front/back/off |

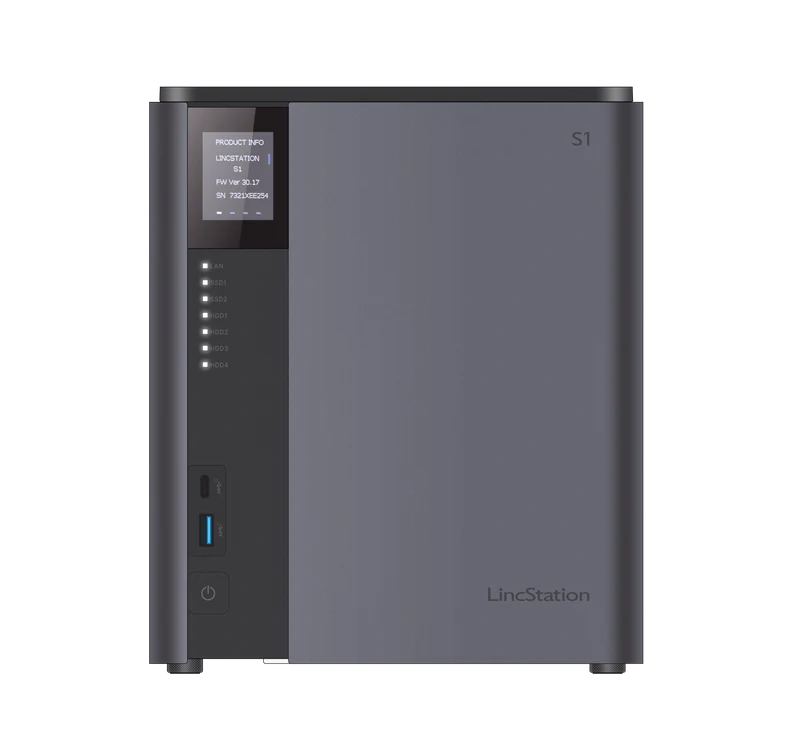

| Indicators | 1× Power, 1× Network, 4× SATA HDD, 2× NVMe, 8× side LED strip |

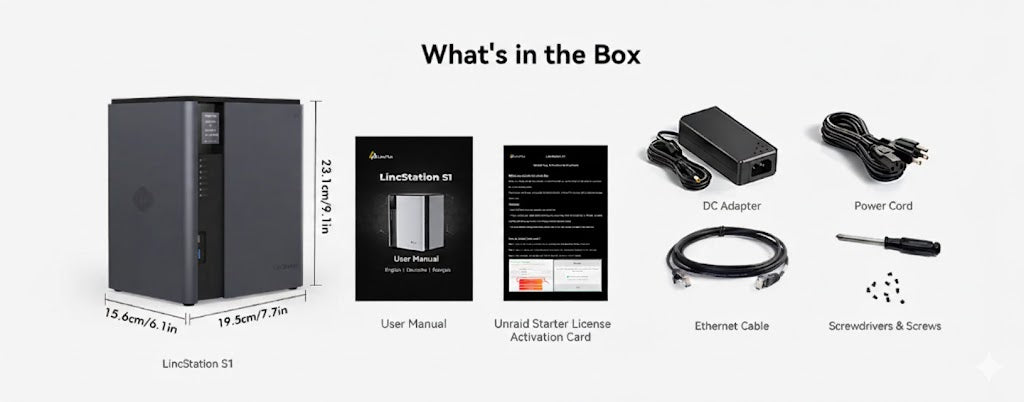

| Dimensions | 195 × 156 × 231 mm (7.7 × 6.1 × 9.1 in) |
| Weight | 2.9 kg (6.4 lbs) |
