Mixtile Blade 3

The Mixtile Blade 3 is a Pico-ITX 2.5-inch form factor edge computing unit, with a high-performance Octa-Core Rockchip RK3588 and low-latency 4x PCIe Gen3 for stackability. It is the perfect solution for applications requiring versatile functionality and reliable performance.

Mixtile Blade 3 can be used as a standalone SBC, but it is primarily designed to build a 4-node cluster via PCIe Gen3 ports with customized breakout boards and cables. And the daisy-chain topology used to cluster Mixtile Blade 3 boards is more economical, more user-friendly and faster than the alternatives. Users can even create an ARM Server with clusters of up to 75 Blade 3 SBCs in a standard 2U, 19-inch chassis.

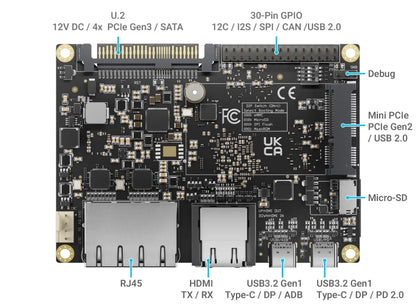

SPECIFICATIONS

• Rockchip Octa-core Cortex-A76/A55 SoC processor RK3588
• Up to 32GB LPDDR4 memory and up to 256GB eMMC storage
• NPU up to 6 TOPS
• HDMI 2.1 out 8K@60fps, HDMI 2.0 in 4K@60fps, 4-lane MIPI-DSI
  • H.265/H.264/VP9 video decoder up to 8K@60fps
  • H.264/H.265 video encoder up to 8K@30fps
• 4-lane PCIe Gen3 in U.2 port
• SATA 3.0 in U.2 port
• Dual 2.5 Gigabit Ethernet Ports, link aggregation
• Micro-SD 3.0 Flash Expansion Socket
• Mini-PCIe socket with PCIe Gen2.1 and USB 2.0
• Dual USB 3.2 Gen1 Type-C ports with DisplayPort 1.4a
• 30-pin GPIO socket,
  • Digital I/O, I2C, USB 2.0, TTL UART, SPI, I2S

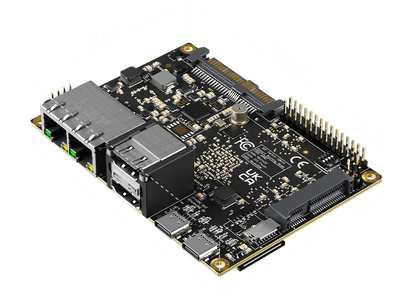

• 2.5-inch Pico-ITX (100 x 72mm), fanless
• Power input supports PD 2.0 over USB-1 Type-C Port, 12V DC standard SATA power over U.2 port
• 0 to +80°C operating temperature
• Preload customized Debian 11, will support other Linux distributions and Android 12
