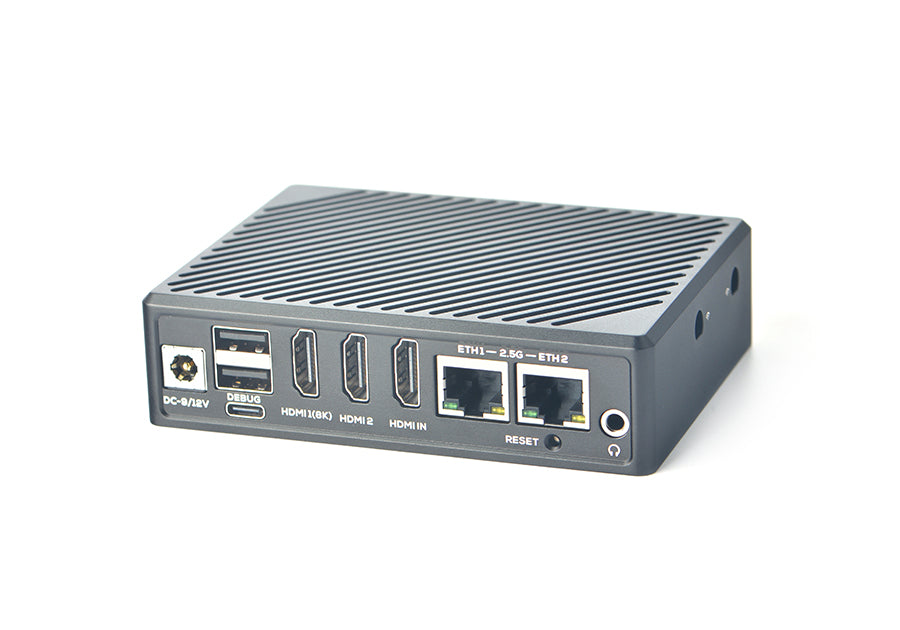

NanoPC-T6-LTS + Metal Case
NanoPC-T6-LTS + Metal Case
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Description ▼

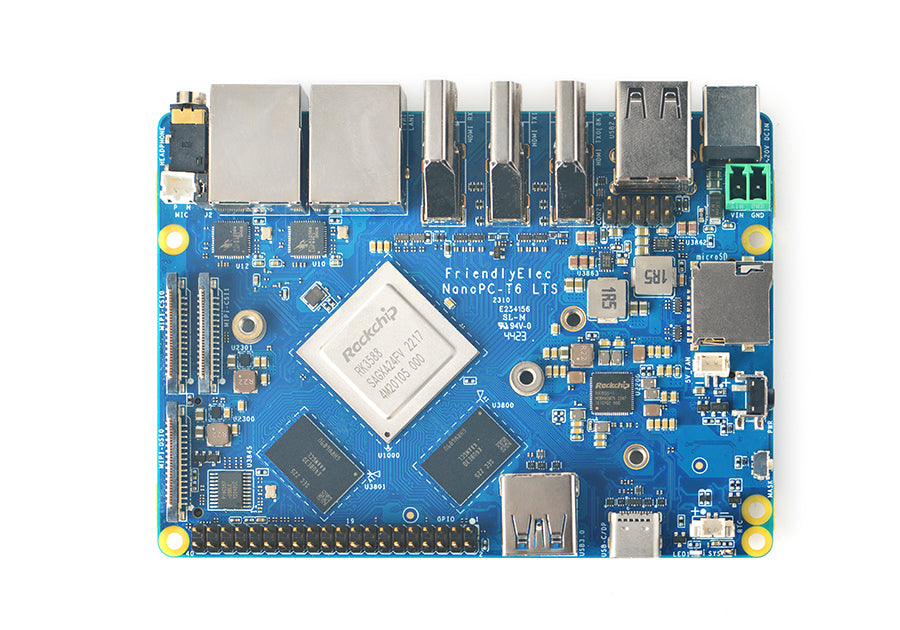

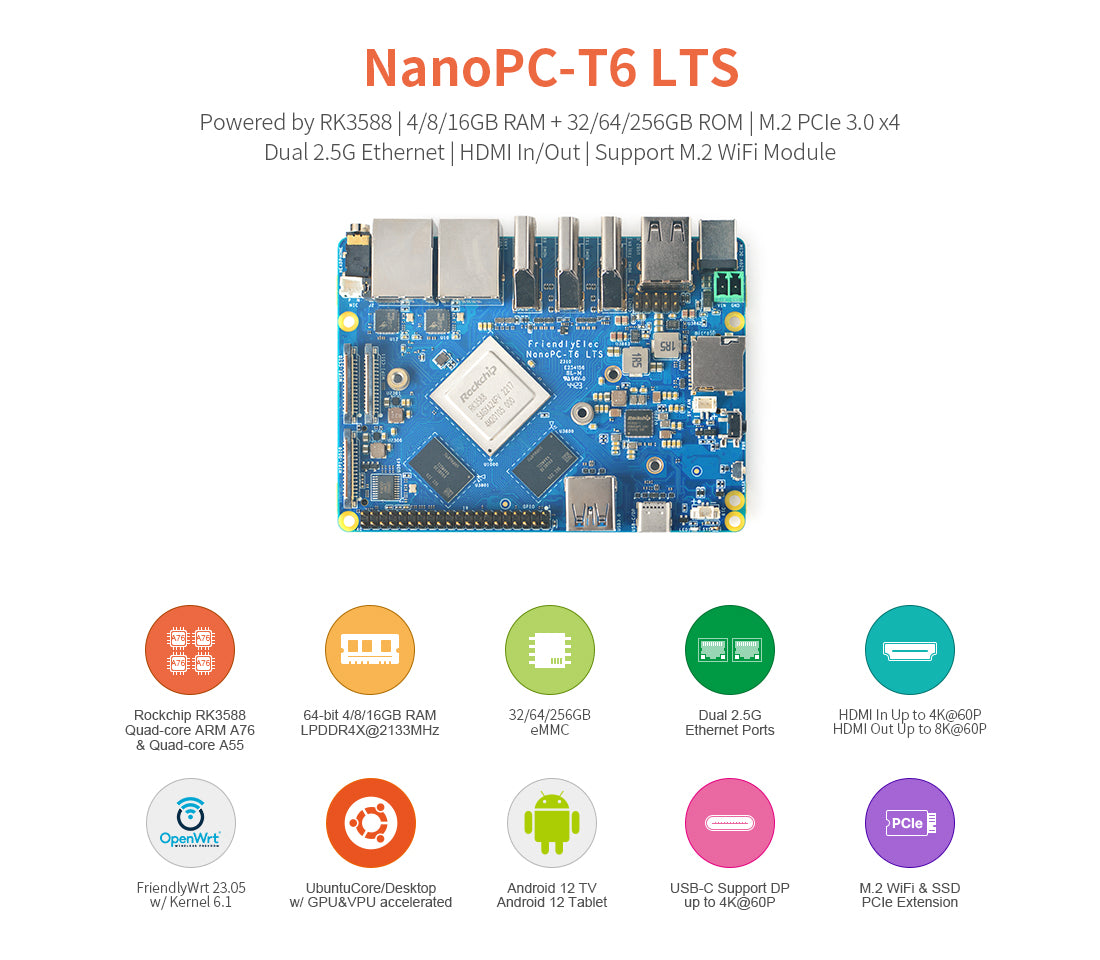

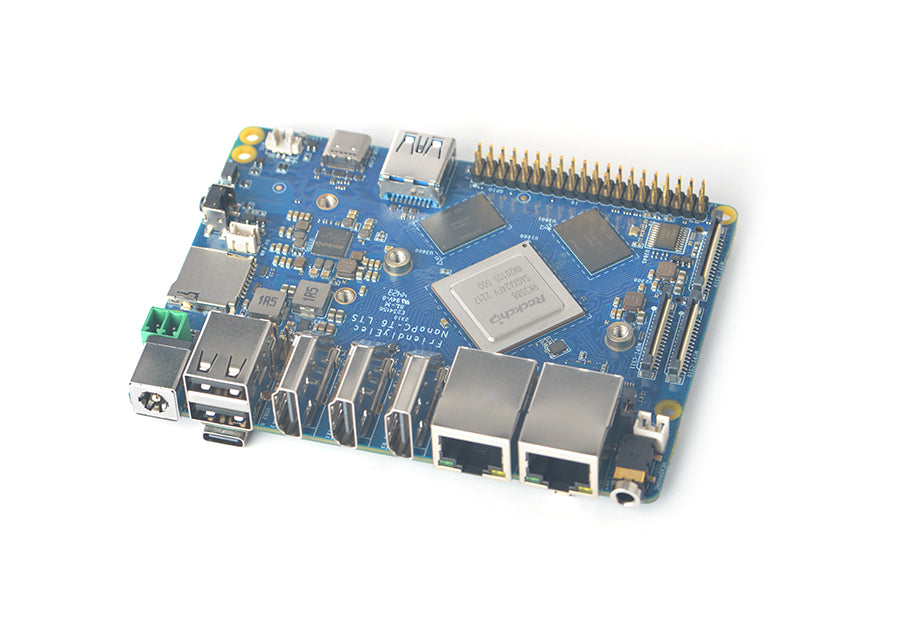

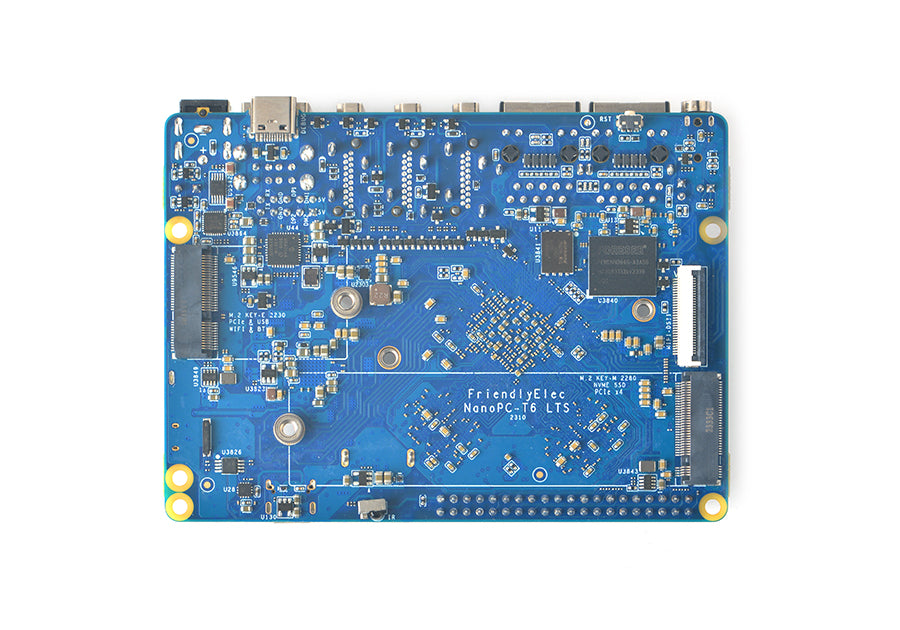

FriendlyELEC NanoPC-T6 LTS
The NanoPC-T6 LTS is a high-performance Rockchip RK3588 single-board computer with 8GB LPDDR4X RAM, 64GB eMMC, and a protective case. It offers 8K video, a 6 TOPS NPU, dual 2.5GbE networking, HDMI in/out, M.2 NVMe, and rich I/O for desktop Linux, Android, NAS, AI, and industrial projects.
KEY FEATURES
- Rockchip RK3588 — 4× Cortex-A76 + 4× Cortex-A55
- 8GB LPDDR4X RAM
- 64GB eMMC
- 6 TOPS NPU
- Dual 2.5GbE Ethernet
- 8K HDMI output plus HDMI input
- M.2 NVMe slot (PCIe 3.0 x4)
- USB-C with DisplayPort, USB 3.0, GPIO, MIPI CSI/DSI
- Includes case
SPECIFICATIONS
| Category | Details |
|---|---|
| CPU | Model: Rockchip RK3588 Cores: Quad-core ARM Cortex-A76 + Quad-core Cortex-A55 Frequency: Cortex-A76 up to 2.4 GHz, Cortex-A55 up to 1.8 GHz |
| GPU | Mali-G610 MP4 OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2, Vulkan 1.2 |
| NPU | 6 TOPS, supports INT4 / INT8 / INT16 / FP16 |
| VPU | 8K@60fps H.265 / VP9 decode 8K@30fps H.264 decode 4K@60fps AV1 decode 8K@30fps H.264 / H.265 encode |
| Memory | 8GB LPDDR4X, 64-bit, 2133 MHz |
| Storage | 64GB eMMC (HS400) 32MB SPI NOR flash 1 × microSD slot (up to SDR104) 1 × M.2 M-Key PCIe 3.0 x4 for NVMe SSD |
| Networking | 2 × 2.5GbE Ethernet (RTL8125BG) 1 × M.2 E-Key (PCIe 2.1 x1 + USB 2.0) for Wi-Fi / Bluetooth module |
| Video Output | 2 × HDMI (one up to 7680×4320@60Hz, one up to 4K@60Hz) USB-C DP up to 4K@60Hz 2 × 4-lane MIPI-DSI |
| Video Input | 1 × HDMI input up to 4K@60Hz 2 × 4-lane MIPI-CSI |
| USB | 2 × USB 2.0 Type-A 1 × USB 3.0 Type-A 1 × USB-C (full function, DP + USB 3.0) 1 × USB-C debug UART |
| Audio | 3.5mm headphone jack Analog microphone input |
| GPIO | 40-pin 2.54mm header (SPI, UART, I2C, PWM, I2S, GPIO) 10-pin header with debug UART and USB 2.0 |
| Others | MASK / Reset / Power buttons SYS LED (Red), LED1 (Green) IR receiver (38 kHz) RTC battery connector (HYM8563TS) 5V fan connector Working temperature: 0℃ to 70℃ |
| Power | 12V DC via 5.5×2.1mm jack or 2-pin 3.5mm connector 65W supply recommended at full load |
| OS Support | Alpine Linux 3.23 Android 14 Tablet / Android 14 TV Buildroot - Weston (Wayland) Debian 12 Desktop XFCE / Debian 13 Core / Debian 13 Desktop GNOME FriendlyCore 20.04 Qt5 FriendlyWrt 25.12 OpenMediaVault 8.0.6 Proxmox VE 8.2.7 Ubuntu 22.04 Desktop XFCE / Ubuntu 24.04 Desktop GNOME |
| Kernel | Linux-6.1-LTS U-boot-2017.09 *Firmware is continuously updated; refer to the actual version provided by the wiki |
| Dimensions | 110 × 80 × 1.6 mm (board) 86 × 114.5 × 30 mm (with case) |
What's Included:
- 1 × NanoPC-T6 LTS (8GB LPDDR4X / 64GB eMMC)
- 1 × Case
NOTES
- This unit has 8GB RAM, 64GB eMMC, and includes the case (Antennas not included)
- A 12V power supply is required (65W recommended for full-load use)
- Wi-Fi / Bluetooth requires an M.2 E-key module
- Excellent platform for desktop Linux, Android, NAS, AI inference, and high-performance embedded projects
